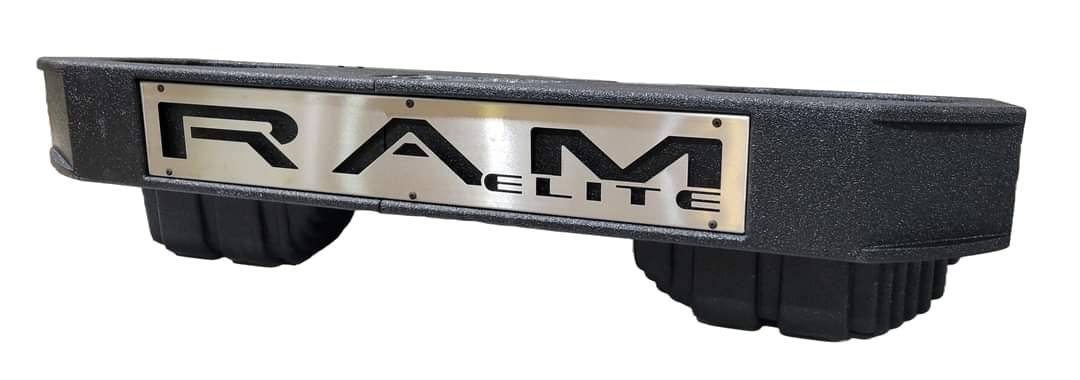

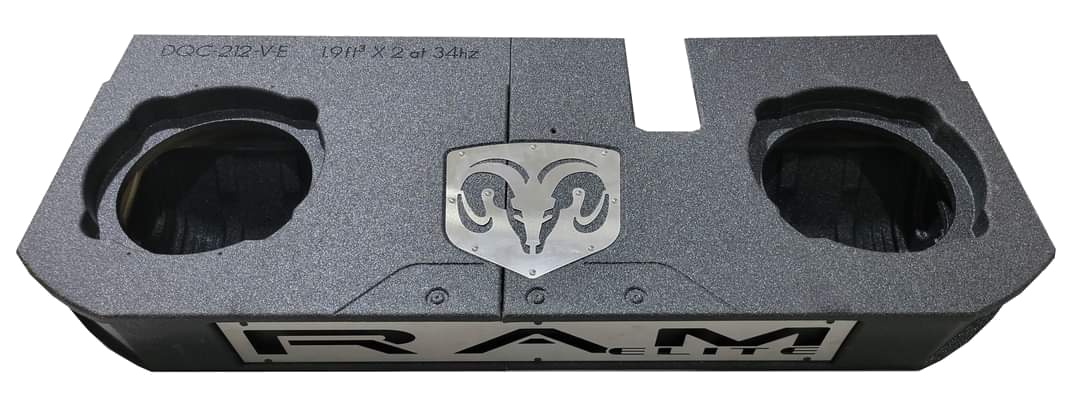

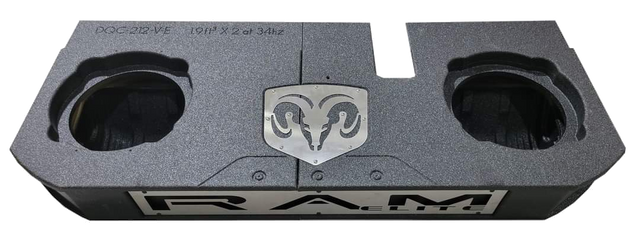

FOX BOX Ram Quad & Crew Cab Elite Dual 12-Inch Vented Sub Box with 2.5-Inch Lift
Key features
- Elite dual 12-inch enclosure with 34 Hz tuning.
- 1.9 cubic feet of air volume per subwoofer.
- Included 2.5-inch steel seat-lift kit.
- Laser-cut stainless Ram badging and cup holder kit included.
- Optional 12-to-10-inch adapter configuration.
FOX BOX Ram Quad & Crew Cab Elite Dual 12-Inch Vented Sub Box with 2.5-Inch Lift - 12"- NO ADAPTER NEEDED is backordered and will ship as soon as it is back in stock.
FOX BOX Ram Quad & Crew Cab Elite Dual 12-Inch Vented Sub Box with 2.5-Inch Lift - 12"- NO ADAPTER NEEDED is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
This Fox Box enclosure is supplied empty and is shaped for the vehicle application listed in the specifications. Its physical layout is the mounting layout listed below.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Elite dual 12-inch enclosure with 34 Hz tuning.
- 1.9 cubic feet of air volume per subwoofer.
- Included 2.5-inch steel seat-lift kit.
- Laser-cut stainless Ram badging and cup holder kit included.
- Optional 12-to-10-inch adapter configuration.
Technical Specifications
| Model | DQC-212-V-E |
|---|---|
| Series | Elite |
| Vehicle application | 2002–2018 third- and fourth-generation Ram 1500/2500/3500 Quad and Crew Cab; 2019 and newer fifth-generation 2500/3500 Quad and Crew Cab; 2019 and newer Classic-body 1500/2500/3500 Quad and Crew Cab |
| Excluded application | Fifth-generation Ram 1500 |
| Enclosure type | Vented |
| Subwoofer configuration | Two 12-inch subwoofers; optional 10-inch adapter rings |
| Mounting cutout | 11.15 inches |
| Mounting depth | 7.75 inches |
| Maximum magnet diameter | 7.5 inches |
| Internal air volume | 1.9 cu ft per subwoofer |
| Tuning frequency | 34 Hz |
| Required seat lift | 2.5 inches; steel kit included |
| Other included accessories | Laser-cut stainless Ram badging; cup holder kit |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 7.75 inches. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Does not fit the fifth-generation Ram 1500. Check the body generation as well as the year and cab style; a 2019 or newer Classic is a different application from the fifth-generation 1500.
- Install the included 2.5-inch steel seat-lift kit; it is required for proper fit.
- Subwoofers with larger frames may require the installer to trim the mounting opening. Compare the cutout, depth and magnet dimensions before selecting a subwoofer.
- Do not route the amplifier power cable beneath the enclosure. The close fit can cause a large cable to raise the box into the seat.
- Choose the 12-to-10-inch adapter configuration only for compatible 10-inch subs.
Frequently Asked Questions
Is the 2.5-inch lift kit included?
Yes. The steel seat-lift kit is included and required.
Are cup holders included with Elite?
Yes. The listed Elite inclusions are the cup holder kit, laser-cut stainless Ram badging and 2.5-inch steel seat-lift kit.
Does this fit a fifth-generation Ram 1500?
No. Fifth-generation 1500 models are excluded; the stated fifth-generation application is 2500/3500.
