FOX BOX Ram Quad & Crew Cab Single 10-Inch Sealed Driver-Side Sub Box
Key features
- Single 10-inch sealed driver-side enclosure.
- 0.50-cubic-foot internal air volume.
- 6-inch mounting depth and 7-inch maximum magnet diameter.
- No seat lift required.
- Optional one-piece 10-to-8-inch adapter ring.
FOX BOX Ram Quad & Crew Cab Single 10-Inch Sealed Driver-Side Sub Box - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
FOX BOX Ram Quad & Crew Cab Single 10-Inch Sealed Driver-Side Sub Box - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

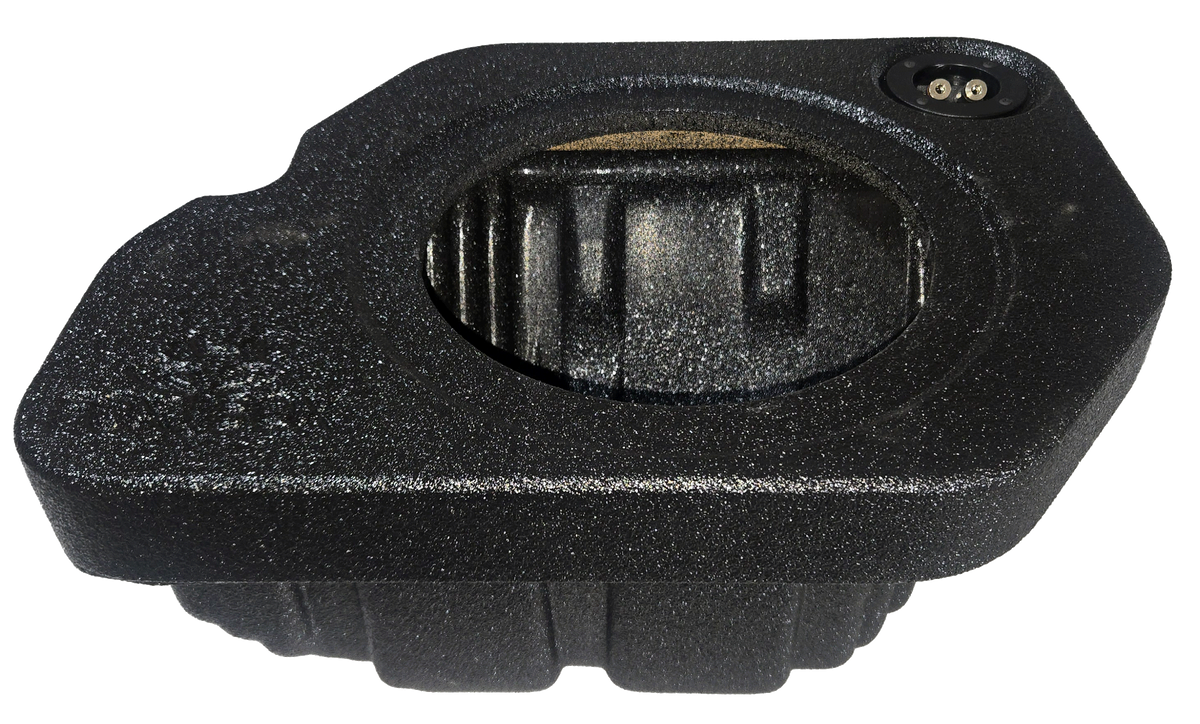

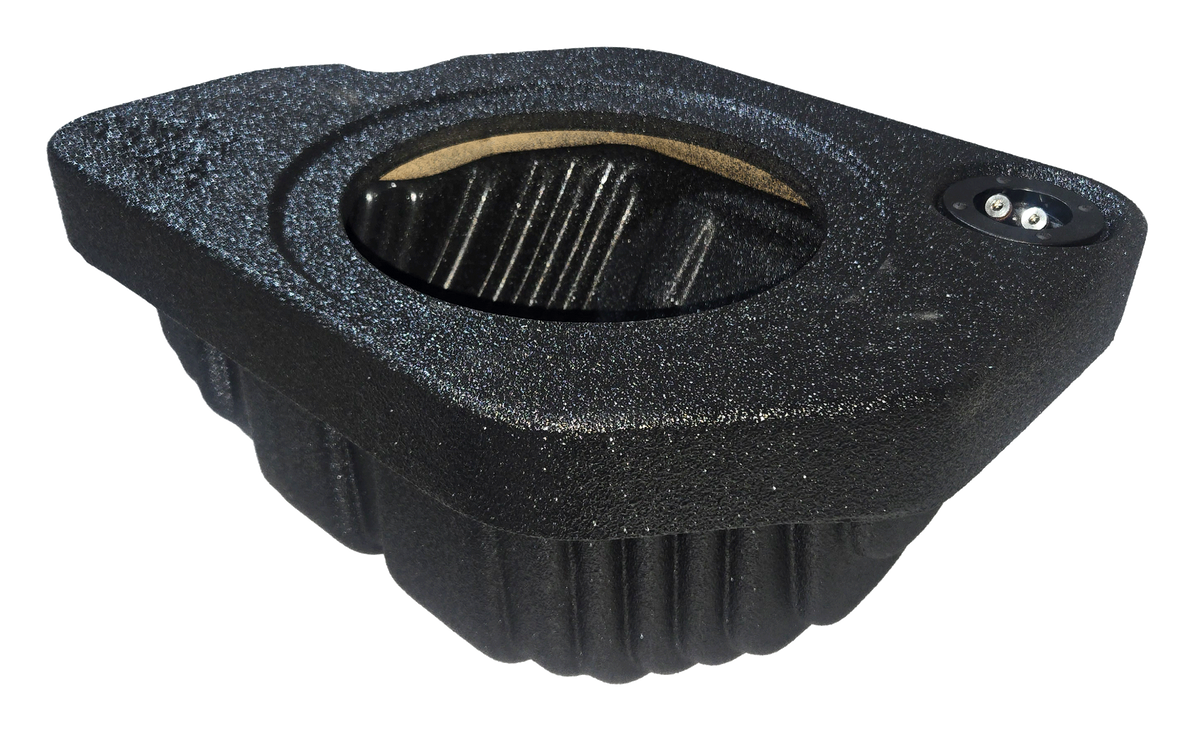

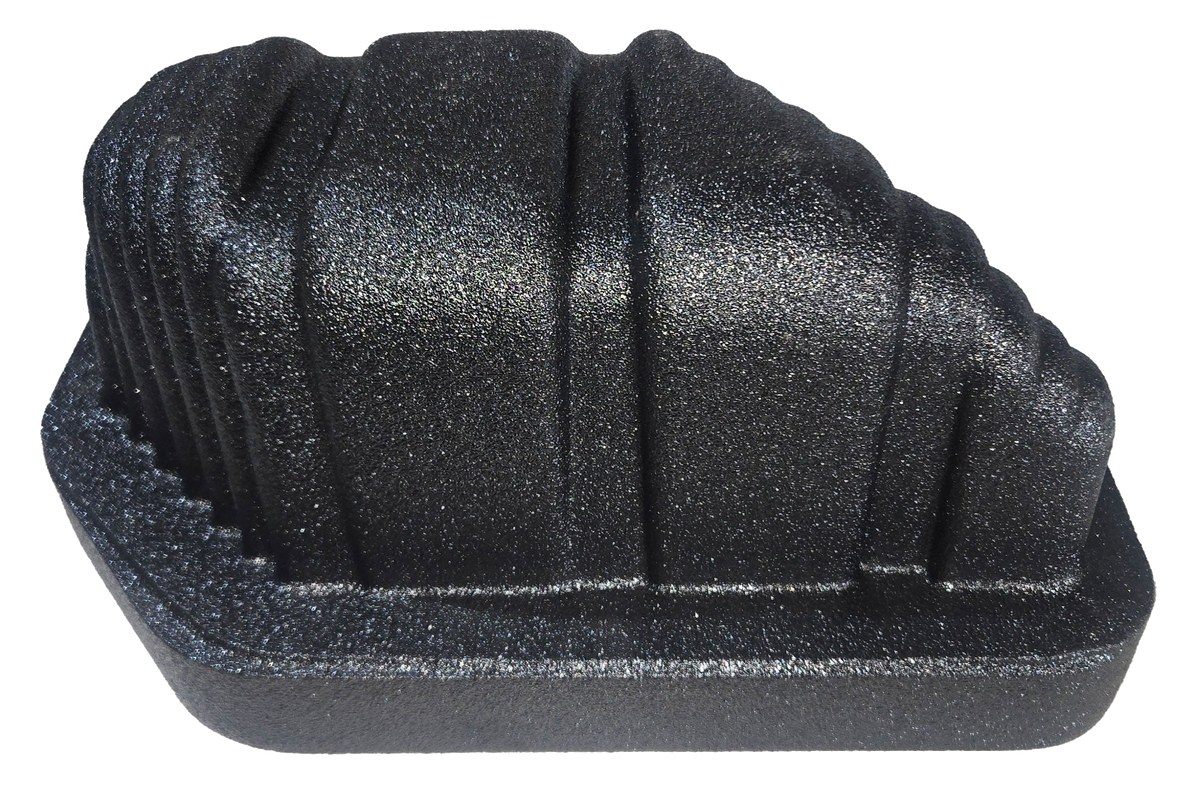

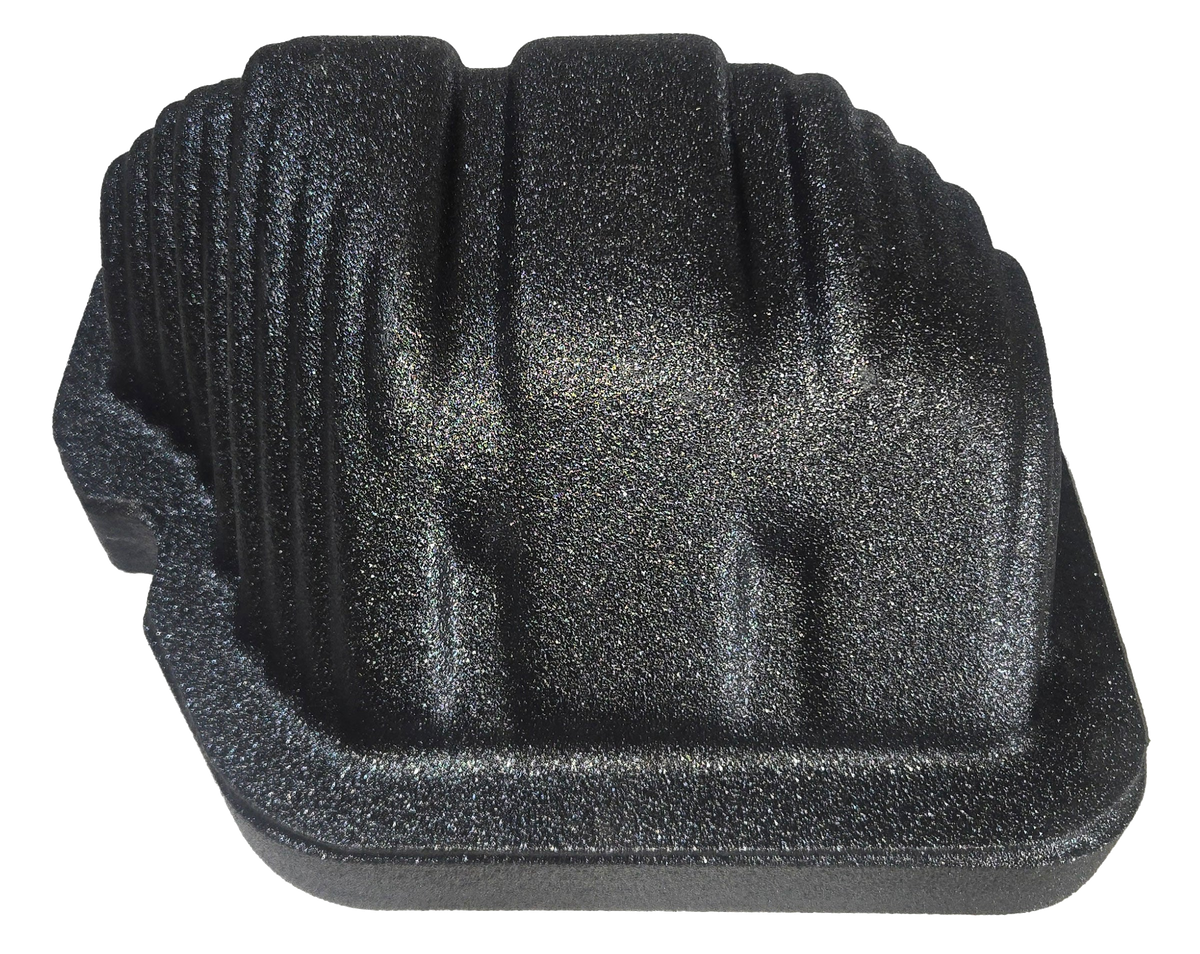

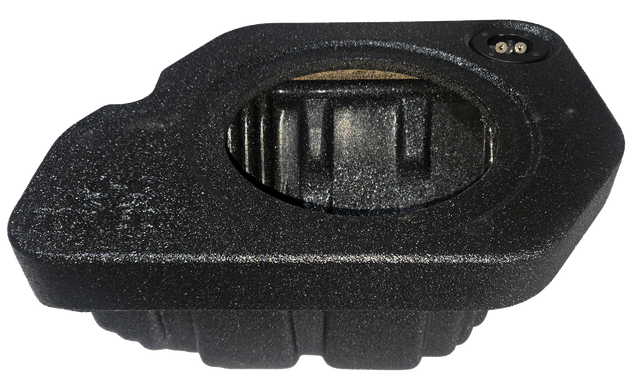

This Fox Box enclosure is supplied empty and is shaped for the vehicle application listed in the specifications. Its physical layout is the mounting layout listed below.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Single 10-inch sealed driver-side enclosure.
- 0.50-cubic-foot internal air volume.
- 6-inch mounting depth and 7-inch maximum magnet diameter.
- No seat lift required.
- Optional one-piece 10-to-8-inch adapter ring.
Technical Specifications
| Model | DQC-110-S-D |
|---|---|
| Vehicle application | 2002–2018 third- and fourth-generation Ram 1500/2500/3500 Quad and Crew Cab; 2019 and newer fifth-generation 2500/3500 Quad and Crew Cab; 2019 and newer Classic-body 1500/2500/3500 Quad and Crew Cab |
| Excluded application | Fifth-generation Ram 1500 |
| Enclosure type | Sealed; driver side |
| Subwoofer configuration | One 10-inch subwoofer; optional 8-inch adapter ring |
| Mounting cutout | 9.125 inches |
| Mounting depth | 6 inches |
| Maximum magnet diameter | 7 inches |
| Internal air volume | 0.50 cu ft |
| Seat lift | Not required |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 6 inches. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Does not fit the fifth-generation Ram 1500. Check the body generation as well as the year and cab style; a 2019 or newer Classic is a different application from the fifth-generation 1500.
- No seat lift is required for this model.
- Check that the chosen subwoofer supports a 0.50-cubic-foot sealed enclosure and fits the stated cutout, depth and magnet limits.
- Select the adapter-ring option if installing a compatible 8-inch subwoofer.
Frequently Asked Questions
Do I need a seat-lift kit?
No. This enclosure is listed as requiring no seat lift.
Is this the same as the driver-side vented 10-inch box?
No. This is the DQC-110-S-D sealed model with 0.50 cubic foot of internal volume.
Can I use an 8-inch sub?
A 10-to-8-inch adapter-ring option is offered; confirm the driver’s enclosure and mounting requirements.
