FOX BOX Ram Quad & Crew Cab Single 12-Inch Sealed Driver-Side Sub Box
Key features
- Single 12-inch sealed enclosure in a driver-side layout.
- 1.0-cubic-foot internal air volume.
- 7-inch mounting depth and 7.5-inch maximum magnet diameter.
- Required 1.25-inch seat-lift kit included.
- Optional 12-to-10-inch adapter ring.
FOX BOX Ram Quad & Crew Cab Single 12-Inch Sealed Driver-Side Sub Box - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
FOX BOX Ram Quad & Crew Cab Single 12-Inch Sealed Driver-Side Sub Box - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

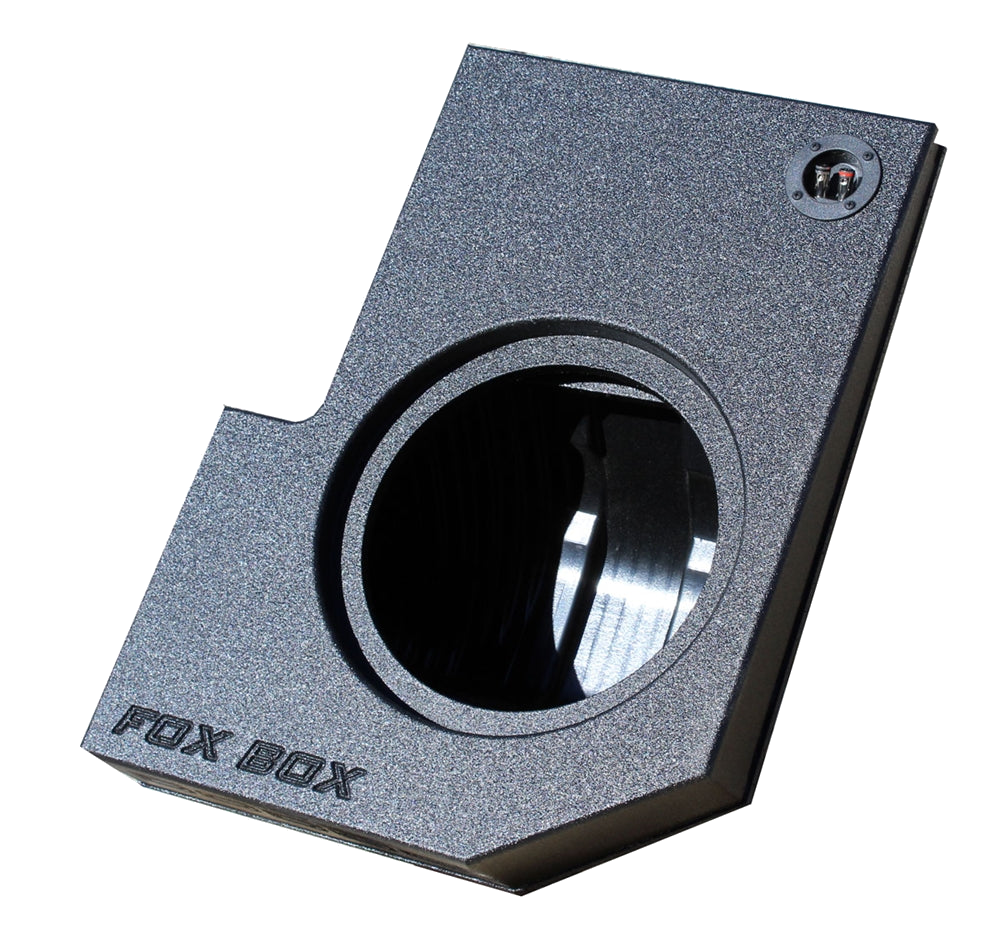

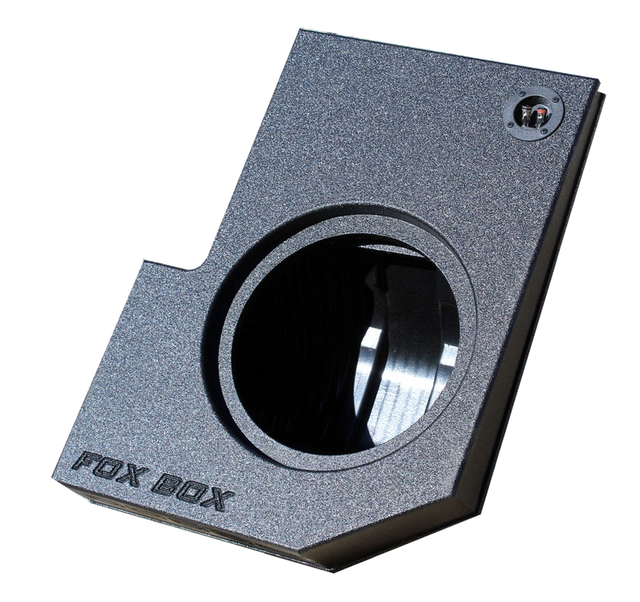

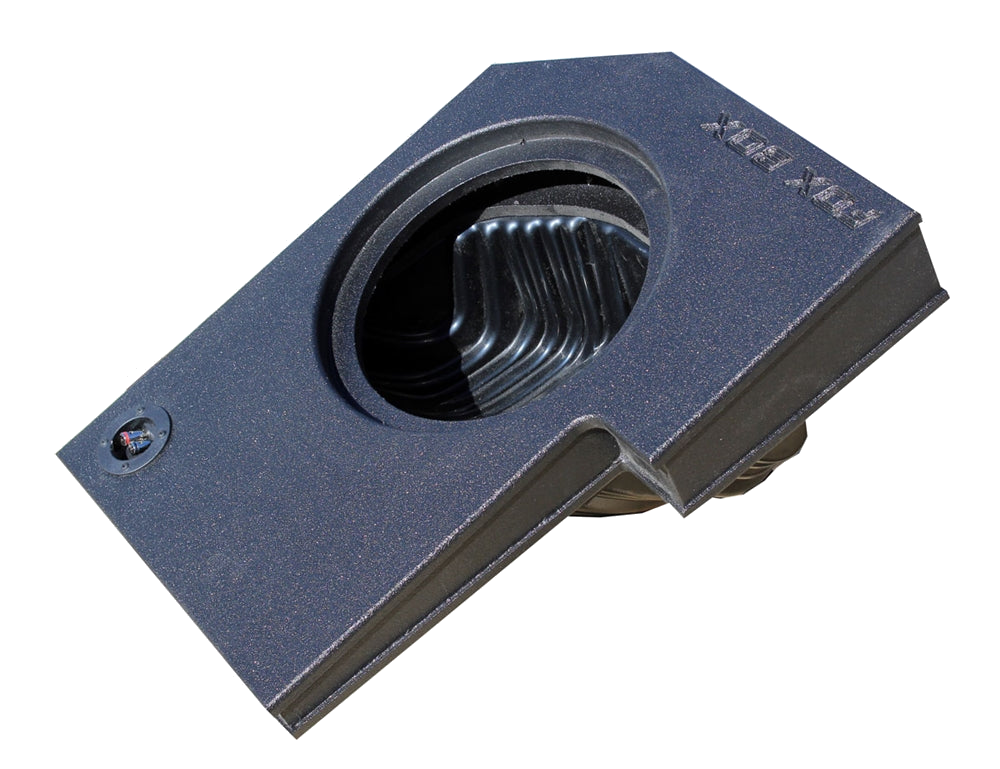

This Fox Box enclosure is supplied empty and is shaped for the vehicle application listed in the specifications. Its physical layout is the mounting layout listed below.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Single 12-inch sealed enclosure in a driver-side layout.
- 1.0-cubic-foot internal air volume.
- 7-inch mounting depth and 7.5-inch maximum magnet diameter.
- Required 1.25-inch seat-lift kit included.
- Optional 12-to-10-inch adapter ring.
Technical Specifications
| Model | DQC-112-S-D |
|---|---|
| Vehicle application | 2002–2018 third- and fourth-generation Ram 1500/2500/3500 Quad and Crew Cab; 2019 and newer fifth-generation 2500/3500 Quad and Crew Cab; 2019 and newer Classic-body 1500/2500/3500 Quad and Crew Cab |
| Excluded application | Fifth-generation Ram 1500 |
| Enclosure type | Sealed; driver side |
| Subwoofer configuration | One 12-inch subwoofer; optional 10-inch adapter ring |
| Mounting cutout | 11.15 inches |
| Mounting depth | 7 inches |
| Maximum magnet diameter | 7.5 inches |
| Internal air volume | 1.0 cu ft |
| Required seat lift | 1.25 inches; kit included |
| Bar-grille compatibility | Not compatible |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 7 inches. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Does not fit the fifth-generation Ram 1500. Check the body generation as well as the year and cab style; a 2019 or newer Classic is a different application from the fifth-generation 1500.
- The included 1.25-inch seat-lift kit is required for proper fit.
- Bar grilles are not compatible with this enclosure.
- Subwoofers with larger frames may require the installer to trim the mounting opening. Compare the cutout, depth and magnet dimensions before selecting a subwoofer.
Frequently Asked Questions
Is this a vented box?
No. This model is sealed.
Can I use a 10-inch subwoofer?
An optional 12-to-10-inch adapter ring is offered. Check that the subwoofer is suitable for the 1.0-cubic-foot sealed volume.
Does this work with a bar grille?
No. Bar grilles are specifically listed as incompatible.
