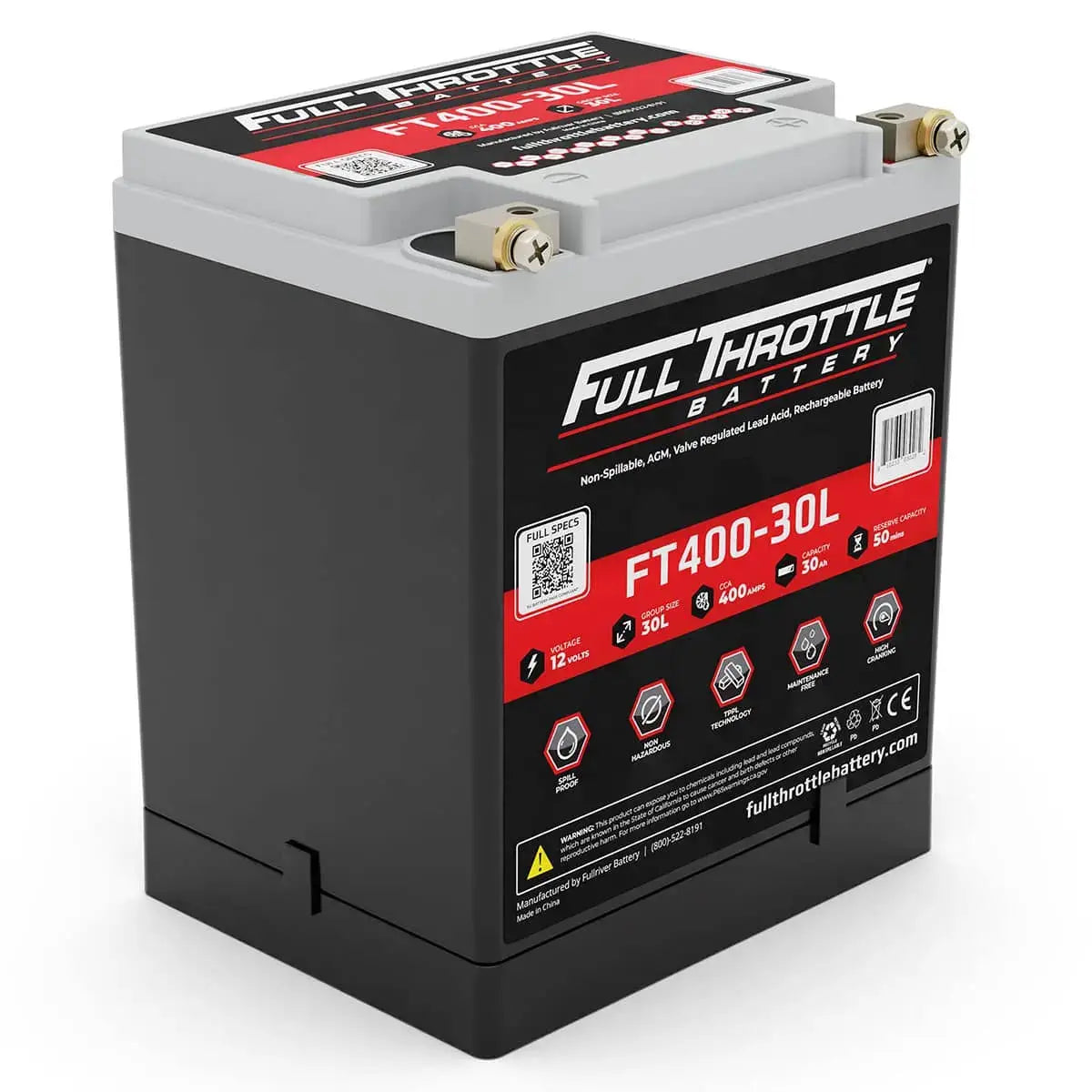

Full Throttle Series High-Performance AGM Battery FT400-30L
Key features
- Chemistry: AGM lead-acid
- Nominal voltage: 12 V
- Capacity (20-hour rate): 30 Ah
- Cold-cranking current: 400 A (CCA)
- Dimensions (L × W × H, including terminals): 6.53 × 5.12 × 6.91 inches
- Terminals: M5TAS
Full Throttle Series High-Performance AGM Battery FT400-30L is backordered and will ship as soon as it is back in stock.
Full Throttle Series High-Performance AGM Battery FT400-30L is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Full Throttle FT400-30L is a 12V high-performance AGM battery for applications that need 30 Ah capacity and 400 cold-cranking amps. Its sealed, non-spillable construction combines high-compression cells, thin-plate pure-lead technology and a durable ABS case.
Key Features & Benefits
- 30 Ah capacity: Capacity is rated at three discharge rates, giving you more detail for comparing battery requirements.
- Starting ratings: The battery is rated at 400A CCA, 500A CA/MCA and 850A PHCA.
- Sealed AGM construction: The non-spillable design uses high-compression cells and thin-plate pure-lead technology.
- Compact Group 30L size: Its listed dimensions and M5TAS terminals help you check fit and connection requirements before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal voltage | 12V |
| Capacity | 30 Ah at the 20-hour rate; 29 Ah at the 10-hour rate; 27.5 Ah at the 5-hour rate |
| Cold-cranking amps (CCA) | 400A |
| Cranking amps / marine cranking amps (CA / MCA) | 500A |
| Pulse hot-cranking amps (PHCA) | 850A |
| Reserve capacity | 50 minutes at 25A; 10.5 minutes at 75A |
| Internal resistance | 5.3 mΩ |
| Group size | 30L |
| Terminal type | M5TAS |
| Dimensions (L × W × H, including terminals) | 6.53 × 5.12 × 6.91 inches (166 × 130 × 176 mm) |
| Weight | 22.26 lb (10.1 kg) |
| Case | ABS plastic |
Why Choose This Product?
The FT400-30L gives you multiple capacity and starting-current ratings to compare against your application’s requirements. Its compact Group 30L format and stated terminal type also make it easier to assess the physical connection before choosing a battery.
Installation & Compatibility Notes
Check the 6.53 × 5.12 × 6.91-inch dimensions, including terminals, along with terminal layout and vehicle requirements before installation. Confirm that the M5TAS terminal type and battery requirements match your application.
Frequently Asked Questions
What does the 30 Ah rating mean?
The battery is rated at 30 Ah at the 20-hour rate, 29 Ah at the 10-hour rate and 27.5 Ah at the 5-hour rate.
What are the FT400-30L’s starting-current ratings?
It has a 400A CCA rating, a 500A CA/MCA rating and an 850A PHCA rating. These are separately stated ratings; compare the one required by your application.
What are the battery’s dimensions and terminal type?
It measures 6.53 × 5.12 × 6.91 inches (166 × 130 × 176 mm), including terminals, and uses M5TAS terminals.
How much does the battery weigh?
The FT400-30L weighs 22.26 lb (10.1 kg).
