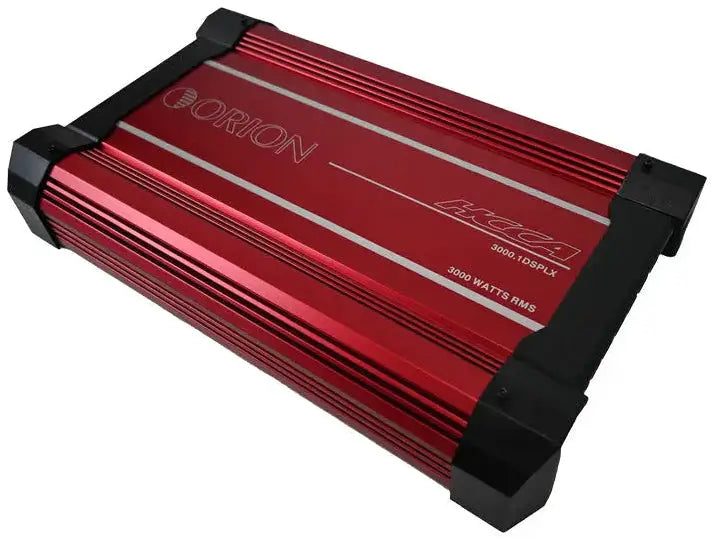

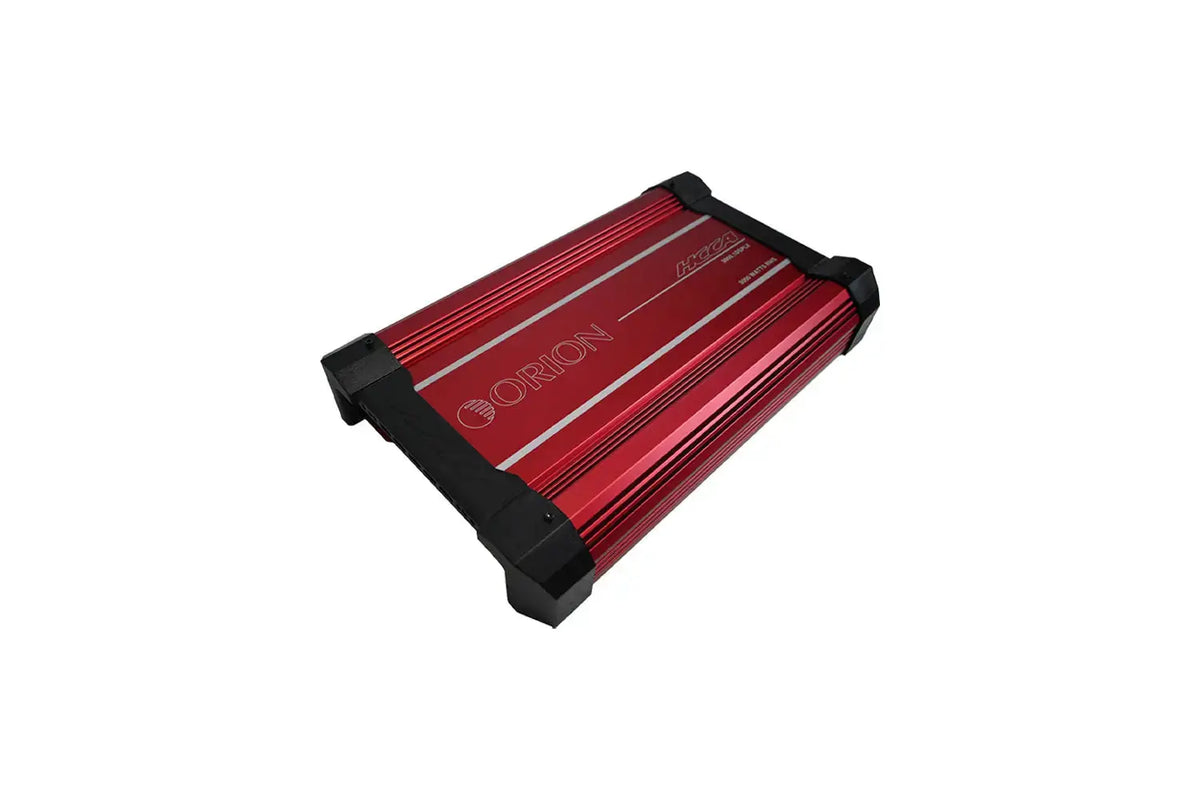

ORION HCCA3000.1DSPLX - 3000W RMS MONOBLOCK CLASS D AMPLIFIER
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 1350.0 W
- RMS output at 2 ohms: 2100 W
- RMS output at 1 ohm: 3000 W
ORION HCCA3000.1DSPLX - 3000W RMS MONOBLOCK CLASS D AMPLIFIER is backordered and will ship as soon as it is back in stock.
ORION HCCA3000.1DSPLX - 3000W RMS MONOBLOCK CLASS D AMPLIFIER is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a bass system around the ORION HCCA3000.1DSPLX monoblock Class D amplifier, rated for 3000W RMS at 1 ohm. Its HCCA Red design pairs high-current power delivery with adjustable bass controls and multiple protection features for demanding car audio builds.
Key Features & Benefits
- Power across three loads: Choose from 1350W RMS at 4 ohms, 2100W at 2 ohms, or 3000W at 1 ohm.
- Linked amplifier capability: Pair it with an identical amplifier for 6000W RMS at 2 ohms.
- Flexible signal inputs: Low-level and high-level balanced inputs support different source connections.
- Adjustable bass management: The low-pass filter, bass boost, and infrasonic filter let you shape the subwoofer signal.
- Protection and monitoring: Four-way protection and fault monitoring help address thermal, DC offset, short-circuit, and voltage conditions.
- Secure controls: Concealed controls sit beneath a locking top panel, while input sensitivity lock-out helps secure the setting.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HCCA3000.1DSPLX |
| Amplifier type | 1-channel monoblock Class D |
| RMS power | 1350W at 4 ohms; 2100W at 2 ohms; 3000W at 1 ohm (0.5% THD+N) |
| Linked power | 6000W RMS when linked with an identical amplifier at 2 ohms |
| Low-pass filter | 12/24 dB per octave |

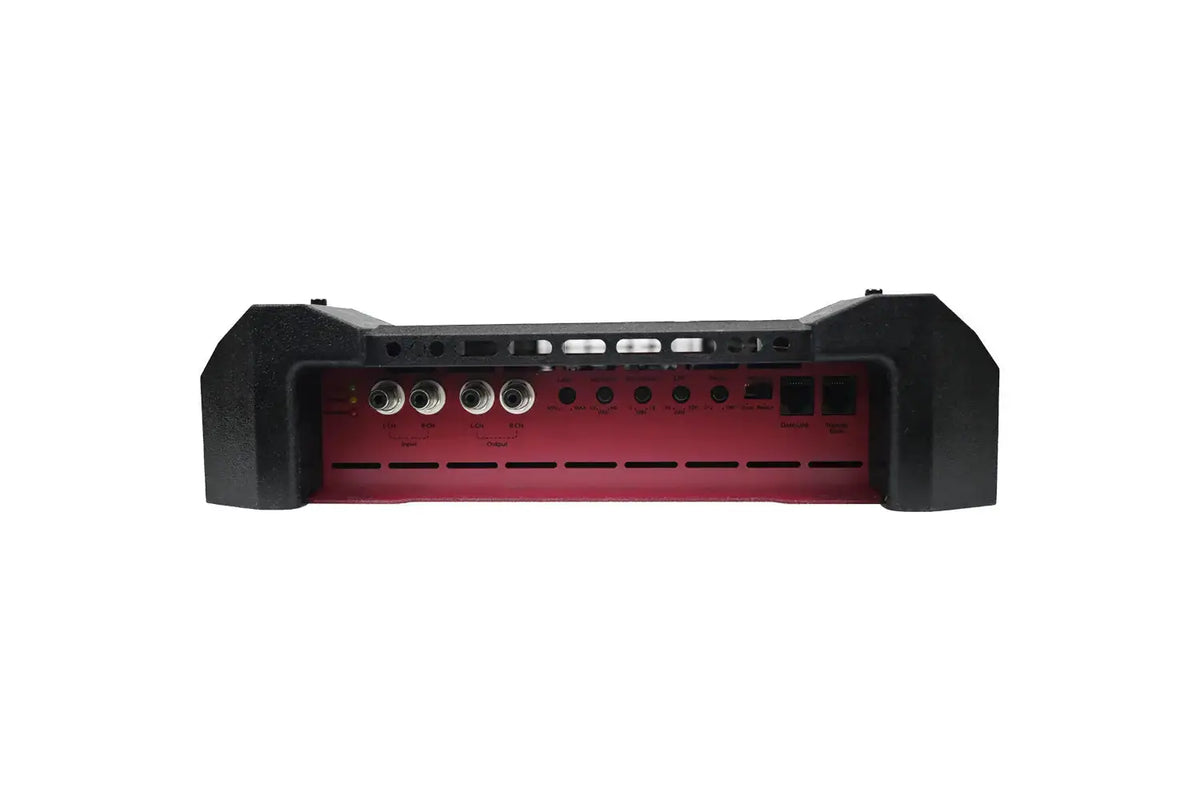

| Inputs | Low-level and high-level balanced input |
| Bass enhancement | Adjustable bass boost |
| Protection | Thermal, DC offset, short protection, under-voltage and over-voltage; fault and protection monitoring |
| Power supply and output stage | All MOSFET |

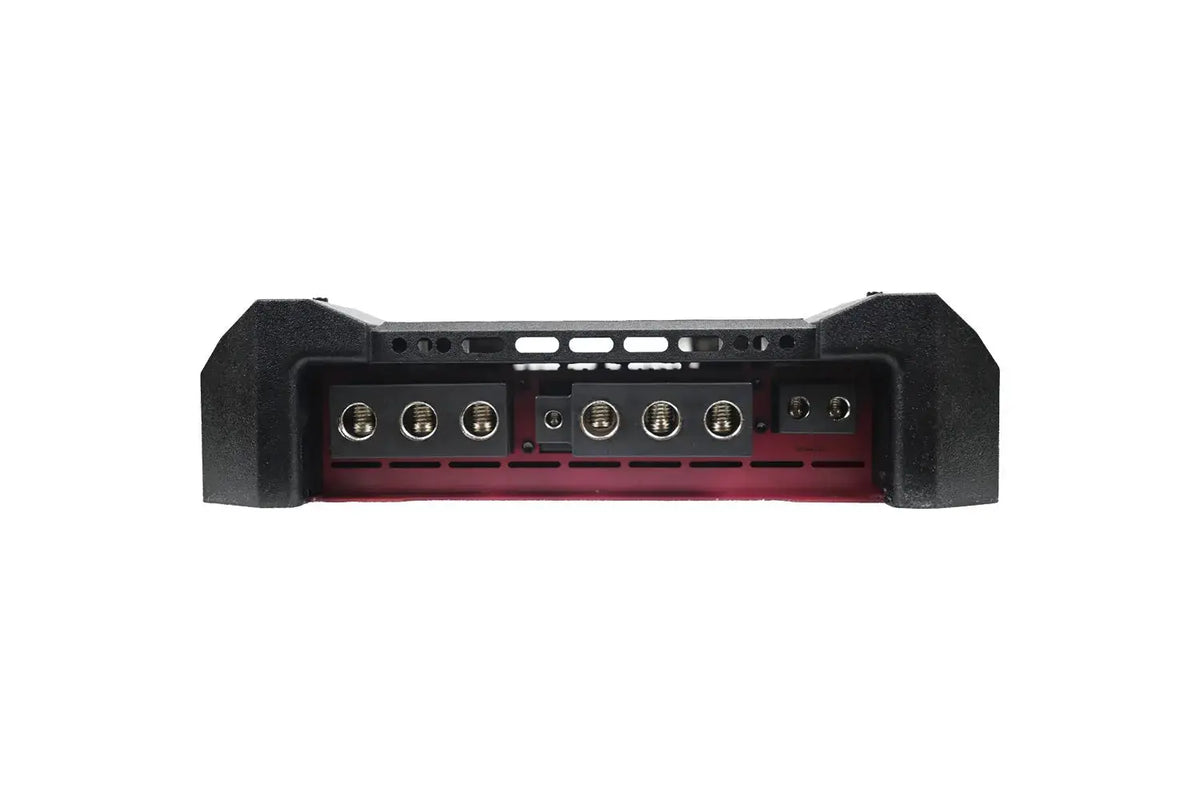

| Power terminals | Heavy-gauge / high-current terminals; 3 x 0 AWG positive, 3 x 0 AWG negative |

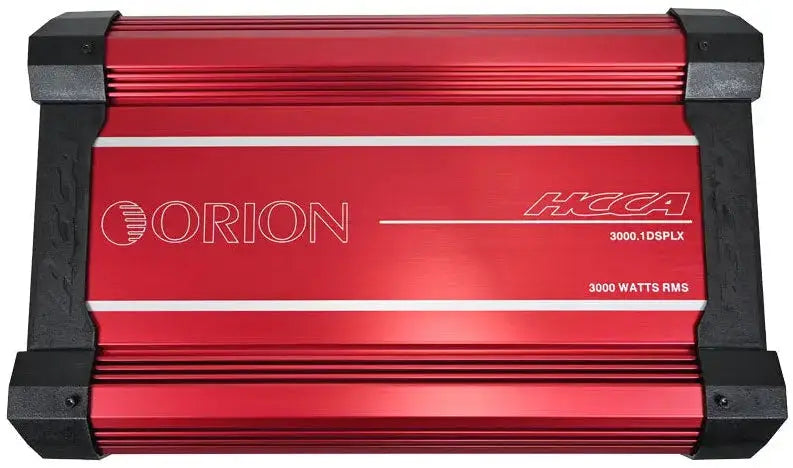

| Design | HCCA Red; compact design; concealed controls under locking top panel |
| Additional features | ESP® digitally programmed input voltage; input sensitivity lock-out mode; remote turn-on; turn-on delay; infrasonic filter; remote gain controller |
Why Choose This Product?
The HCCA3000.1DSPLX offers multiple RMS power ratings, so you can compare its output with your planned subwoofer load. Its adjustable bass features provide control over low-frequency playback, while the locking top panel keeps its controls concealed when not in use.
For a linked setup, the stated 6000W RMS rating applies when paired with an identical amplifier at 2 ohms. Confirm your system design against the amplifier’s load ratings before choosing a configuration.
Installation & Compatibility Notes
Plan your installation around the amplifier’s 3 x 0 AWG positive and 3 x 0 AWG negative terminals. Check the subwoofer load and signal connection type against the listed ratings and inputs before installation. The product details do not specify wiring configurations or vehicle fitment.
Frequently Asked Questions
How much RMS power does the HCCA3000.1DSPLX produce?
It is rated at 1350W RMS at 4 ohms, 2100W at 2 ohms, and 3000W at 1 ohm, at 0.5% THD+N.
Can two amplifiers be linked?
The stated linked rating is 6000W RMS at 2 ohms when this amplifier is linked with an identical unit.
What signal inputs does it accept?
It has low-level and high-level balanced inputs. Confirm which connection suits your audio source.
Does it include subwoofer crossover controls?
It has a 12/24 dB per octave low-pass filter, adjustable bass boost, and an infrasonic filter.
What protection features are listed?
Thermal, DC offset, short, under-voltage, and over-voltage protection are listed, along with fault and protection monitoring.
