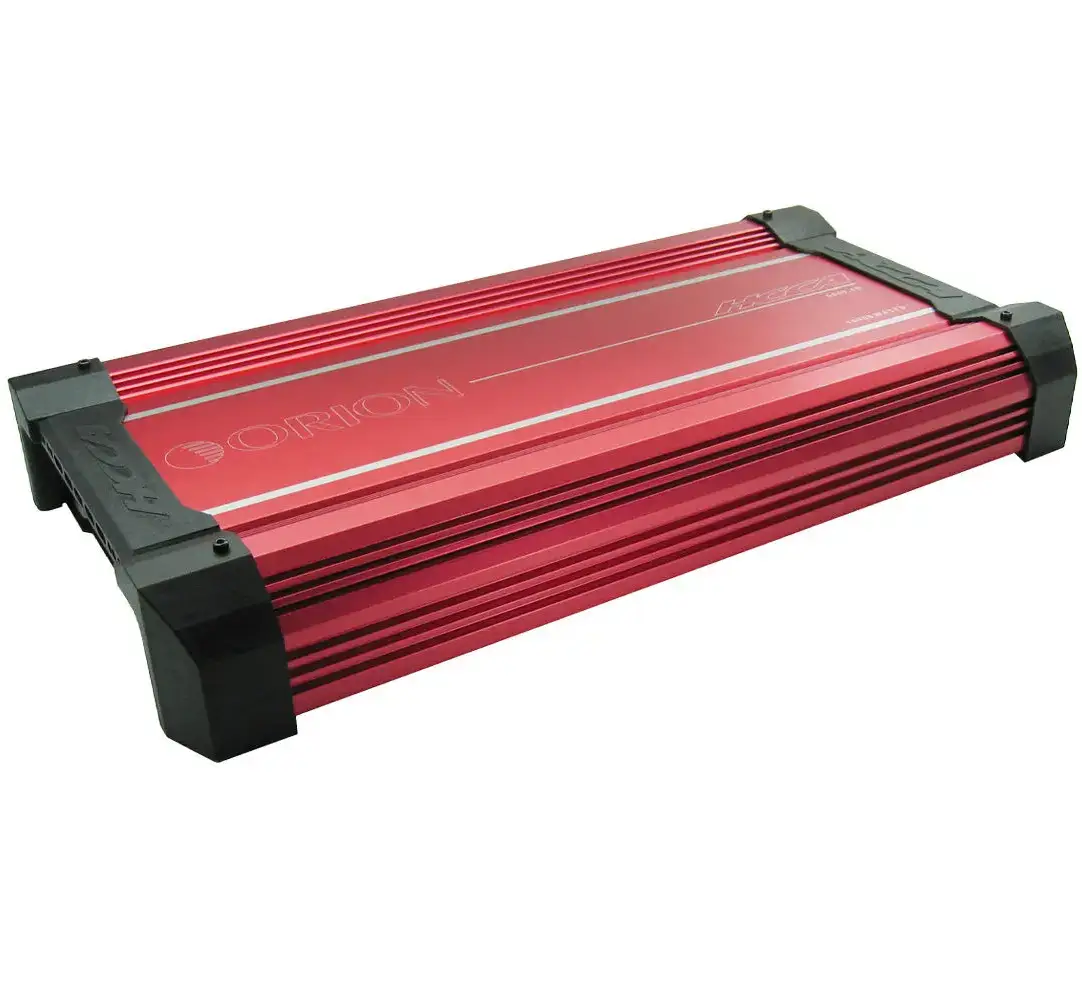

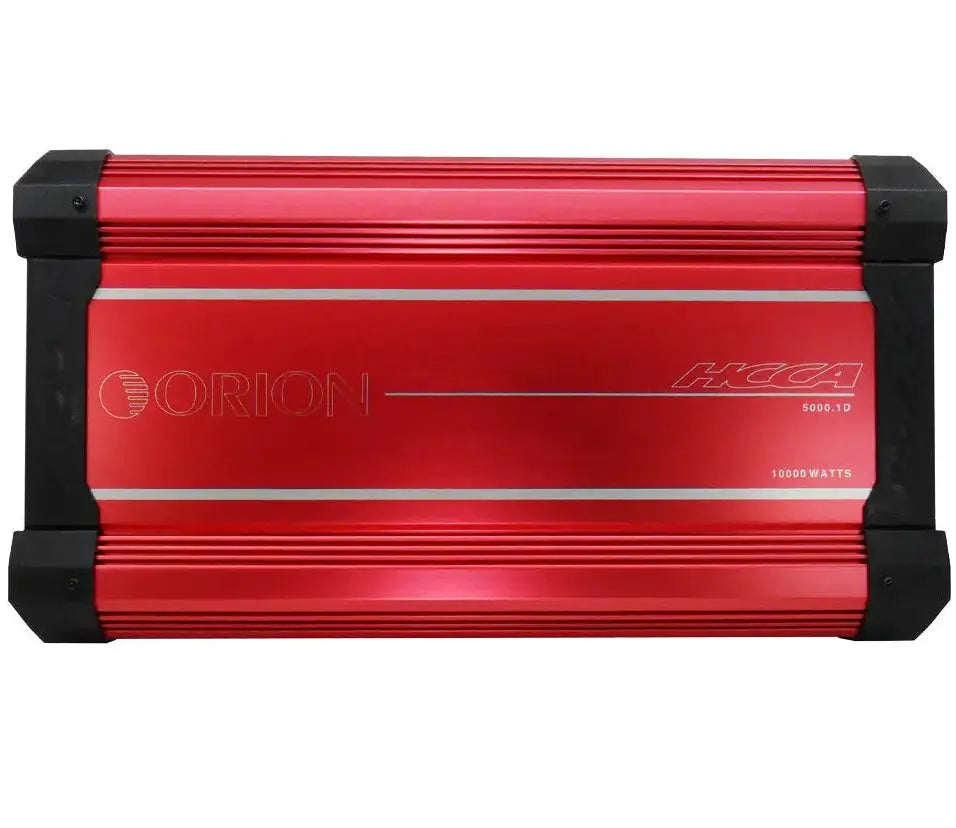

ORION HCCA5000.1DSPLX - 5000W RMS MONOBLOCK CLASS D AMPLIFIER
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 2300.0 W
- RMS output at 2 ohms: 3600 W
- RMS output at 1 ohm: 5000 W
ORION HCCA5000.1DSPLX - 5000W RMS MONOBLOCK CLASS D AMPLIFIER is backordered and will ship as soon as it is back in stock.
ORION HCCA5000.1DSPLX - 5000W RMS MONOBLOCK CLASS D AMPLIFIER is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Orion HCCA5000.1DSPLX is a monoblock Class-D car amplifier for high-output subwoofer systems. It delivers up to 5000W RMS at 1 ohm and includes tuning and protection features for demanding audio builds.
Key Features & Benefits
- High-power output: Choose from three RMS ratings to match the amplifier to your system’s load.
- Adjustable low-pass filter: Select a 12 or 24 dB/octave slope to tailor bass output.
- Infrasonic filter: Helps control ultra-low frequencies that can waste headroom or cause subwoofer over-excursion.
- Flexible inputs: Low-level and high-level balanced inputs support different signal sources.
- Remote gain controller: Adjust the amplifier’s level from a convenient location in the vehicle.
- Protection monitoring: Thermal, DC offset, short-circuit, and under- and over-voltage protections help safeguard the system.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HCCA5000.1DSPLX |
| Amplifier type | 1-channel Class-D monoblock |
| RMS power @ 4 ohms | 2300W @ 0.5% THD+N |
| RMS power @ 2 ohms | 3600W @ 0.5% THD+N |
| RMS power @ 1 ohm | 5000W @ 0.5% THD+N |
| Linked amplifier system power | 11,600W RMS @ 2 ohms when paired with an identical amplifier |
| Low-pass filter | 12/24 dB/octave |
| Other tuning features | Infrasonic filter; bass boost |

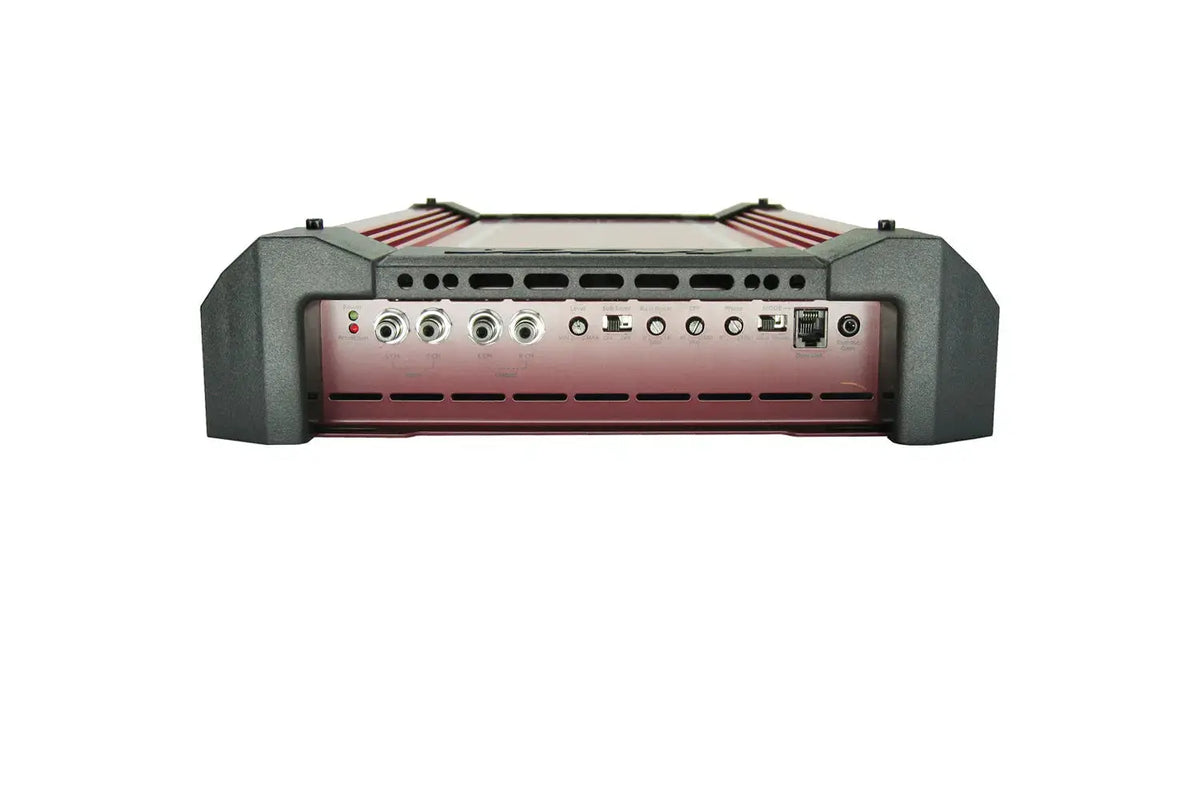

| Inputs | Low-level and high-level balanced input |
| Input setup | ESP digitally programmed input voltage; input sensitivity lock-out mode |
| Controls | Concealed under a locking top panel |
| Turn-on feature | Turn-on delay |
| Protection | Thermal, DC offset, short protection, and under- and over-voltage safeguards |

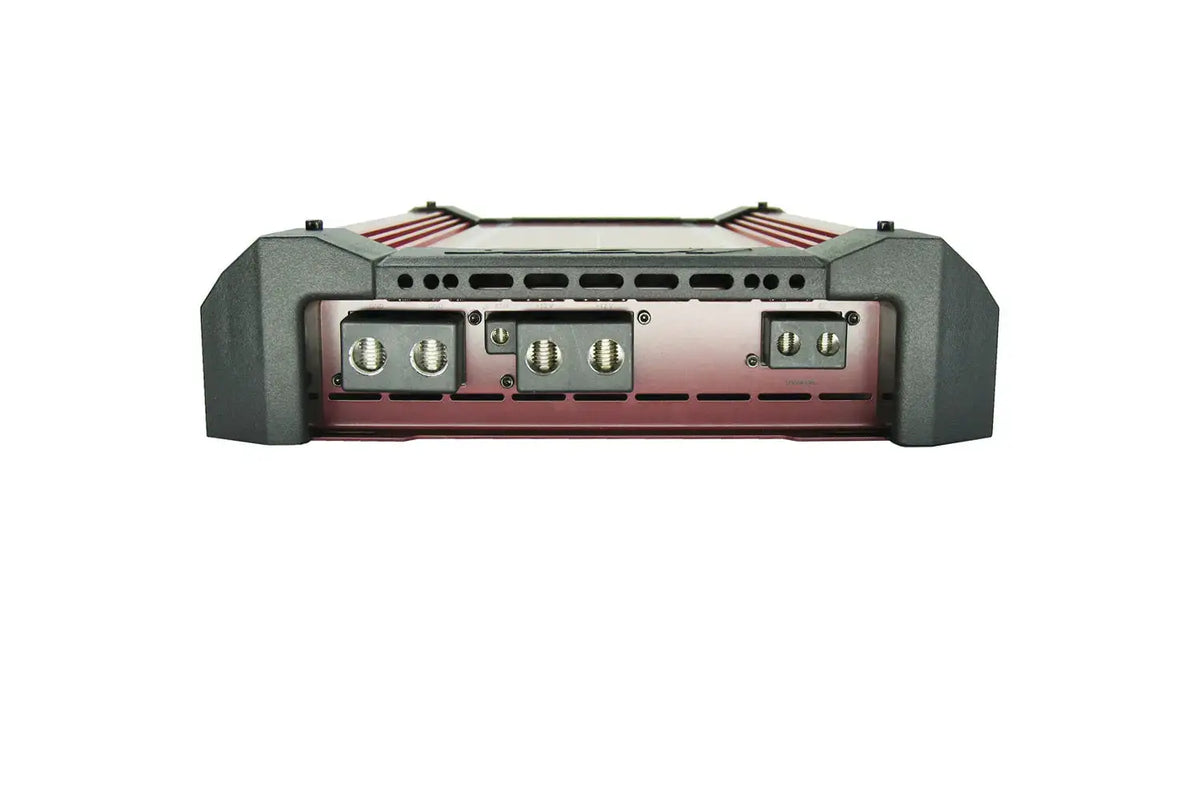

| Positive power terminals | 3 x 0 AWG |
| Power supply and output stage | All MOSFET |
| Design | Compact form factor; HCCA Red |
| Included item | Remote gain controller |
Why Choose This Product?
This amplifier combines substantial subwoofer power with controls for shaping bass to your system. The concealed controls help protect your settings from tampering, while input sensitivity lock-out mode helps prevent accidental changes during setup.
For SPL-focused builds, the amplifier can also be linked with an identical unit. Its all-MOSFET power supply and output stage, high-current terminals, and protection monitoring suit installations where power handling and system control matter.
Installation & Compatibility Notes
Match the subwoofer system’s load to the amplifier’s stated power ratings. The listed positive power terminals are 3 x 0 AWG; plan the electrical installation around the amplifier’s requirements. Confirm your signal source uses a compatible low-level or high-level balanced input before installation.
The amplifier has a turn-on delay and concealed controls beneath a locking top panel. Plan access to the panel and remote gain controller when choosing an installation location.
Frequently Asked Questions
How much RMS power does the HCCA5000.1DSPLX produce?
It is rated at 2300W RMS at 4 ohms, 3600W RMS at 2 ohms, and 5000W RMS at 1 ohm. Each rating is specified at 0.5% THD+N.
Can this amplifier be linked with another amplifier?
Yes. When paired with an identical amplifier, the system can reach 11,600W RMS at 2 ohms.
What input connections does it support?
It supports low-level and high-level balanced inputs. The appropriate connection depends on your signal source.
Does the amplifier include a remote control?
A remote gain controller is included for level adjustment from a convenient location in the vehicle.
What filters are available for tuning?
The amplifier has a 12/24 dB/octave low-pass filter and an infrasonic filter. Bass boost is also listed as a tuning feature.
