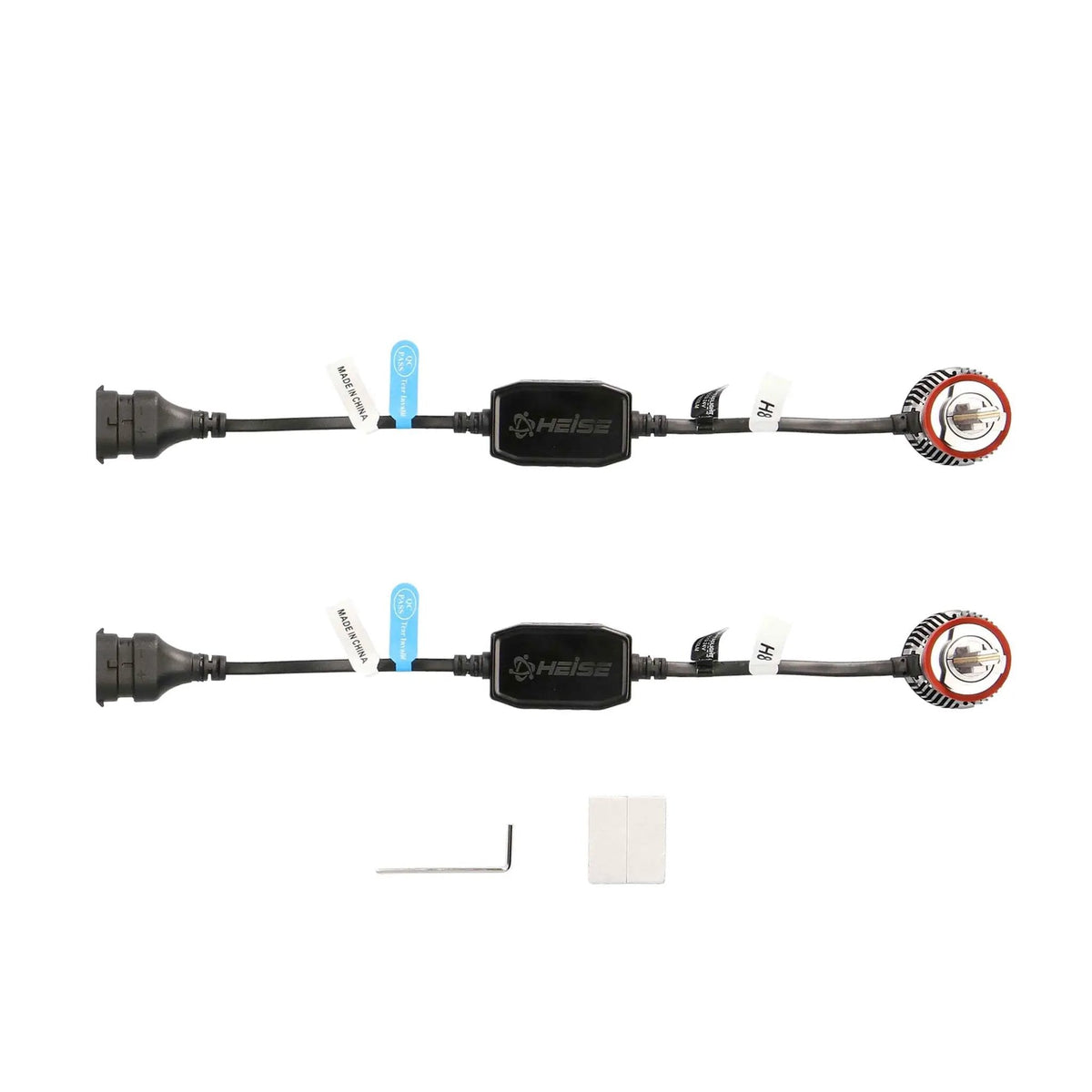

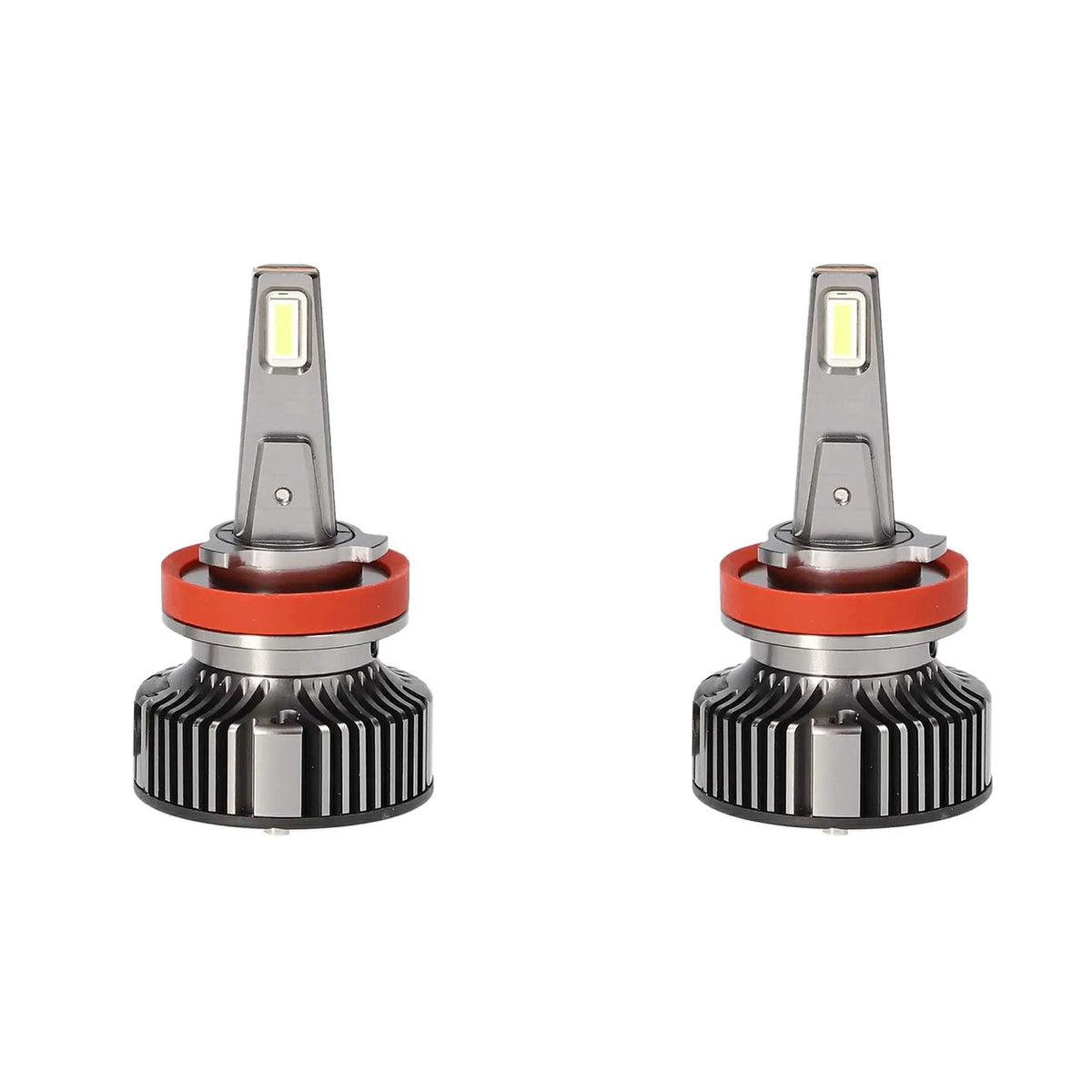

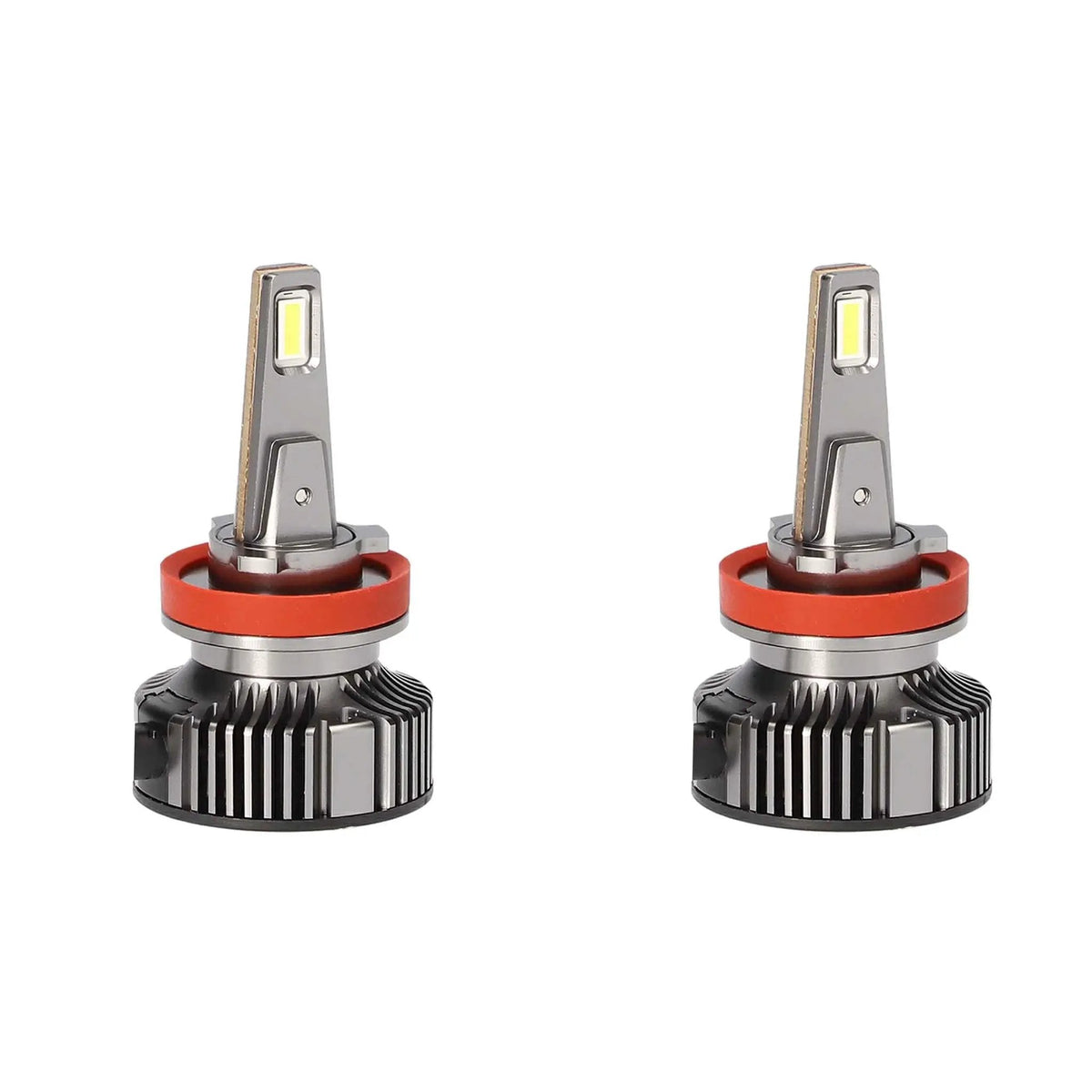

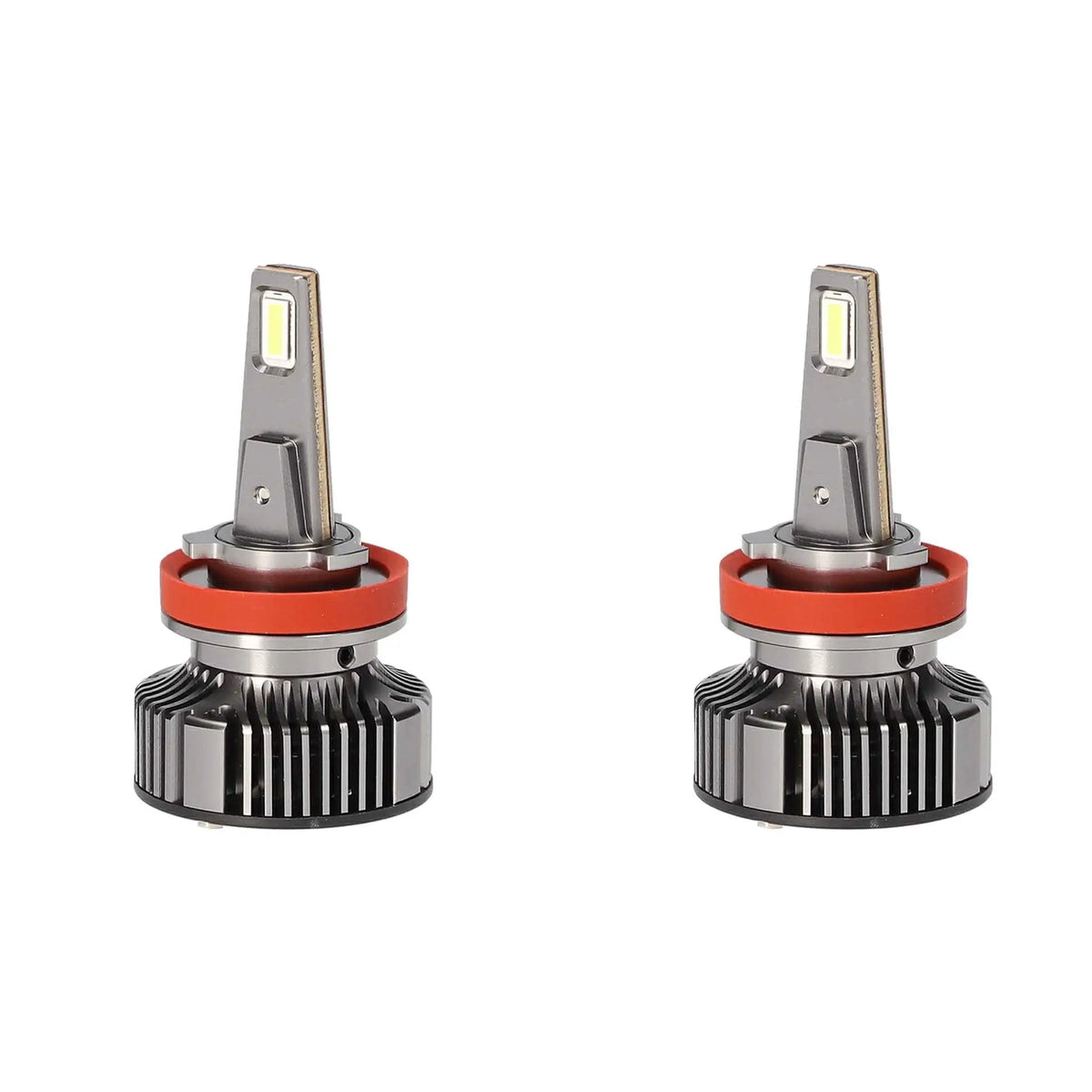

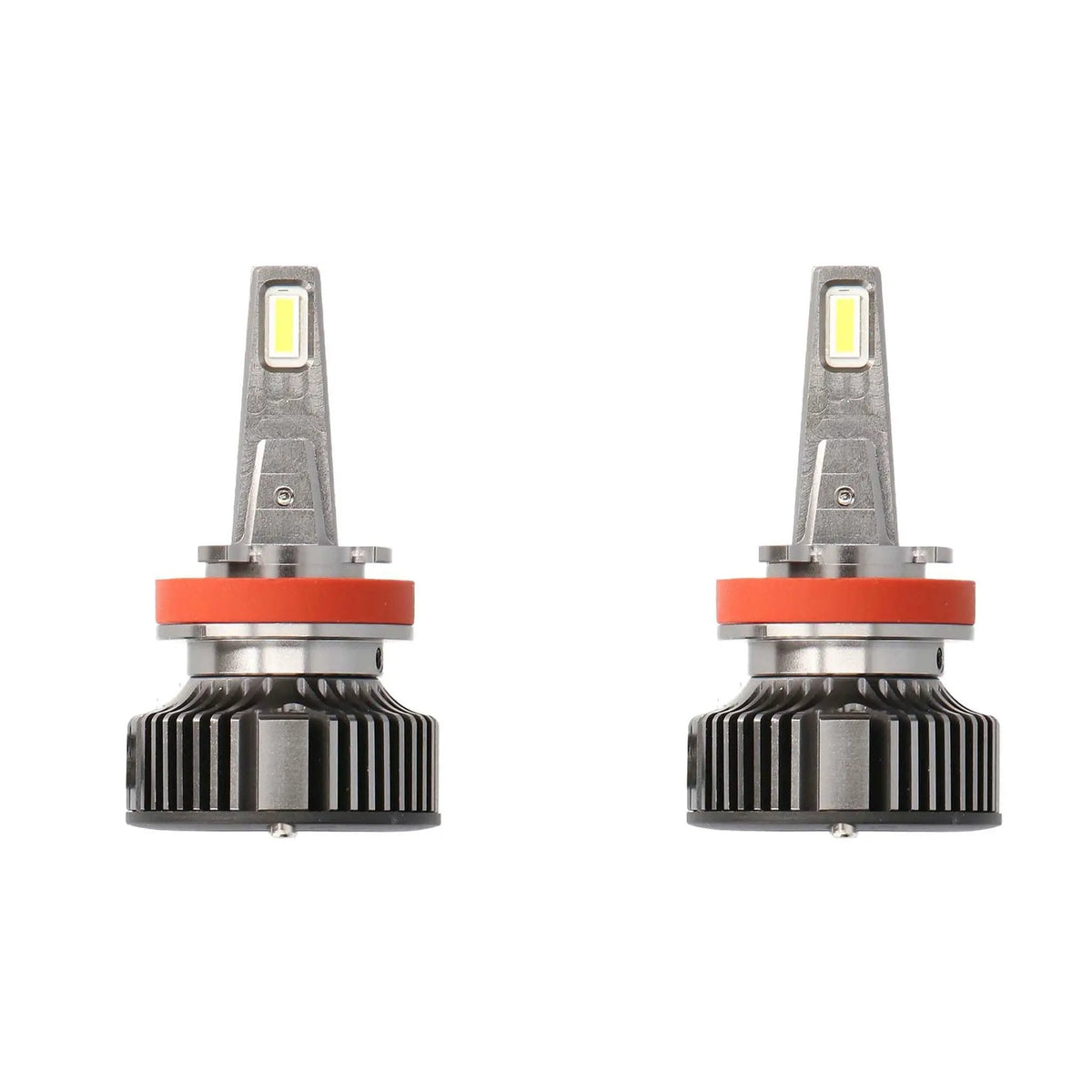

Heise H8 Pro Series LED Kit - Single Beam | HE-H8PRO

Product Overview

Get 16,000 lumens per set from the Heise H8 Pro Series LED Kit (HE-H8PRO), a single-beam H8 bulb kit for off-road use. Its rotatable collar helps you align the beam in projector or reflector housings, while active cooling manages heat during use.

Key Features & Benefits

• 16,000 lumens per set: Provides more light output than stock halogen H8 bulbs, according to the product details.
• Active cooling: An IC thermal controller, high-speed smart fan, and 2 mm solid copper core help manage heat.
• Rotatable collar: Adjust the LED chip orientation to align the beam in projector or reflector housings.
• Slim side-cable connection: The compact cable profile suits tight fog light and headlight housings.
• Built-in protections: Reverse polarity protection and an EMI filter help address incorrect polarity and radio interference.
• Instant startup: The kit reaches full lumen output immediately.

Technical Specifications

Why Choose This Product?

The H8 Pro combines high stated output with a rotatable collar, so you can adjust beam orientation after installation. Its all-metal housing and cooling components are designed to manage heat, while the built-in EMI filter is a useful feature for vehicles with radio, GPS, or CB equipment.

This kit is labeled for off-road use only. The product details state that aftermarket LED kits are not DOT-certified for on-road use in the United States.

Installation & Compatibility Notes

This is a plug-and-play replacement for vehicles with an H8 single-beam socket, commonly used for fog lights, DRLs, or low beams. The product details describe these applications across domestic and import trucks, SUVs, and crossovers; confirm your vehicle’s bulb socket before ordering.

The kit draws 70W per set, or 35W per bulb. The supplied details estimate approximately 5.8A per bulb at 12V. A relay harness is recommended for older wiring or high-draw applications. Vehicles with CANBUS monitoring may need a decoder to address flickering or bulb warnings. Adjust the collar after installation to check beam alignment.

Frequently Asked Questions

Which bulb socket does the HE-H8PRO use?

It uses an H8 single-beam socket. Check your vehicle’s existing bulb type before purchase.

How much power does the kit draw?

The stated draw is 70W per set, or 35W per bulb. At 12V, the product details estimate approximately 5.8A per bulb.

Is a CANBUS decoder required?

Some vehicles with CANBUS bulb monitoring may show a warning or flicker. The product details recommend a decoder for those applications.

Can I use it in projector fog light housings?

The rotatable collar allows beam adjustment in projector and reflector housings. Check alignment after installation.

Is this kit intended for on-road driving?

No. It is labeled for off-road use only and is not DOT-certified for on-road use in the United States.
