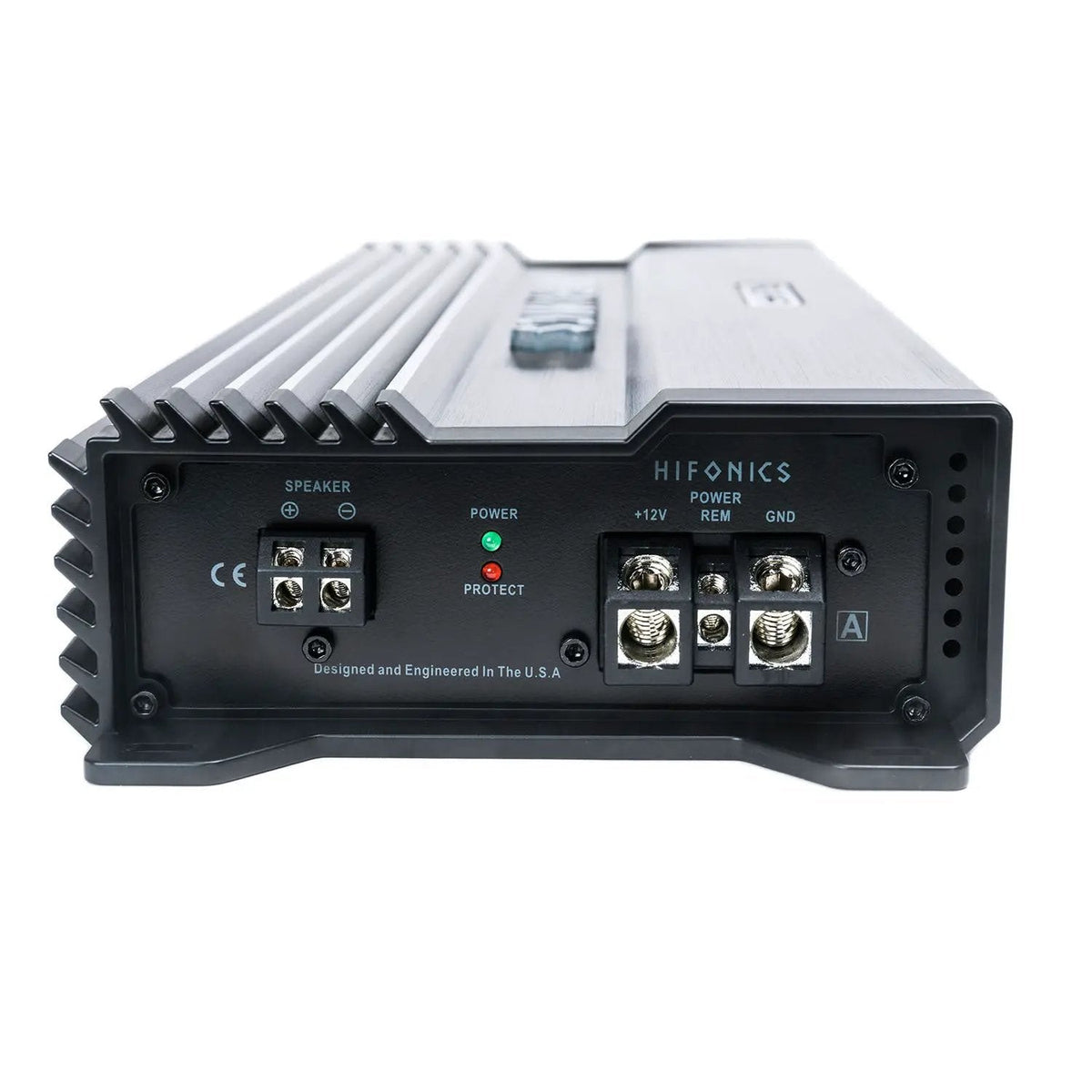

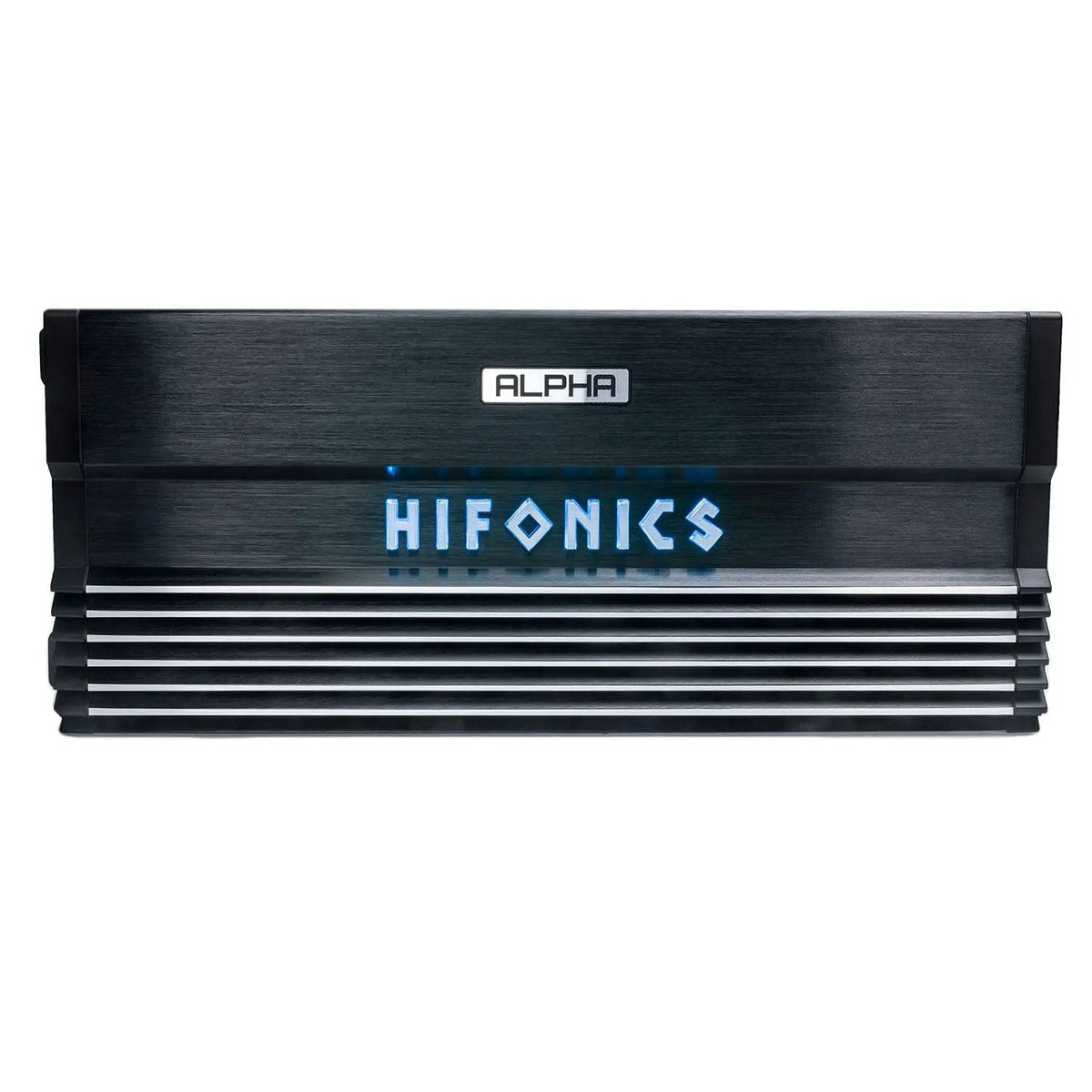

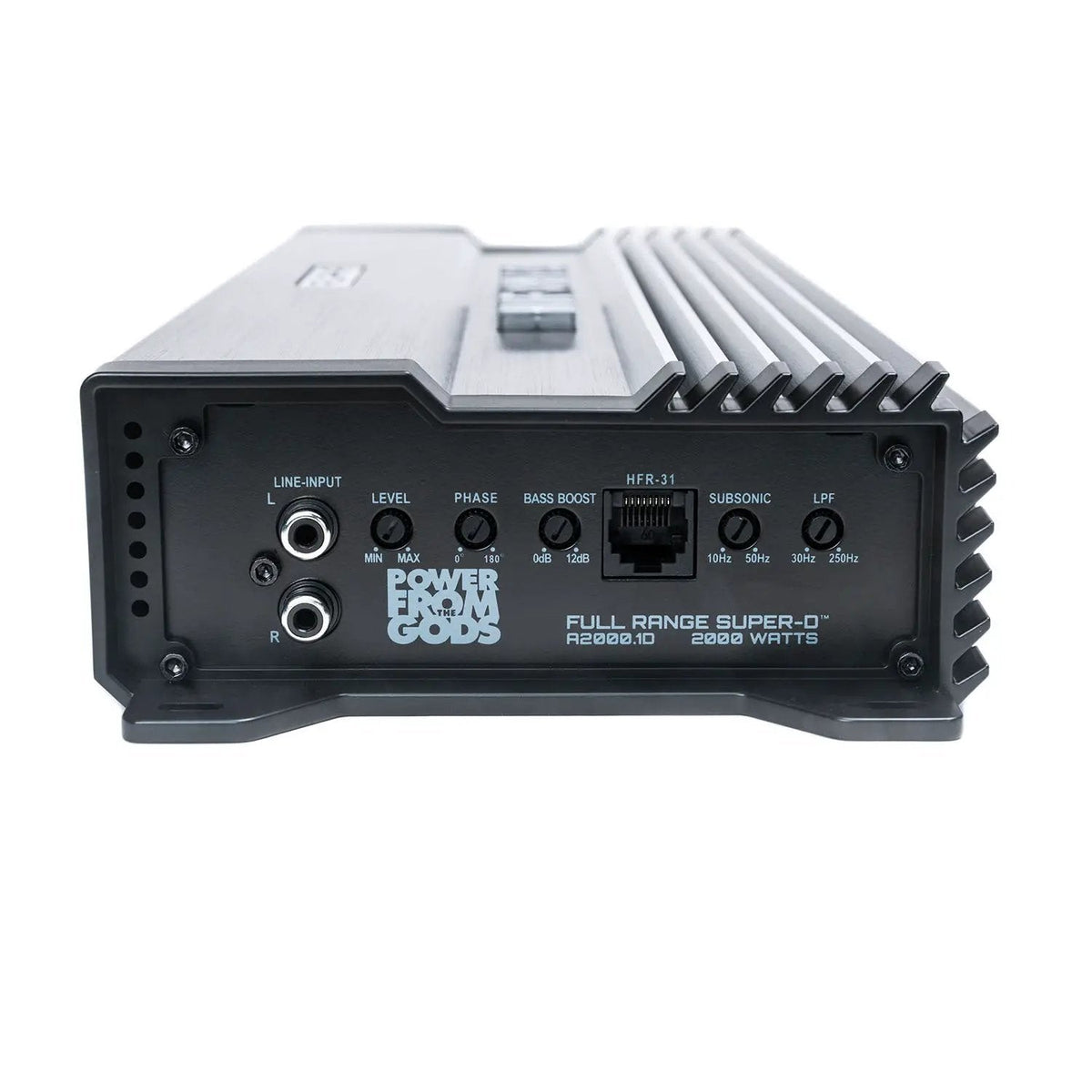

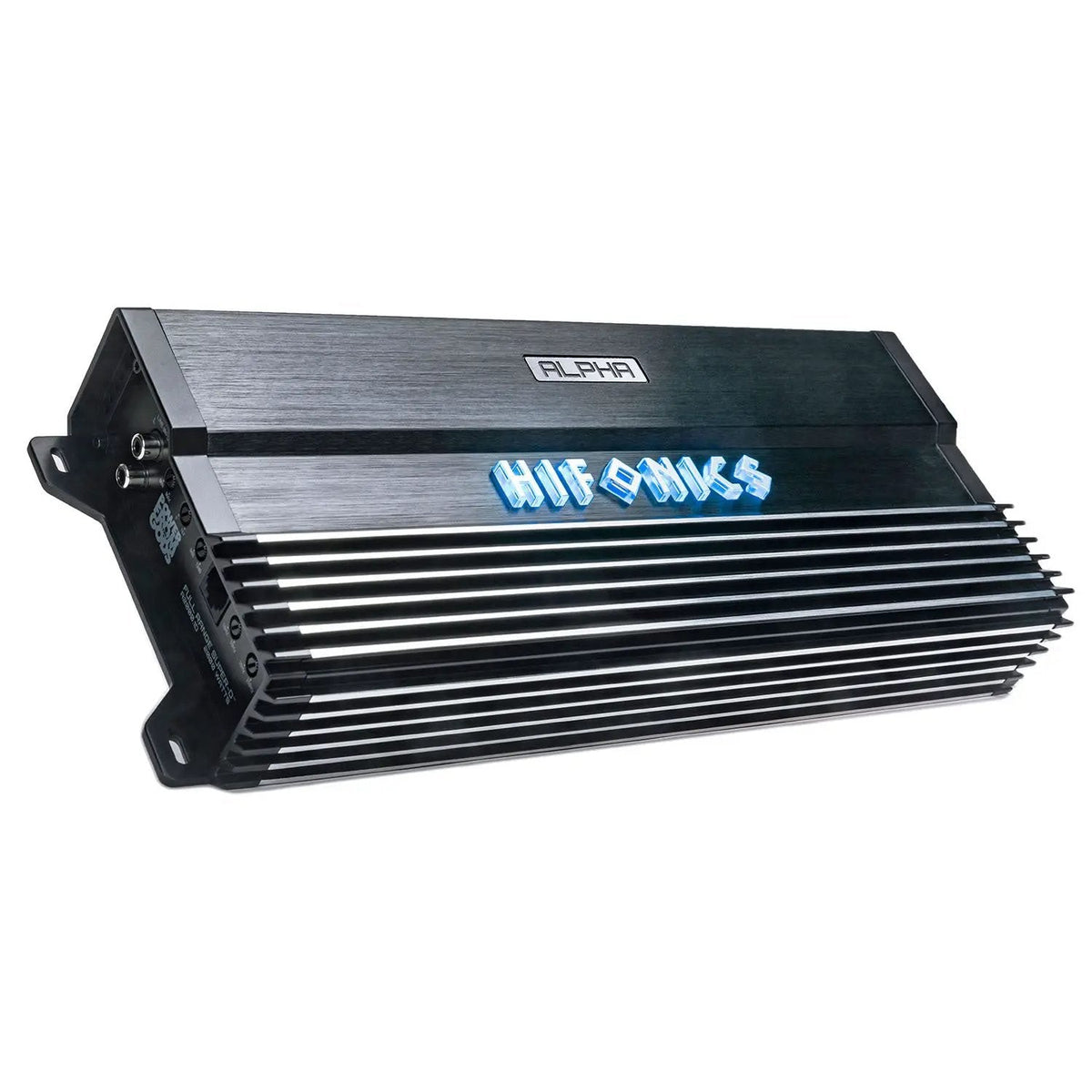

Hifonics A2000.1D ALPHA 2000 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- Amplifier class: Class D
- Frequency response: 10Hz-250Hz
- Low-pass crossover (12 dB/octave): 30Hz-250Hz
- Subsonic filter: 10Hz-50Hz
- Speaker-level inputs: Yes
Hifonics A2000.1D ALPHA 2000 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Power a single subwoofer from your vehicle’s audio system with the Hifonics A2000.1D ALPHA 2000 Watt Monoblock Amplifier. Its Super D-Class design delivers up to 2000 watts, with adjustable crossover and phase controls to help tailor the bass signal.
Use the included HFR-31 wired bass remote to adjust bass levels from the cabin. High-level inputs also support DC offset auto turn-on.
Key Features & Benefits
- Super D-Class mono design: Provides one channel of subwoofer amplification.
- Flexible sound tuning: Electronic Accu-Cross crossovers, a variable subsonic filter, bass boost, and phase adjustment let you shape the output.
- Thermal design: A heavy-duty aluminum alloy heatsink helps dissipate heat.
- Vibration-resistant construction: Surface Mount Technology is engineered to withstand vehicle shock and vibration.
- Convenient adjustment: The included HFR-31 wired bass remote lets you adjust bass levels from the vehicle cabin.
Technical Specifications
| Type | Amplifier |
|---|---|
| Brand | Hifonics |
| Series | ALPHA |
| Category | Mobile |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| Compatible Vehicles | Universal |
| Amp Class | Super D-Class® |
| Amp Total Channels | 1 |
| Amp Max Power (watts) | 2000 |
| Amp Power @ 1 Ohm (ch x watts) | 1 x 2000 |
| Amp Power @ 2 Ohms (ch x watts) | 1 x 1000 |
| Amp Power @ 4 Ohms (ch x watts) | 1 x 500 |
| Amp Crossover | Electronic |
| Amp Variable Low Pass Crossover | 12dB per Octave 30Hz-250Hz |
| Amp Tone Control / Parametric EQ | Bass EQ |
| Amp Bass Boost | 0-12dB @ 45Hz |
| Amp Subsonic Filter | 10Hz-50Hz |
| Amp Phase Shift | Variable 0-180 Degrees |
| Amp Variable Voltage | 0.2-6V |
| Amp Signal to Noise | > 90dB |
| Amp Frequency Response | 10Hz-250Hz |
| Amp Total Harmonic Distortion (THD) | < 1% |
| Amp Speaker Level Audio Inputs | Yes |
| Amp Power Terminal | 12v/GND 4 AWG |
| Amp Speaker Terminal Wire Gauge | 14 AWG |
| Amp Fusing | Use External Fuse |
| Dimensions | 47.6 × 17.8 × 8.6 cm |
| Weight | 4.0 kg |
| Heatsink Dimensions | 34.6 × 14.6 × 6.0 cm |
| Output circuitry | Ultra-Fi MOSFET |
| Power supply | Twin Turbo Coil Pulse Width Modulated |
| Audio and power terminals | Nickel-plated |
| Installation details | Angled terminal connections |
| Auto turn-on | DC Offset via high-level inputs; detects a 6V DC offset voltage rise over high-level speaker inputs when the source unit powers on |
| Compatibility | 12V mobile vehicle audio systems and subwoofer configurations matching 1, 2, or 4 Ohm impedance loads |
| What's included | Hifonics A2000.1D ALPHA Amplifier; HFR-31 Wired Bass Remote Control |
| Downloads | Hifonics ALPHA Amplifiers (A) Quick Start Guide (Rev3); Hifonics Autosense Technical Guide (Rev3) |
Why Choose This Product?
The A2000.1D combines multiple bass-tuning controls with a wired remote, so you can make adjustments at the amplifier or from the cabin. Its MOSFET circuitry, pulse-width-modulated power supply, and aluminum alloy heatsink are part of its design for mobile audio use.
Nickel-plated audio and power terminals provide corrosion-resistant connections. The amplifier also uses Surface Mount Technology and angled terminals for a streamlined installation.
Installation & Compatibility Notes
This amplifier is specified for 12V mobile vehicle audio systems and subwoofer loads of 1, 2, or 4 Ohms. Confirm your subwoofer’s impedance and the corresponding power rating before connecting it.
The power and ground terminals accommodate 4 AWG wire, and the speaker terminals accept 14 AWG wire. The amplifier uses an external fuse; the supplied specifications do not state a fuse rating. Check the installation requirements for your system before wiring.
Frequently Asked Questions
How much power does the Hifonics A2000.1D provide at each impedance?
Its listed output is 1 x 2000 watts at 1 Ohm, 1 x 1000 watts at 2 Ohms, and 1 x 500 watts at 4 Ohms. Maximum power is listed as 2000 watts.
Does the amplifier include a bass remote?
Yes. The package includes an HFR-31 wired bass remote control for adjusting bass levels from the vehicle cabin. The supplied product details describe its control as illuminated.
What wire gauges do the terminals accept?
The power and ground terminals accommodate 4 AWG wire. The speaker terminals accept 14 AWG wire.
How does high-level auto turn-on work?
The amplifier detects a 6V DC offset voltage rise over the high-level speaker inputs when the source unit powers on, allowing it to turn on without a separate remote wire.
What should I check before pairing it with a subwoofer?
Confirm that the subwoofer configuration matches a 1, 2, or 4 Ohm load, then use the corresponding power rating when planning your system.
What comes in the package?
The listed included items are the Hifonics A2000.1D ALPHA amplifier and HFR-31 wired bass remote control.
Explore More
Want to learn more about Hifonics? Explore our Hifonics brand profile.
| Type | Amplifier |
| Brand | Hifonics |
| Series | ALPHA |
| Category | Mobile |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| Compatible Vehicles | Universal |
| Amp Class | Super D-Class® |
| Amp Total Channels | 1 |
| Amp Max Power (watts) | 2000 |
| Amp Power @ 1 Ohm (ch x watts) | 1 x 2000 |
| Amp Power @ 2 Ohms (ch x watts) | 1 x 1000 |
| Amp Power @ 4 Ohms (ch x watts) | 1 x 500 |
| Amp Crossover | Electronic |
| Amp Variable Low Pass Crossover 12dB per Octave | 30Hz-250Hz |
| Amp Tone Control / Parametric EQ | Bass EQ |
| Amp Bass Boost | 0-12dB @ 45Hz |
| Amp Subsonic Filter | 10Hz-50Hz |
| Amp Phase Shift | Variable 0-180 Degrees |
| Amp Variable Voltage | 0.2-6V |
| Amp Signal to Noise | > 90dB |
| Amp Frequency Response | 10Hz-250Hz |
| Amp Total Harmonic Distortion (THD) | < 1% |
| Amp Speaker Level Audio Inputs | Yes |
| Amp Power Terminal 12v/GND | 4 AWG |
| Amp Speaker Terminal Wire Gauge | 14 AWG |
| Amp Fusing | Use External Fuse |
| Dimensions | 47.6 × 17.8 × 8.6 cm |
| Weight | 4.0 kg |
| Heatsink Dimensions | 34.6 × 14.6 × 6.0 cm |
