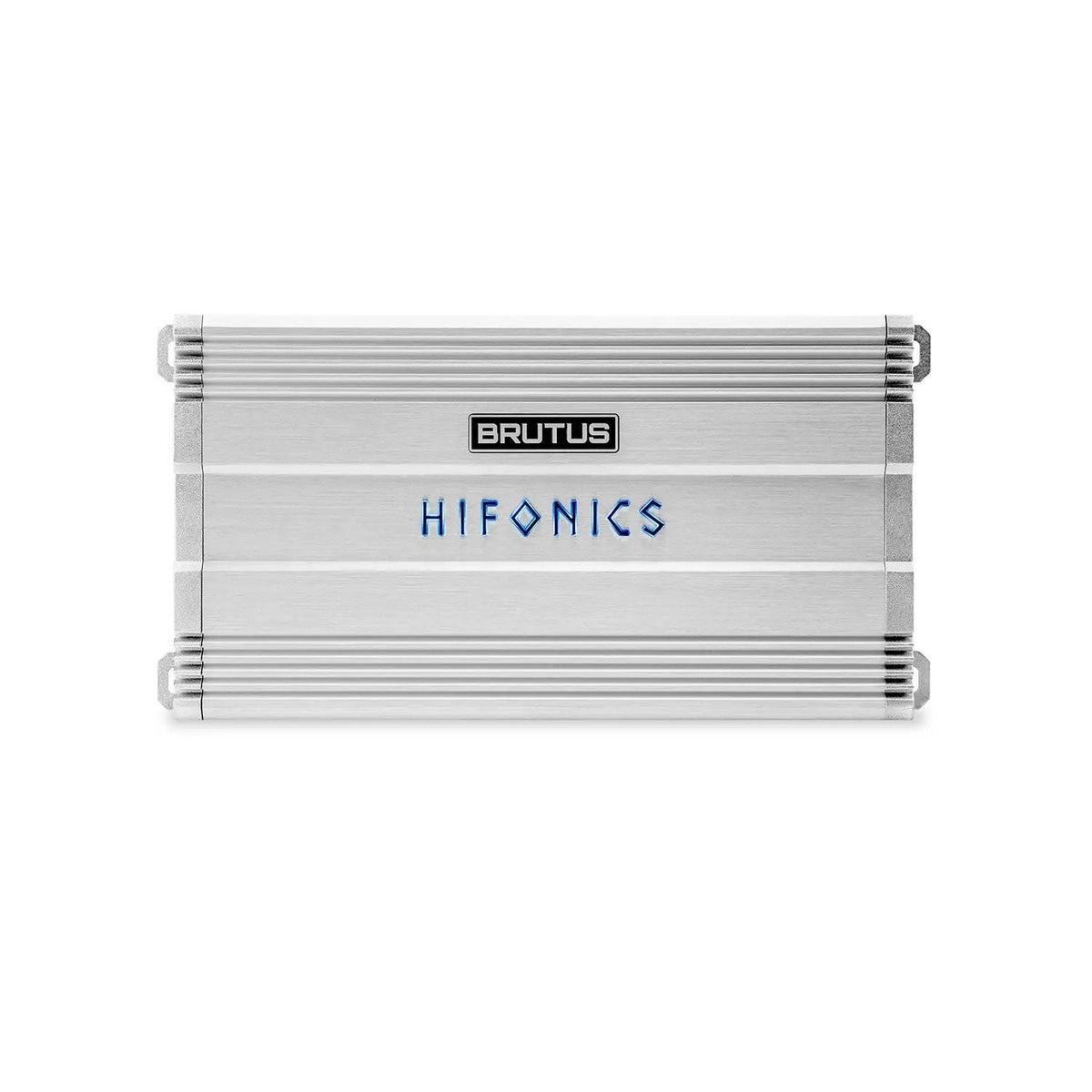

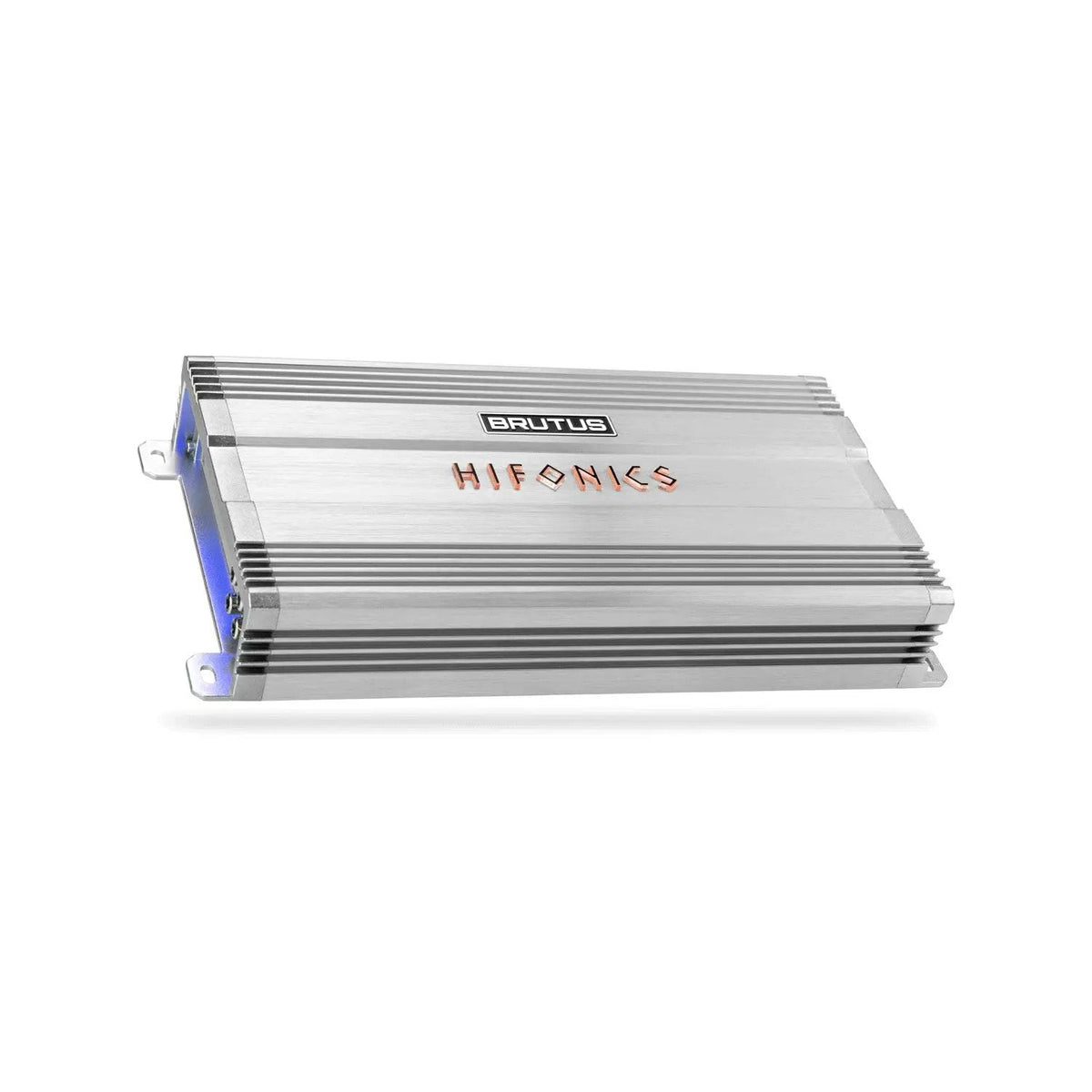

Hifonics BG-1000.2 BRUTUS BG 1000 Watt Two Channel Amplifier
Key features
- Amplifier channels: 2
- Amplifier class: Class D
- Frequency response: 10Hz-30kHz
- High-pass crossover (12 dB/octave): 50Hz-5kHz
- Low-pass crossover (12 dB/octave): 50Hz-5kHz
- Speaker-level inputs: Yes
Hifonics BG-1000.2 BRUTUS BG 1000 Watt Two Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add two-channel power to your car audio system with the Hifonics BG-1000.2 BRUTUS BG amplifier. Its Super D Class™ design delivers up to 1000 W, with high-level speaker inputs for connecting to an OEM stereo without RCA outputs.
Variable crossovers and selectable blue LED or VU meter illumination give you options for system setup and amplifier display.
Key Features & Benefits
- Two-channel Super D Class™ design: Supports stereo operation or a bridged mono output.
- OEM audio integration: High-level inputs and DC signal sense auto turn-on support connection to factory stereos without RCA outputs.

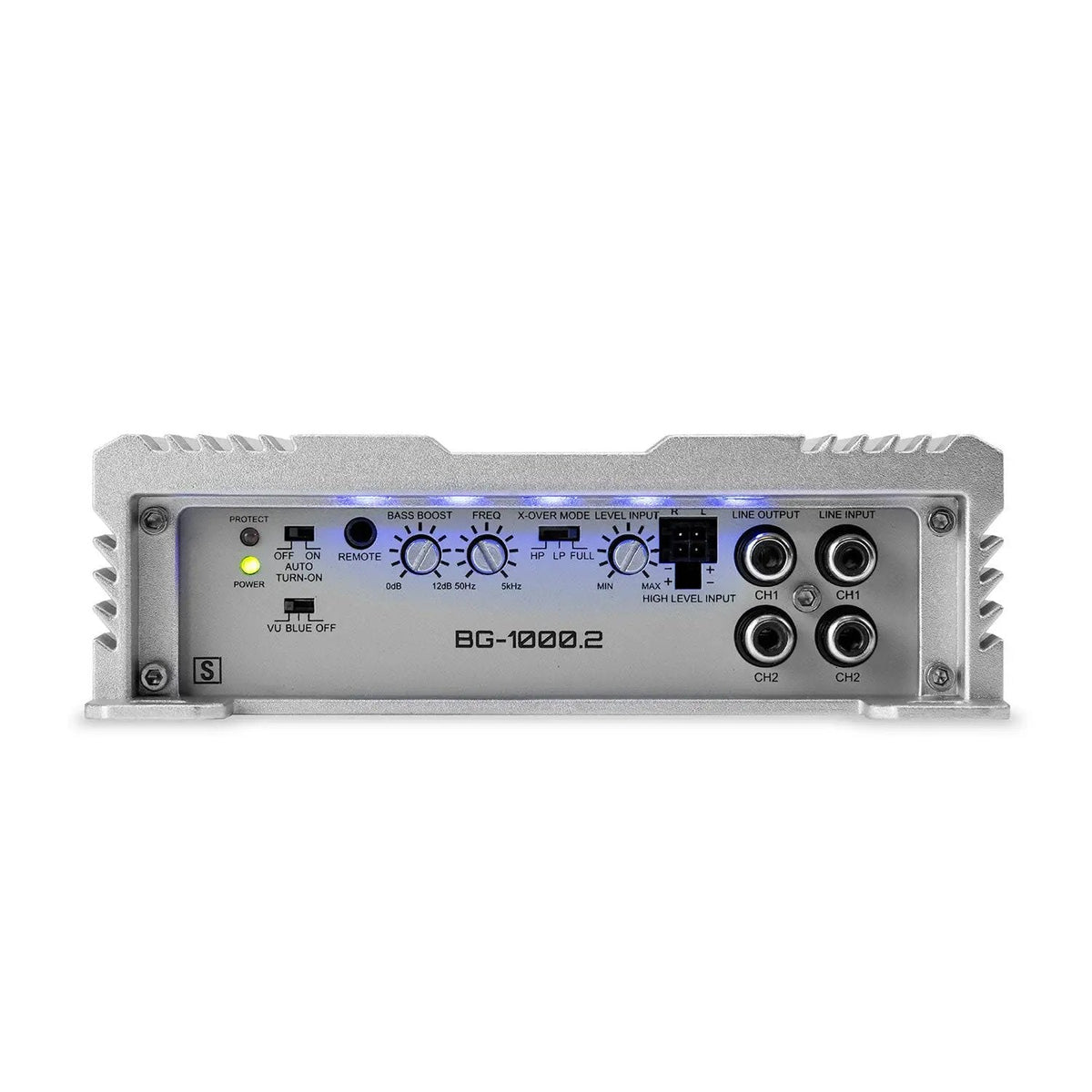

- Variable crossover: Selectable APF, HPF, or LPF filtering helps tailor the signal to your system.
- Pass-through RCA outputs: Send a pre-amp signal onward to another component.
- Output display options: Choose blue LED illumination, shutoff, or a VU meter that responds to audio output.
- Thermal and circuit design: An extruded aluminum heat sink, four-layer PCB, and shielded inductors support stable operation and low EMI.
Technical Specifications
| Brand | Hifonics |
|---|---|
| Series | BRUTUS BG |
| Model Number | BG-1000.2 |
| Amplifier Class | Super D Class™ |
| Total Channels | 2 |
| Max Power | 1000 W |
| Power Output @ 2 Ohms | 2 x 575 W |
| Power Output @ 4 Ohms | 2 x 300 W |
| Mono Bridged Power @ 4 Ohms | 1 x 1000 W |
| Frequency Response | 10Hz-30kHz |
| Signal to Noise Ratio | 105dB |
| Total Harmonic Distortion (THD) | < 0.1% |
| Variable Voltage | 0.2-7V |
| Bass Boost | 0-12dB |
| Crossover | Variable Electronic 12dB Per Octave, APF, HPF, LPF (50Hz-5KHz) |
| Speaker Level Audio Inputs | Yes |
| Pre-amp Audio Outputs | Pass Thru RCA |

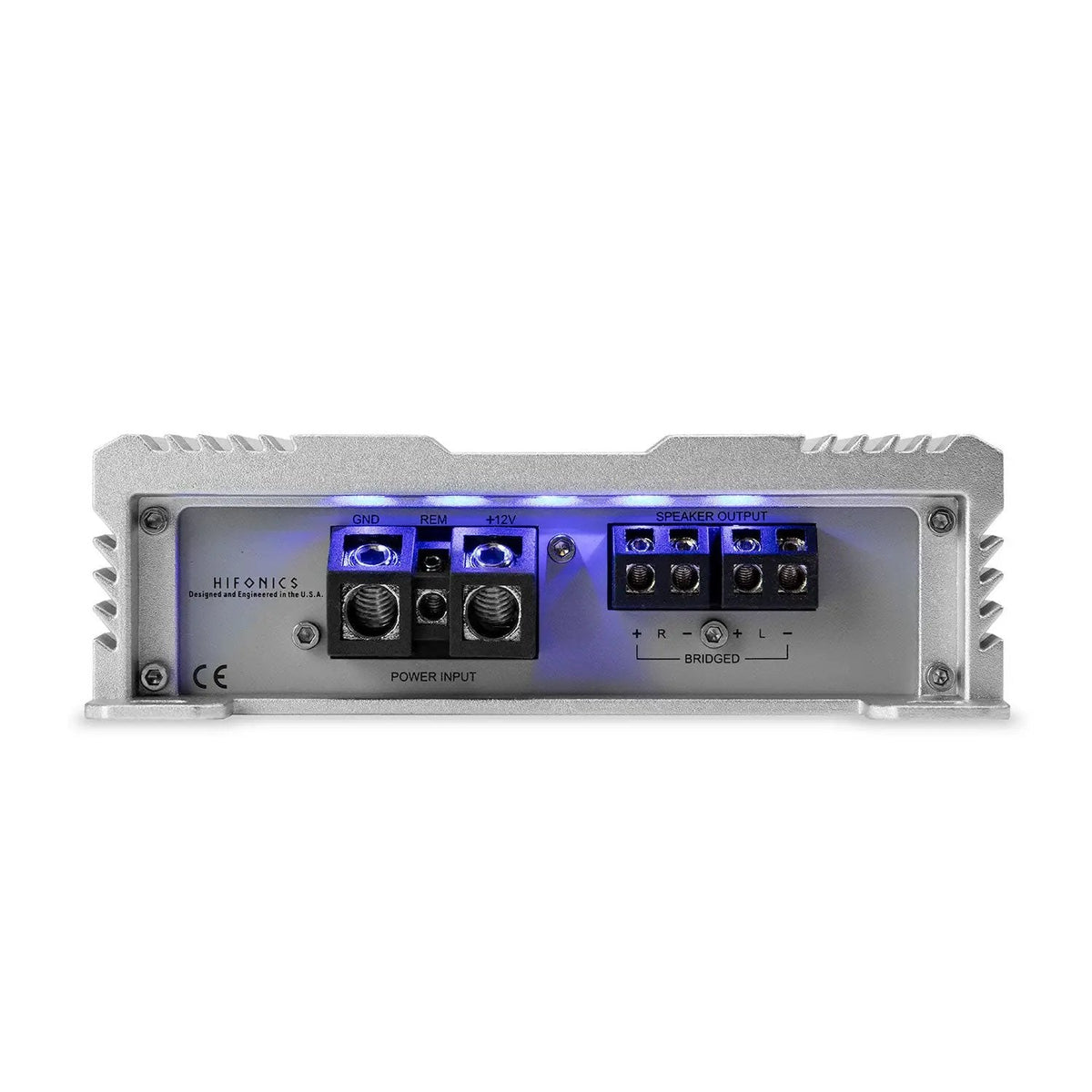

| Power / Ground Terminal Gauge | 4 AWG |
| Speaker Terminal Gauge | 12 AWG |
| Fusing | External 80A |
| Color | Silver |
| Product Dimensions (L x W x H) | 31 cm × 13 cm × 4.8 cm |
| Product Weight | 2.6 kg |
| Package Dimensions (L x W x H) | 38.7 cm × 20.8 cm × 9.3 cm |
| Package Weight | 3 kg |
Why Choose This Product?
The BG-1000.2 gives you a choice of input methods, so you can build around either a factory stereo’s speaker outputs or low-level RCA pre-amp outputs. Its stated power ratings distinguish stereo output at 2 and 4 ohms from bridged mono output at 4 ohms, helping you compare the amplifier with your planned system.

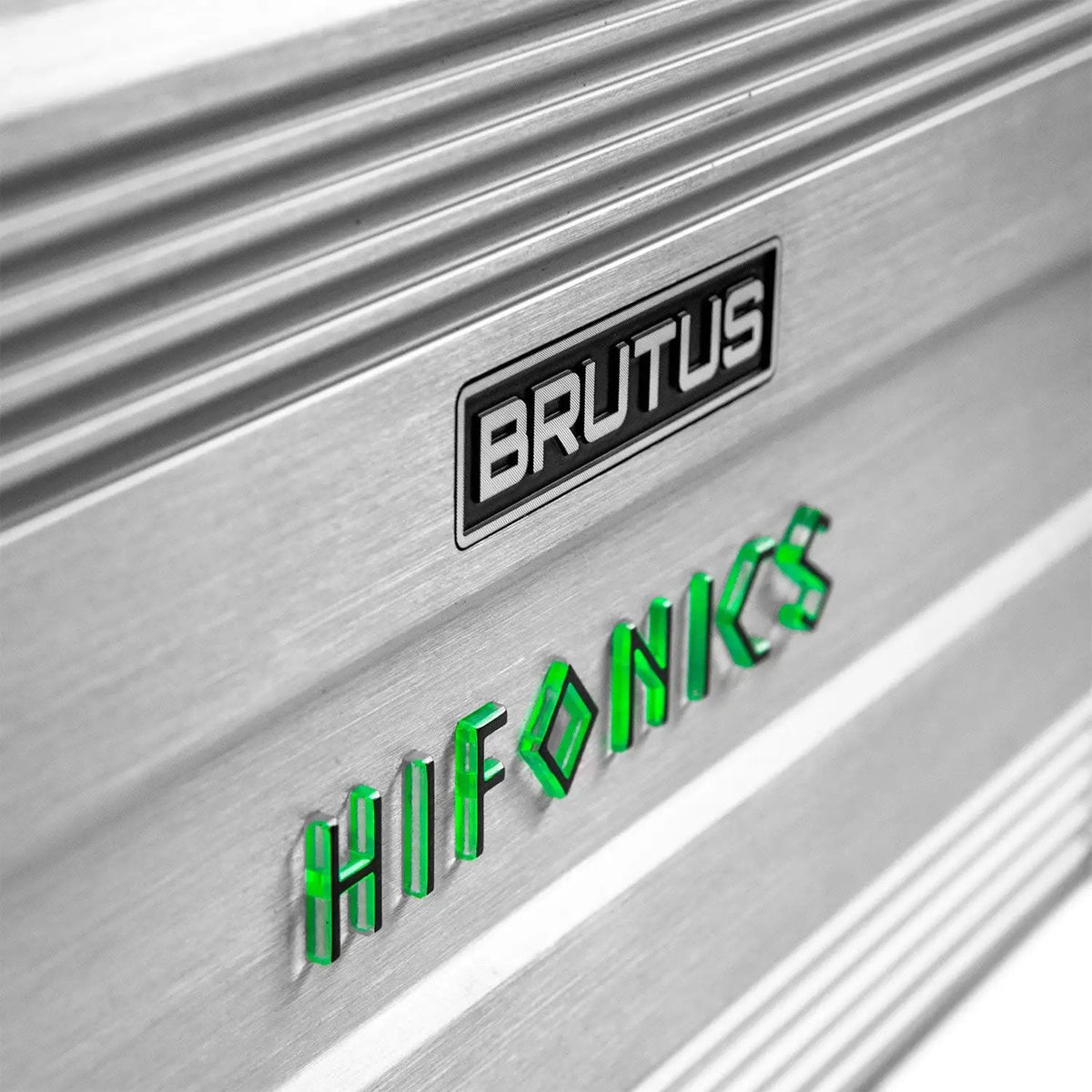

Dual toroidal transformers, a high-frequency PWM power supply, high-tolerance MOSFET components, and shielded inductors are part of its design. The front badging also offers a visual output display, with a VU meter mode that responds to audio levels.
Installation & Compatibility Notes
The amplifier supports standard 12V automotive electrical systems and accepts high-level speaker or low-level RCA inputs. Check your system’s load, connections, available mounting space, and installation requirements before purchase.
Its listed dimensions are 31 cm × 13 cm × 4.8 cm. The product materials list the Hifonics BRUTUS (BG) Amplifiers Quick Start Guide (Rev1) as a setup reference.
Frequently Asked Questions
Can I connect the BG-1000.2 to a factory stereo without RCA outputs?
Yes. It has high-level speaker inputs and DC signal sense auto turn-on for OEM systems without aftermarket RCA outputs.
What is its bridged mono power rating?
The listed rating is 1 x 1000 W into a 4-ohm load.
What are the stereo power ratings?
It is rated at 2 x 575 W at 2 ohms and 2 x 300 W at 4 ohms.
What input and output connections does it have?
It has high-level speaker inputs and pass-through RCA pre-amp outputs. It also accepts low-level RCA pre-amp inputs.
What protection circuitry is included?
The product details describe triple protection circuitry for over/under voltage, short circuits, and thermal overload.
