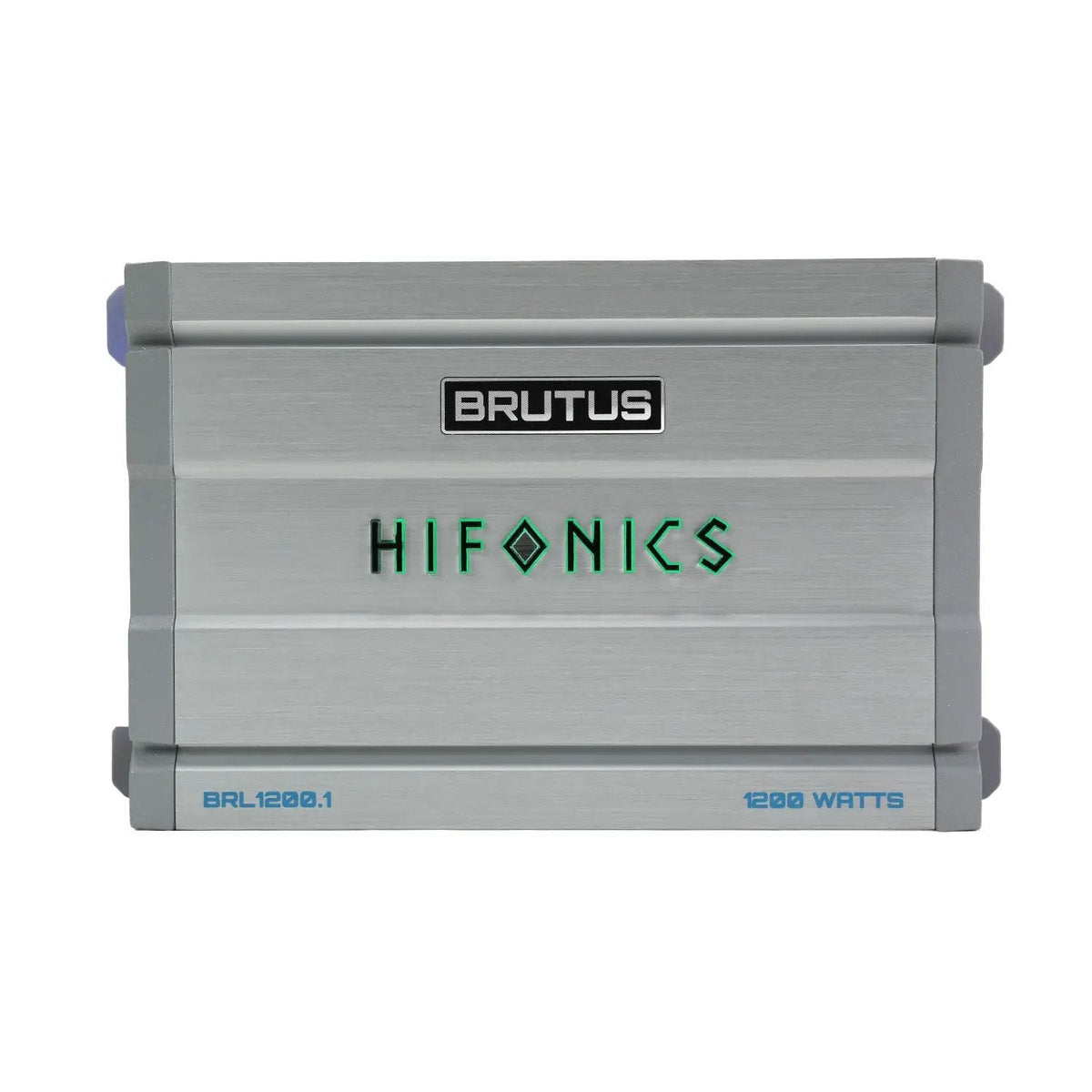

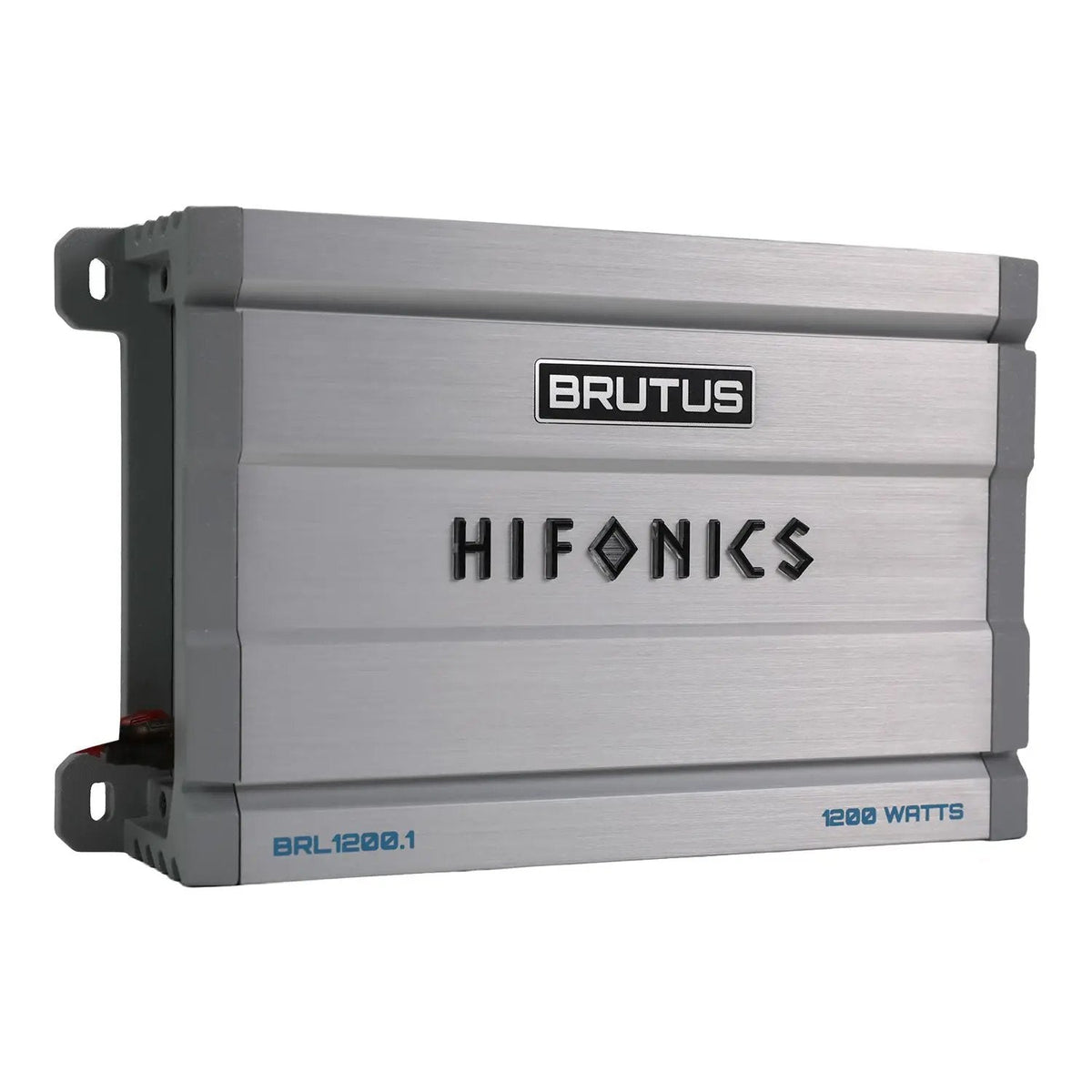

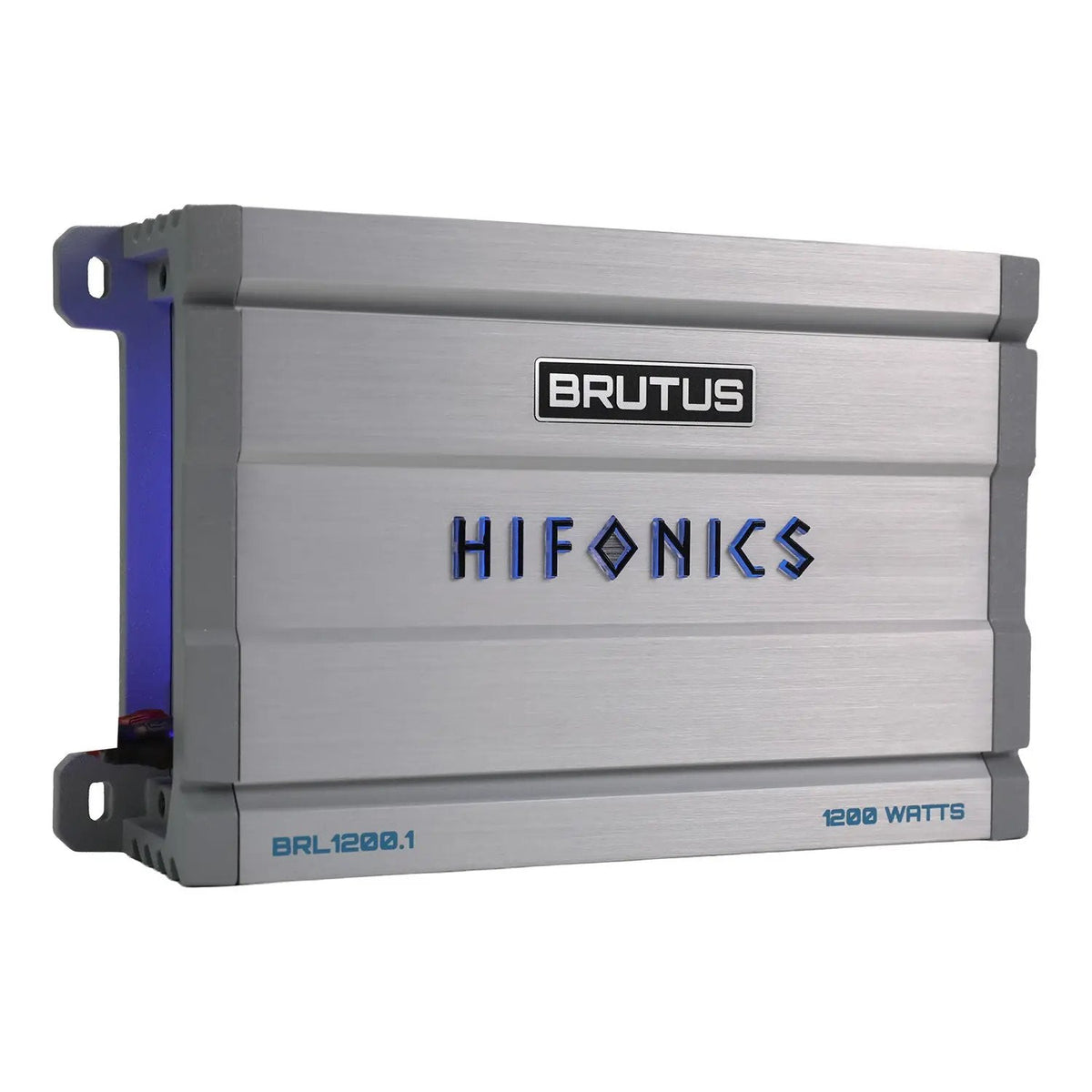

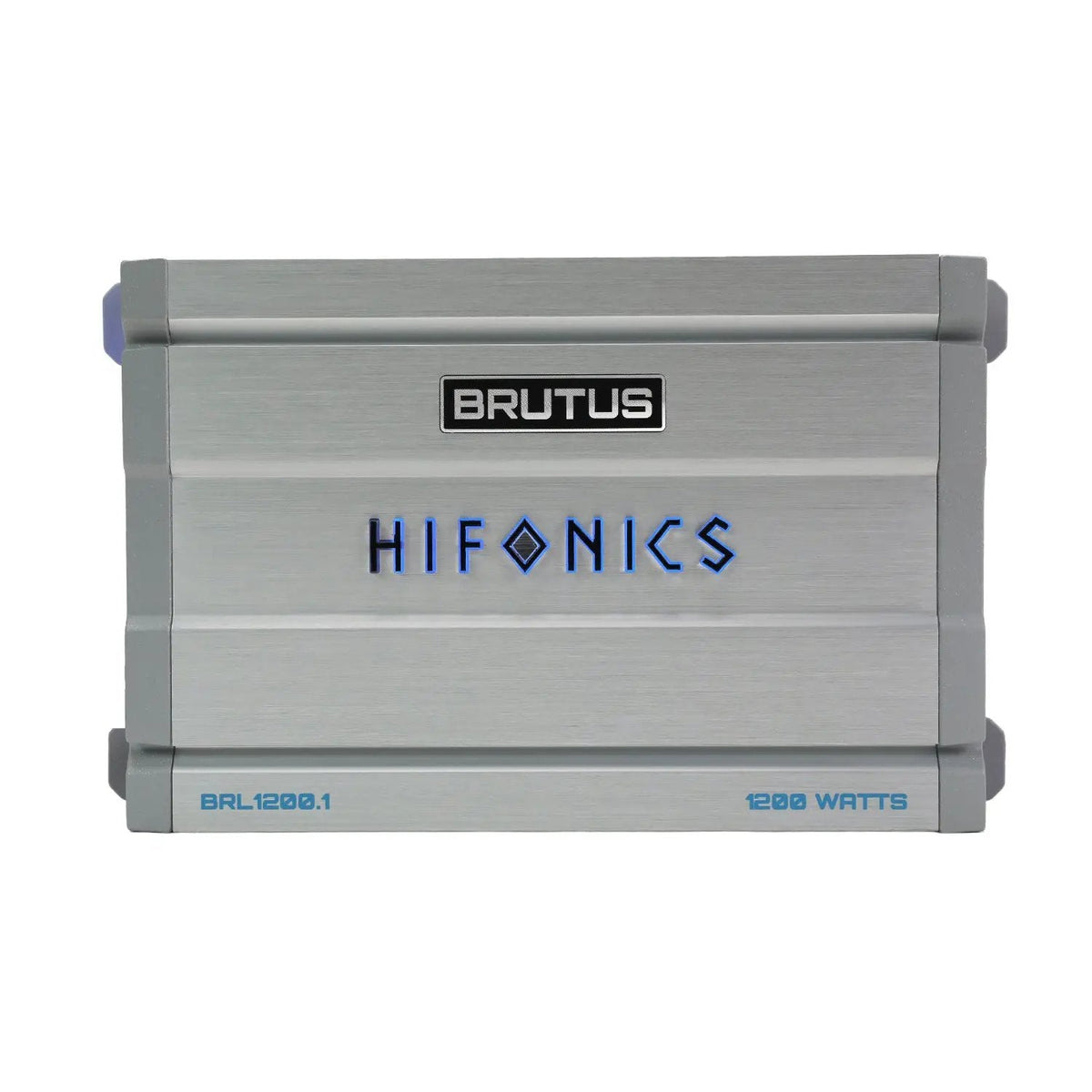

Hifonics BRL1200.1 BRUTUS BRL 1200 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 400.0 W
- RMS output at 2 ohms: 700 W
- RMS output at 1 ohm: 1200 W
Hifonics BRL1200.1 BRUTUS BRL 1200 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add dedicated subwoofer power to a 12V automotive audio system with the Hifonics BRUTUS BRL1200.1 monoblock amplifier. Its Super D Class design, half-bridge topology, and Ultra-Fi MOSFET output devices are built around efficient power delivery and heat management. A wired bass remote lets you adjust bass level from the front cabin.
Key Features & Benefits

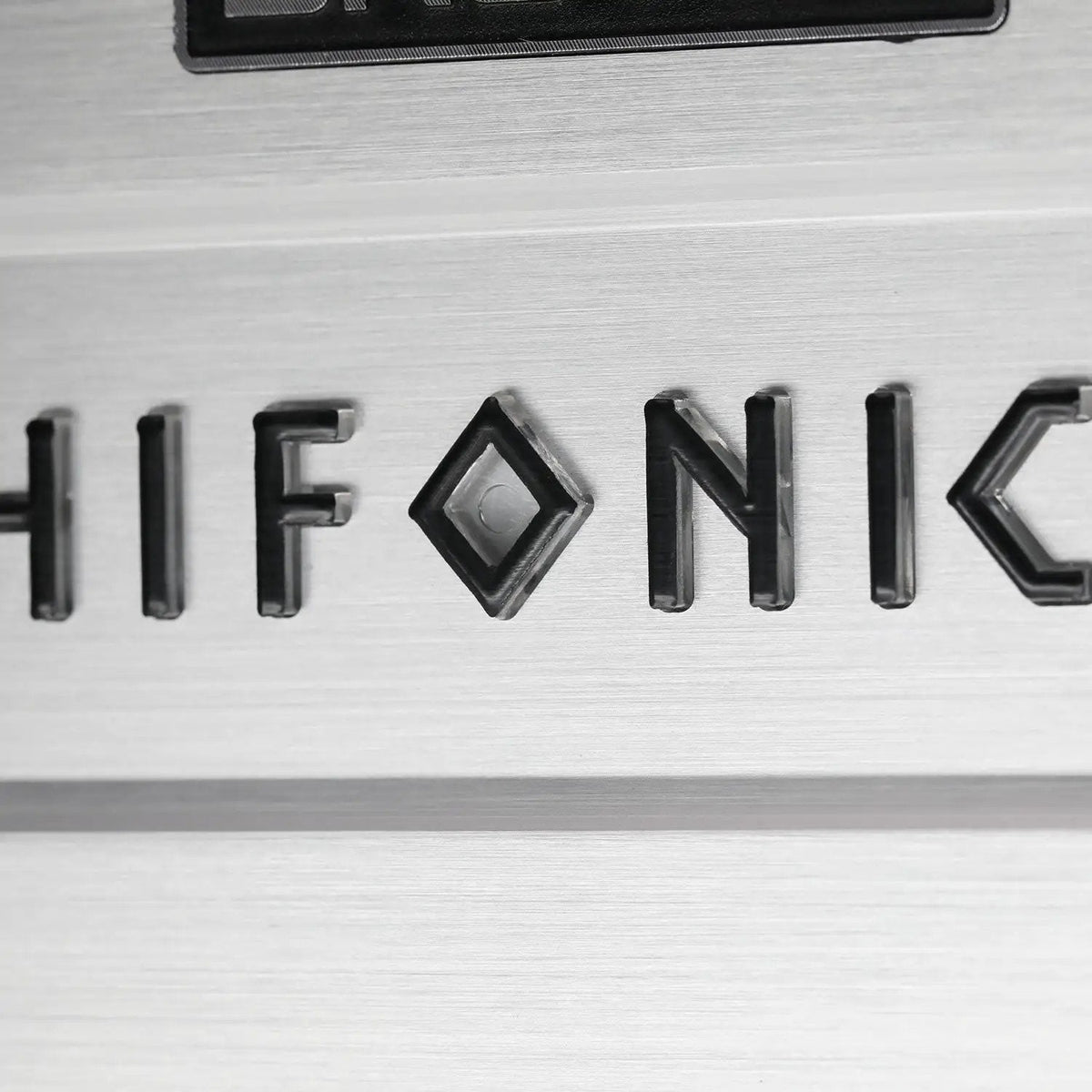

- Selectable logo lighting: Choose constant blue lighting, VU meter mode, or lights off; the VU meter display responds to audio levels during gain adjustment.

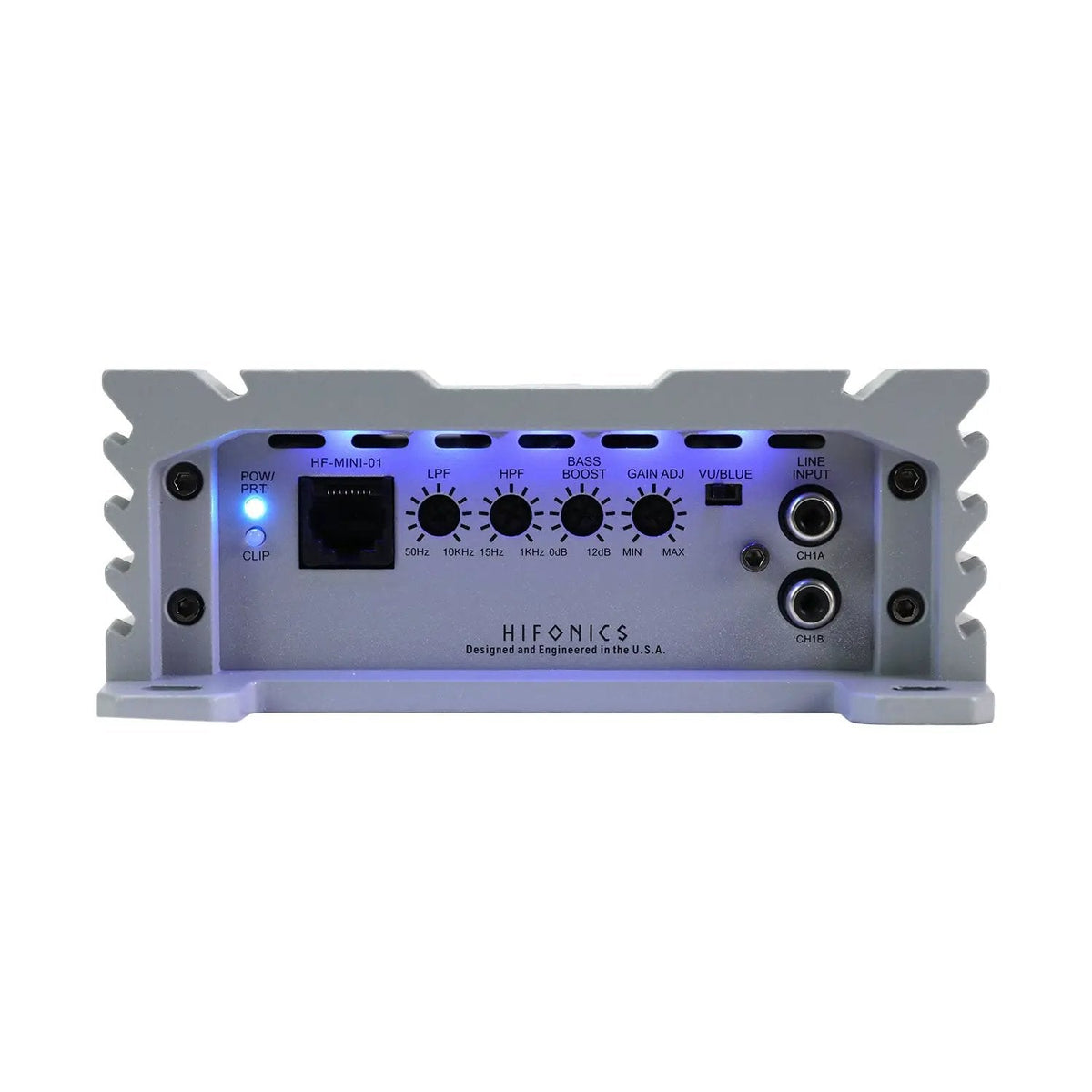

- Variable crossovers and bass boost: Adjust the electronic crossover settings and bass boost to suit your system setup.
- Nickel-plated RCA inputs: Corrosion-resistant jacks provide the amplifier’s RCA connection.

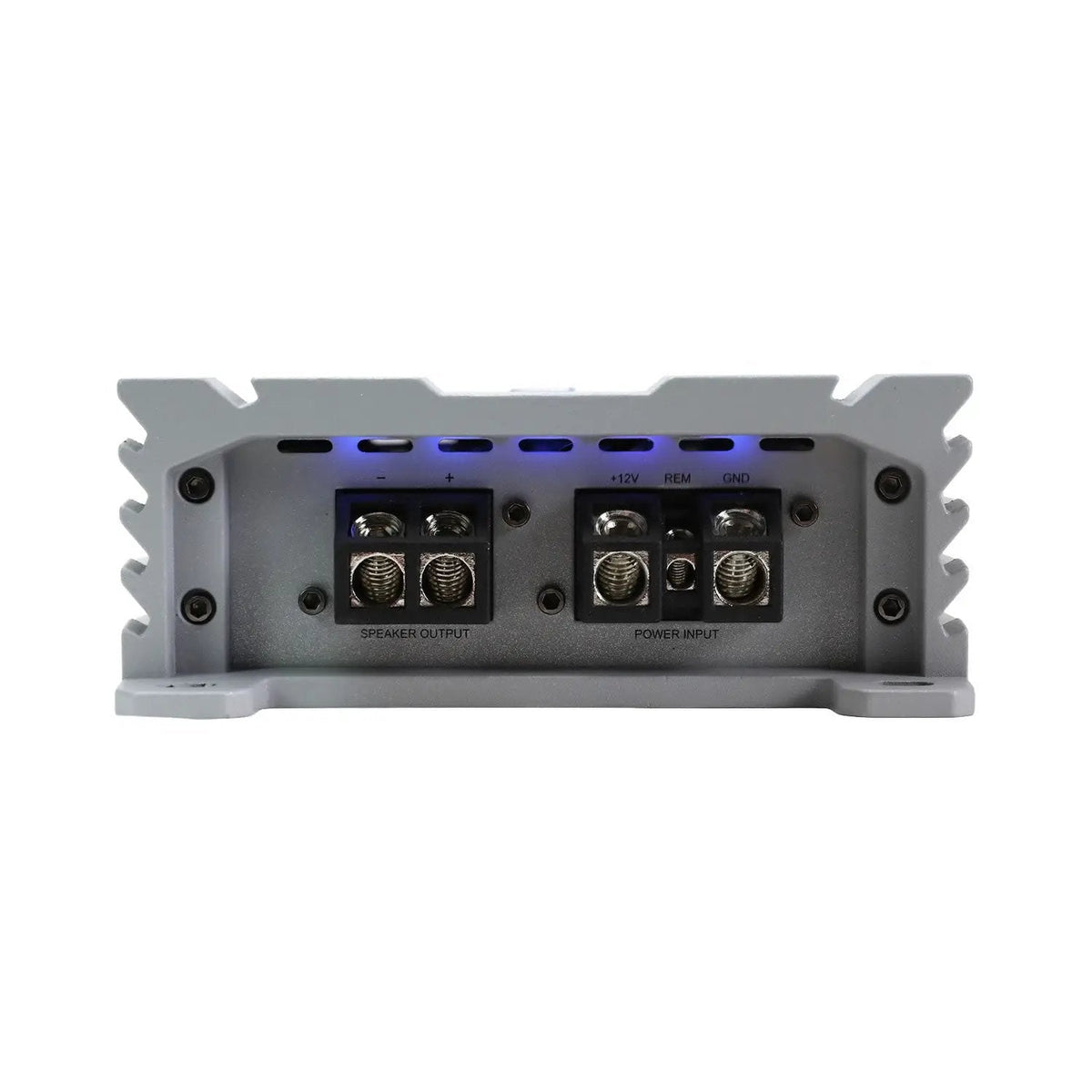

- Angled molded terminals: The power, ground, and speaker connections are angled for easier access and a tidy wiring profile.
- Delayed turn-on: Designed to help avoid unwanted turn-on and turn-off noises, such as hisses and pops.

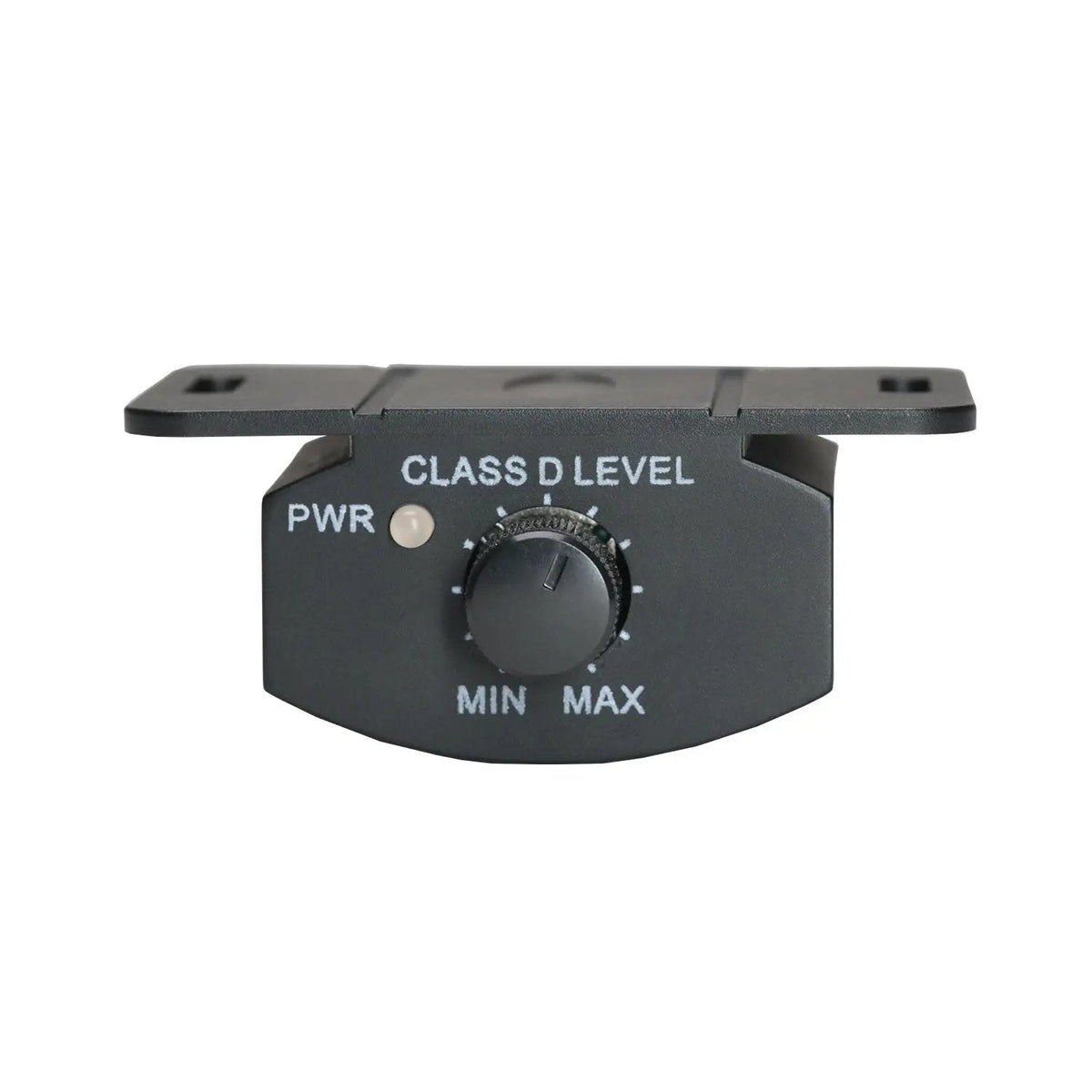

- Included bass remote: Adjust bass level from the cabin relative to the setting on the amplifier’s end panel.
Technical Specifications
| Brand | Hifonics |
|---|---|
| Series | BRUTUS BRL |
| Model | BRL1200.1 |
| Type | Mono Block Amplifier |
| Amp Class | Super D Class™ |
| Class / Topology | Class-D chipset; half-bridge design |
| Channels | 1 |
| Operation Mode | Mono only |
| Max Power | 1200 Watts |
| Power Output @ 1 Ohm | 1 x 1200 Watts |
| Power Output @ 2 Ohms | 1 x 700 Watts |
| Power Output @ 4 Ohms | 1 x 400 Watts |
| Frequency Response | 10Hz-10kHz |
| Signal to Noise Ratio | 101dB |
| Total Harmonic Distortion (THD) | < 0.5% |
| Variable Voltage | 0.2-9V |
| Bass Boost | 0-12dB |
| Crossover | Variable Electronic 12dB Per Octave |
| Variable High Pass Crossover | 15Hz-1KHz |
| Variable Low Pass Crossover | 50Hz-10KHz |
| Power/Ground Terminal Wire Gauge | 2 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| External Fusing | 150A |
| Color | Black |
| Item Dimensions | 24.8 × 14.6 × 5.7 cm |
| Item Weight | 1.9 kg |
| Package Dimensions | 35.9 × 18.7 × 9.2 cm |
| Package Weight | 2.4 kg |
| Power supply and efficiency | Iron core transformer; high-efficiency power supply design using carefully selected parts |
| Output devices | Ultra-Fi MOSFETs, designed for high output power and thermal dissipation through a proprietary coupling method |
| Heat sink | Mass-loaded extruded aluminum heat sink for thermal management and output performance |
| EMI design | Multi-layer PCB construction and iron core transformer support an ultra-low EMI design to minimize interference with vehicle electronics |
| Preamplifier | High-end preamplifier circuit accepts a wider range of input signals |
| PCB construction | Multi-layer printed circuit boards with surface-mount components |
| Connection type | Secure molded power, ground, and speaker terminals; angled for access and wire management |
| Stylized badging | Selectable constant blue LED lighting, VU Meter mode, or full off; in VU Meter mode, the illuminated logo reflects audio level for gain adjustment |
| Protection circuits | Triple protection against over/under voltage, short circuit, overcurrent, and thermal conditions |
| Bass remote | Included; adjusts bass level relative to the amplifier’s end-panel setting. Indicator is green when powered on and red if the amplifier enters protect. |
| Compatibility | 12V automotive audio systems, source units, and subwoofers wired to 1 Ohm, 2 Ohms, or 4 Ohms |

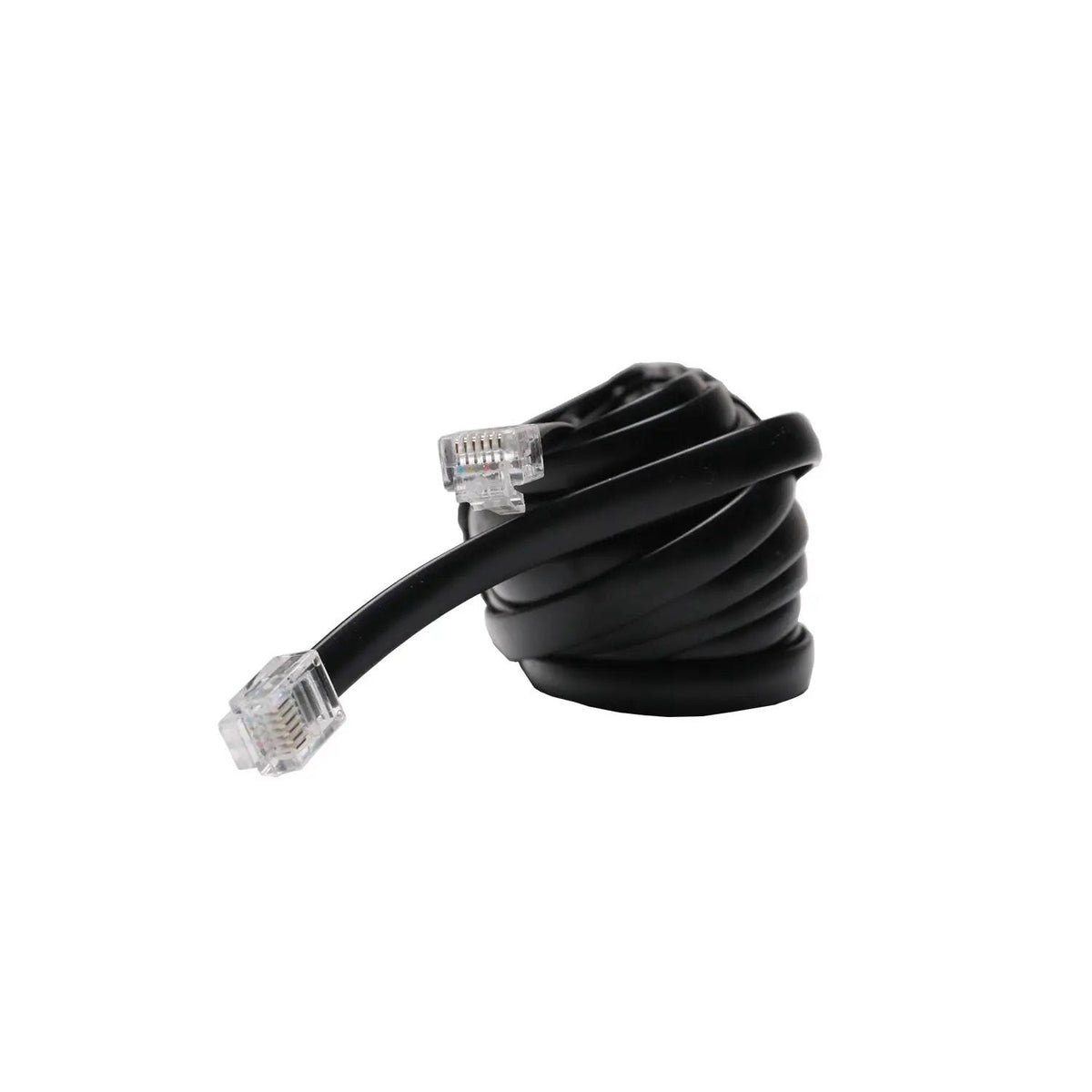

| What's included | Hifonics BRL1200.1 Mono Amplifier; Bass Remote Control with Cable; Quick Start Guide |
| Download | Hifonics-BRUTUS-BRL-Amps-QSG-Rev2 |
Why Choose This Product?
The BRL1200.1 combines a mono-only design with selectable output ratings for 1-, 2-, and 4-ohm loads. Its half-bridge design uses fewer components, while the Class-D chipset is designed for efficiency and a wide frequency range. The included remote gives you a convenient way to change bass level without reaching the amplifier.
For system setup, the adjustable crossovers and bass boost offer control over key settings. The VU meter lighting can also provide a visual reference while you adjust gain.
Installation & Compatibility Notes
This amplifier is listed for 12V automotive audio systems and subwoofers wired to 1, 2, or 4 ohms. Confirm your system’s load and source-unit connections before installation. The power and ground terminals are designed for 2 AWG wire, the speaker terminals for 12 AWG, and the external fuse specification is 150A.
Check the amplifier dimensions—24.8 × 14.6 × 5.7 cm—against your available mounting space. The package measures 35.9 × 18.7 × 9.2 cm.
Frequently Asked Questions
How much power does the BRL1200.1 produce at 1 ohm?
It is rated at 1 x 1200 watts at 1 ohm. The product details also identify this as 1200 watts RMS across one channel at that load.
What power ratings are listed at 2 and 4 ohms?
The listed outputs are 1 x 700 watts at 2 ohms and 1 x 400 watts at 4 ohms.
Does the amplifier include a bass remote?
Yes. A bass remote control with cable is included for adjusting bass level from the cabin.
What are the power and speaker terminal wire gauges?
The power and ground terminals are designed for 2 AWG wire; the speaker terminals are designed for 12 AWG wire.
What does VU Meter mode do?
In this mode, the illuminated logo reflects audio level and can assist with gain adjustment.
Explore More
Shop the Hifonics BRUTUS BRL1200.1 at 12 Volt Outlet. Want to learn more about Hifonics? Explore our Hifonics brand profile.
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Type | Mono Block Amplifier |
| Amp Class | Super D Class™ |
| Channels | 1 |
| Max Power | 1200 Watts |
| Power Output @ 1 Ohm | 1 x 1200 Watts |
| Power Output @ 2 Ohms | 1 x 700 Watts |
| Power Output @ 4 Ohms | 1 x 400 Watts |
| Frequency Response | 10Hz-10kHz |
| Signal to Noise Ratio | 101dB |
| Total Harmonic Distortion (THD) | < 0.5% |
| Variable Voltage | 0.2-9V |
| Bass Boost | 0-12dB |
| Crossover | Variable Electronic 12dB Per Octave |
| Variable High Pass Crossover | 15Hz-1KHz |
| Variable Low Pass Crossover | 50Hz-10KHz |
| Power/Ground Terminal Wire Gauge | 2 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| External Fusing | 150A |
| Color | Black |
| Item Dimensions | 24.8 × 14.6 × 5.7 cm |
| Item Weight | 1.9 kg |
| Package Dimensions | 35.9 × 18.7 × 9.2 cm |
| Package Weight | 2.4 kg |
| Feature | Description |
|---|---|
| Ultra-High Efficient Design | A power supply design coupled with carefully selected parts results in an ultra-high efficient amplifier. |
| Half Bridge Design | An efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design | Minimal interference with other vehicle electronic systems. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in improved thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device | Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode | Mono only |
| Clean Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology | BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. |
| Power Supply | Iron core transformer assists in the ultra-low EMI design while providing high power. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate unwanted turn-on/off noises like hisses and pops. |
| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile. |
| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safeguards to protect the audio system and vehicle. |
| Bass Remote Included | The included bass remote on mono models allows adjustment of the bass level relative to the setting on the amplifier’s end panel. The LED indicator light displays green when the amplifier is powered on and red if the amplifier enters protect. |
