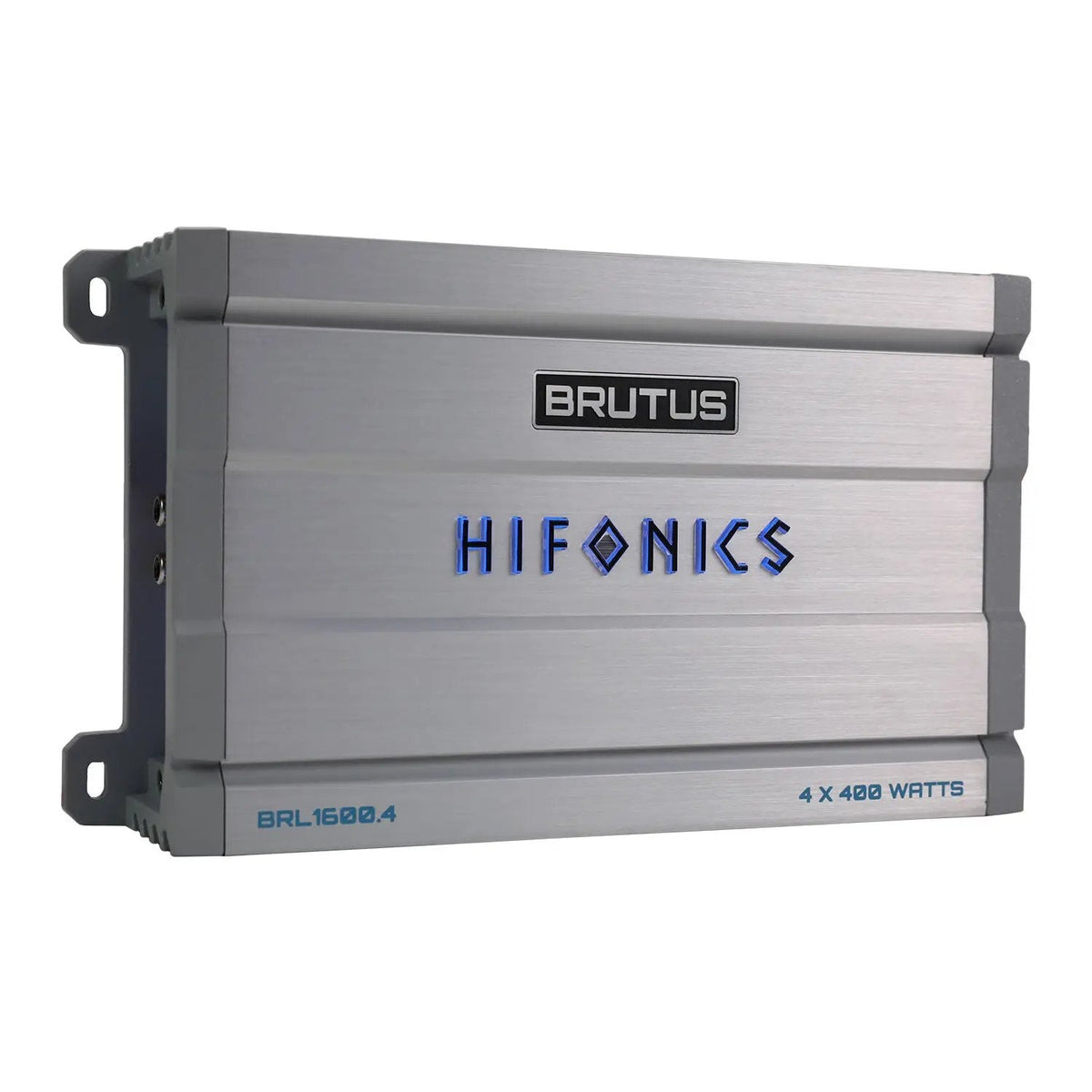

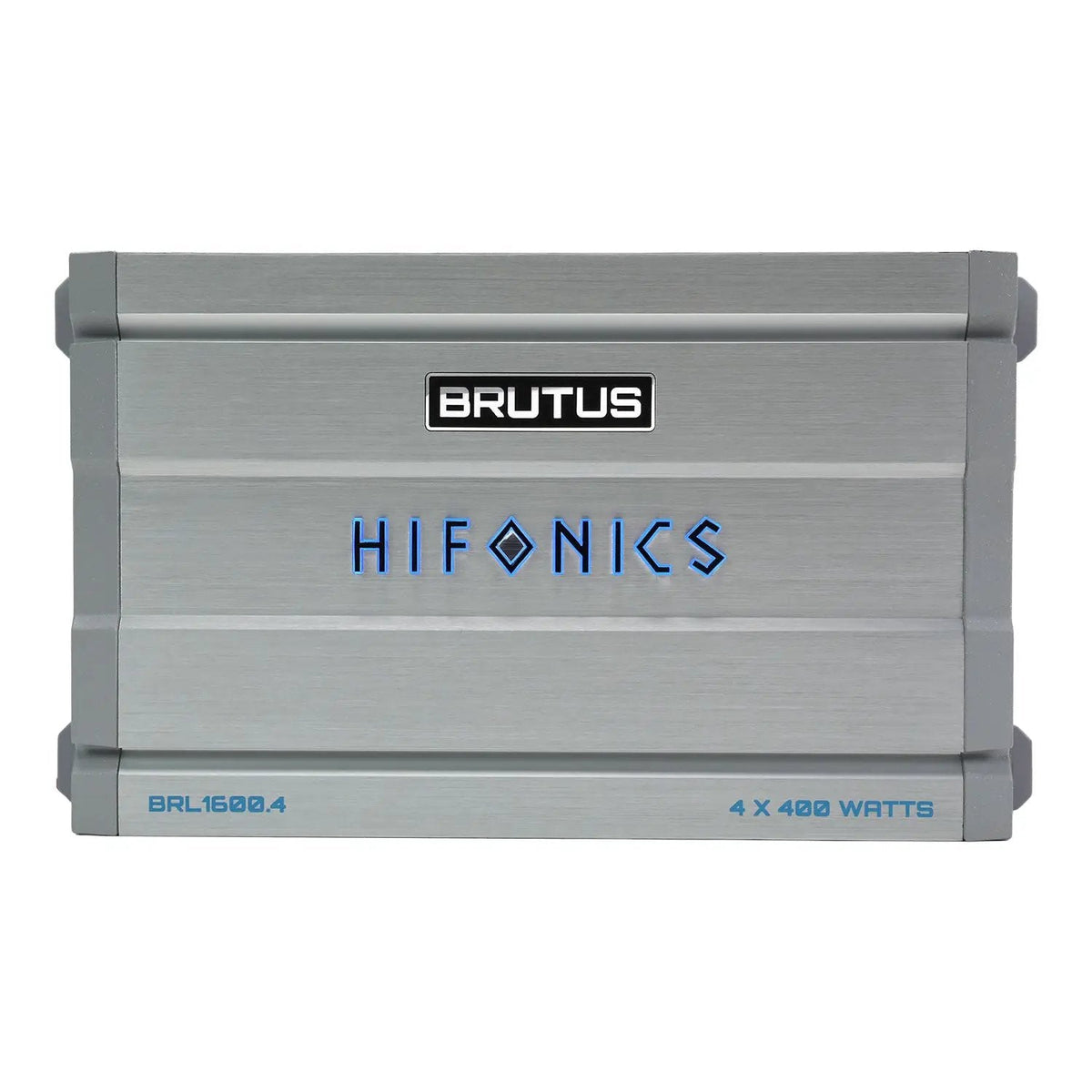

Hifonics BRL1600.4 BRUTUS BRL 1600 Watt Four Channel Amplifier
Key features
- Amplifier channels: 4
- Amplifier class: Class D
- Frequency response: 15Hz-30kHz
- High-pass crossover (12 dB/octave): 40Hz-2kHz
- Low-pass crossover (12 dB/octave): 40Hz-2kHz
- Power/ground terminal wire size: 2 AWG
Hifonics BRL1600.4 BRUTUS BRL 1600 Watt Four Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Hifonics BRL1600.4 BRUTUS four-channel amplifier gives you flexible power for a 12V audio system with RCA preamplifier inputs. Its Super D-Class topology, stereo or bridged operation, and adjustable crossovers let you tailor the setup to your system.
Key Features & Benefits
- Four-channel flexibility: Run stereo channels or use mono bridged operation for different system configurations.

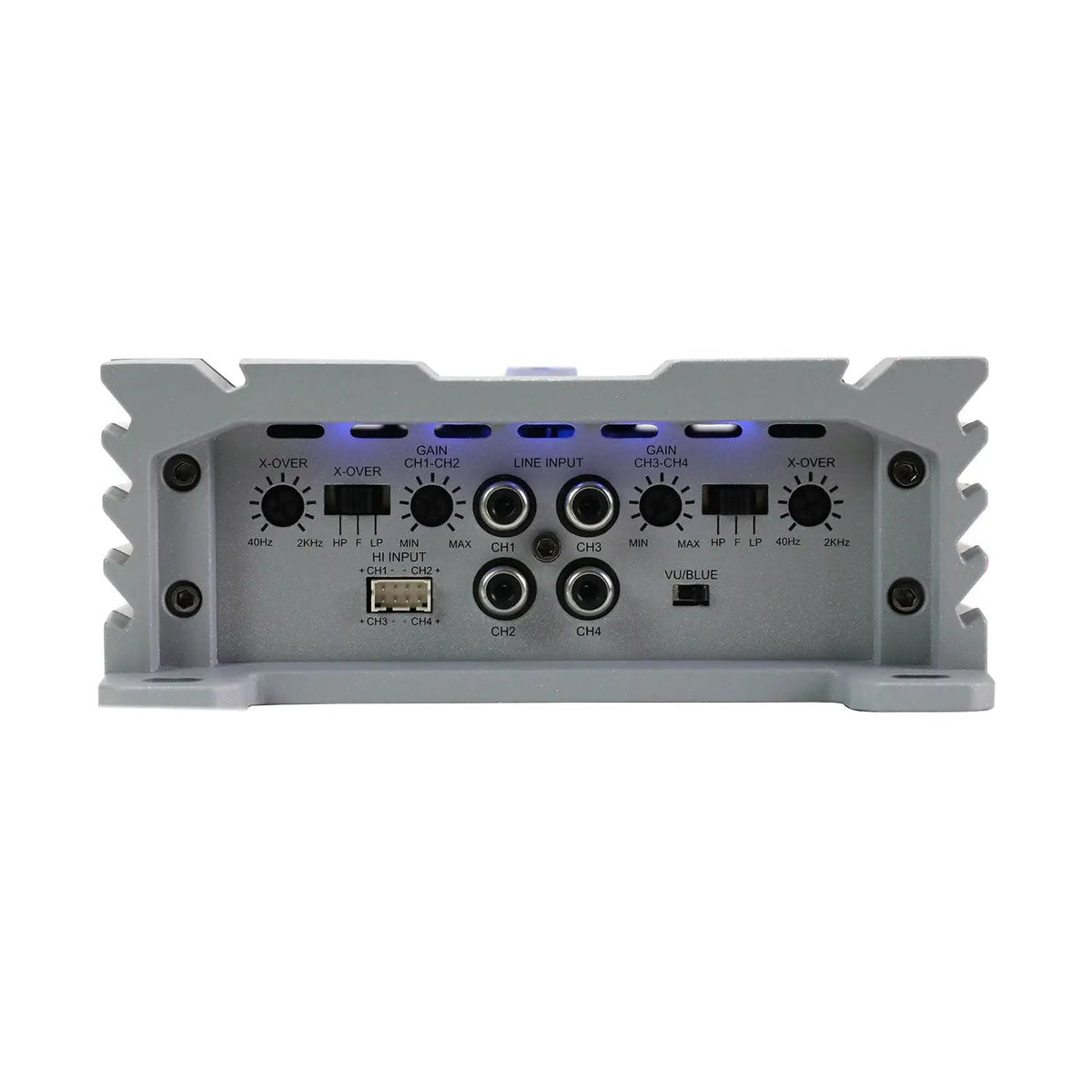

- Adjustable crossovers: Variable high-pass and low-pass controls help shape the signal for your audio setup.
- Selectable illuminated badge: Choose blue lighting, off, or VU Meter mode to view audio levels while adjusting gain.
- Delayed turn-on: Helps prevent turn-on and turn-off pops or hisses with compatible source units.
- Built-in protection: Integrated circuits guard against voltage issues, short circuits, overcurrent, and thermal overload.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Type | Amplifier |
| Amp class | Super D Class™ |
| Total channels | 4 |
| Maximum power | 1600 W |
| Power at 2 Ohms | 4 x 450 W |
| Power at 4 Ohms | 4 x 300 W |
| Mono bridged at 4 Ohms | 2 x 880 W |
| Frequency response | 15Hz-30kHz |
| Signal to noise | 88dB |
| Total harmonic distortion (THD) | < 0.2% |
| Variable high-pass crossover | 40Hz-2KHz (12dB per Octave) |
| Variable low-pass crossover | 40Hz-2KHz (12dB per Octave) |
| Variable voltage | 0.2-9V |
| Power terminal | 12v/GND 2 AWG |
| Speaker terminal wire gauge | 12 AWG |
| External fusing | 100A |
| Dimensions | 26.7 × 14.6 × 5.7 cm |
| Item weight | 2.2 kg |
| Packaged dimensions | 31.4 × 18.7 × 9.2 cm |
| Packaged weight | 2.5 kg |
| Color | Black |
| Condition | New |
| Design and topology | Ultra-high efficient design; half bridge design; Class-D chipset; clean multi-layer printed circuit boards (PCB) with surface mount components. |
| Heat management and output devices | Mass-loaded extruded aluminum heat sink; Ultra-Fi MOSFETs with a proprietary coupling method for high output power and thermal dissipation. |
| Power supply and EMI | Iron core transformer; ultra-low EMI design. |
| Preamplifier and RCA inputs | High-end preamplifier circuit accepts a wider range of input signals; nickel-plated, corrosion-resistant RCA inputs. |
| Operation modes | Four-channel stereo or mono bridged operation. |
| Turn-on function | Delayed turn-on function helps eliminate unwanted turn-on/off hisses and pops across a wide range of source units. |

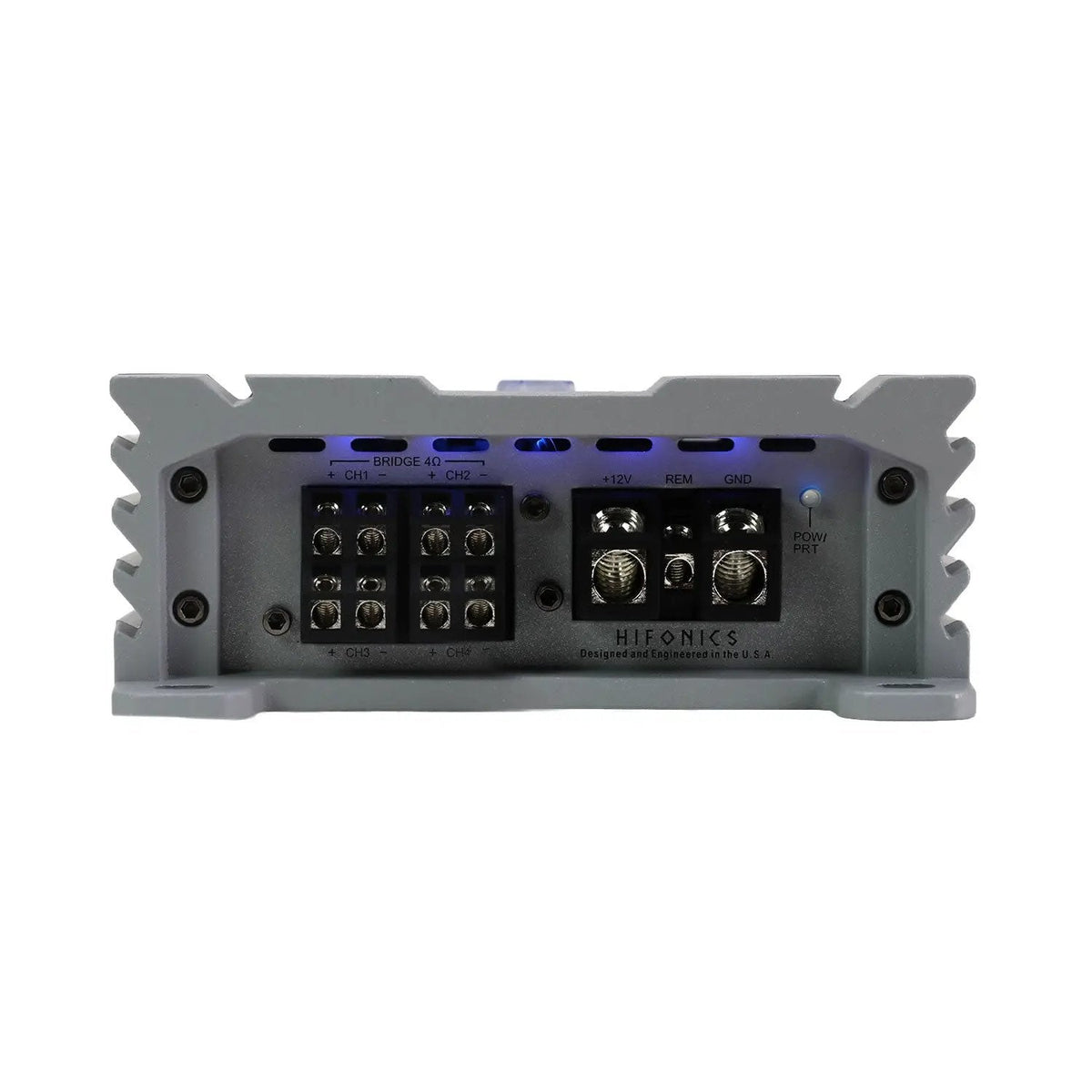

| Connections | Secure molded power, ground, and speaker connection terminal; angled for access and wire management. |

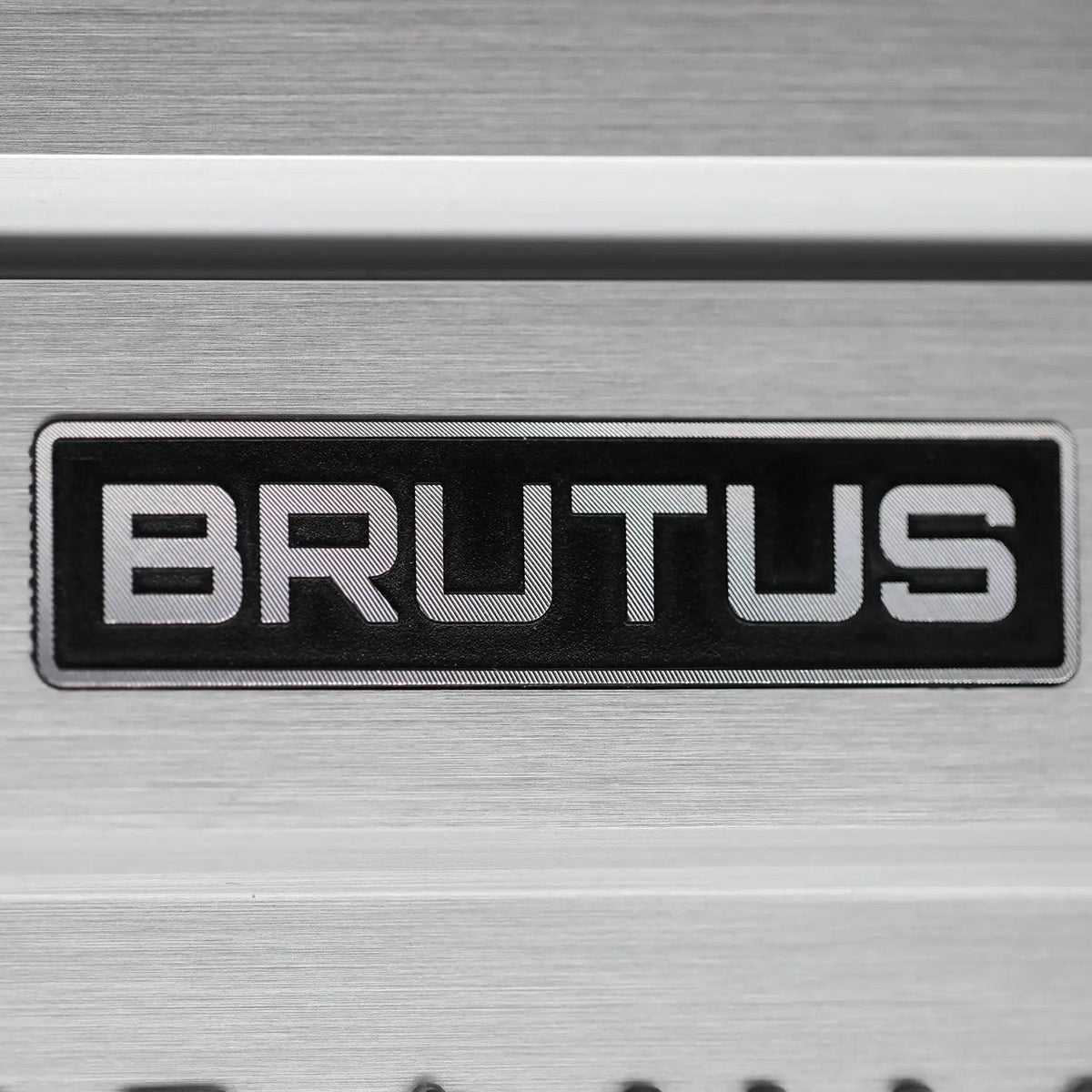

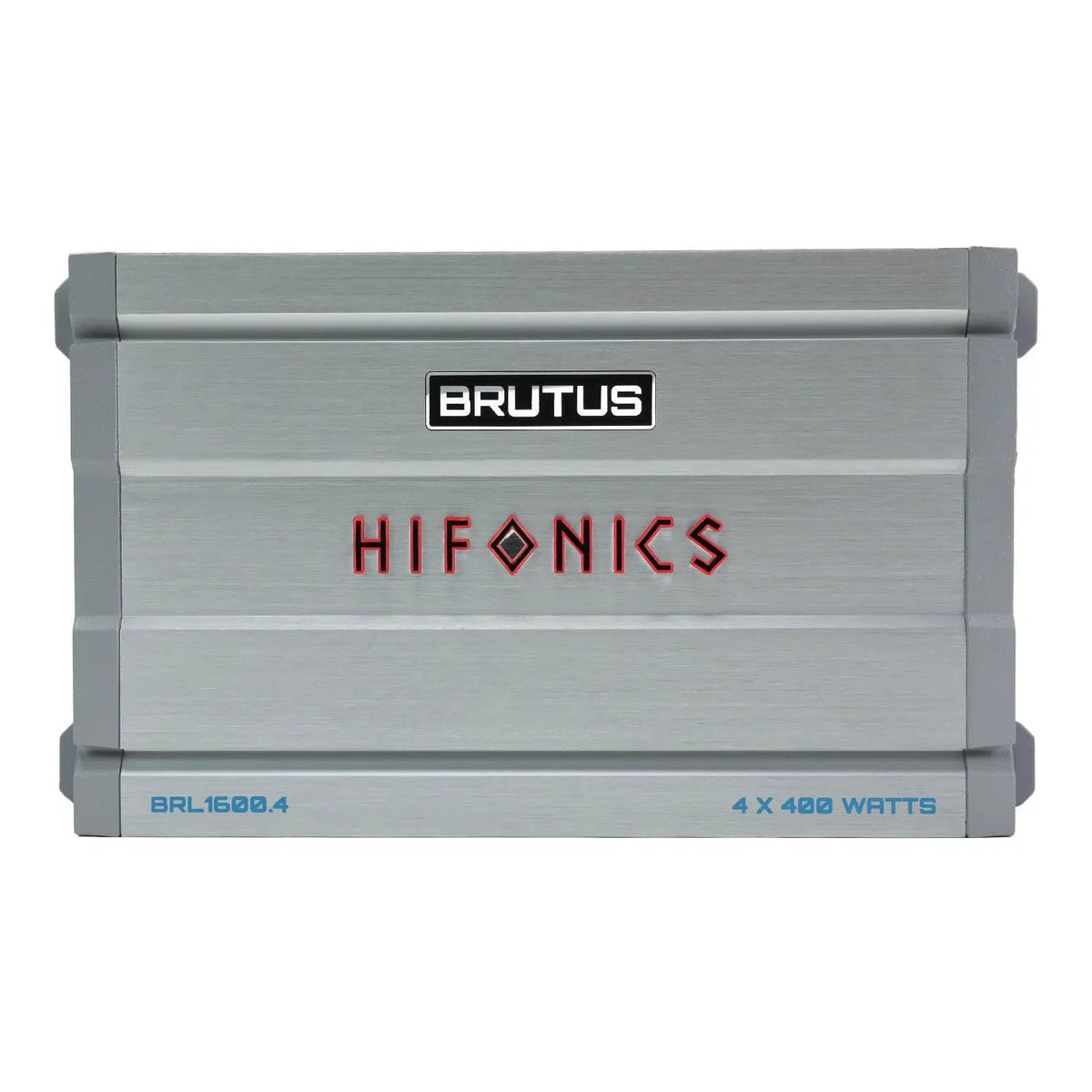

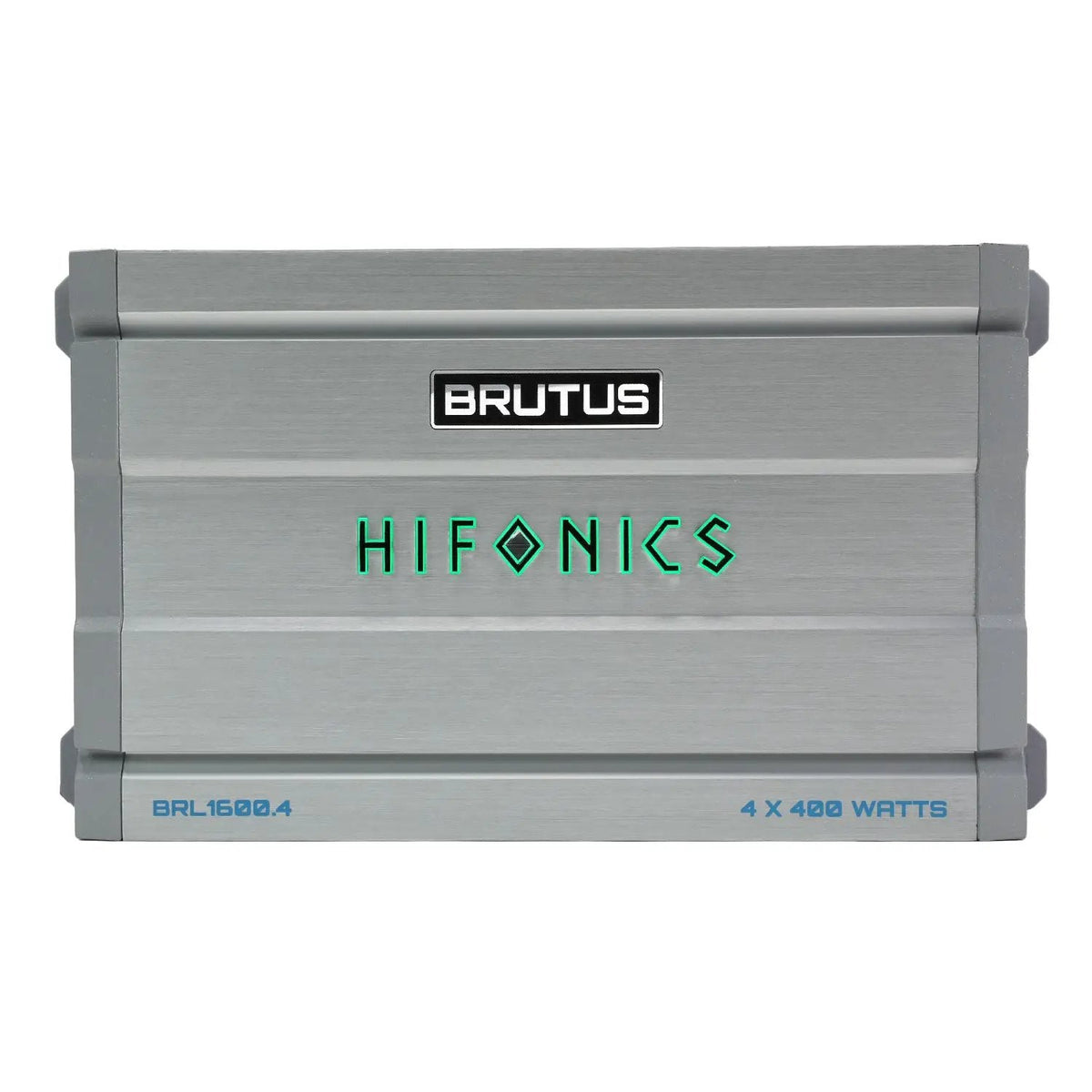

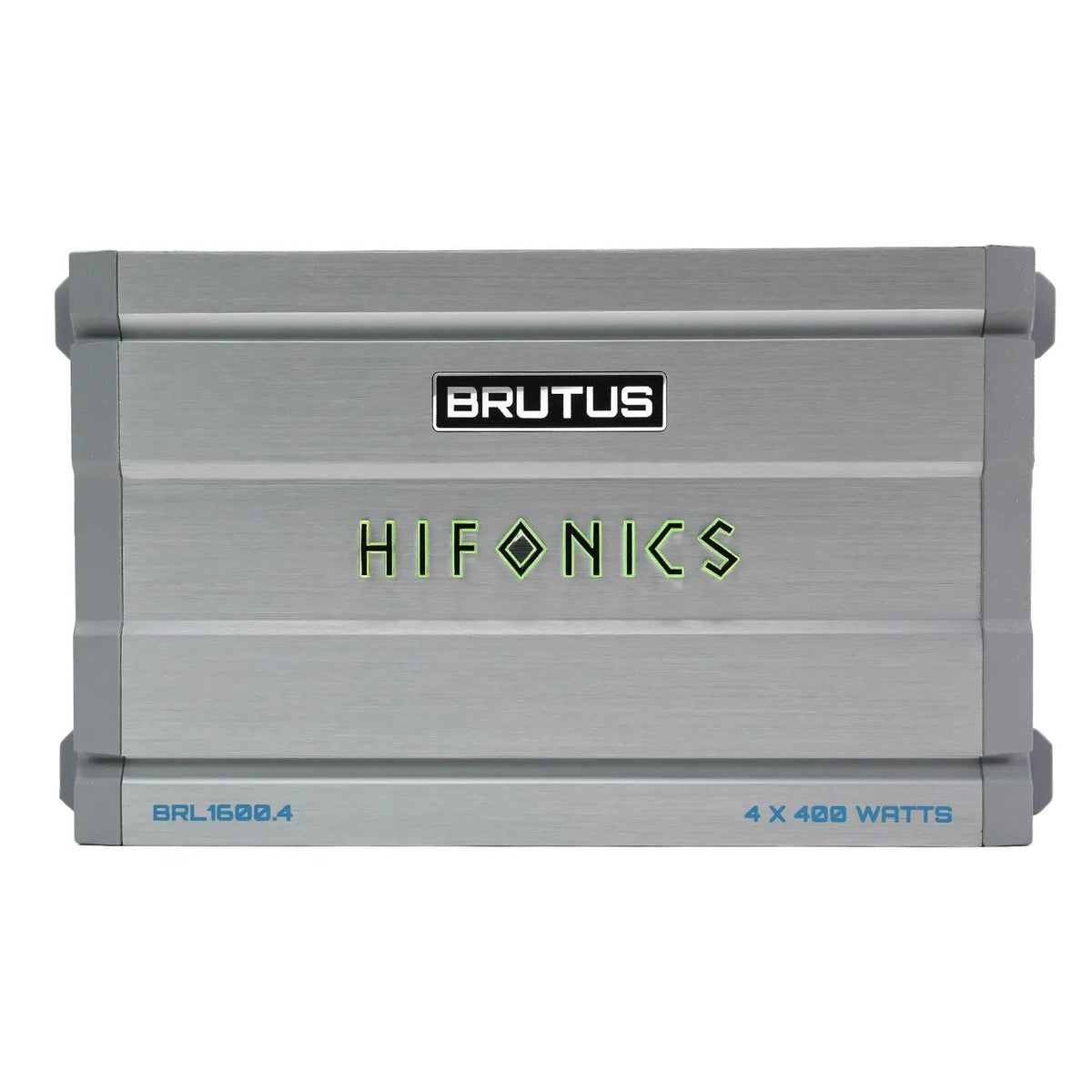

| Stylized badging | Switchable constant blue LED lights, VU Meter mode, or full off. In VU Meter mode, the amplifier logo reflects audio level for gain adjustment. |
| Protection circuits | Triple protection circuits for over/under voltage, short circuit, overcurrent, and thermal protection. |
| Compatibility | 12V automotive electrical systems and source units accepting RCA preamplifier inputs ranging from 0.2V to 9V. |
| Download | Hifonics-BRUTUS-BRL-Amps-QSG-Rev2 |
Why Choose This Product?
The BRL1600.4 combines four-channel operation with a bridged option, giving you more than one way to configure your system. Its adjustable crossovers and 0.2-9V variable voltage range support tuning with compatible RCA-output source units.
The mass-loaded aluminum heat sink and Ultra-Fi MOSFETs are designed for thermal management and high output. The selectable VU Meter badge also gives you a visible audio-level reference during gain adjustment.
Installation & Compatibility Notes
This amplifier is specified for 12V automotive electrical systems and source units with RCA preamplifier outputs from 0.2V to 9V. Check available mounting space against its 26.7 × 14.6 × 5.7 cm dimensions.
Power and ground terminals are specified for 2 AWG, speaker terminals for 12 AWG, and external fusing at 100A. Confirm your system’s speaker impedance and wiring plan before choosing stereo or bridged operation.
Frequently Asked Questions
What power ratings does the Hifonics BRL1600.4 provide?
It is rated at 4 x 450 W at 2 Ohms and 4 x 300 W at 4 Ohms. Maximum power is listed as 1600 W.
Can I bridge this four-channel amplifier?
Yes. It supports mono bridged operation at 4 Ohms, rated at 2 x 880 W.
What crossover adjustments are available?
Both the variable high-pass and low-pass crossovers adjust from 40Hz-2KHz at 12dB per Octave.
What source units are compatible?
The listed compatibility is for 12V automotive systems and source units with RCA preamplifier inputs ranging from 0.2V to 9V.
What protection does the amplifier include?
Its protection circuits cover over/under voltage, short circuits, overcurrent, and thermal conditions.
Explore More
Shop the Hifonics BRL1600.4 at 12 Volt Outlet. Want to learn more about Hifonics? Explore our Hifonics brand profile.
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Type | Amplifier |
| Amp Class | Super D Class™ |
| Amp Total Channels | 4 |
| Amp Max Power | 1600 W |
| Amp Power @ 2 Ohms | 4 x 450 W |
| Amp Power @ 4 Ohms | 4 x 300 W |
| Amp Mono Bridged @ 4 Ohms | 2 x 880 W |
| Frequency Response | 15Hz-30kHz |
| Signal to Noise | 88dB |
| Total Harmonic Distortion (THD) | < 0.2% |
| Variable High Pass Crossover | 40Hz-2KHz (12dB per Octave) |
| Variable Low Pass Crossover | 40Hz-2KHz (12dB per Octave) |
| Variable Voltage | 0.2-9V |
| Power Terminal 12v/GND | 2 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| External Fusing | 100A |
| Dimensions | 26.7 × 14.6 × 5.7 cm |
| Item Weight | 2.2 kg |
| Packaged Dimensions | 31.4 × 18.7 × 9.2 cm |
| Packaged Weight | 2.5 kg |
| Color | Black |
| Condition | New |
| Feature | Benefit |
|---|---|
| Ultra-High Efficient Design | A thoughtful power supply design coupled with carefully selected parts results in ultra-high efficient amplifier. |
| Half Bridge Design | A more efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design | Minimal interface with other vehicle electronic systems. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in better thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device | Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode | 4 channel operation mode allows either stereo or mono bridged operation. |
| Clean Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology | BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. |
| Power Supply | Iron core transformer assists in the ultra-low EMI design while providing high power at an unmatched value. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises like hisses and pops. |
| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile. |
| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, making it useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safe guards to protect your audio system and vehicle under most circumstances. |
