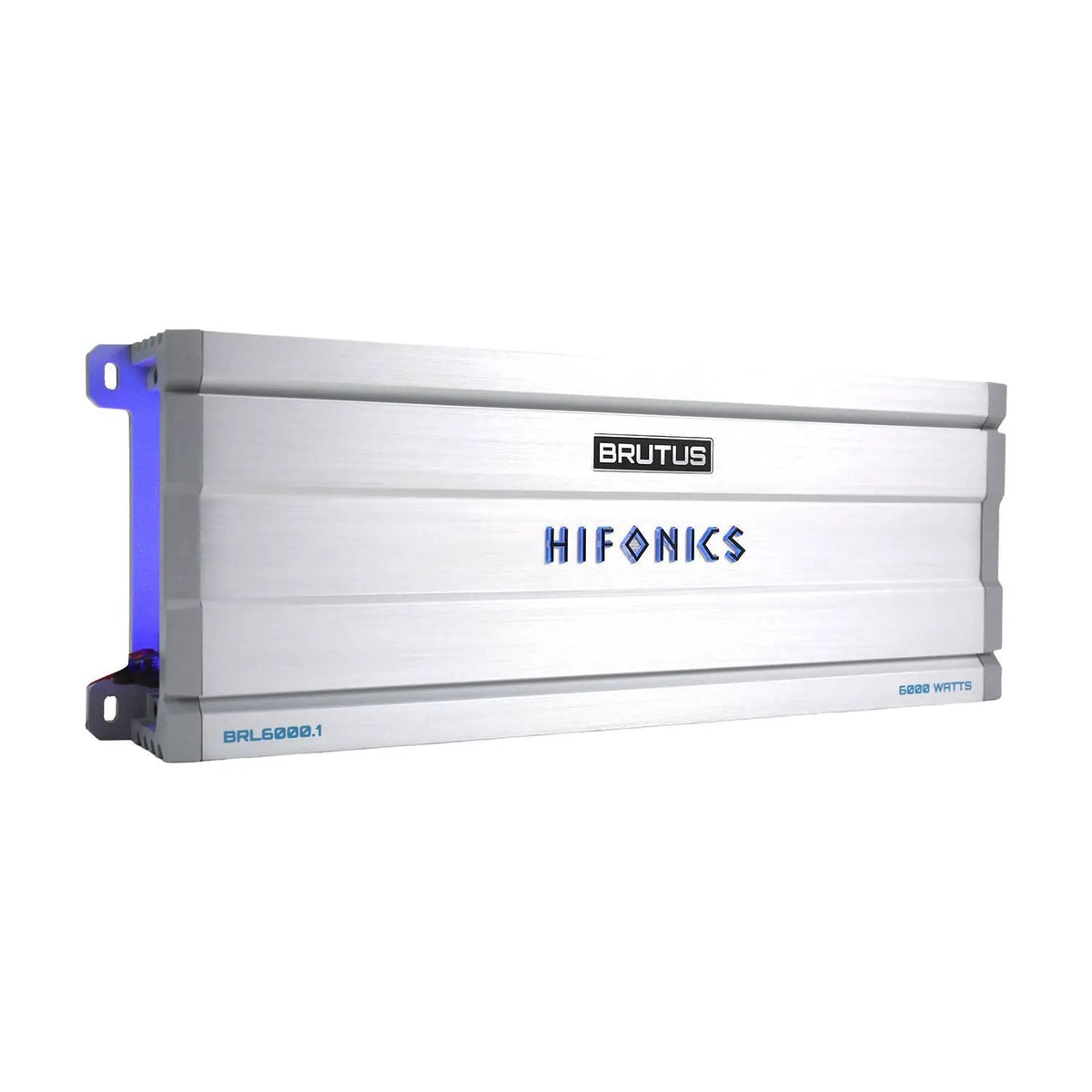

Hifonics BRL6000.1 BRUTUS BRL 6000 Watt Mono Block Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 2400.0 W
- RMS output at 2 ohms: 4200 W
- RMS output at 1 ohm: 6000 W
Hifonics BRL6000.1 BRUTUS BRL 6000 Watt Mono Block Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Hifonics BRL6000.1 BRUTUS BRL mono block amplifier delivers up to 6000 watts RMS at 1 ohm for a high-output 12V mobile audio system. Its Super D Class™ design, adjustable crossover controls, and included wired bass remote give you practical options for shaping and adjusting your system’s sound.
Key Features & Benefits
- Power across three loads: Choose from listed output ratings of 6000 watts at 1 ohm, 4200 watts at 2 ohms, or 2400 watts at 4 ohms.

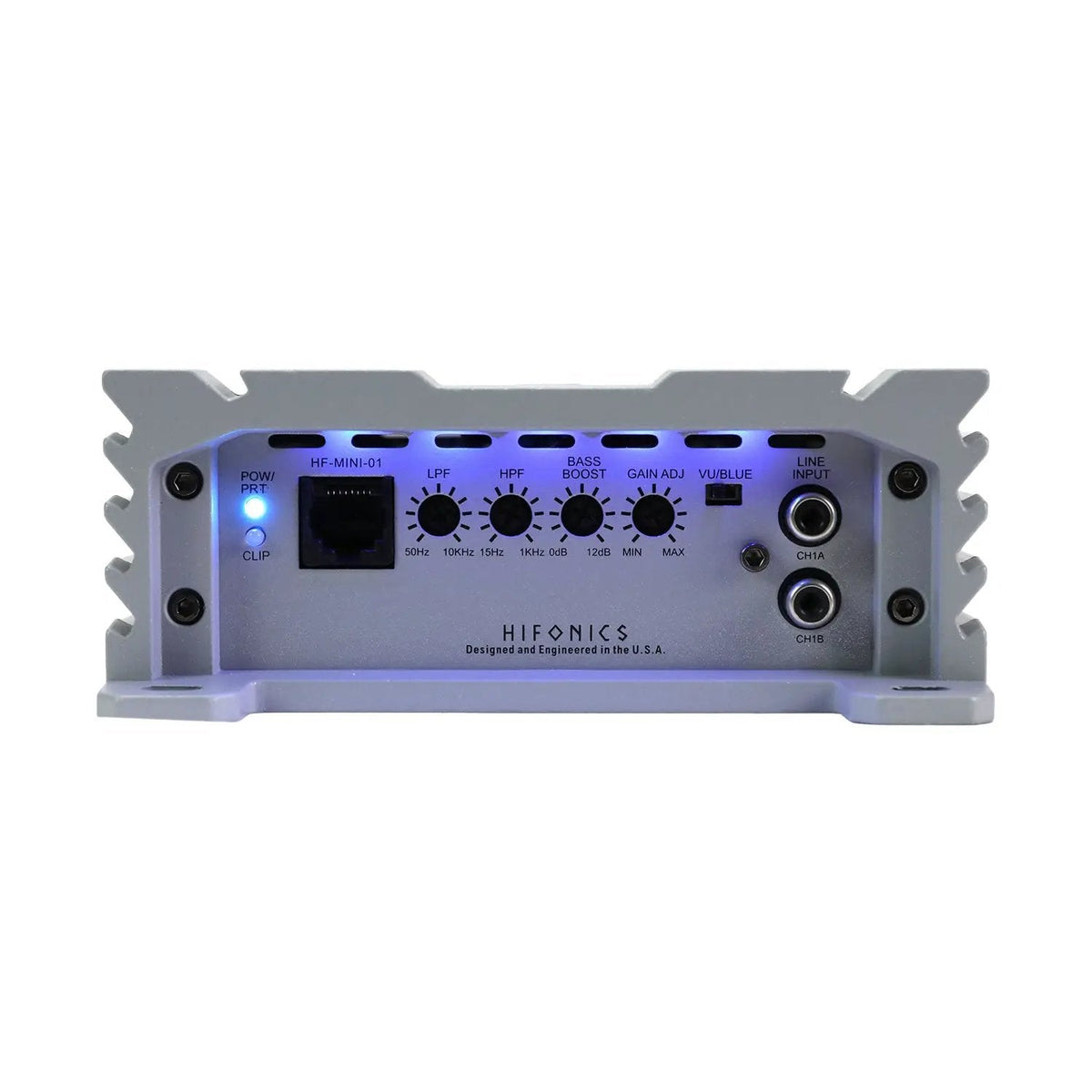

- Adjustable sound controls: Variable crossovers and 0–12dB bass boost let you tailor the amplifier’s settings.

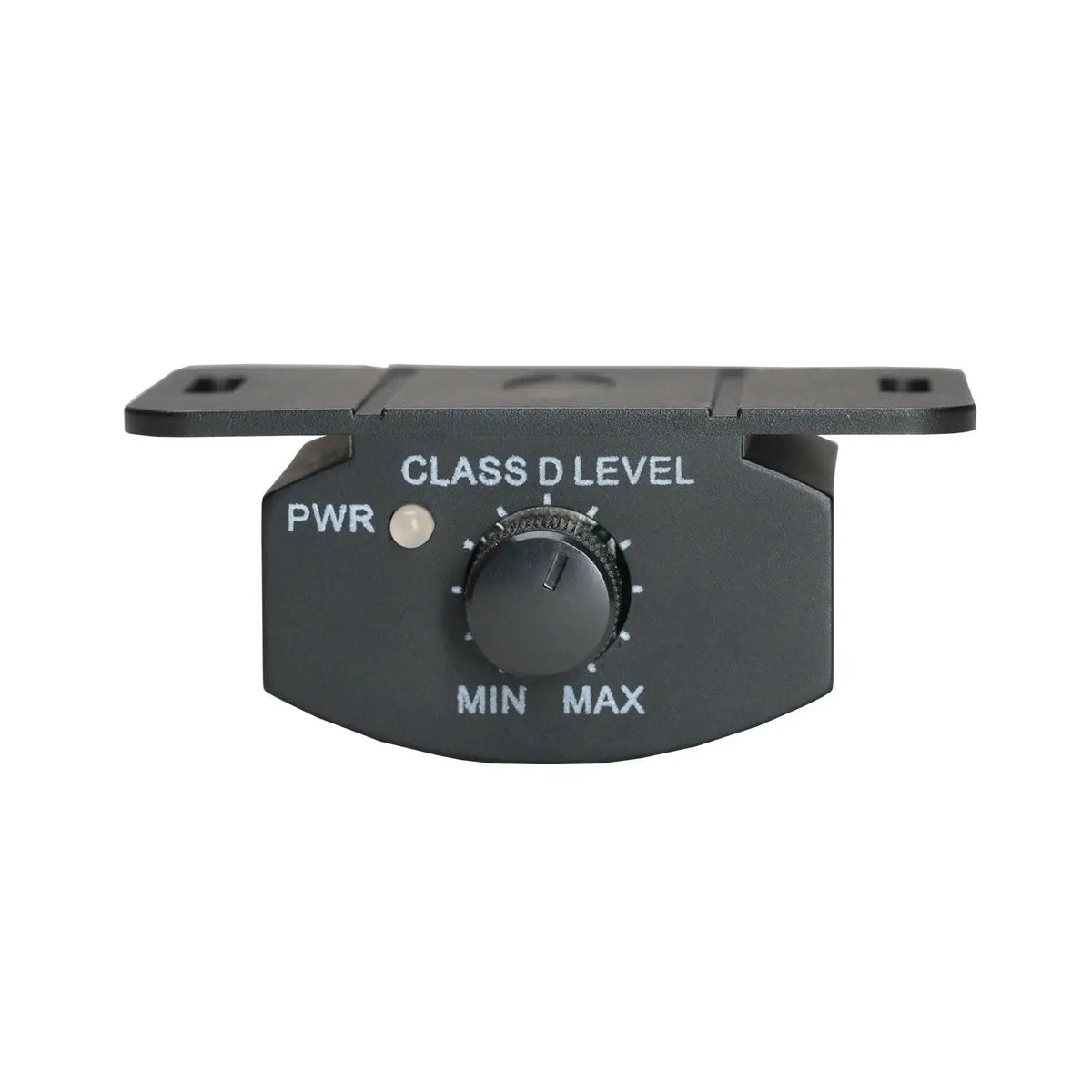

- Remote bass adjustment: Change the bass level from the included wired remote, relative to the amplifier’s end-panel setting.

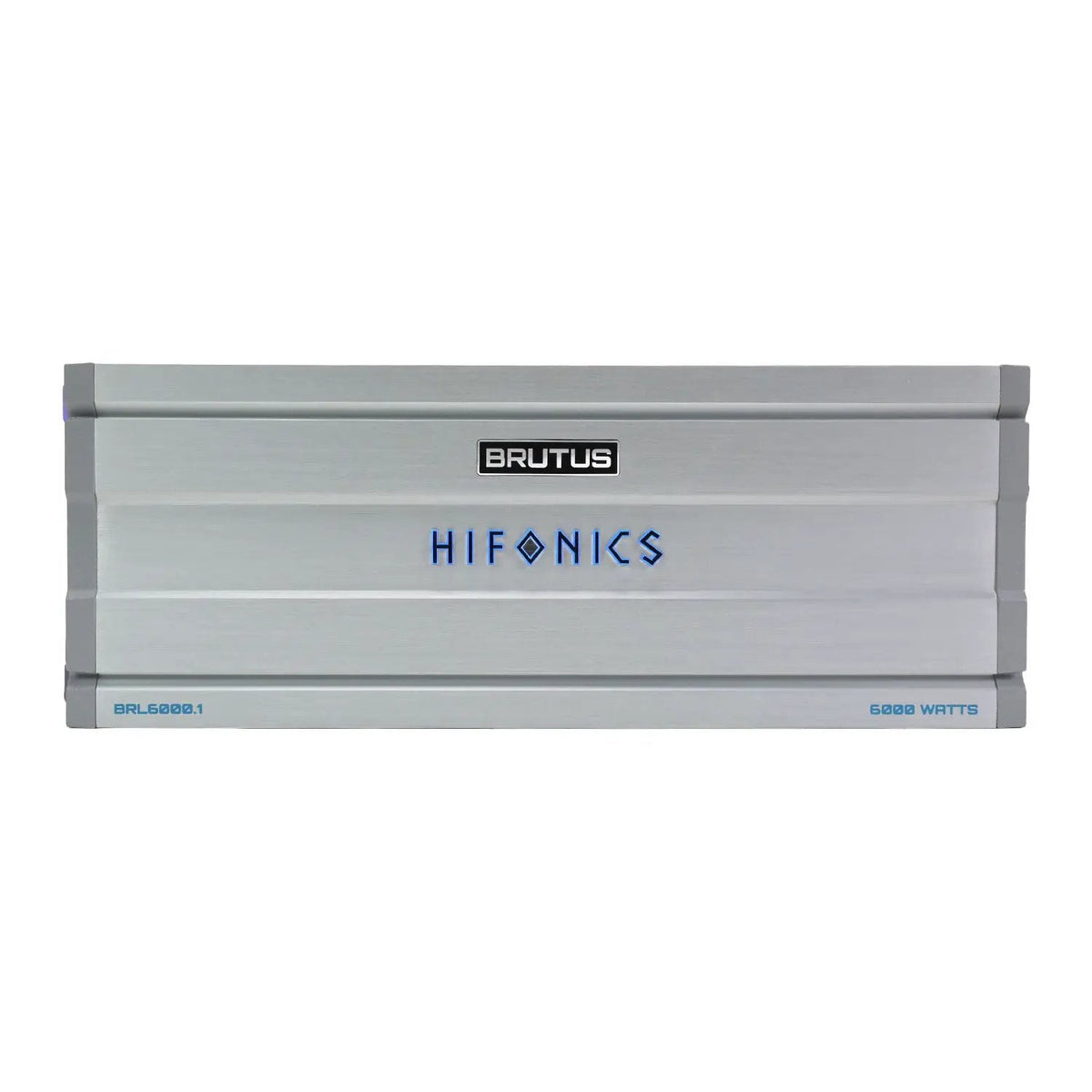

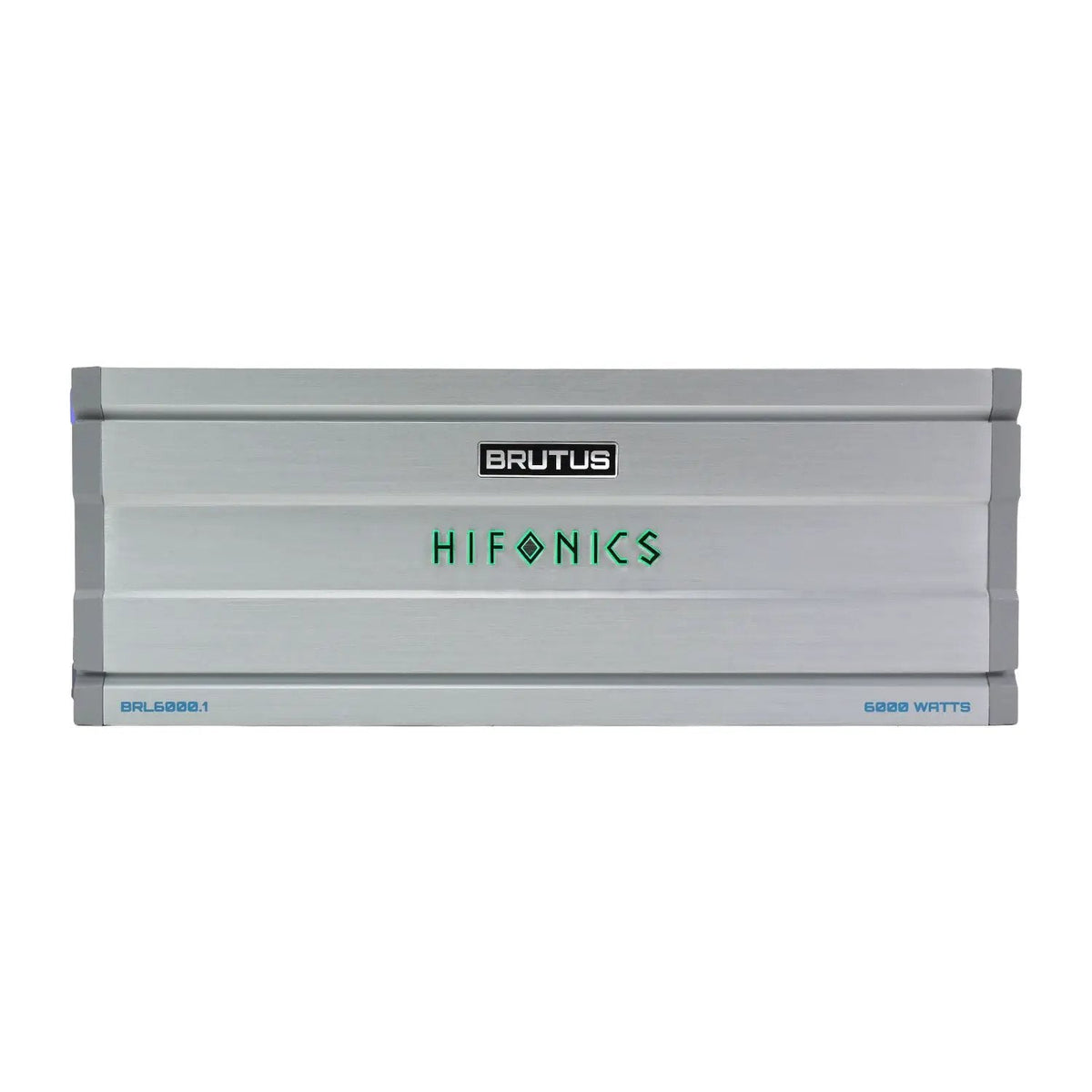

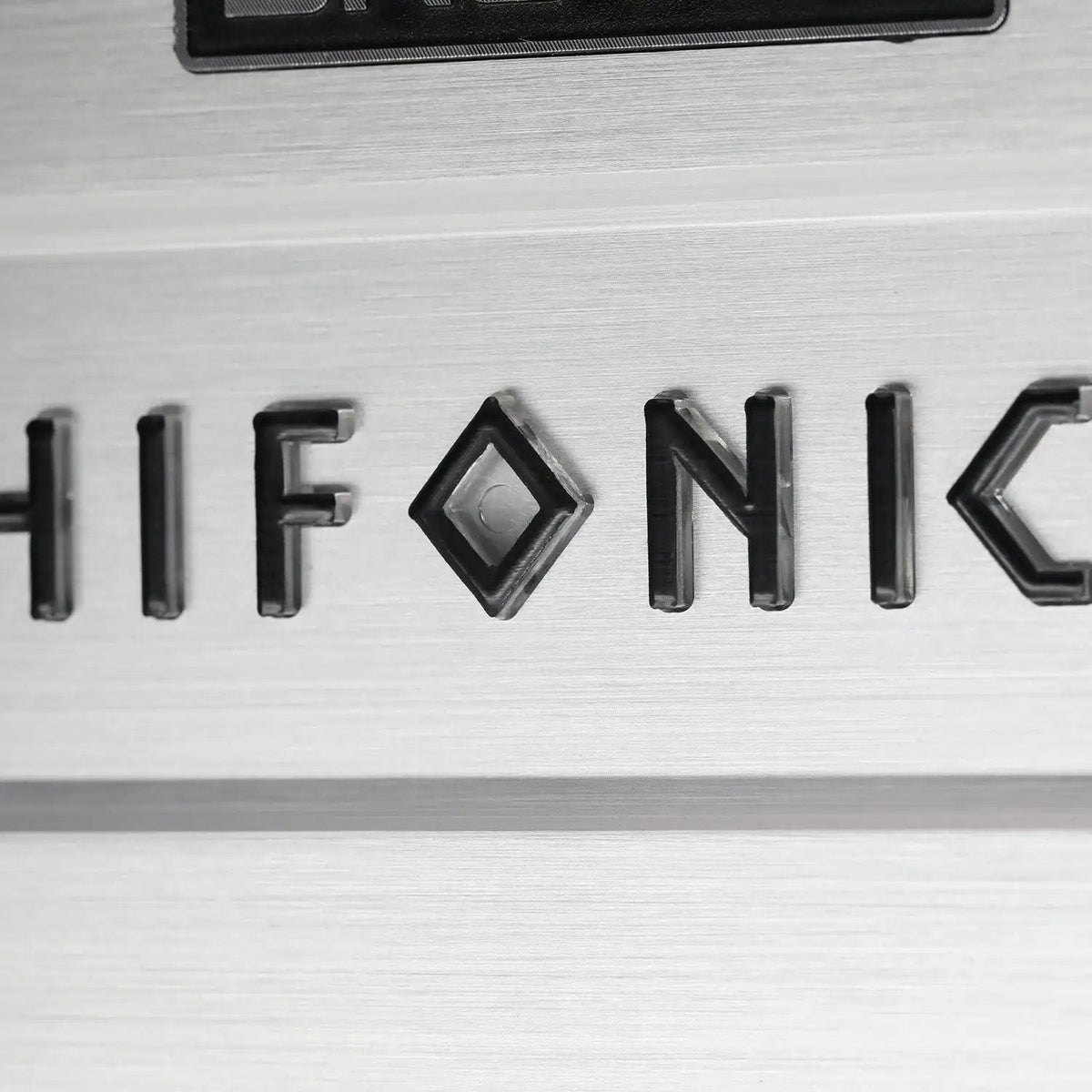

- Visual status and gain aid: Switch the blue LED badging to VU meter mode to see the logo reflect audio level, or turn the lighting off.
- Protection circuits: Built-in protection covers over/under voltage, short circuits, overcurrent, and thermal overload.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Model | BRL6000.1 |
| Type | Amplifier |
| Amp Class | Super D Class™ |
| Amp Total Channels | 1 |
| Amp Max Power | 6000 W |
| Amp Power @ 1 Ohm | 1 x 6000 W |
| Amp Power @ 2 Ohms | 1 x 4200 W |
| Amp Power @ 4 Ohms | 1 x 2400 W |
| Amp Frequency Response | 10Hz-10kHz |
| Amp Signal to Noise | 101dB |
| Amp Total Harmonic Distortion (THD) | < 0.5% |
| Amp Variable Voltage | 0.2-9V |
| Amp Bass Boost | 0-12dB |
| Amp Variable Low Pass Crossover | 50Hz-10KHz |
| Amp Variable High Pass Crossover | 15Hz-1KHz |
| Amp Power Terminal Wire Gauge | 0 AWG |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Amp Fusing | External 500A |
| Item Dimensions | 41.5 × 14.6 × 5.7 cm |
| Item Weight | 3.7 kg |
| Package Dimensions | 52.7 × 18.7 × 9.2 cm |
| Package Weight | 4.2 kg |
| Color | Black |
| Condition | New |
| Ultra-High Efficient Design | A power supply design coupled with selected parts results in an ultra-high efficient amplifier. |
| Half Bridge Design | An efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design | Minimal interference with other vehicle electronic systems. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device | Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode | Mono only |
| Clean Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology | BRL amplifiers feature a Class-D chipset, making them efficient and allowing for a wide frequency range. |
| Power Supply | Iron core transformer assists in the ultra-low EMI design while providing high power. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate unwanted turn-on/off noises like hisses and pops. |

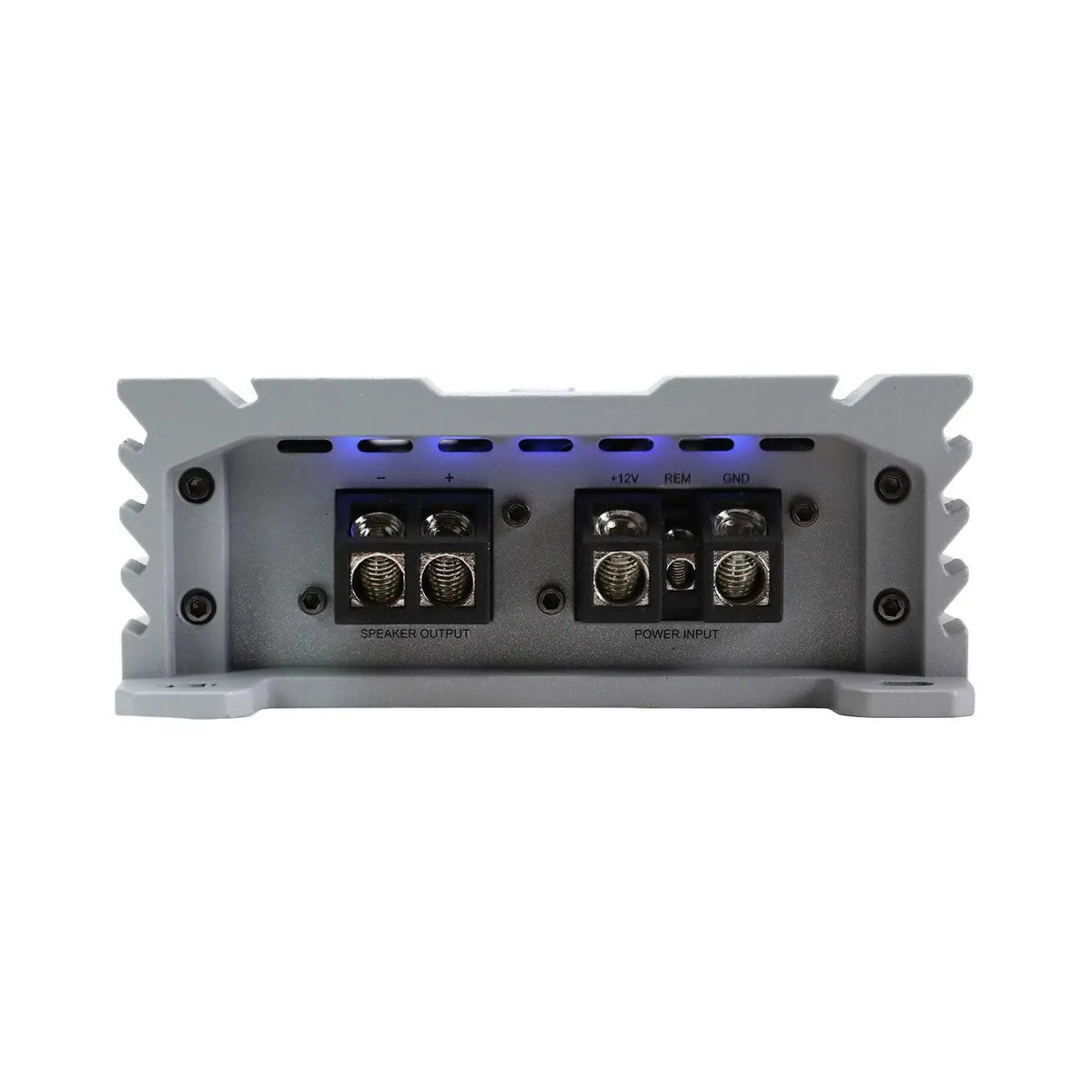

| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile. |
| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safeguards to protect the audio system and vehicle. |
| Bass Remote Included | The included bass remote on mono models allows adjustment of the bass level relative to the setting on the amplifier’s end panel. The LED indicator light displays green when the amplifier is powered on and red if the amplifier enters protect. |
| Compatibility | Universal compatibility with 12V mobile audio electrical systems and source units accepting RCA low-level inputs (0.2V to 9V). |

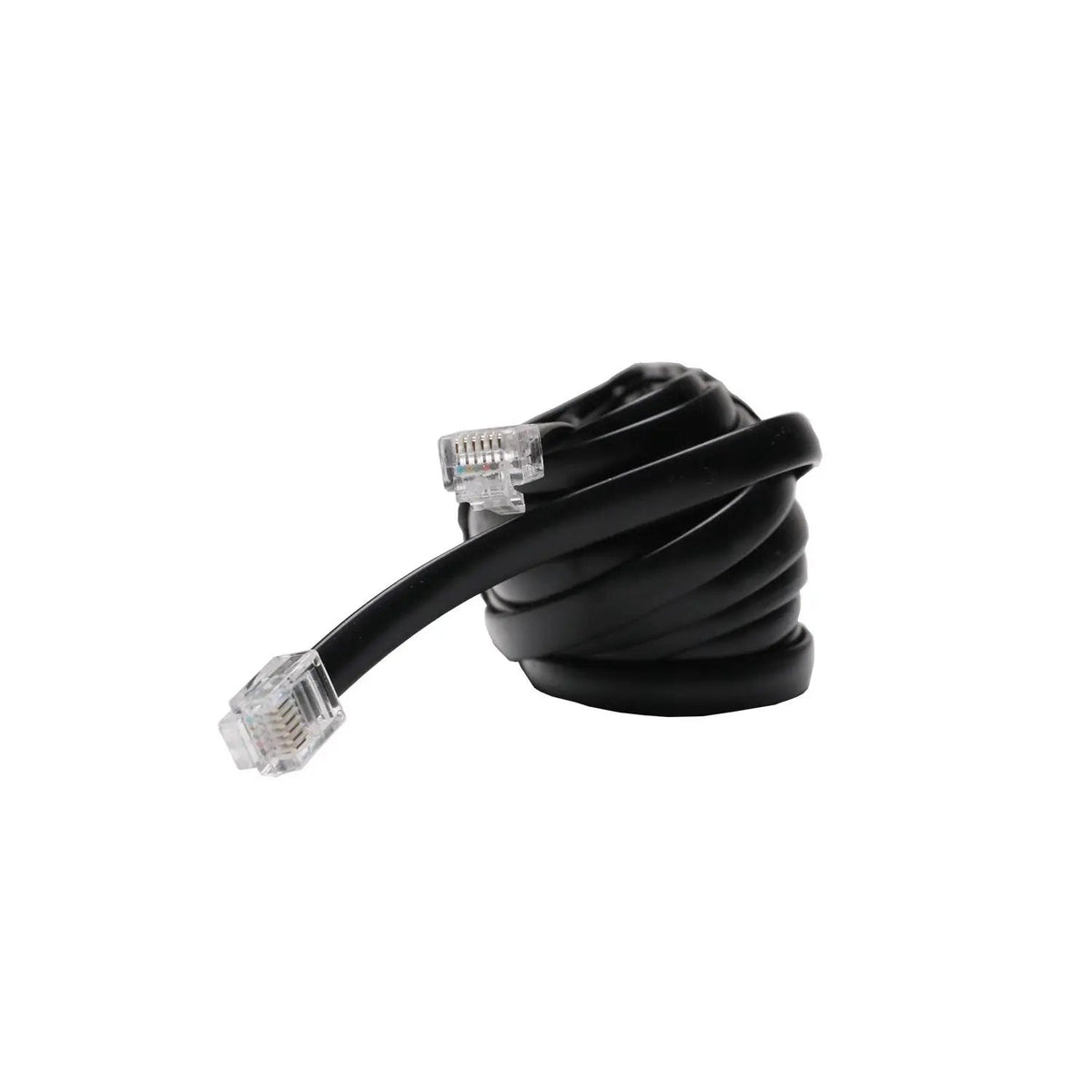

| What's included | Hifonics BRUTUS BRL6000.1 Mono Amplifier; Bass Remote Control with Cable |
| Quick Start Guide | Hifonics-BRUTUS-BRL-Amps-QSG-Rev2 (13.3 MB) |
Why Choose This Product?
The BRL6000.1 combines a high-output mono design with controls for adjusting crossover points and bass boost. Its iron core transformer, half-bridge topology, Ultra-Fi MOSFETs, and mass-loaded aluminum heat sink are part of a design intended to manage power and heat. A delayed turn-on function is designed to reduce unwanted hisses and pops with a wide range of source units.
The included remote lets you adjust bass from your listening position, while its indicator shows green when powered on and red if the amplifier enters protect. The front-panel lighting can be set to blue, VU meter mode, or off.
Installation & Compatibility Notes
This amplifier is specified for 12V mobile audio electrical systems and source units with RCA low-level inputs from 0.2V to 9V. Its molded terminals are designed for 0 AWG power and ground wire and 12 AWG speaker wire; the amplifier uses external 500A fusing. Check your system’s electrical capacity, wiring, source-unit output, and available mounting space before installation. The amplifier measures 41.5 × 14.6 × 5.7 cm.
Frequently Asked Questions
What is the maximum power output?
The listed output is 1 x 6000 W at 1 ohm. The other listed ratings are 1 x 4200 W at 2 ohms and 1 x 2400 W at 4 ohms.
What source-unit connection does it accept?
It has RCA inputs and is specified for source units accepting RCA low-level inputs from 0.2V to 9V.
What wiring and fuse details should I plan for?
The power terminals are specified for 0 AWG wire, the speaker terminals for 12 AWG wire, and the fusing is external 500A.
Is a remote bass control included?
Yes. A bass remote control with cable is included. Its LED indicates green when the amplifier is powered on and red if it enters protect.
What comes in the package?
The listed contents are the Hifonics BRUTUS BRL6000.1 mono amplifier and bass remote control with cable.
