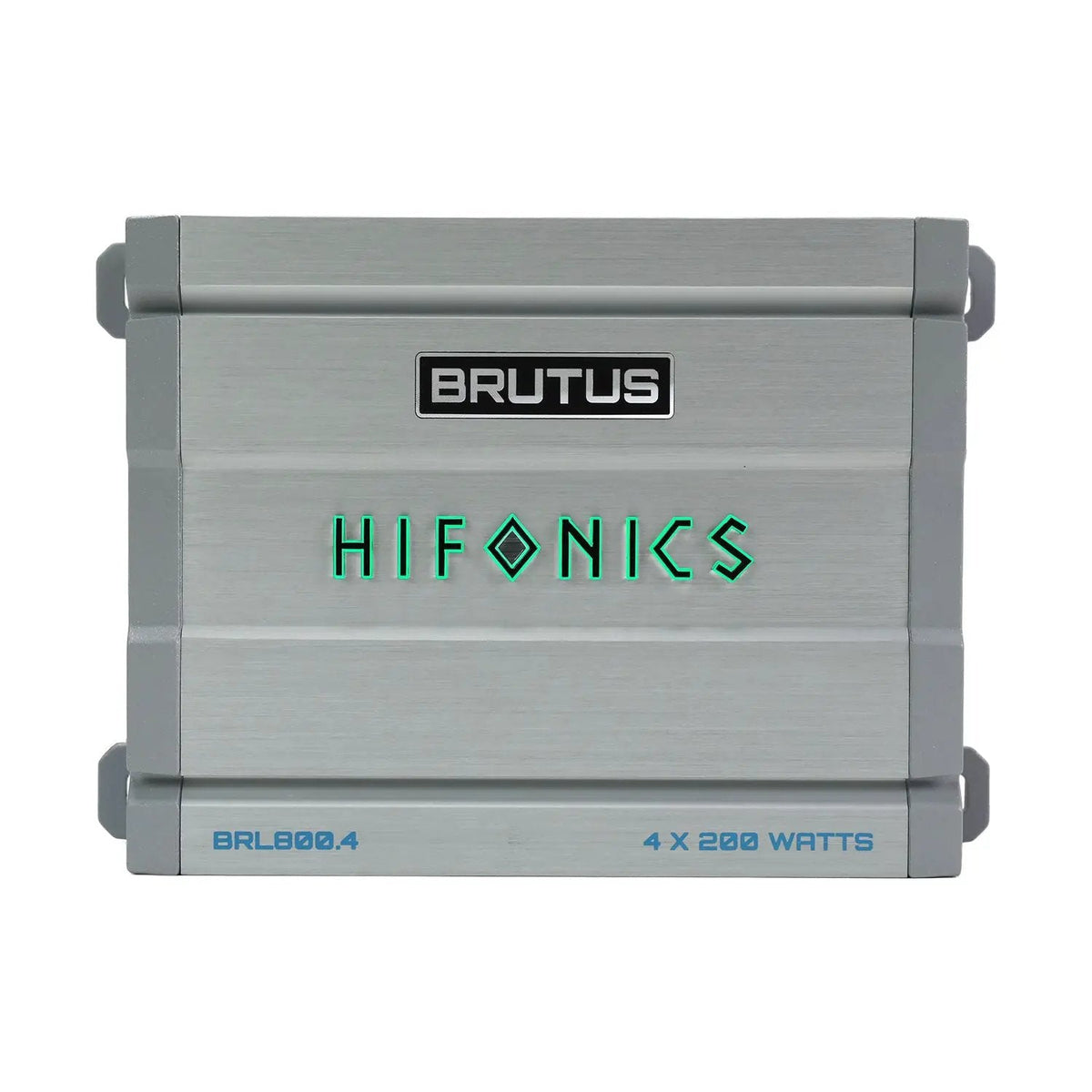

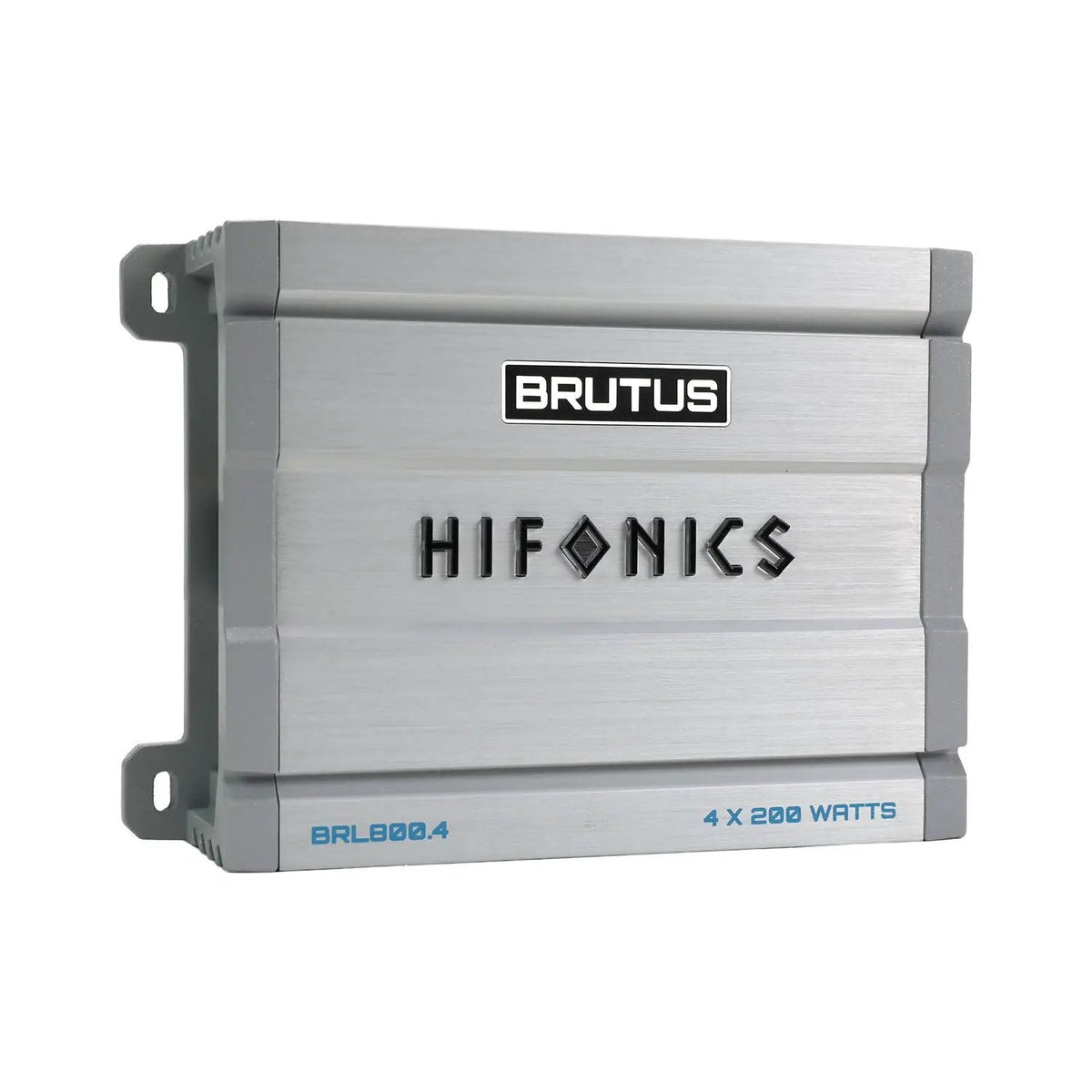

Hifonics BRL800.4 BRUTUS BRL 800 Watt Four Channel Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 125 W
- RMS per channel at 2 ohms: 200 W
- Frequency response: 15 Hz–30 kHz
- High-pass crossover: 40 Hz–2 kHz, 12 dB/octave
- Low-pass crossover: 40 Hz–2 kHz, 12 dB/octave
Hifonics BRL800.4 BRUTUS BRL 800 Watt Four Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a four-channel car audio system around the Hifonics BRL800.4 BRUTUS amplifier, with rated power options for stereo or bridged operation. Its Super D Class design, variable electronic crossovers, and built-in bass control give you useful tools for shaping your system’s output.
A switchable illuminated logo can display audio levels in VU Meter mode, helping you make gain adjustments. The amplifier also features delayed turn-on and triple protection circuits.
Key Features & Benefits
- Four-channel operation: Use stereo or mono bridged operation, with power ratings listed for both configurations.

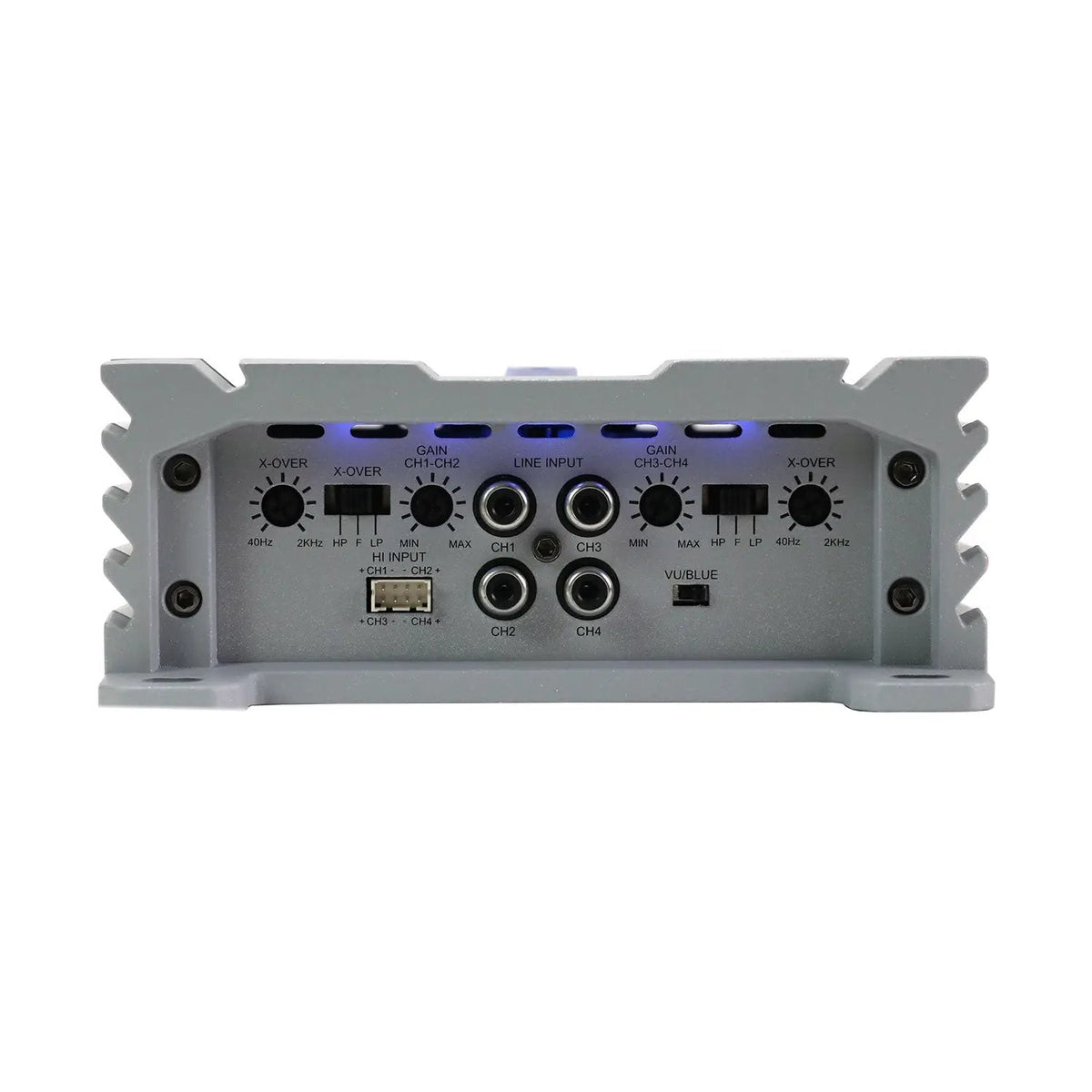

- Variable crossovers: Set high-pass and low-pass crossover points within the stated 40Hz–2KHz range.
- Built-in bass control: Adjust bass using the amplifier’s integrated tone control.
- VU Meter lighting: Switch the logo between constant blue light, audio-level display, or off.
- Delayed turn-on: Helps prevent unwanted startup and shutdown hisses or pops.
- Protection circuits: Built-in safeguards cover over/under voltage, short circuit, overcurrent, and thermal conditions.
Technical Specifications
| Brand | Hifonics |
|---|---|
| Series | BRUTUS BRL |
| Type | Amplifier |
| Amp Class | Super D Class™ |
| Total Channels | 4 |
| Amp Max Power (watts) | 800 |
| Amp Power @ 2 Ohms (ch x watts) | 4 x 200 |
| Amp Power @ 4 Ohms (ch x watts) | 4 x 125 |
| Amp Mono Bridged @ 4 Ohms (ch x watts) | 2 x 400 |
| Amp Frequency Response | 15Hz-30kHz |
| Amp Signal to Noise | 88dB |
| Amp Total Harmonic Distortion (THD) | < 0.2% |
| Amp Variable Voltage | 0.2-9V |
| Amp Crossover | Variable Electronic 12dB Per Octave |
| Amp Variable High Pass Crossover | 12dB per Octave 40Hz-2KHz |
| Amp Variable Low Pass Crossover | 12dB per Octave 40Hz-2KHz |
| Amp Tone Control / Parametric EQ | Built-in Bass Control |
| Amp Power Terminal | 12v/GND 2 AWG |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Amp Fusing | External 60A |
| Color | Black |
| Condition | New |
| Dimensions | 26.7 × 18.7 × 9.2 cm |
| Weight | 2.0 kg |
| Item Length | 21.6 cm |
| Item Width | 14.6 cm |
| Item Height | 5.7 cm |
| Item Weight | 1.7 kg |
| Compatible Vehicles | Universal |
| Warranty | 1 Year |
| Ultra-High Efficient Design | A thoughtful power supply design coupled with carefully selected parts results in ultra-high efficient amplifier. |
| Half Bridge Design | A more efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design | Minimal interface with other vehicle electronic systems. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in better thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device | Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode | 4 channel operation mode allows either stereo or mono bridged operation. |
| Clean Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology | BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. |
| Power Supply | Iron core transformer assists in the ultra-low EMI design while providing high power at an unmatched value. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises like hisses and pops. |
| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile. |

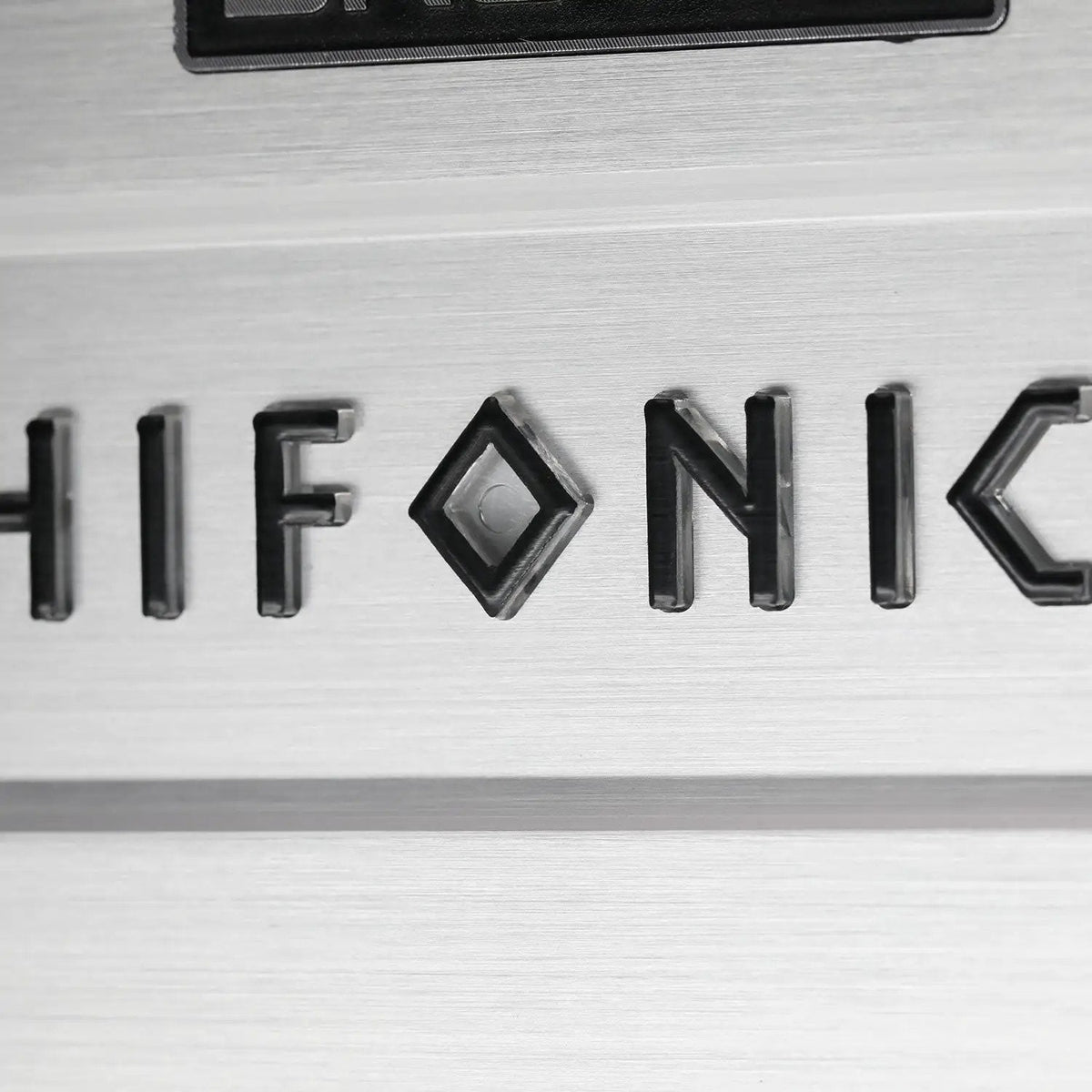

| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, making it useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safe guards to protect your audio system and vehicle under most circumstances. |
| Compatibility | Universally compatible with standard 12V automotive electrical systems and source units accepting RCA audio inputs. |
| Download | Hifonics-BRUTUS-BRL-Amps-QSG-Rev2 |
The amplifier delivers 800 watts RMS through a Super D Class design. Its extruded aluminum heat sink supports thermal management, while Ultra-Fi MOSFETs are designed for high output power and thermal dissipation. Nickel-plated RCA jacks and multi-layer printed circuit boards are specified for efficient signal transfer and reduced electromagnetic interference.
Why Choose This Product?
The BRL800.4 offers four-channel output with listed ratings for 2-ohm and 4-ohm loads, plus mono bridged ratings at 4 ohms. That gives you several stated operating configurations to consider when planning your car audio system.
Its variable electronic crossovers, built-in bass control, and high-pass and low-pass adjustments provide system tuning options in one amplifier. The illuminated logo adds a functional display choice alongside its constant blue lighting or off setting.
Installation & Compatibility Notes

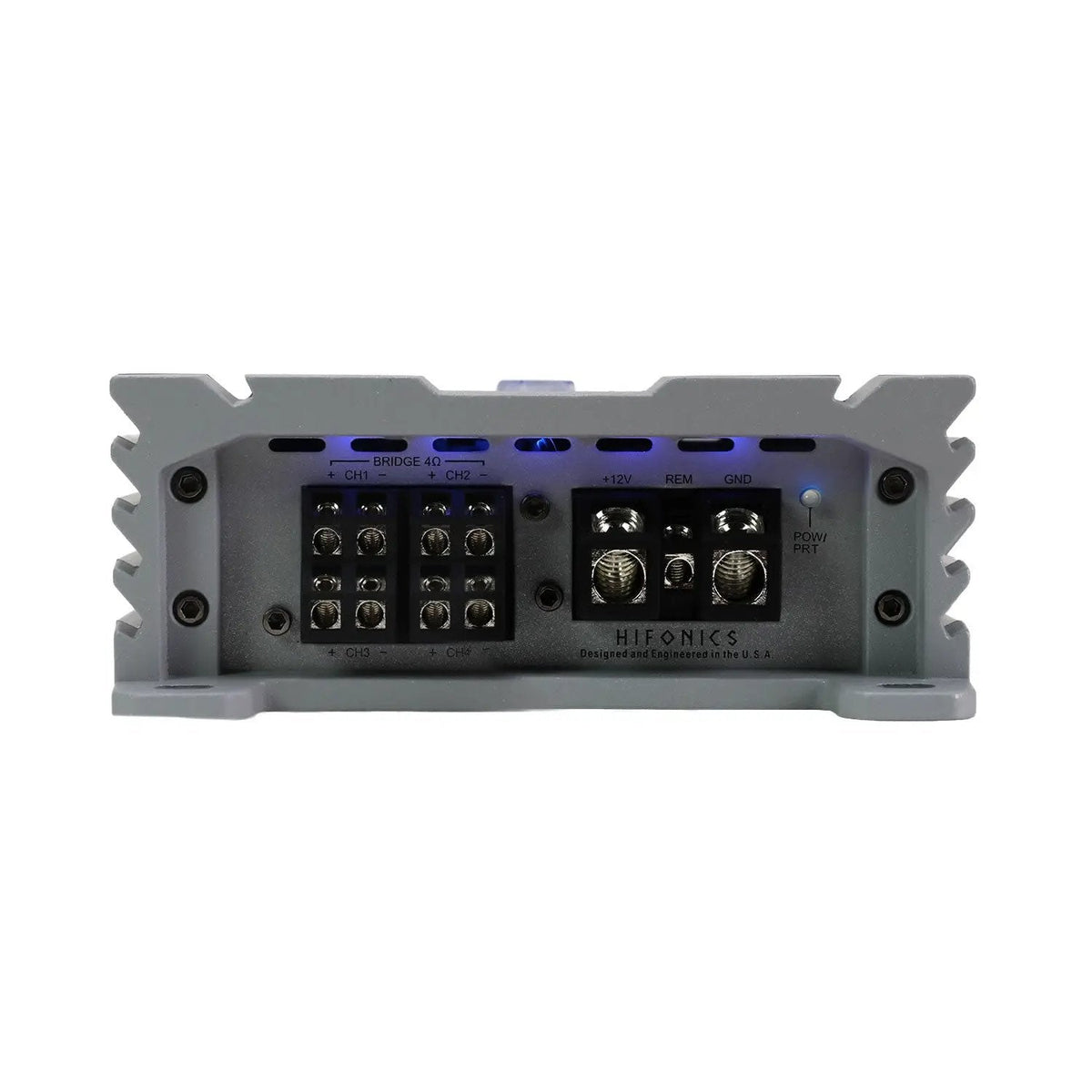

The amplifier is listed as universally compatible with standard 12V automotive electrical systems and source units accepting RCA audio inputs. Its power and ground terminals accept 2 AWG wire, and its speaker terminals accept 12 AWG wire.
Check the available mounting space against both listed measurements: overall dimensions are 26.7 × 18.7 × 9.2 cm, while item dimensions are 21.6 cm long, 14.6 cm wide, and 5.7 cm high. Confirm your system’s load and wiring requirements before installation.
Frequently Asked Questions
What are the amplifier’s power ratings?
It is rated at 4 x 125 watts at 4 ohms, 4 x 200 watts at 2 ohms, and 2 x 400 watts when mono bridged at 4 ohms. The listed maximum power is 800 watts.
What does the VU Meter lighting show?
In VU Meter mode, the amplifier’s logo reflects audio levels and can assist with gain adjustment. You can also select constant blue lighting or turn the lighting off.
What connections and wire terminals does it use?
It has RCA inputs, 2 AWG power and ground terminals, and 12 AWG speaker terminals. The source unit must accept RCA audio inputs.
What should I check before choosing a mounting location?
Compare your available space with the listed overall and item dimensions. Also confirm that your system’s electrical and speaker-load requirements match the amplifier’s ratings.
Explore More
Want to learn more about Hifonics? Explore our Hifonics brand profile.
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Type | Amplifier |
| Amp Class | Super D Class™ |
| Amp Total Channels | 4 |
| Amp Max Power (watts) | 800 |
| Amp Power @ 2 Ohms (ch x watts) | 4 x 200 |
| Amp Power @ 4 Ohms (ch x watts) | 4 x 125 |
| Amp Mono Bridged @ 4 Ohms (ch x watts) | 2 x 400 |
| Amp Frequency Response | 15Hz-30kHz |
| Amp Signal to Noise | 88dB |
| Amp Total Harmonic Distortion (THD) | < 0.2% |
| Amp Variable Voltage | 0.2-9V |
| Amp Crossover | Variable Electronic 12dB Per Octave |
| Amp Variable High Pass Crossover 12dB per Octave | 40Hz-2KHz |
| Amp Variable Low Pass Crossover 12dB per Octave | 40Hz-2KHz |
| Amp Tone Control / Parametric EQ | Built-in Bass Control |
| Amp Power Terminal 12v/GND | 2 AWG |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Amp Fusing | External 60A |
| Color | Black |
| Condition | New |
| Dimensions | 26.7 × 18.7 × 9.2 cm |
| Weight | 2.0 kg |
| Item Length | 21.6 cm |
| Item Width | 14.6 cm |
| Item Height | 5.7 cm |
| Item Weight | 1.7 kg |
| Compatible Vehicles | Universal |
| Warranty | 1 Year |
| Feature | Description |
|---|---|
| Ultra-High Efficient Design | A thoughtful power supply design coupled with carefully selected parts results in ultra-high efficient amplifier. |
| Half Bridge Design | A more efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design | Minimal interface with other vehicle electronic systems. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in better thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device | Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode | 4 channel operation mode allows either stereo or mono bridged operation. |
| Clean Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology | BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. |
| Power Supply | Iron core transformer assists in the ultra-low EMI design while providing high power at an unmatched value. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises like hisses and pops. |
| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile. |
| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, making it useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safe guards to protect your audio system and vehicle under most circumstances. |
