Hifonics HCM-1200.1D COLOSSUS MINI Ultra-Compact 1200 Watt Mono Block Amplifier
Key features
- Amplifier channels: 1
- Amplifier class: Class D
- Frequency response: 10Hz-11kHz
- High-pass crossover (12 dB/octave): 15Hz-1kHz
- Low-pass crossover (12 dB/octave): 50Hz-10kHz
- Power/ground terminal wire size: 0 AWG
Hifonics HCM-1200.1D COLOSSUS MINI Ultra-Compact 1200 Watt Mono Block Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

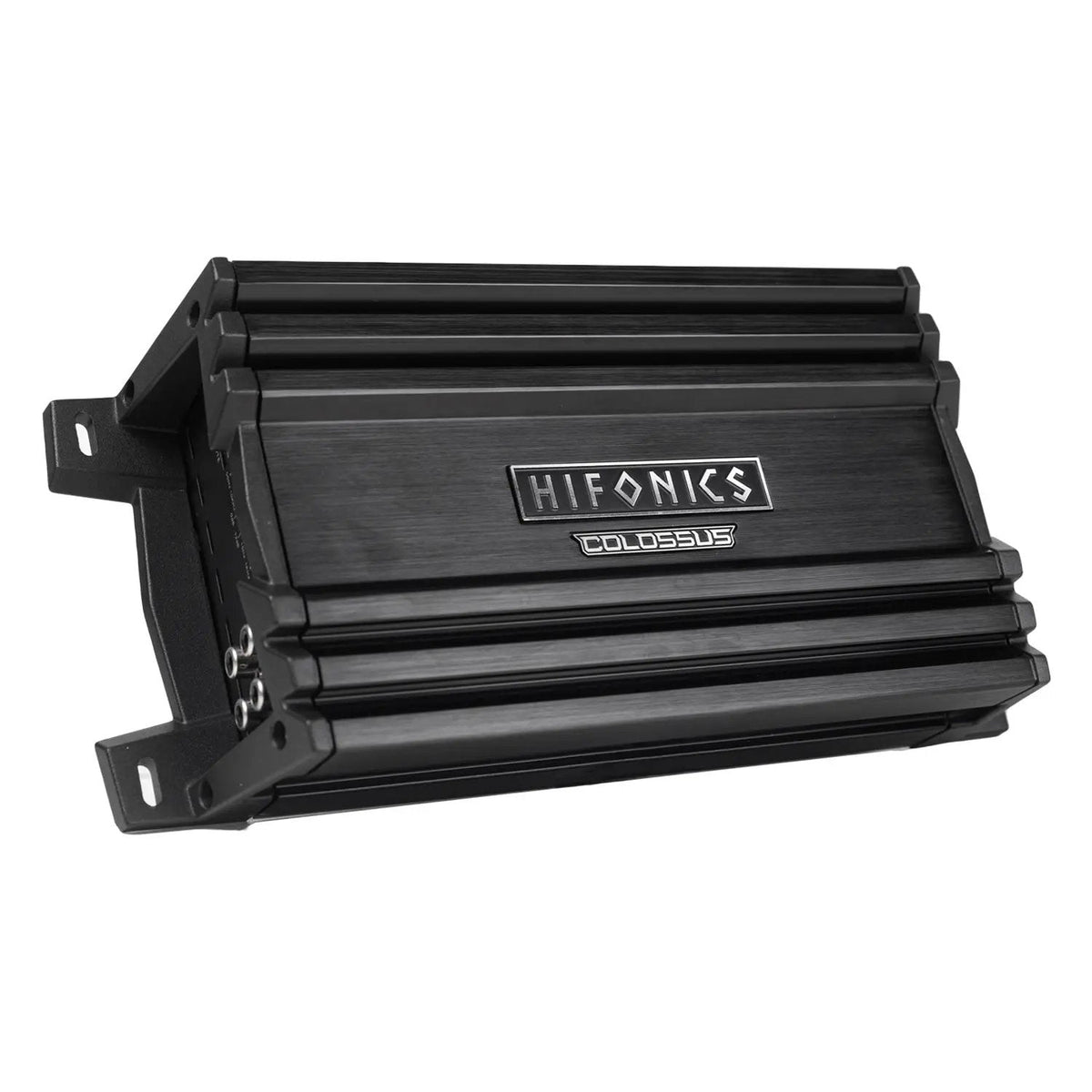

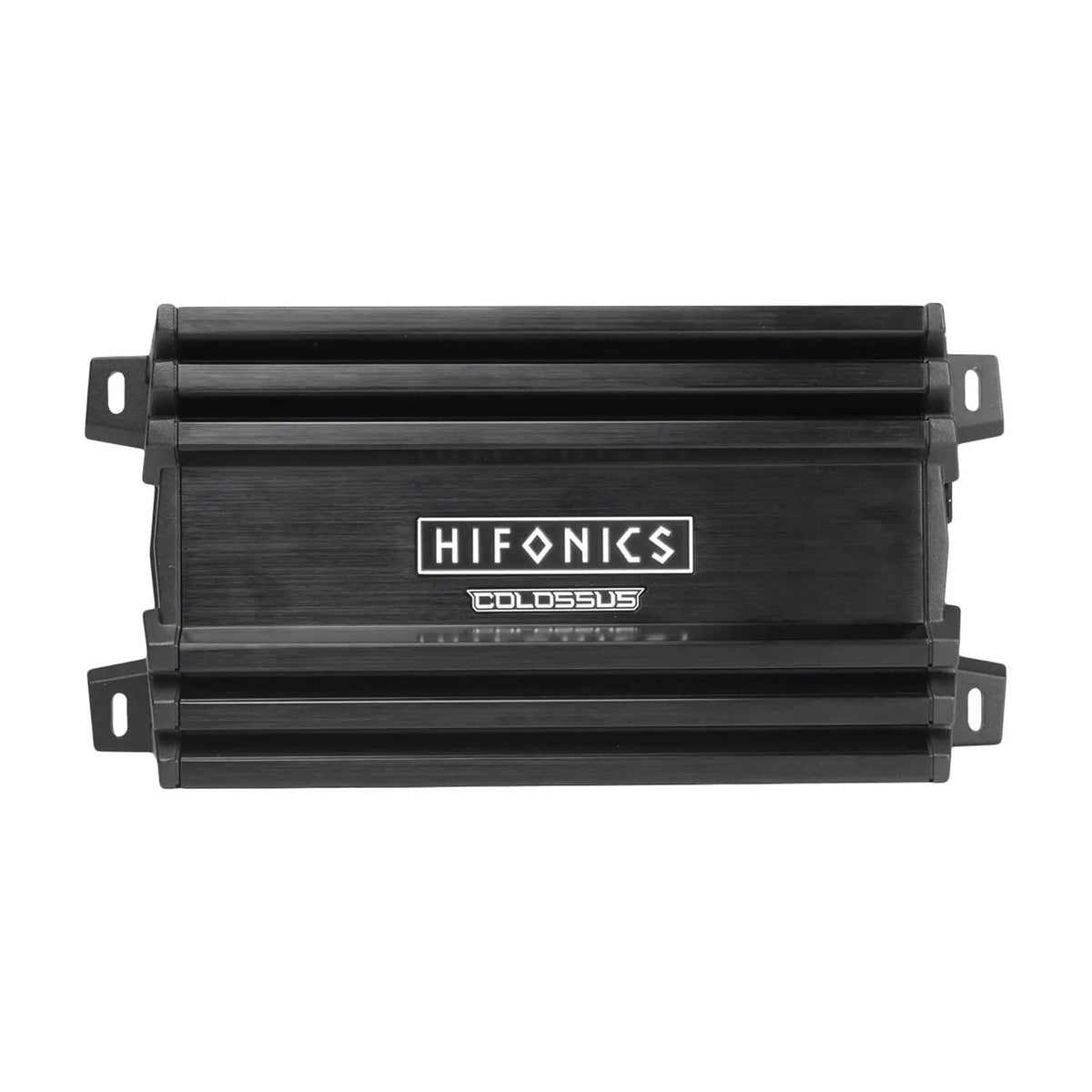

Add compact mono-channel power to a 12V audio system with the Hifonics HCM-1200.1D COLOSSUS MINI amplifier. Its Super D-Class design delivers up to 1,200 watts, and its small footprint suits automotive, motorcycle, and UTV installations.
Variable crossover controls and an included wired bass remote let you adjust the system to your setup and change bass level from the driver’s seat.
Key Features & Benefits
- Compact design: The small footprint helps accommodate installations in cars, motorcycles, and UTVs.
- Mass-loaded aluminum heat sink: The extruded heat sink manages heat without requiring fan cooling.

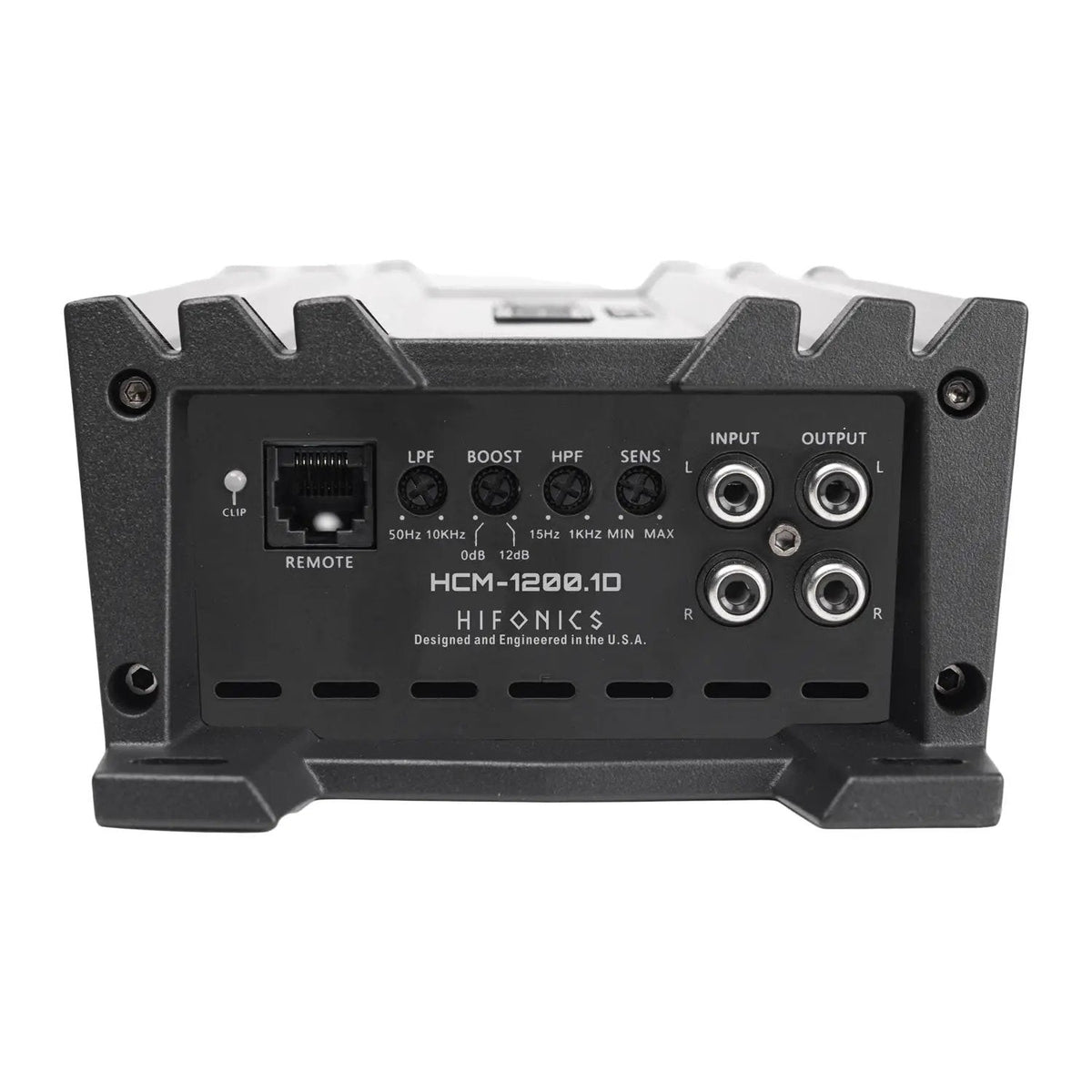

- Adjustable sound controls: Variable crossovers and 0–12dB bass boost give you options for tuning the signal.

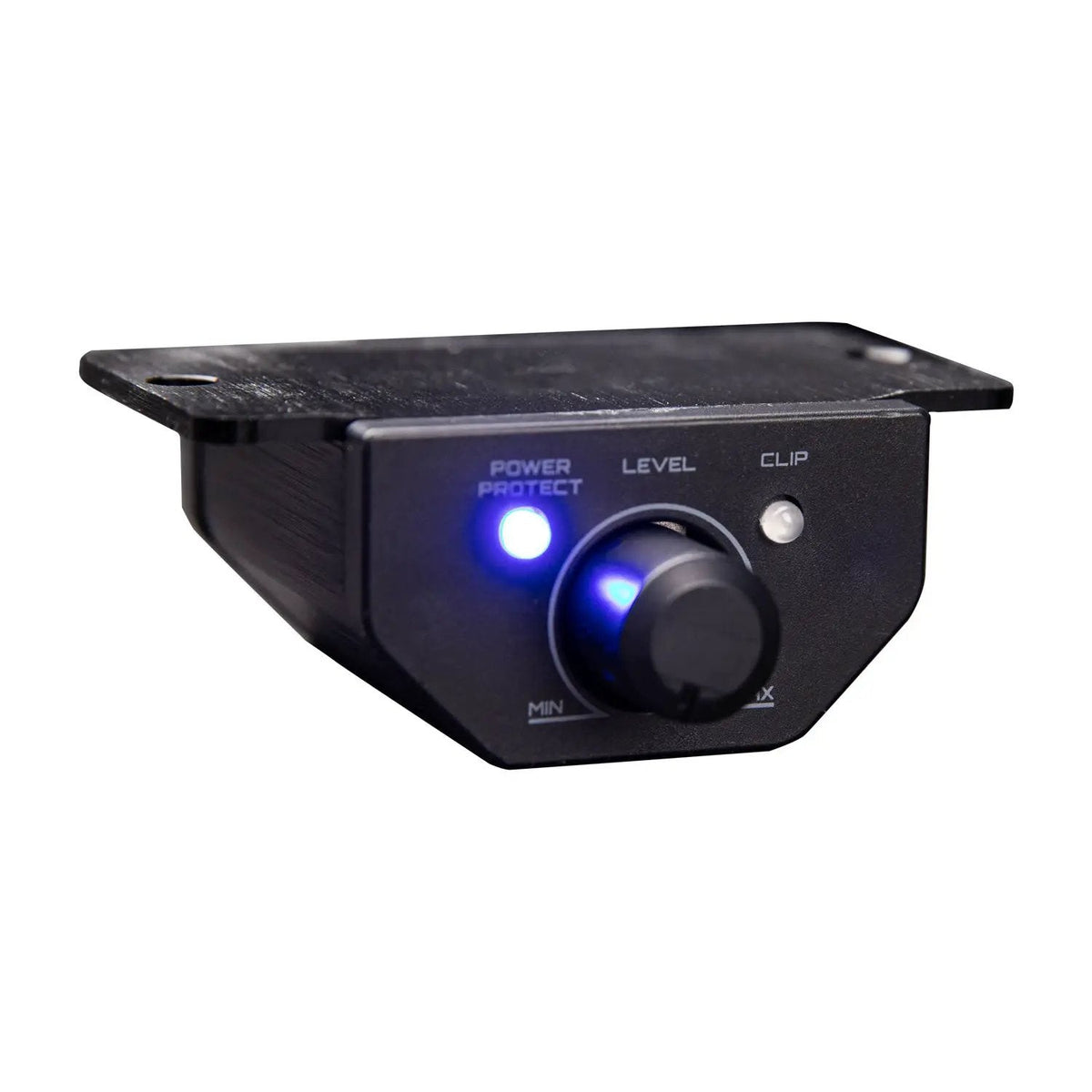

- Wired bass remote: Adjust bass level from the driver’s seat relative to the amplifier’s end-panel setting.

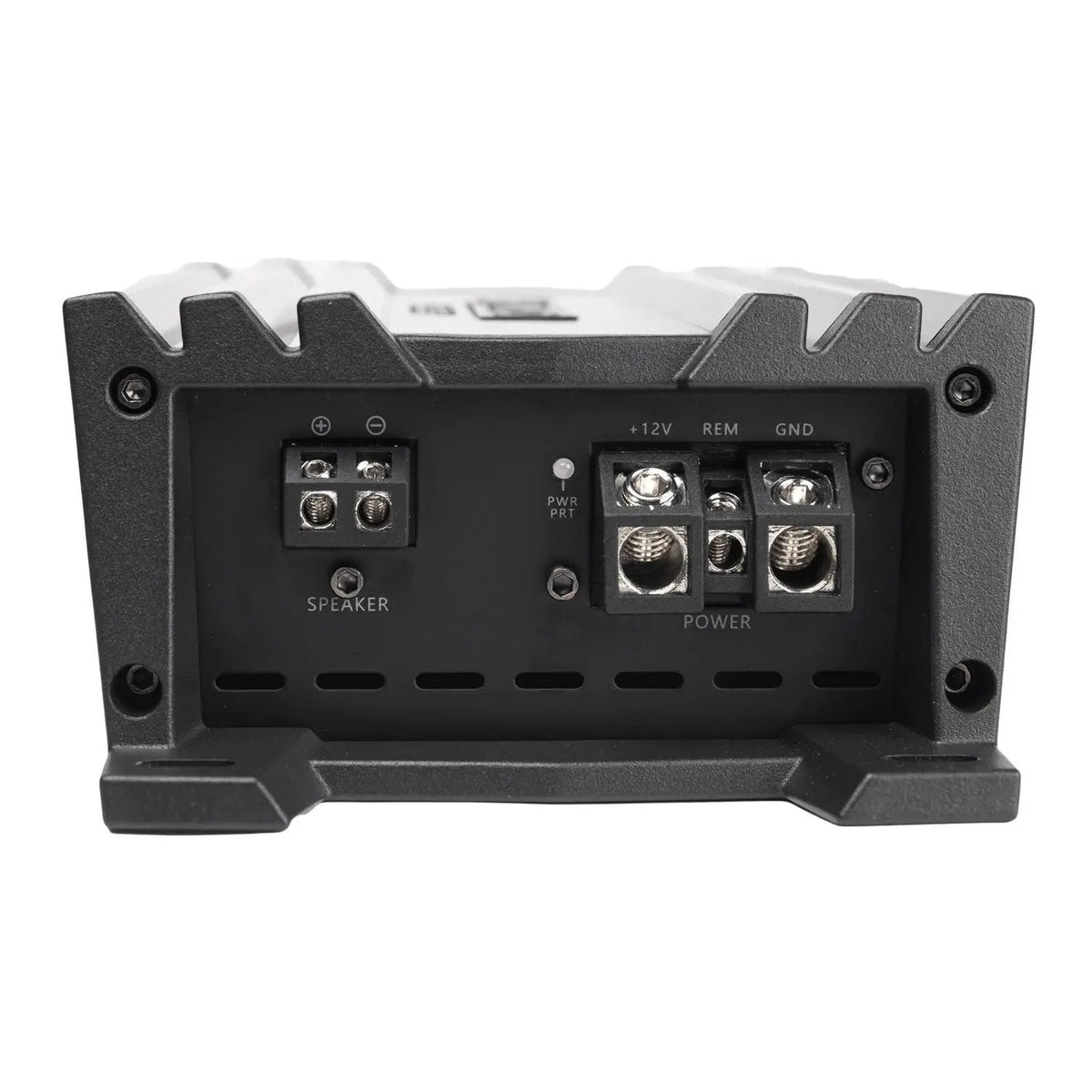

- Angled connection terminals: Molded power, ground, and speaker terminals make access and wire routing easier.
- Triple protection circuitry: Protection against over/under voltage, thermal issues, and short circuits helps safeguard the system.
Technical Specifications
| Brand | Hifonics |
|---|---|
| Series | COLOSSUS MINI |
| Model | HCM-1200.1D |
| Type | Amplifier |
| Amplifier Class | Super D-Class® |
| Total Channels | 1 |
| Max Power | 1200 Watts |
| Power @ 1 Ohm | 1 x 1200 Watts |
| Power @ 2 Ohms | 1 x 600 Watts |
| Power @ 4 Ohms | 1 x 300 Watts |
| Frequency Response | 10Hz-11kHz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Variable Voltage | 0.2-5V |
| Bass Boost | 0-12dB |
| Variable High Pass Crossover | 15Hz-1KHz (12dB per Octave) |
| Variable Low Pass Crossover | 50Hz-10KHz (12dB per Octave) |
| Power / Ground Terminal Gauge | 0 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| Fusing | External 100A |
| Dimensions | 28.2 × 13.4 × 6.9 cm |
| Weight | 2.3 kg |
| Color | Black |
| Operation Mode | Mono only |
| Class / Topology | Full Range Class-D |
| Power Supply | Air core transformer |
Why Choose This Product?
The HCM-1200.1D combines a compact chassis with a full-range Class-D chipset, including in this mono model. Its high-end preamplifier circuit accepts a wider range of input signals, while nickel-plated RCA inputs provide corrosion-resistant connections.

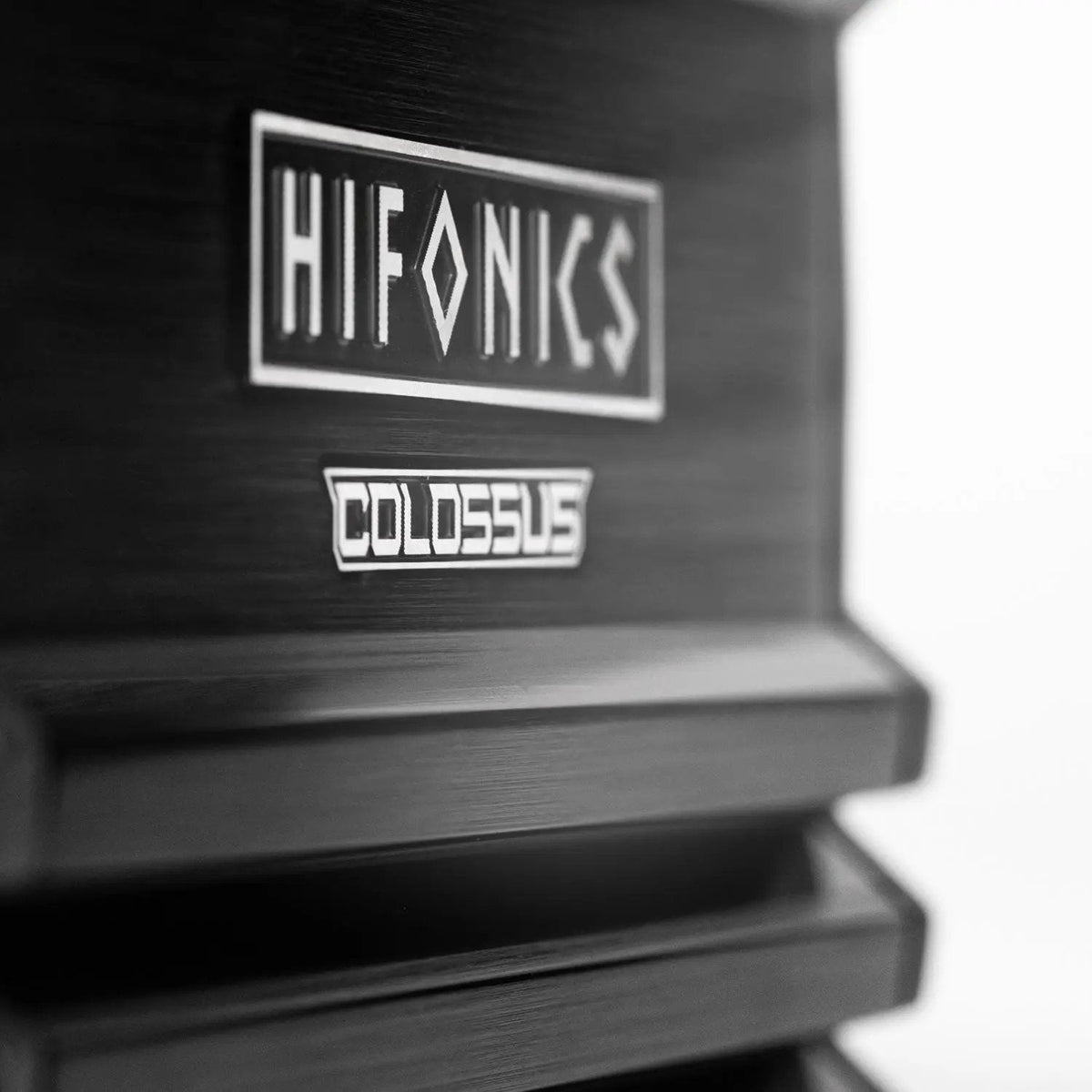

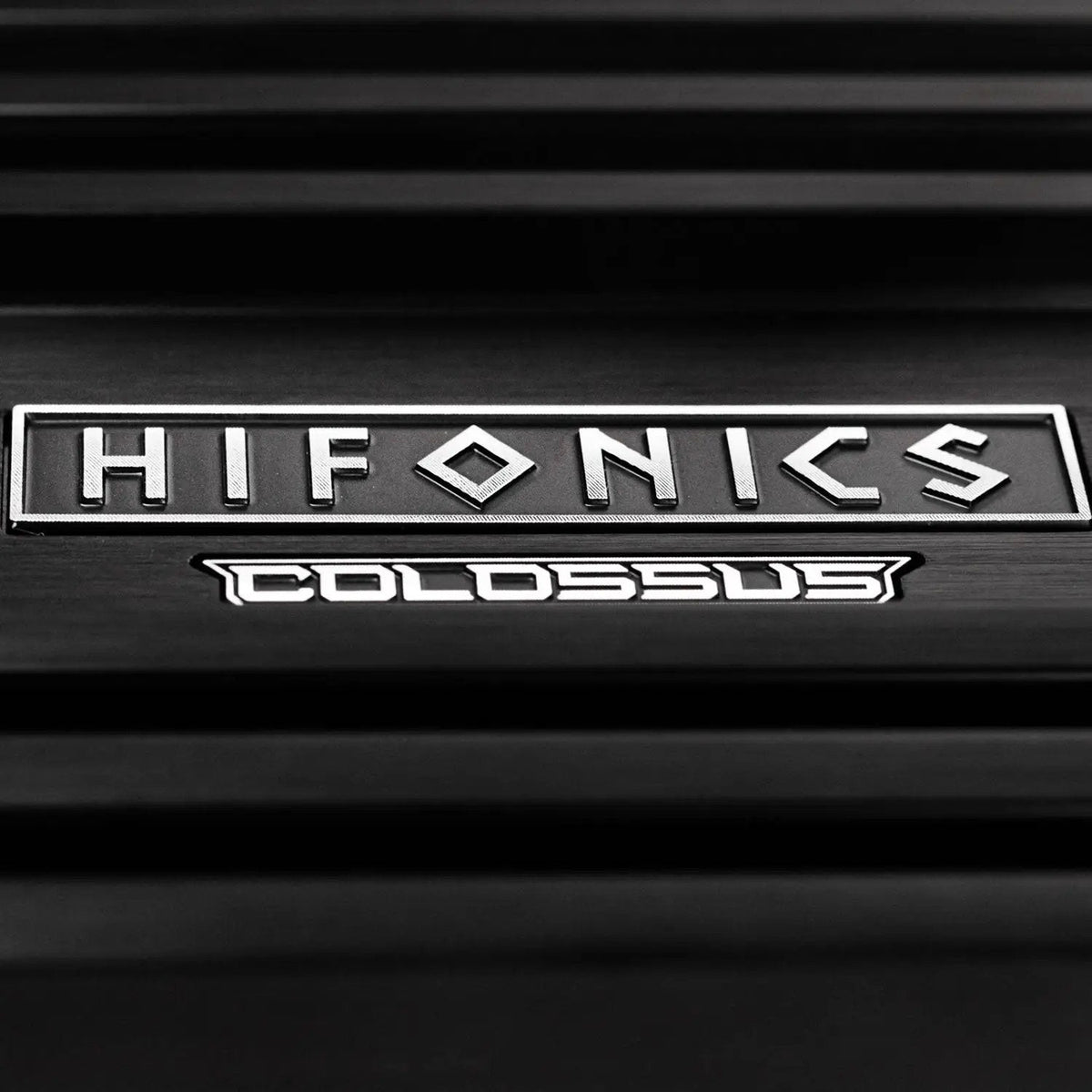

Ultra-Fi MOSFETs, a multi-layer printed circuit board with surface-mount components, and an air core transformer are part of its design. A delayed turn-on function is intended to help prevent unwanted hisses and pops when the system starts or shuts down. CNC-machined aluminum Hifonics and Colossus logo badges finish the amplifier.
Installation & Compatibility Notes
This amplifier is specified for 12V mobile audio systems, including passenger vehicles, motorcycles, and UTVs. Check available mounting space against its 28.2 × 13.4 × 6.9 cm dimensions before installation.
Power and ground terminals accommodate 0 AWG wire; speaker terminals accommodate 12 AWG wire. Fusing is external and rated at 100A. Confirm the connected speaker load and system requirements before wiring.
Frequently Asked Questions
What is the power output at each impedance?
The ratings are 1 x 1200 watts at 1 ohm, 1 x 600 watts at 2 ohms, and 1 x 300 watts at 4 ohms.
Can I adjust bass from the driver’s seat?
Yes. A wired bass remote is included for adjusting bass level relative to the amplifier’s end-panel setting.
What wire gauges do the terminals accommodate?
The power and ground terminals accommodate 0 AWG wire, and the speaker terminals accommodate 12 AWG wire.
What is included with the amplifier?
The package includes the Hifonics HCM-1200.1D amplifier, a wired bass remote control, and the Hifonics COLOSSUS MINI Amplifiers (HCM) Quick Start Guide (Rev1).
What protection circuits are built in?
Triple protection circuitry covers over/under voltage, thermal protection, and short circuits. The bass remote’s indicator shows green when the amplifier is powered on and red if it enters protect.
