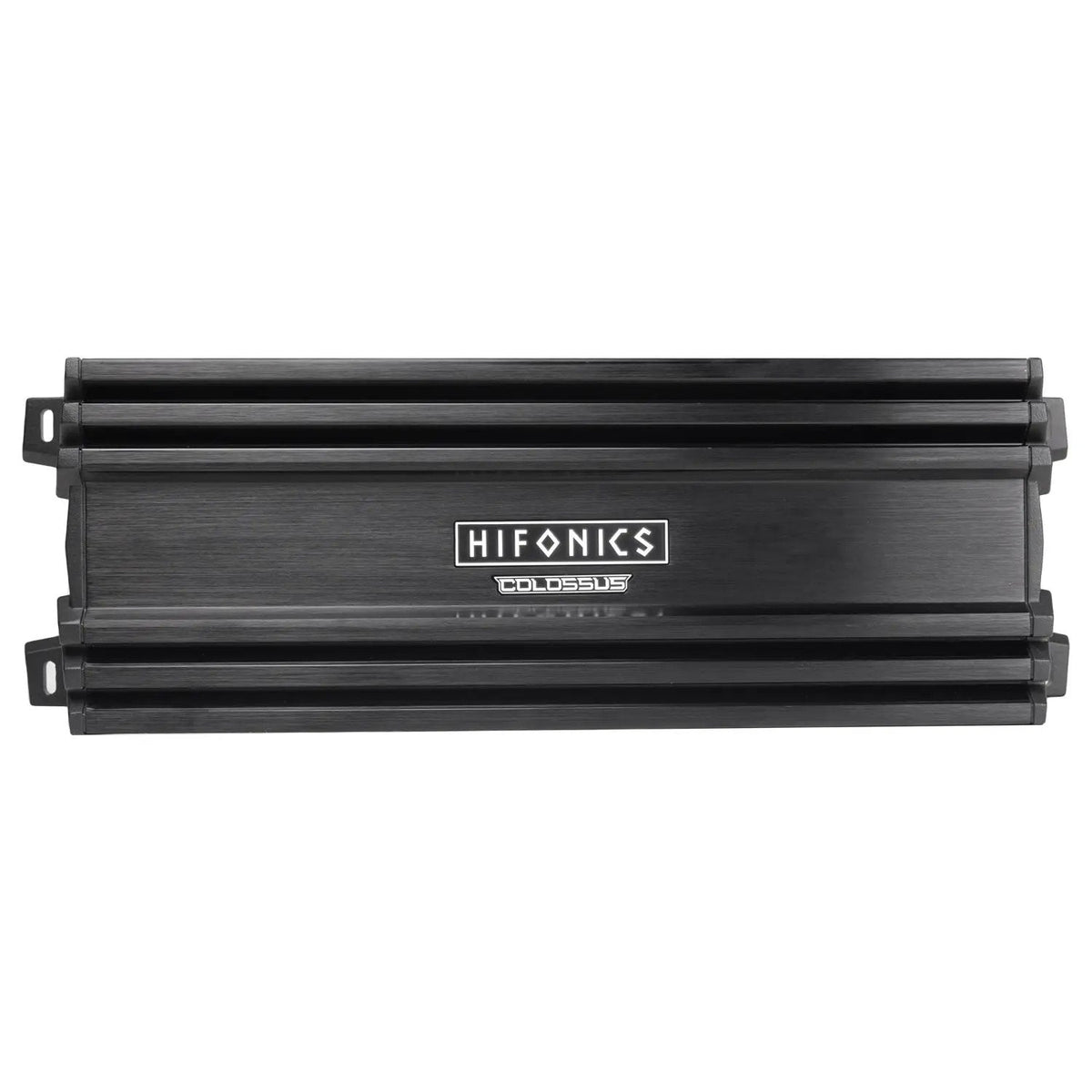

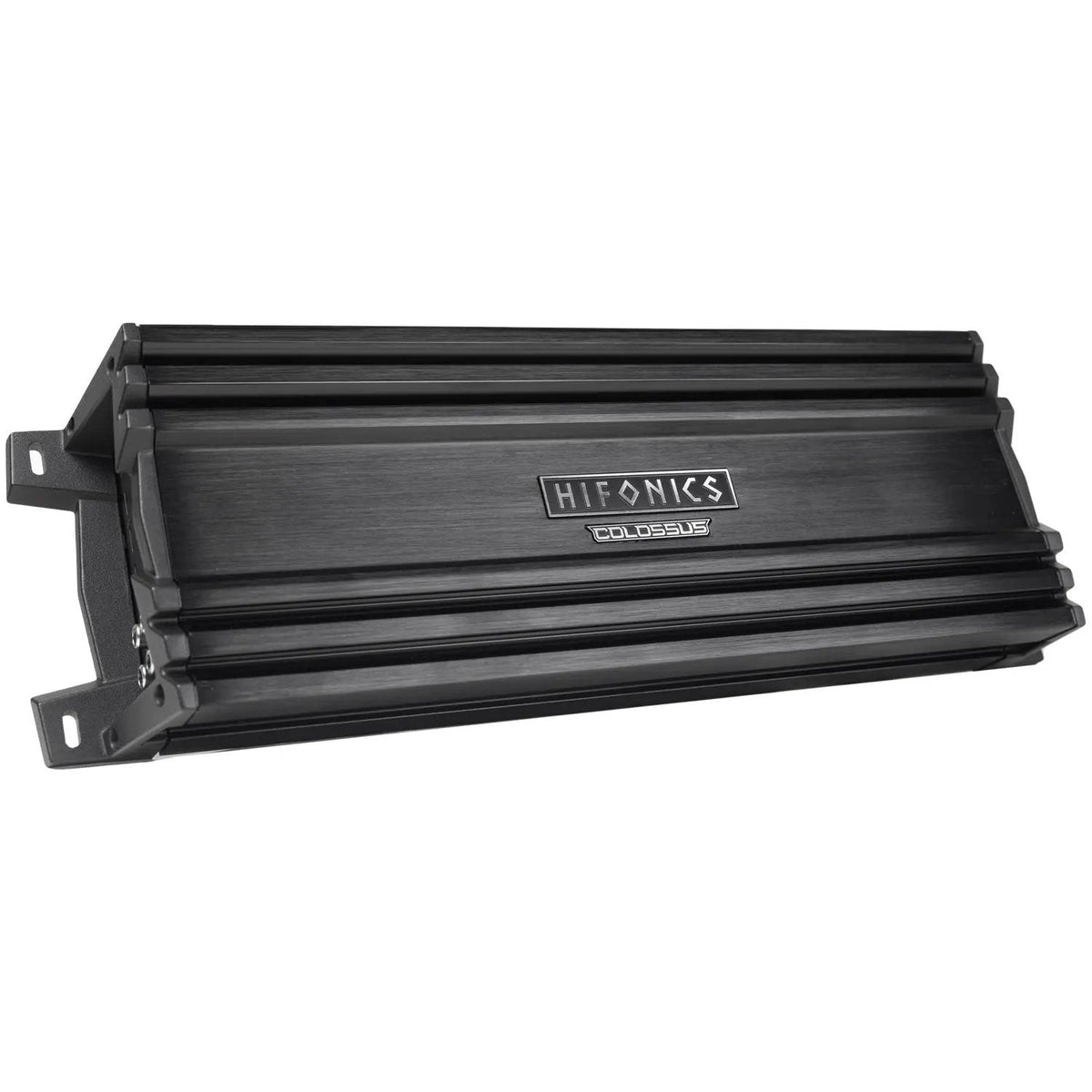

Hifonics HCM-3000.1D COLOSSUS MINI Ultra-Compact 3000 Watt Mono Block Amplifier
Key features
- Amplifier channels: 1
- Amplifier class: Class D
- Frequency response: 10Hz-11kHz
- High-pass crossover (12 dB/octave): 15Hz-1kHz
- Low-pass crossover (12 dB/octave): 50Hz-10kHz
- Power/ground terminal wire size: 0 AWG
Hifonics HCM-3000.1D COLOSSUS MINI Ultra-Compact 3000 Watt Mono Block Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Hifonics HCM-3000.1D COLOSSUS MINI mono amplifier delivers up to 3000 watts in a compact chassis for automotive, motorcycle, and UTV audio systems. Its full-range Class-D design and angled connection terminals help make it easier to plan a powerful installation where space and wiring access matter.
Key Features & Benefits
- Compact mono design: The small footprint suits tight installation spaces in supported vehicle applications.
- Three impedance power ratings: Output is specified at 750 watts at 4 ohms, 1500 watts at 2 ohms, and 3000 watts at 1 ohm.
- Passive heat management: The mass-loaded extruded aluminum heat sink dissipates heat without internal fan cooling.

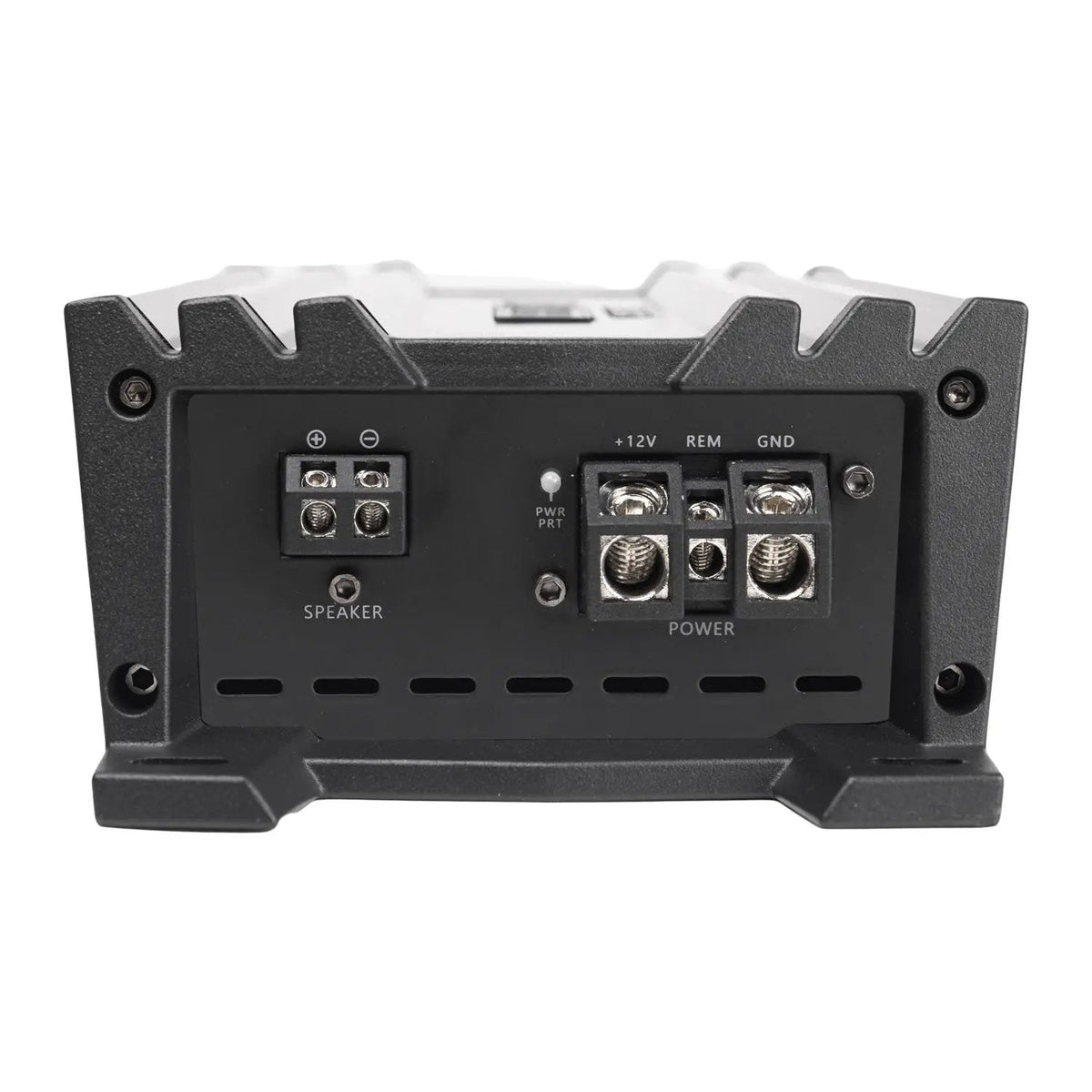

- Angled, molded terminals: Power, ground, and speaker connections support accessible wiring and a clean wire-management profile.
- Included bass remote: Adjust bass level remotely relative to the setting on the amplifier’s end panel.
- Protection circuitry: Over-voltage, under-voltage, short-circuit, and thermal protection help protect the amplifier and audio system.
Technical Specifications
| Brand | Hifonics |
|---|---|
| Model Number | HCM-3000.1D |
| Series | COLOSSUS MINI |
| Amplifier Class | Super D-Class® |
| Class / Topology | Full Range Class-D |
| Total Channels | 1 |
| Operation Mode | Mono only |
| Max Power | 3000 W |
| Power Output @ 1 Ohm | 1 x 3000 W |
| Power Output @ 2 Ohms | 1 x 1500 W |
| Power Output @ 4 Ohms | 1 x 750 W |
| Frequency Response | 10Hz-11kHz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Variable High Pass Crossover | 15Hz-1KHz (12dB/octave) |
| Variable Low Pass Crossover | 50Hz-10KHz (12dB/octave) |
| Bass Boost | 0-12dB Variable |
| Variable Voltage | 0.2-5V |
| Power/Ground Terminal Gauge | 0 AWG |
| Speaker Terminal Gauge | 12 AWG |
| Fusing | External 300A |
| Dimensions | 41.4 × 13.4 × 6.9 cm |
| Weight | 3.6 kg |
| Color | Black |
| Power Supply | Open air-core transformer |
| Connection Type | Secure molded power, ground, and speaker terminals; angled for access and wire management |

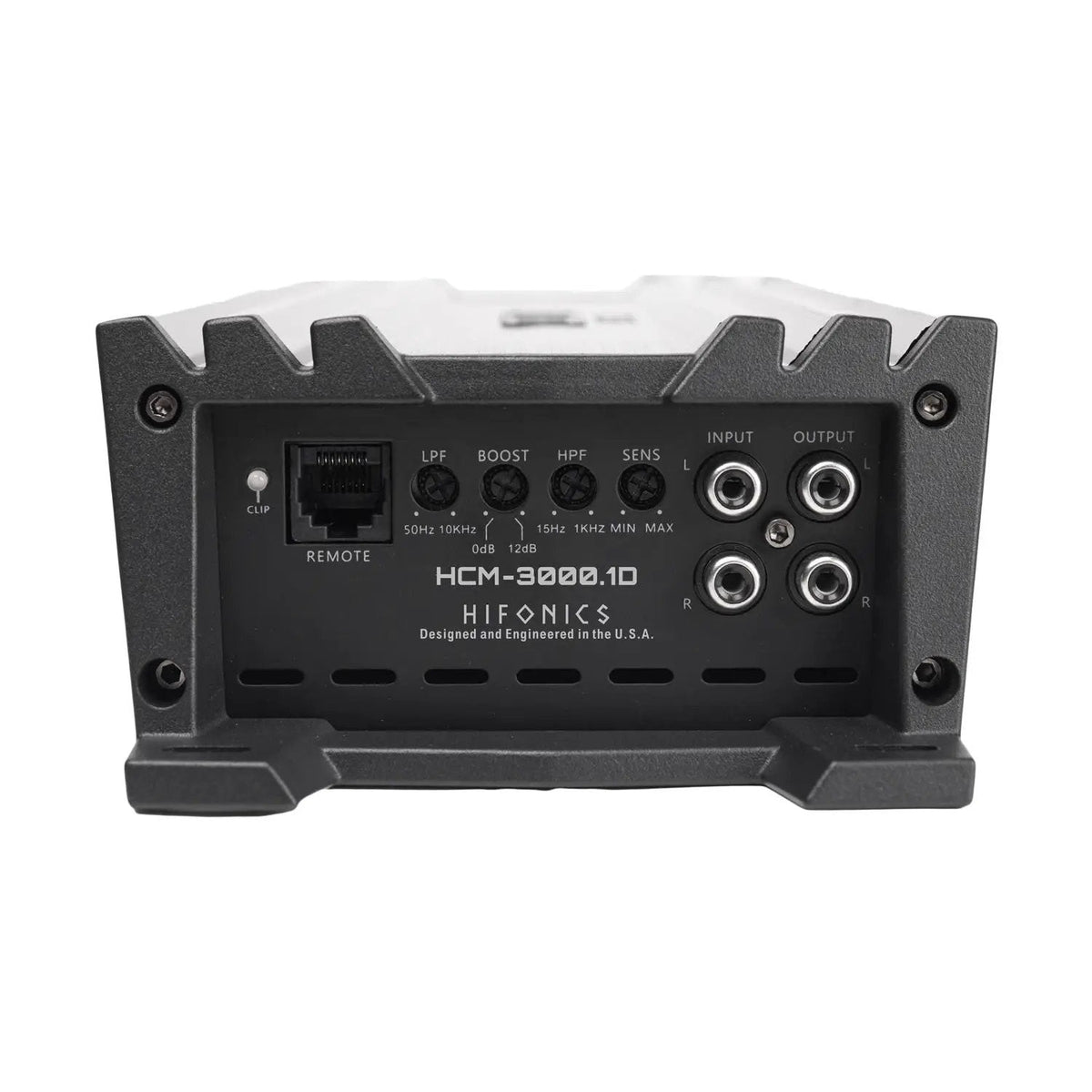

| RCA Inputs | Nickel-plated |
| Input Circuit | High-end preamplifier circuit accepts a wider range of input signals |
| Output Devices | Ultra-Fi MOSFETS with a proprietary coupling method for high output power and thermal dissipation |
| Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components |
| Turn-On Function | Delayed turn-on |
| Protection Circuits | Over/under voltage, short circuit, and thermal protection |

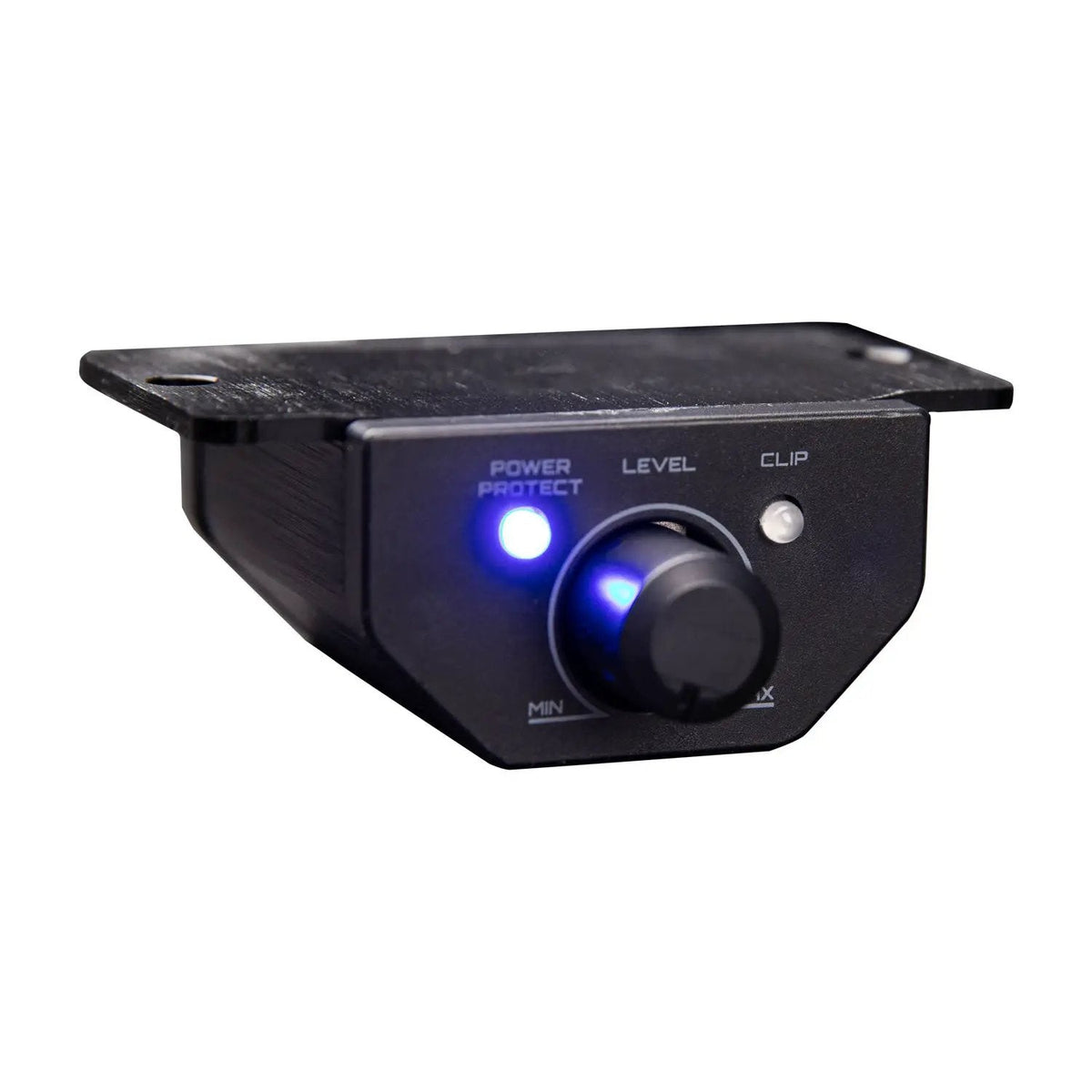

| Bass Remote | Included; wired controller with cable and LED indicator that displays green when powered on and red in protect mode |
| Compatibility | 12V automotive, UTV, and motorcycle electrical systems; standard source units via RCA preamplifier inputs |
| What's Included | Hifonics HCM-3000.1D Mono Block Amplifier; Bass Remote Controller with Cable; Mounting Hardware |
| Warranty | 1 Year manufacturer's warranty |
Why Choose This Product?
The HCM-3000.1D combines a compact enclosure with three stated output ratings, so you can compare its power figures with your system’s impedance requirements. Its full-range Class-D topology is designed for use with a wide range of drivers, especially pro-style speakers.
The open air-core transformer, multi-layer circuit boards, and fan-free heat sink are specific design features of this amplifier. Nickel-plated RCA inputs provide a corrosion-resistant connection, while delayed turn-on is intended to help eliminate unwanted turn-on and turn-off noises such as hisses and pops.
Installation & Compatibility Notes
The amplifier is specified for 12V automotive, UTV, and motorcycle electrical systems and accepts standard source units through RCA preamplifier inputs. Check available mounting space against its 41.4 × 13.4 × 6.9 cm dimensions before installation.
Power and ground terminals accommodate up to 0 AWG wire, and speaker terminals accommodate up to 12 AWG wire. The listed fusing is external 300A. Confirm your system’s impedance, electrical requirements, and installation layout before connecting the amplifier.
Frequently Asked Questions
What power does the HCM-3000.1D produce at each impedance?
Its listed outputs are 1 x 750 W at 4 ohms, 1 x 1500 W at 2 ohms, and 1 x 3000 W at 1 ohm. The product details identify these figures as RMS ratings.
Can I use this amplifier with a standard source unit?
Yes. It supports standard source units through RCA preamplifier inputs.
What wire sizes do the terminals accept?
The power and ground terminals accommodate up to 0 AWG wire. The speaker terminals accommodate up to 12 AWG wire.
Is a bass remote included?
Yes. The package includes a wired bass remote controller with cable and an LED status indicator.
What comes in the package?
It includes the HCM-3000.1D mono amplifier, bass remote controller with cable, and mounting hardware.
What are the amplifier’s dimensions?
It measures 41.4 × 13.4 × 6.9 cm. Compare these dimensions with your intended mounting space.
Explore More
Shop for the Hifonics HCM-3000.1D at 12 Volt Outlet. Want to learn more about Hifonics? Explore our Hifonics brand profile.
| Brand | Hifonics |
| Model Number | HCM-3000.1D |
| Series | COLOSSUS MINI |
| Amplifier Class | Super D-Class® |
| Total Channels | 1 |
| Max Power | 3000 W |
| Power Output @ 1 Ohm | 1 x 3000 W |
| Power Output @ 2 Ohms | 1 x 1500 W |
| Power Output @ 4 Ohms | 1 x 750 W |
| Frequency Response | 10Hz-11kHz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Variable High Pass Crossover | 15Hz-1KHz (12dB/octave) |
| Variable Low Pass Crossover | 50Hz-10KHz (12dB/octave) |
| Bass Boost | 0-12dB |
| Variable Voltage | 0.2-5V |
| Power/Ground Terminal Gauge | 0 AWG |
| Speaker Terminal Gauge | 12 AWG |
| Fusing | External 300A |
| Dimensions | 41.4 × 13.4 × 6.9 cm |
| Weight | 3.6 kg |
| Color | Black |
