Hifonics HEW12D4S ELITE 12 Inch 4 Ohm DVC Shallow Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 300 W
- Voice-coil options: D4
- Voice-coil diameter: 3 inches
- Cone: Woven fiber
- Mounting depth: 3.17 inches
Hifonics HEW12D4S ELITE 12 Inch 4 Ohm DVC Shallow Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

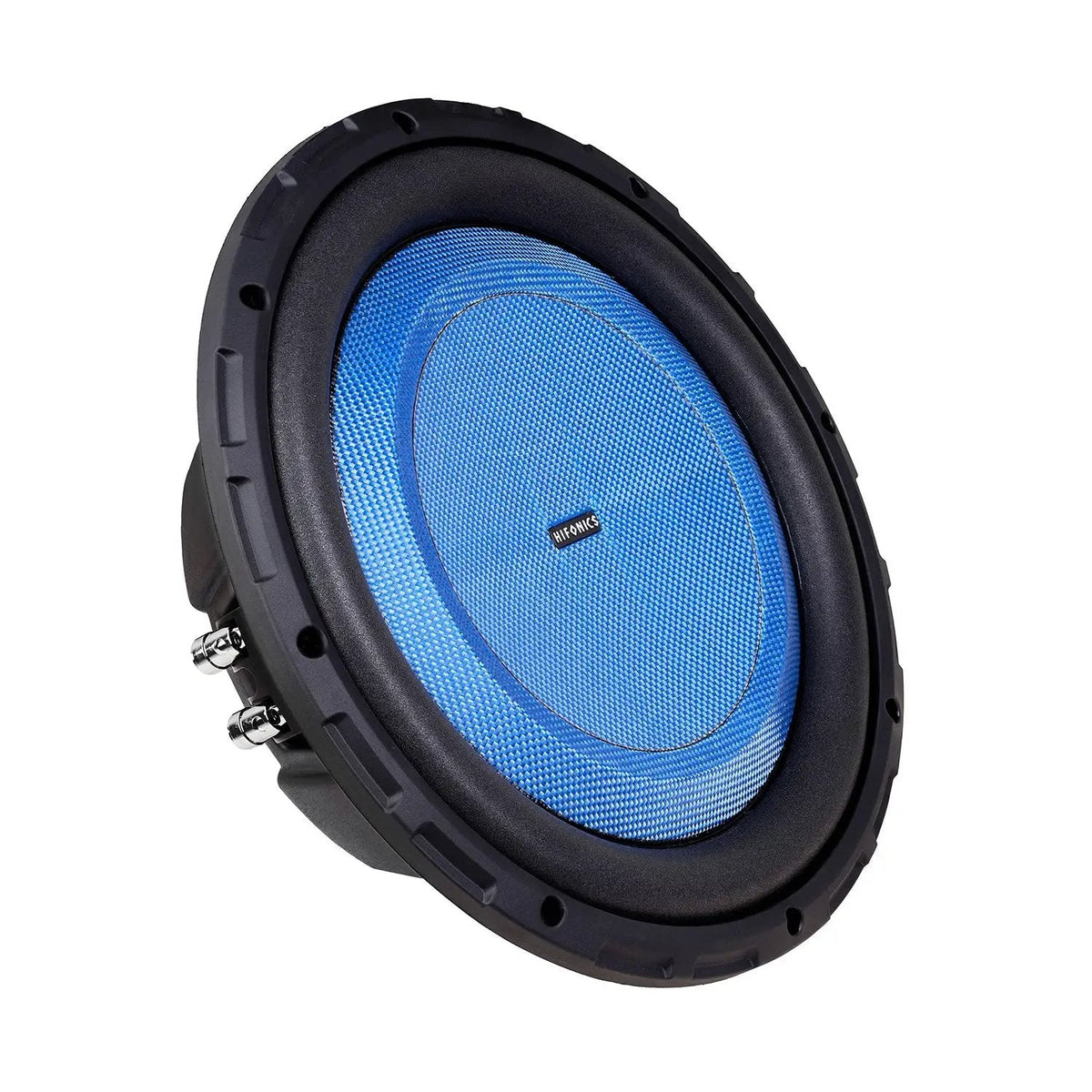

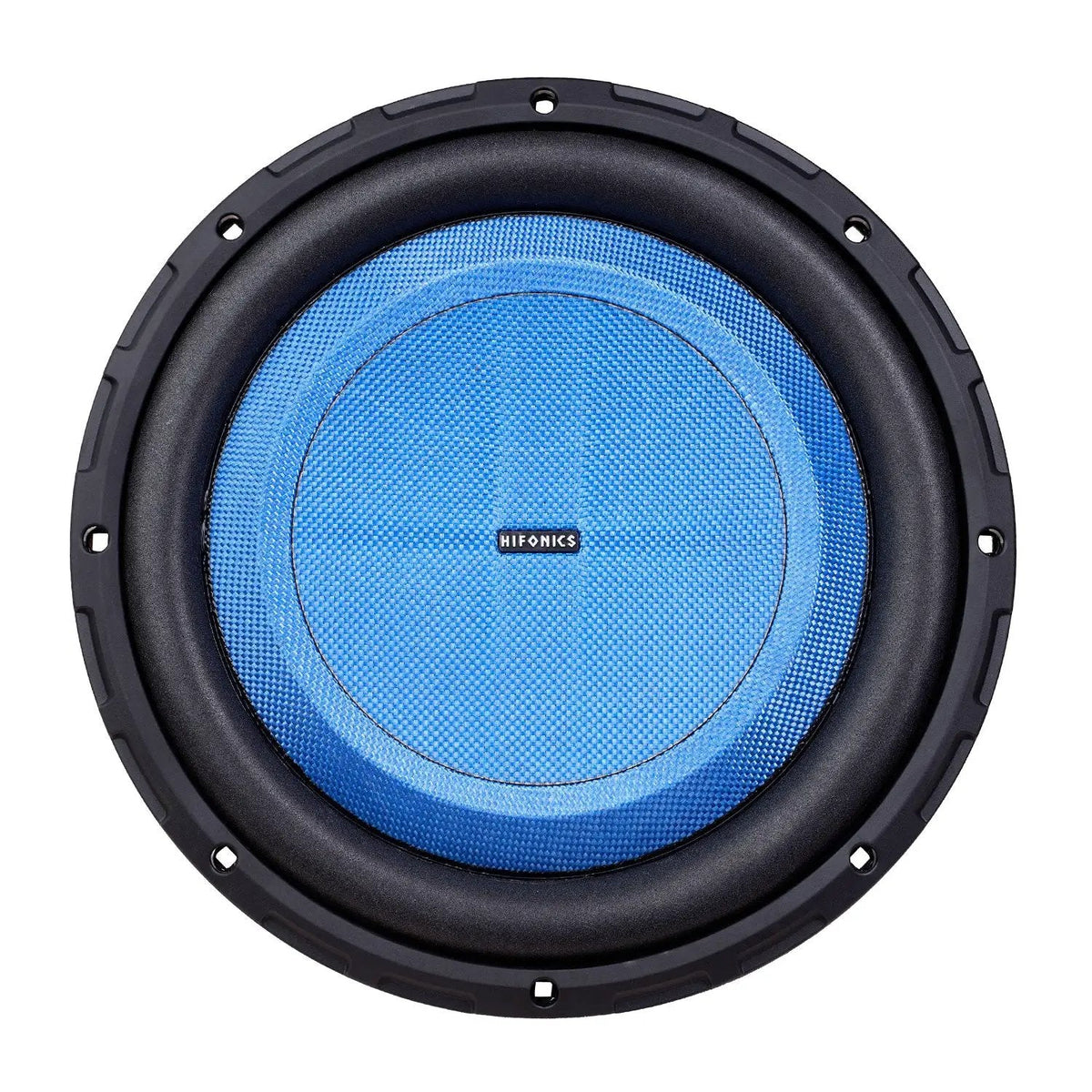

The Hifonics HEW12D4S ELITE is a 12-inch shallow-mount subwoofer for adding bass to a mobile car audio system. Its 8.1 cm mounting depth helps preserve cargo space, and its dual 4-ohm voice coils are designed for sealed-enclosure installations.
Key Features & Benefits
- Shallow-mount design: The 8.1 cm mounting depth can help retain more room around the installation area.
- Heat management: High-temperature voice coils and a vented aluminum former help dissipate heat.
- Woven fiber cone: The lightweight cone and dust cap support faster response while providing strength.
- UV-treated foam surround: The surround resists sun fading while remaining flexible.
- Poly-cotton spider: Its design resists softening and sagging over time to support high-power handling with minimal distortion.

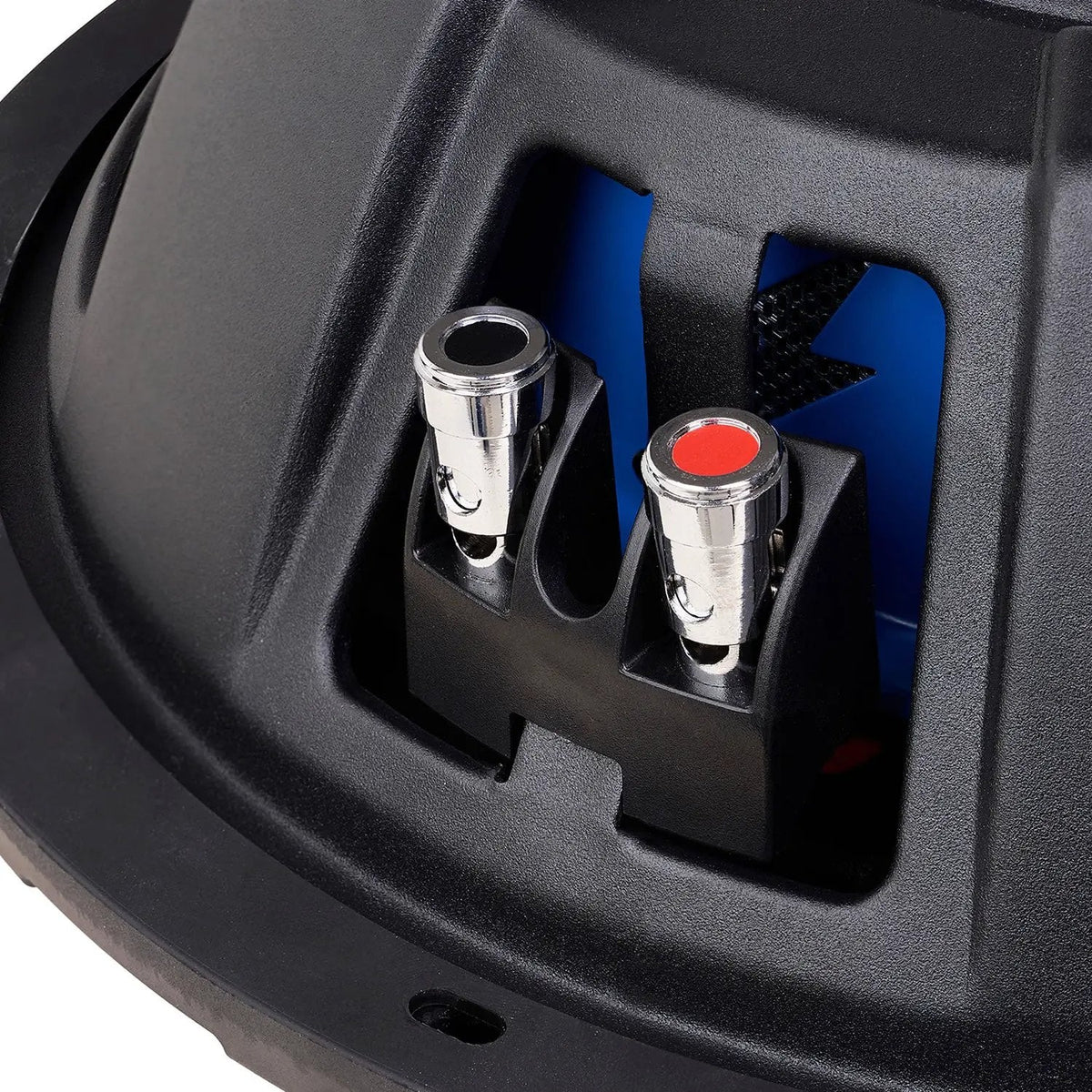

- Nickel-plated terminals: Push-and-insert terminals provide a secure connection and resist corrosion.
Technical Specifications
| Brand | Hifonics |
|---|---|
| Series | Hifonics ELITE |
| Model Number | HEW12D4S |
| Product Type | Subwoofer |
| Speaker Size | 12" |
| RMS Power Handling | 300 W |
| Peak Power Handling | 600 W |
| Impedance | 4 Ohms |
| Voice Coils | 2 (Dual) |
| Voice Coil Diameter | 3" |
| Mounting Depth | 8.1 cm |
| Cut-Out Diameter | 27.6 cm |
| Overall Diameter | 31 cm |
| Sensitivity | 85 dB |
| Dimensions | 34.3 × 34.3 × 12.1 cm |
| Weight | 3.7 kg |
| Enclosure Recommendation | Sealed enclosure |
| Cone Material | Woven Fiber |
| Surround Material | UV-Treated Foam |
| Basket Material | Powder Coated Stamped Steel |
| Terminal Type | Nickel-Plated Push & Insert |

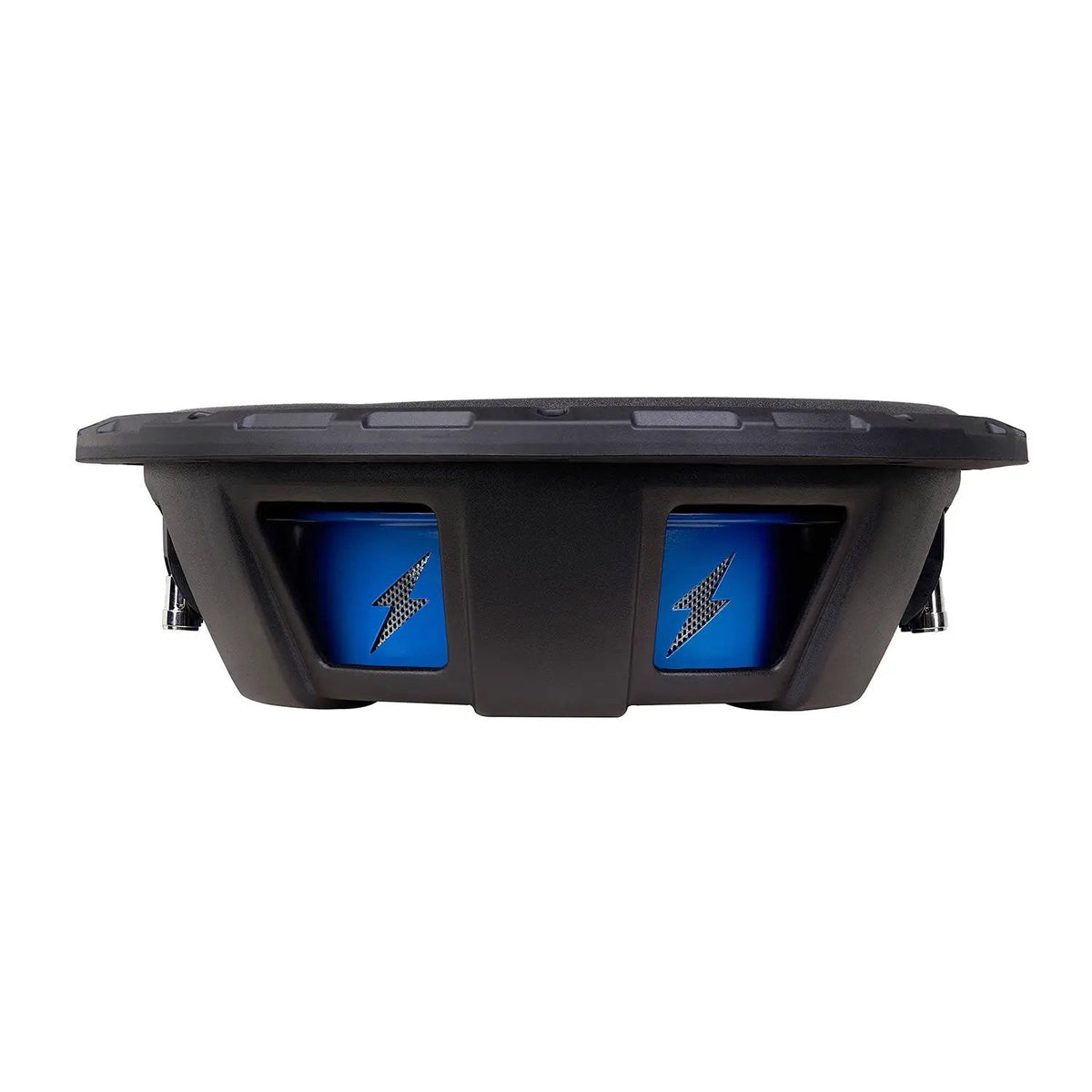

| Configuration | Round Shallow Mount |
| Feature | Description |
|---|---|
| Terminal Type | Stainless push-and-insert terminals provide a secure electrical connection with a high-end fit and finish. Nickel plating resists corrosion and aids installation. |
| Surround / Cone Coupling | UV-treated foam surround resists sun fading while remaining flexible. |

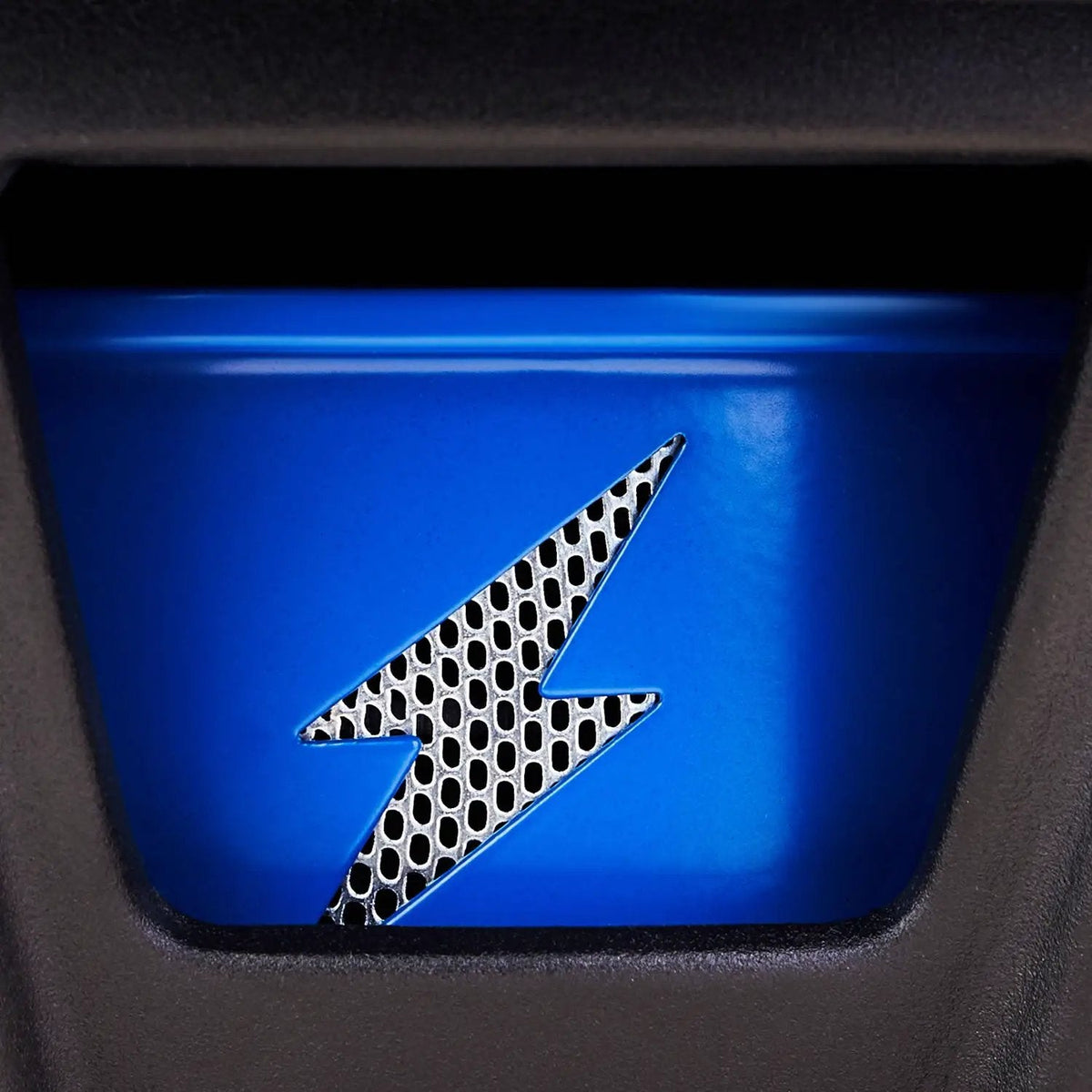

| Voice Coil / Former Assembly | 3-inch high-temperature voice coil and former provide high thermal stability in small enclosure volumes. The vented aluminum voice coil former allows more heat dissipation. |
| Spider | Specialized Hifonics poly-cotton spider resists softening and sagging over time, allowing the subwoofer to handle more power with minimum distortion. |

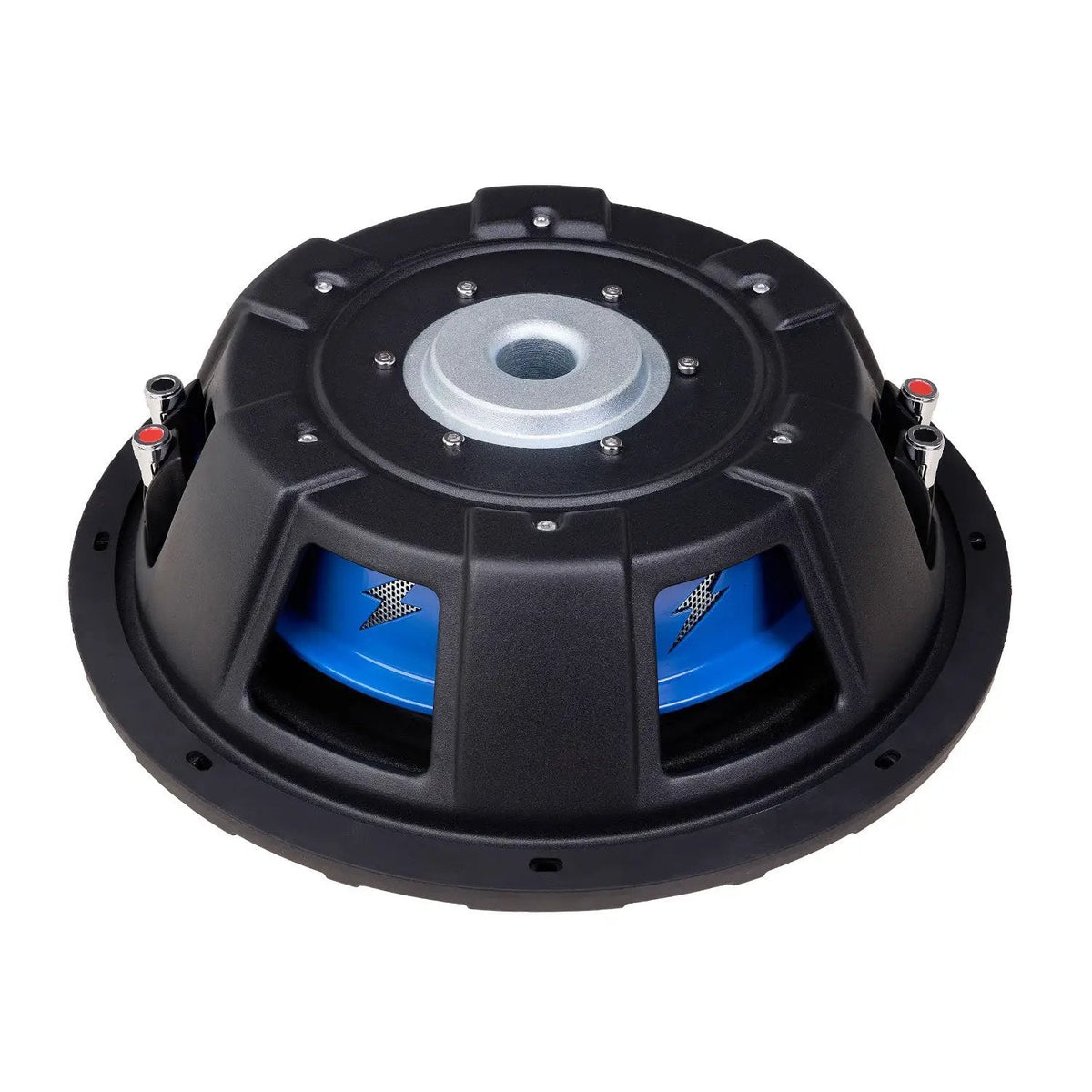

| Frame / Venting | Powder-coated stamped steel basket provides a base for the motor system and moving parts, delivering bass in a small area. |

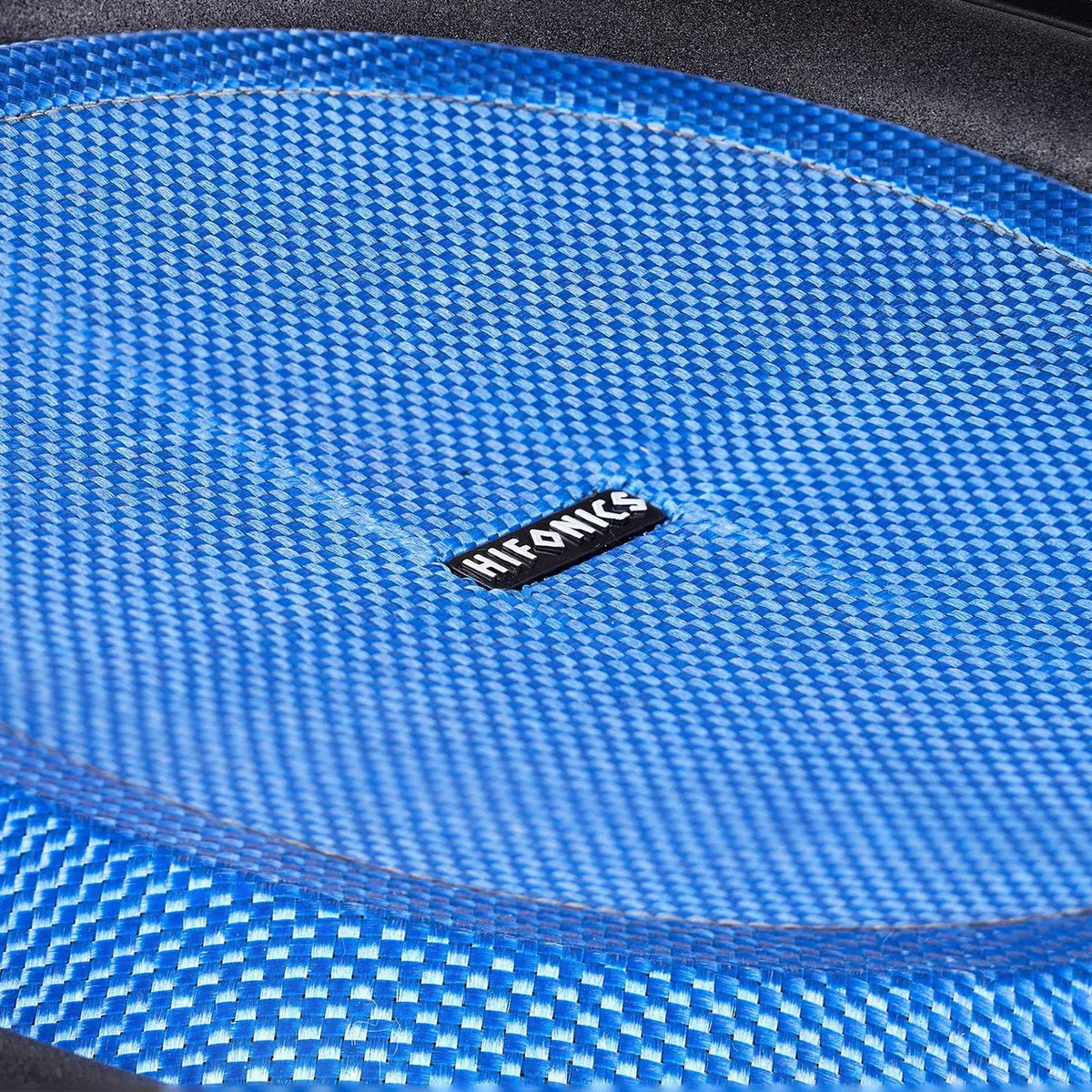

| Cone | Lightweight woven fiber cone and dust cap enable faster response while providing overall strength. |
Reference: Hifonics ELITE Subwoofers (HEW8/10/12D4S) Quick Start Guide (Rev1).
Why Choose This Product?
The HEW12D4S combines a shallow profile with a sealed-enclosure recommendation for installations where space matters. Its woven fiber cone, vented aluminum former, and poly-cotton spider bring together the specific construction features intended for responsive bass and sustained power handling.
The powder-coated stamped steel basket supports the moving assembly, while the nickel-plated push-and-insert terminals offer a corrosion-resistant connection point.
Installation & Compatibility Notes
This subwoofer is described as suitable for mobile car audio systems compatible with a 12-inch shallow-mount sealed enclosure and dual 4-ohm wiring configurations. Check available mounting space against the 8.1 cm mounting depth, 27.6 cm cut-out diameter, and 31 cm overall diameter before installation.
A sealed enclosure is recommended. Confirm that your system supports the subwoofer’s dual 4-ohm voice coils and 300 W RMS power handling.
Frequently Asked Questions
What is the mounting depth of the HEW12D4S?
Its mounting depth is 8.1 cm, or 3.17 inches.
What are its power handling ratings?
The subwoofer is rated for 300 W RMS and 600 W peak power handling.
What enclosure is recommended?
A sealed enclosure is recommended for this subwoofer.
What voice coil configuration does it use?
It has two 3-inch high-temperature voice coils, each rated at 4 ohms.
What opening and overall diameter should I allow for?
The cut-out diameter is 27.6 cm, and the overall diameter is 31 cm. Also account for the 8.1 cm mounting depth.
Explore More
Want to learn more about Hifonics? Explore our Hifonics brand profile. Shop Hifonics products at 12 Volt Outlet.
| Brand | Hifonics |
| Series | Hifonics ELITE |
| Model Number | HEW12D4S |
| Product Type | Subwoofer |
| Speaker Size | 12" |
| RMS Power Handling | 300 W |
| Peak Power Handling | 600 W |
| Impedance | 4 Ohms |
| Voice Coils | 2 (Dual) |
| Voice Coil Diameter | 3" |
| Mounting Depth | 8.1 cm |
| Cut-Out Diameter | 27.6 cm |
| Overall Diameter | 31 cm |
| Sensitivity | 85 dB |
| Dimensions | 34.3 × 34.3 × 12.1 cm |
| Weight | 3.7 kg |
| Enclosure Recommendation | Sealed enclosure |
| Cone Material | Woven Fiber |
| Surround Material | UV-Treated Foam |
| Basket Material | Powder Coated Stamped Steel |
| Terminal Type | Nickel-Plated Push & Insert |
| Feature | Description |
|---|---|
| Terminal Type | Stainless Push & Insert for a secure electrical connection with a high end fit and finish. Nickel plated push & insert to resist corrosion and aid in ease of installation. |
| Configuration | Round Shallow Mount |
| Surround / Cone Coupling | UV treated, foam surround resists sun fading while remaining flexible. |
| Voice Coil / Former Assembly | 3 inch high temperature voice coil and former for high thermal stability in small enclosure volumes. Vented aluminum voice coil former allows more dissipation of heat. |
| Spider | Specialized Hifonics poly cotton spider resists softening and sagging over time which allows the subwoofer to handle more power with minimum distortions. |
| Frame / Venting | Powder coated stamped steel basket provides a solid base for the motor system and moving parts and delivers bass in a small area. |
| Cone | Lightweight woven fiber cone and dust cap enables faster response while providing overall strength. |
