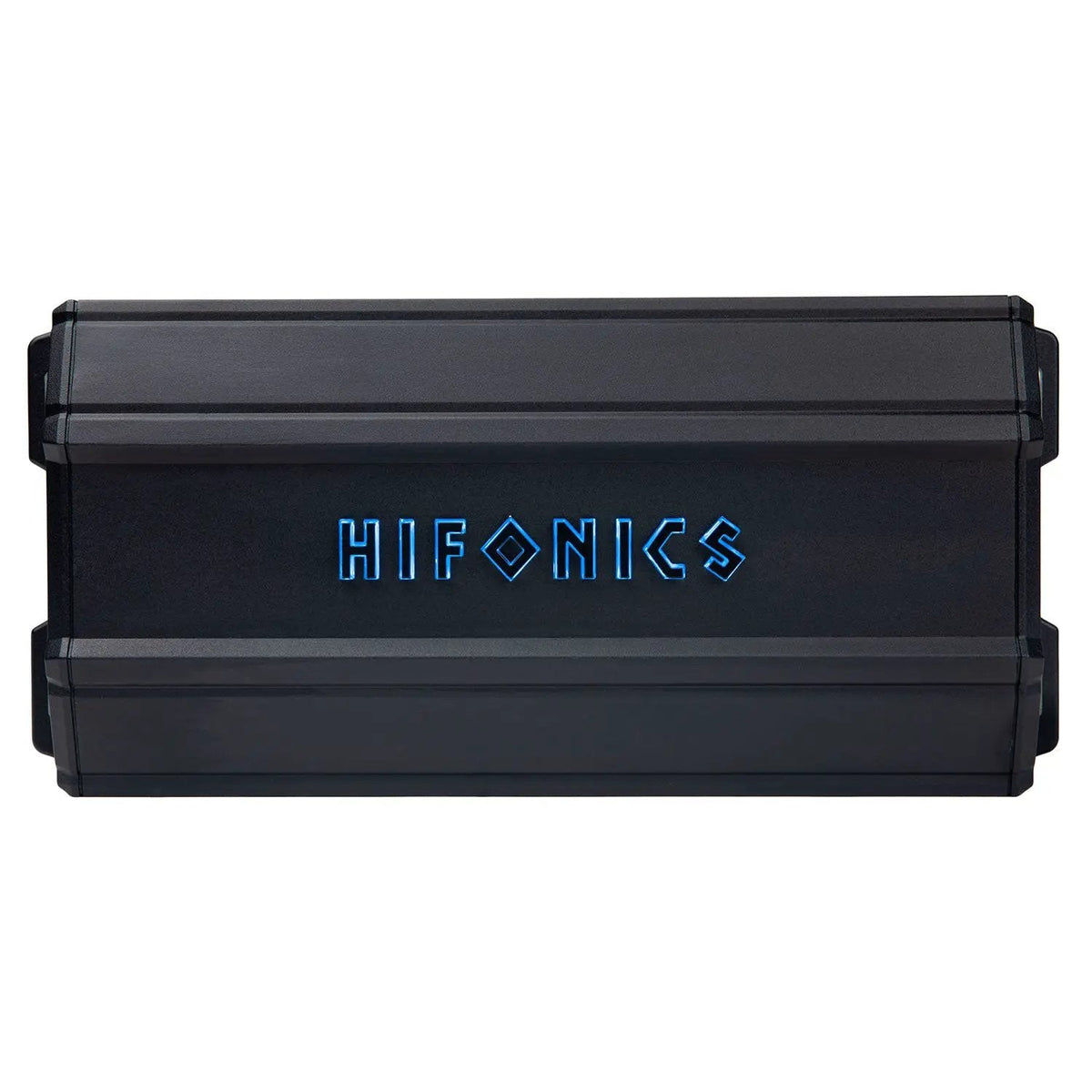

Hifonics ZD-1750.5D ZEUS DELTA 1700 Watt Five Channel Amplifier
Key features
- Amplifier channels: 5
- Amplifier class: Class D
- Frequency response: 10Hz-22kHz
- High-pass crossover (12 dB/octave): 50Hz-250Hz
- Low-pass crossover (12 dB/octave): 50Hz-250Hz
- Subsonic filter: 15Hz-40Hz
Hifonics ZD-1750.5D ZEUS DELTA 1700 Watt Five Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add five-channel amplification to a 12V mobile audio system with the Hifonics ZD-1750.5D ZEUS DELTA Class D amplifier. Its listed power ratings support full-range speaker channels and a dedicated subwoofer channel, with onboard filters and bass control for system adjustment.

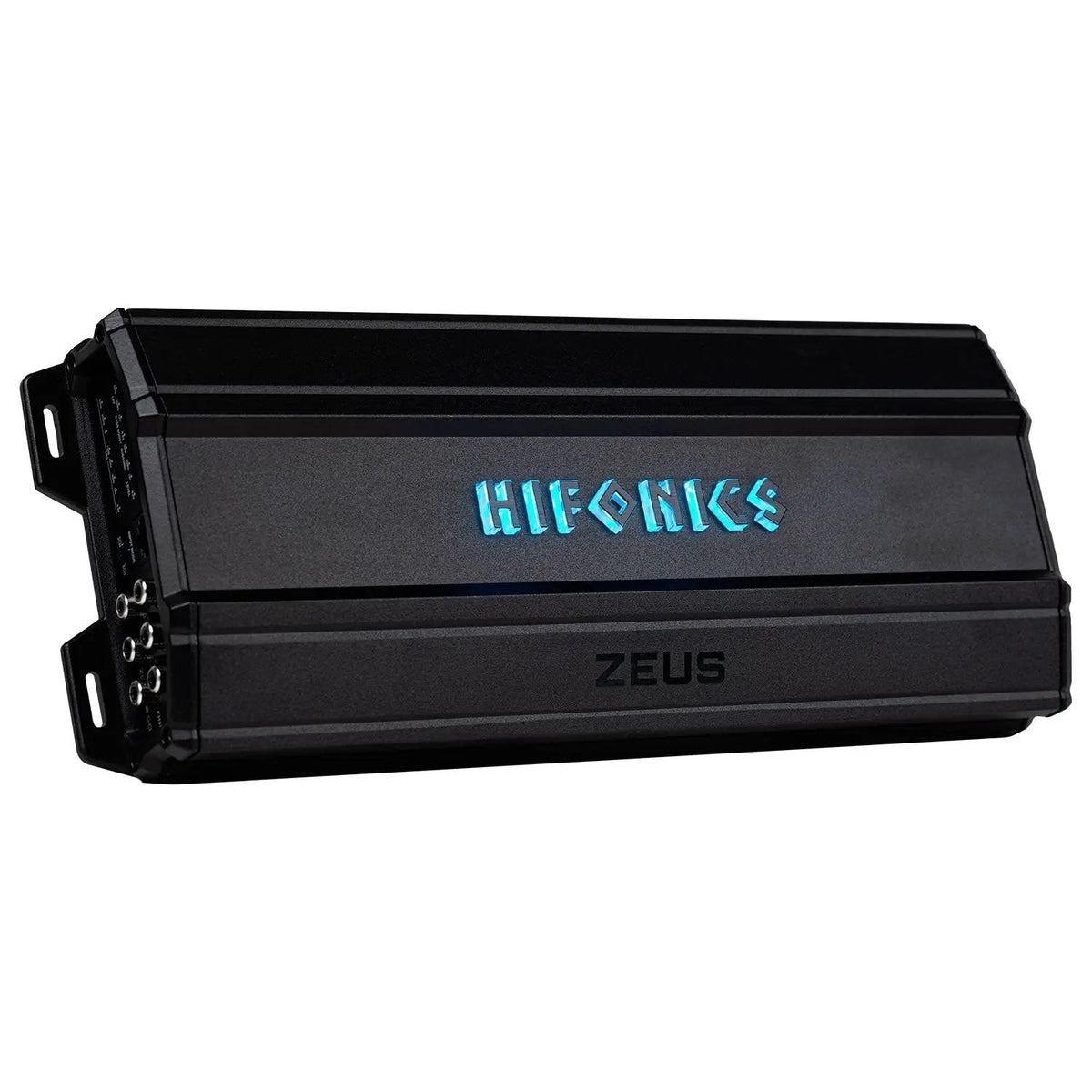

The PWM MOSFET power supply, Simpatico dual-coil design, and heavy-duty aluminum heatsink are built into a compact black chassis measuring 37.6 × 14.6 × 5.5 cm.
Key Features & Benefits
- Five-channel design: Amplify full-range speakers and a subwoofer from one amplifier.
- Class D topology: Provides high electrical efficiency in the amplifier’s design.

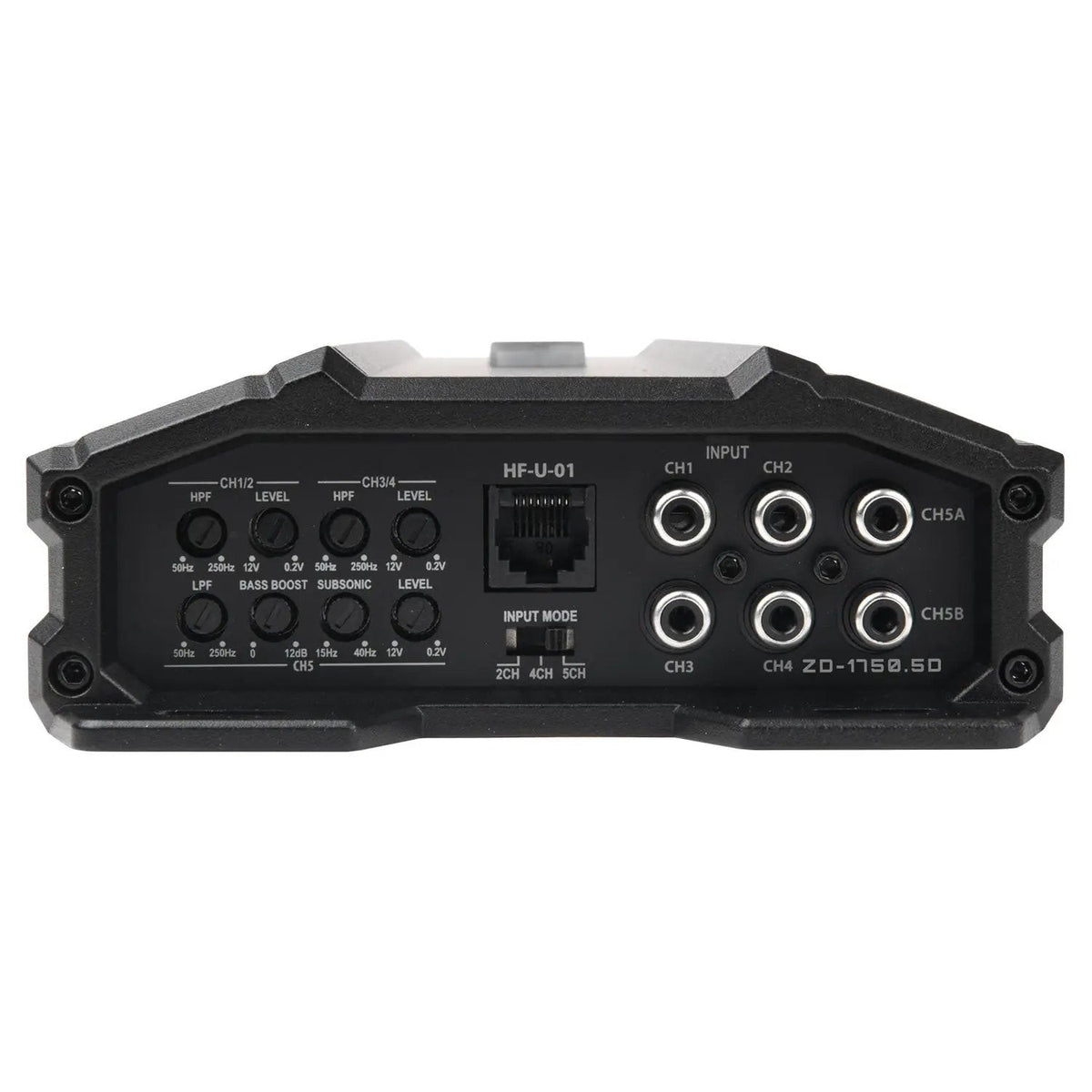

- Adjustable filters: Variable high-pass, low-pass, and subsonic controls help tailor the signal to your system.
- DC signal sensing: Enables automatic turn-on when an audio signal is detected on the RCA inputs.
- Wired bass remote included: Adjust subwoofer output levels from the driver’s seat.

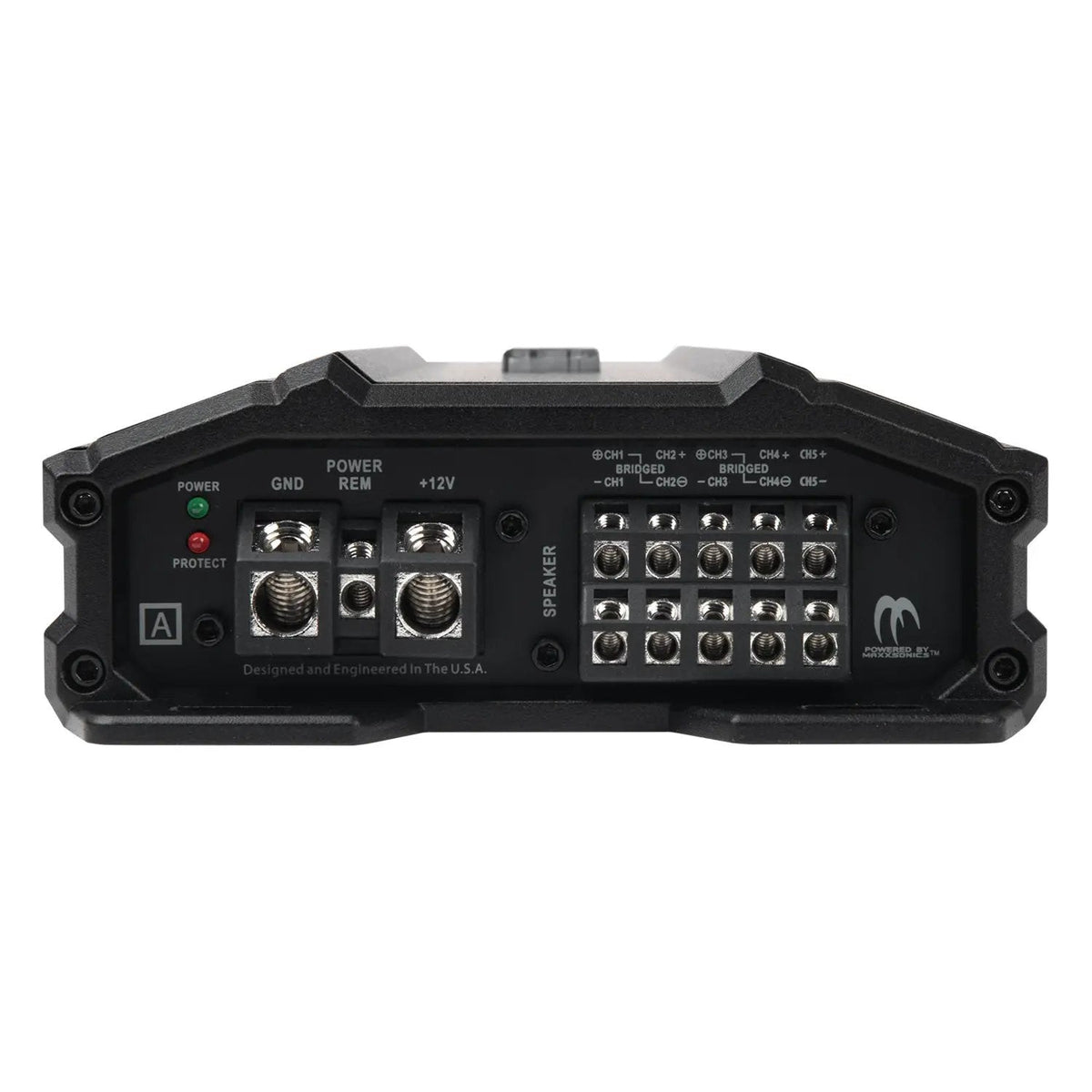

- Angled molded terminals: Accommodate 4 AWG power wire and 12 AWG speaker wire for installation.
Technical Specifications
| Brand | Hifonics |
|---|---|
| Series | ZEUS DELTA |
| Model | ZD-1750.5D |
| Type | Amplifier |
| Amp Class | Class D |
| Total Channels | 5 |
| Max Power | 1750 W |
| Power @ 1 Ohm | 1 x 850 W (Sub Only) |
| Power @ 2 Ohms | 4 x 225 W + 1 x 450 W |
| Power @ 4 Ohms | 4 x 100 W + 1 x 225 W |
| Mono Bridged Power @ 4 Ohms | 2 x 450 W |
| Frequency Response | 10Hz-22kHz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Variable Voltage | 0.2-6V |
| High Pass Crossover | 50Hz-250Hz (12dB per Octave) |
| Low Pass Crossover | 50Hz-250Hz (12dB per Octave) |
| Subsonic Filter | 15Hz-40Hz |
| Bass Boost | 0-12dB |
| Power Terminal Gauge | 4 AWG |
| Speaker Terminal Gauge | 12 AWG |
| Fusing | External 100A |
| Dimensions | 37.6 × 14.6 × 5.5 cm |
| Weight | 2.9 kg |
| Color | Black |
| Compatibility | Universal fitment designed for standard 12V mobile audio electrical systems; supports speaker-level and low-level RCA audio inputs. |
| Warranty | 1 Year manufacturer's warranty against defects. |
| What's included | Hifonics ZD-1750.5D ZEUS DELTA 5-Channel Amplifier; Bass Remote Control |
Why Choose This Product?
The ZD-1750.5D combines four full-range channels with a dedicated subwoofer channel, so you can build around a single five-channel amplifier. Its adjustable crossovers and subsonic filter let you shape the signal for the connected speakers and subwoofer, while the bass remote provides a convenient way to adjust subwoofer output from the driver's seat.
Class D circuitry, a PWM MOSFET power supply, and a heavy-duty aluminum heatsink make this a practical option when you want five-channel amplification in one chassis.
Installation & Compatibility Notes
This amplifier is designed for standard 12V mobile audio electrical systems and accepts speaker-level or low-level RCA audio inputs. Its power terminals accommodate 4 AWG wire, and its speaker terminals accommodate 12 AWG wire. The external fuse specification is 100A.
Check your system’s speaker and subwoofer impedance, available mounting space, and wiring requirements against the ratings and dimensions above before installation. DC signal sensing supports automatic turn-on when an audio signal is detected on the RCA inputs; standard remote wiring is also supported.
Frequently Asked Questions
What are the amplifier’s power ratings?
At 4 Ohms, the ratings are 4 x 100 W + 1 x 225 W. At 2 Ohms, they are 4 x 225 W + 1 x 450 W. The subwoofer channel is rated at 1 x 850 W at 1 Ohm, and mono bridged power is 2 x 450 W at 4 Ohms. Maximum power is listed as 1750 W.
Does it need a separate remote turn-on wire?
DC signal sensing enables automatic turn-on when an audio signal is detected on the RCA inputs. Standard remote wiring is also supported.
What wire sizes do the terminals accept?
The power terminals accommodate 4 AWG wire, and the speaker terminals accommodate 12 AWG wire.
Can I use speaker-level inputs?
Yes. The listed compatibility includes both speaker-level and low-level RCA audio inputs.
Is a bass remote included?
Yes. A bass remote control is included for adjusting subwoofer output levels from the driver’s seat.
What comes in the box?
The listed contents are the Hifonics ZD-1750.5D ZEUS DELTA 5-Channel Amplifier and bass remote control.
Explore More
Want to learn more about Hifonics? Explore our Hifonics brand profile. Shop 12 Volt Outlet for your mobile audio system.
| Brand | Hifonics |
| Series | ZEUS DELTA |
| Model | ZD-1750.5D |
| Type | Amplifier |
| Amp Class | Class D |
| Total Channels | 5 |
| Max Power | 1750 W |
| Power @ 1 Ohm | 1 x 850 W (Sub Only) |
| Power @ 2 Ohms | 4 x 225 W + 1 x 450 W |
| Power @ 4 Ohms | 4 x 100 W + 1 x 225 W |
| Mono Bridged Power @ 4 Ohms | 2 x 450 W |
| Frequency Response | 10Hz-22kHz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Variable Voltage | 0.2-6V |
| High Pass Crossover | 50Hz-250Hz (12dB per Octave) |
| Low Pass Crossover | 50Hz-250Hz (12dB per Octave) |
| Subsonic Filter | 15Hz-40Hz |
| Bass Boost | 0-12dB |
| Power Terminal Gauge | 4 AWG |
| Speaker Terminal Gauge | 12 AWG |
| Fusing | External 100A |
| Dimensions | 37.6 × 14.6 × 5.5 cm |
| Weight | 2.9 kg |
| Color | Black |
| Warranty | 1 Year |
