Hifonics ZD-3350.1D ZEUS DELTA 3300 Watt Mono Block Amplifier
Key features
- Amplifier channels: 1
- Amplifier class: Class D
- Frequency response: 15Hz-250Hz
- Low-pass crossover (12 dB/octave): 50Hz-250Hz
- Subsonic filter: 15Hz-40Hz
- Speaker-level inputs: Yes
Hifonics ZD-3350.1D ZEUS DELTA 3300 Watt Mono Block Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Hifonics ZD-3350.1D ZEUS DELTA is a mono block Class D amplifier for 12V automotive audio systems requiring subwoofer amplification. It delivers up to 3350 watts at 1 ohm and includes crossover, subsonic filter, and bass boost controls for tailoring the signal to your setup.
Key Features & Benefits
- Class D power: The PWM MOSFET power supply and Simpatico dual-coil design support stable voltage in a compact amplifier.

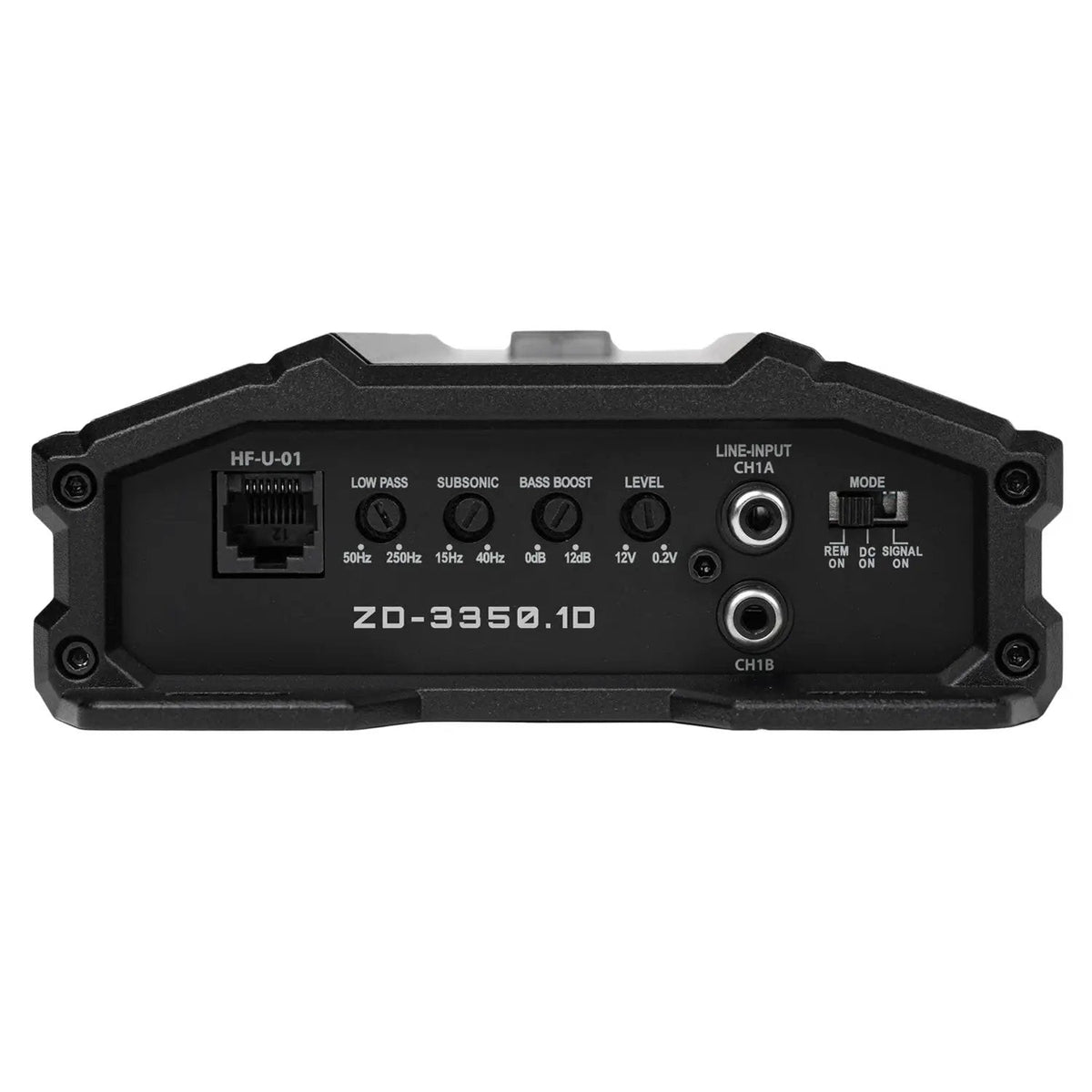

- Adjustable sound controls: Set the low-pass crossover, subsonic filter, and bass boost to shape subwoofer output.
- Included bass remote: Adjust bass level from the driver's seat.
- Automatic turn-on option: DC signal sensing on the RCA inputs can turn the amplifier on without a dedicated remote wire, and can be switched off.

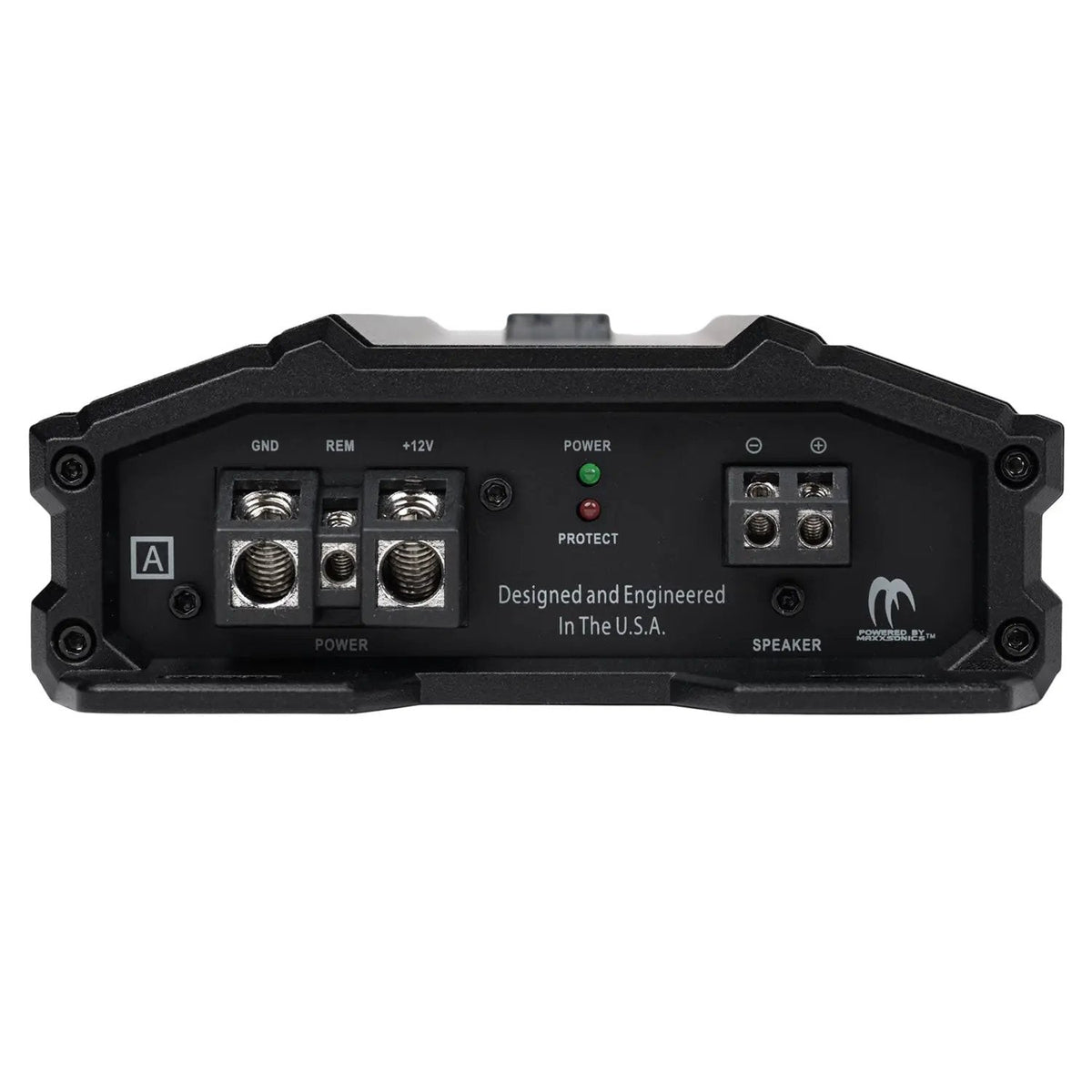

- Connection and diagnostics: Nickel-plated RCA inputs, angled molded terminals, and LED overload and short-circuit diagnostics support tidy connections and system monitoring.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hifonics |
| Series | ZEUS DELTA |
| Model | ZD-3350.1D |
| Product type | Mono Block Amplifier |
| Amplifier class | Class D |
| Total channels | 1 |
| Max power | 3350 W |
| Power output @ 1 Ohm | 1 x 3350 W |
| Power output @ 2 Ohms | 1 x 1675 W |
| Power output @ 4 Ohms | 1 x 850 W |
| Frequency response | 15Hz - 250Hz |
| Total harmonic distortion (THD) | < 0.1% |
| Low pass crossover | 50Hz - 250Hz (12dB/octave) |
| Subsonic filter | 15Hz - 40Hz |
| Bass boost | 0 - 12dB |
| Variable voltage input | 0.2 - 6V |
| Power / ground terminal gauge | 2 AWG |
| Speaker terminal wire gauge | 12 AWG |
| Fusing | External 175A |
| Heatsink material | Aluminum |
| Color | Black |
| Dimensions | 51.5 × 17.5 × 8.0 cm |
| Weight | 2.0 kg |
| Compatibility | 12V automotive audio applications requiring mono subwoofer amplification |
| What's included | Hifonics ZD-3350.1D ZEUS DELTA Mono Amplifier; Bass Remote Control Unit |
Why Choose This Product?
The ZD-3350.1D combines three output ratings—at 1, 2, and 4 ohms—with adjustable filtering and bass boost. That gives you specific power figures and signal controls to consider when matching a mono amplifier to your subwoofer system.
Its aluminum heatsink and compact dimensions help you plan where the amplifier will sit, while the angled connection terminals support a cleaner wiring layout.
Installation & Compatibility Notes
This amplifier is intended for 12V automotive audio applications that require mono subwoofer amplification. Check the available mounting space against its 51.5 × 17.5 × 8.0 cm dimensions before installation.
The power and ground terminals accommodate 2 AWG wire, and the speaker terminals accommodate 12 AWG wire. The amplifier uses external 175A fusing. Confirm your system's load and electrical requirements before connecting it.
Frequently Asked Questions
How much power does the ZD-3350.1D deliver at different loads?
Its listed output is 1 x 3350 W at 1 ohm, 1 x 1675 W at 2 ohms, and 1 x 850 W at 4 ohms. Maximum power is listed as 3350 W.
Can the amplifier turn on without a remote wire?
Yes. DC signal sensing on the RCA inputs provides automatic turn-on without a dedicated remote wire. This feature can also be switched off.
What wiring does the amplifier accommodate?
The power and ground terminals are designed for 2 AWG wire, and the speaker terminals for 12 AWG wire. Its specified external fuse rating is 175A.
What controls can I adjust for subwoofer output?
You can adjust the low-pass crossover from 50Hz to 250Hz, the subsonic filter from 15Hz to 40Hz, and bass boost from 0 to 12dB. A bass remote control unit is included.
Explore More
Shop Hifonics audio at 12 Volt Outlet. Want to learn more about Hifonics? Explore our Hifonics brand profile.
| Brand | Hifonics |
| Series | ZEUS DELTA |
| Model | ZD-3350.1D |
| Product Type | Mono Block Amplifier |
| Amplifier Class | Class D |
| Total Channels | 1 |
| Max Power | 3350 W |
| Power Output @ 1 Ohm | 1 x 3350 W |
| Power Output @ 2 Ohms | 1 x 1675 W |
| Power Output @ 4 Ohms | 1 x 850 W |
| Frequency Response | 15Hz - 250Hz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Low Pass Crossover | 50Hz - 250Hz (12dB/octave) |
| Subsonic Filter | 15Hz - 40Hz |
| Bass Boost | 0 - 12dB |
| Variable Voltage Input | 0.2 - 6V |
| Power / Ground Terminal Gauge | 2 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| Fusing | External 175A |
| Heatsink Material | Aluminum |
| Color | Black |
| Dimensions | 51.5 × 17.5 × 8.0 cm |
| Weight | 2.0 kg |
