iBEAM TE-LVM9 9-Inch Live-View Rearview Mirror with Front & Rear DVR

Product Overview

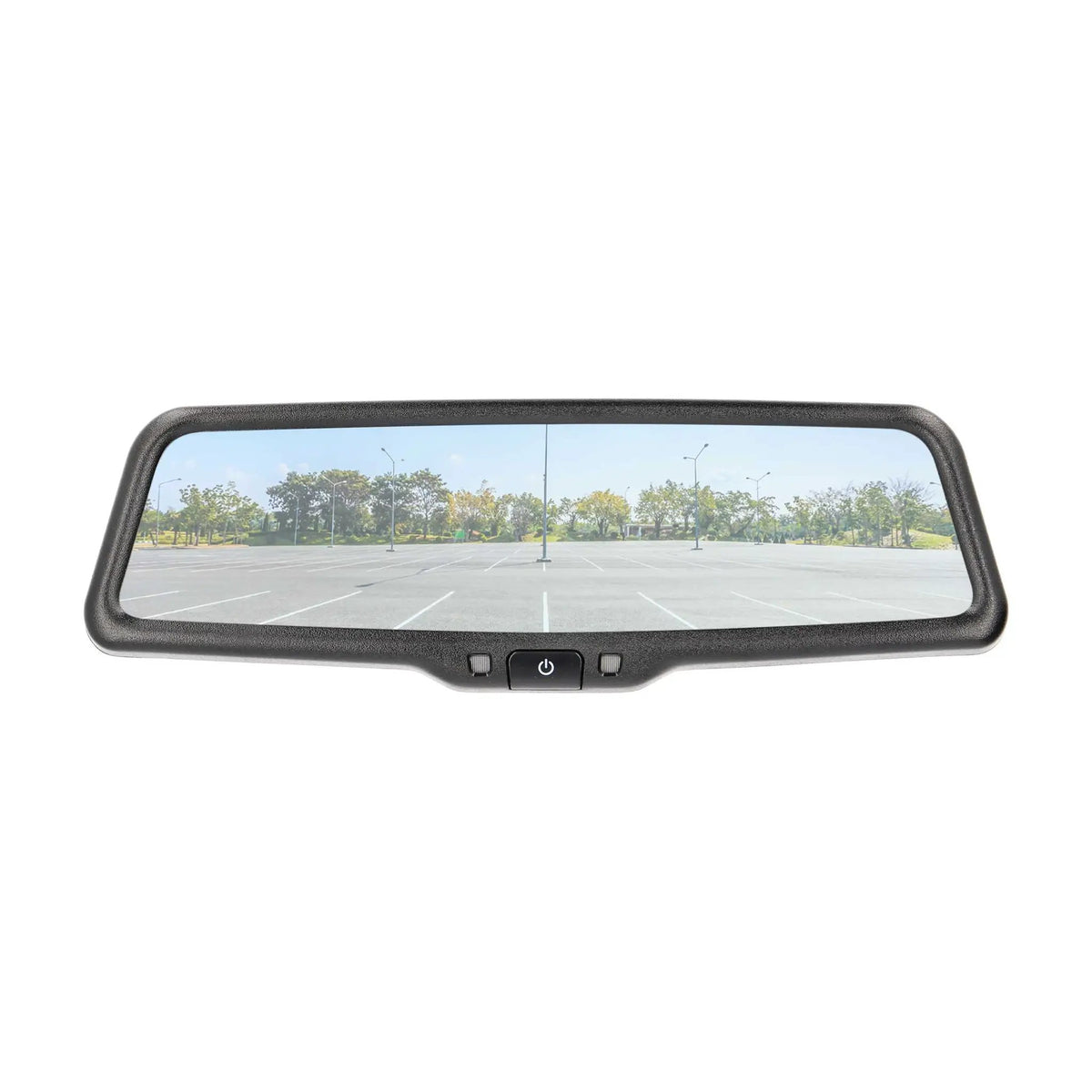

The iBEAM TE-LVM9 brings a live rear-camera display and front/rear recording into a replacement rearview mirror. It can function as a reflective mirror, display a camera feed while driving, and switch to the rear camera when a properly connected reverse trigger is activated.

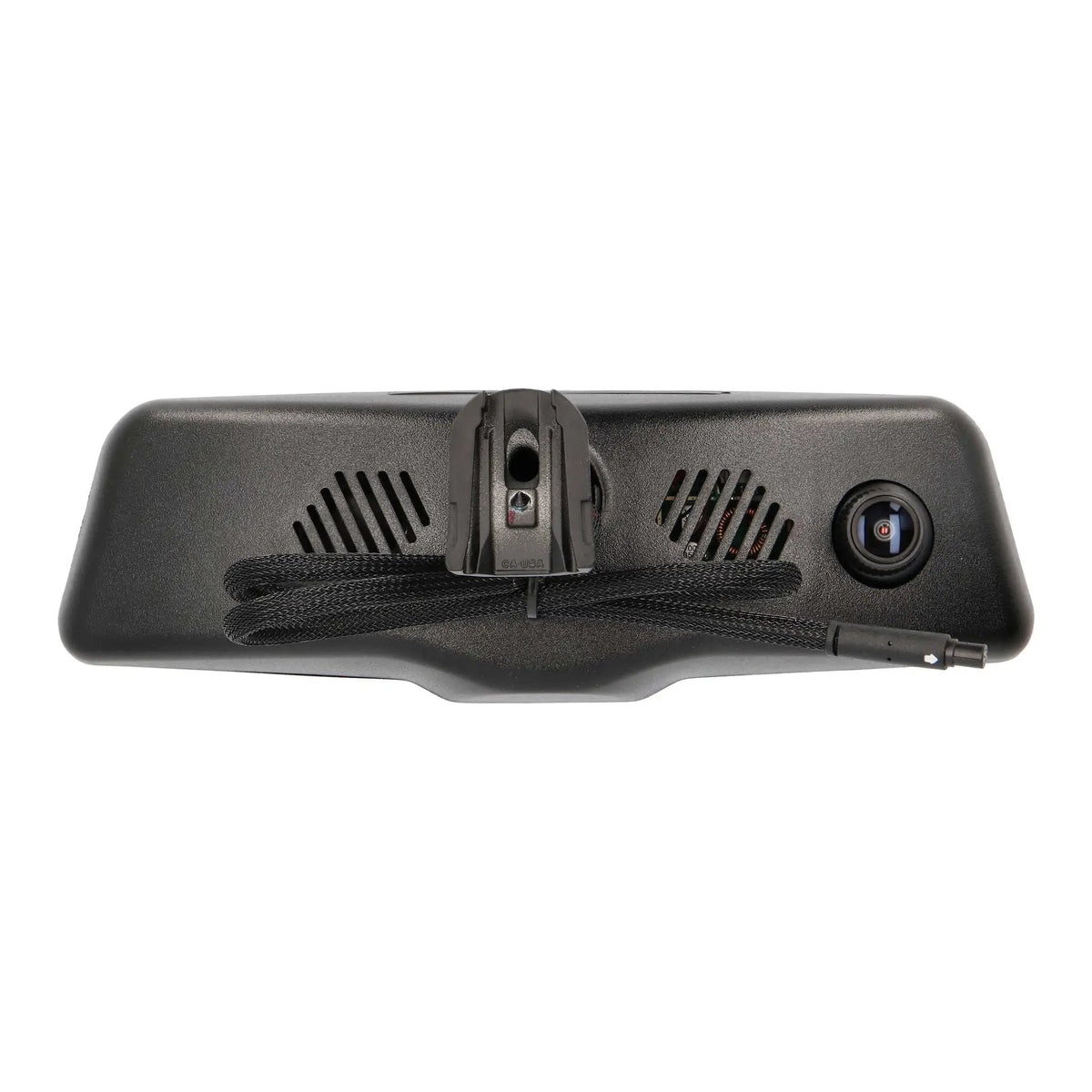

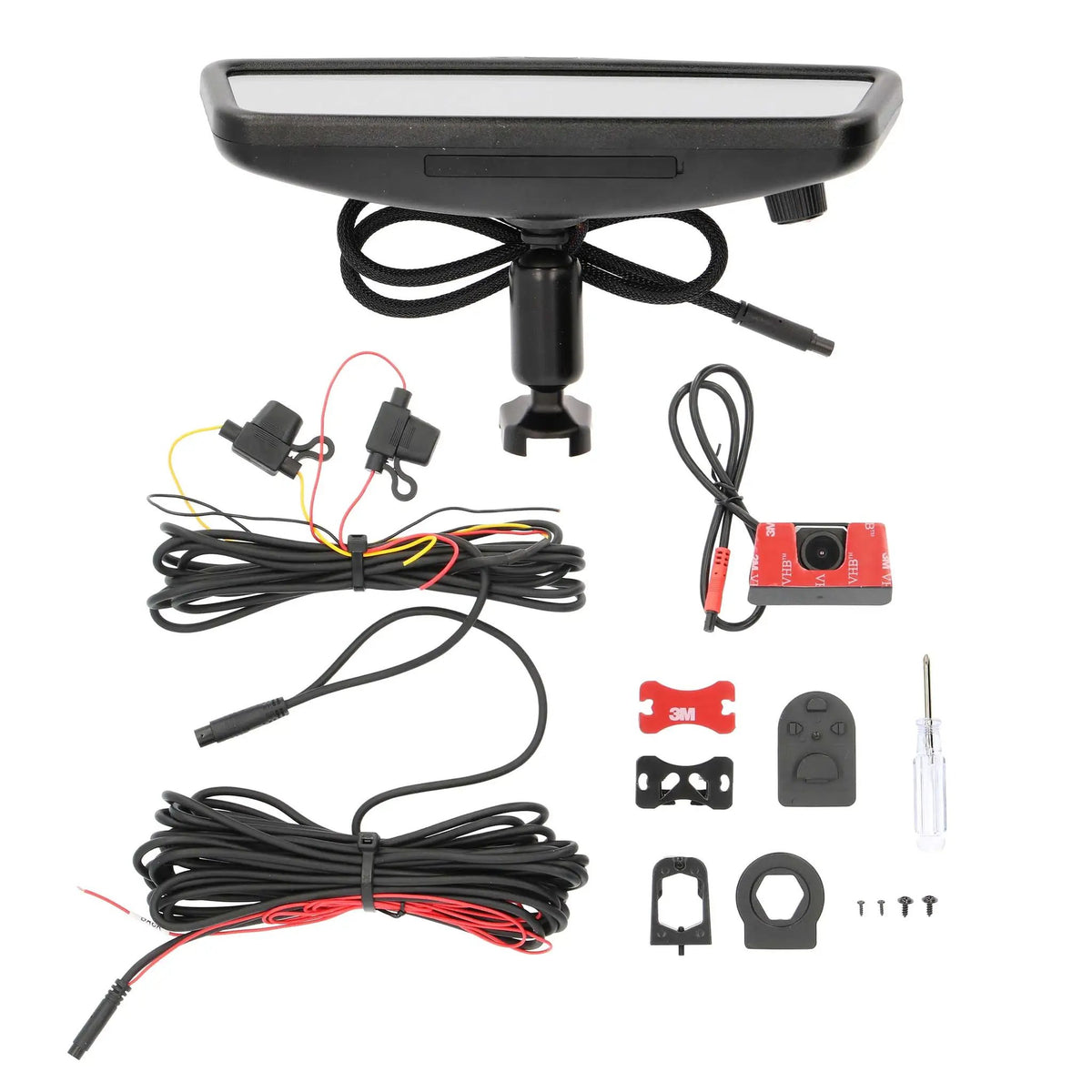

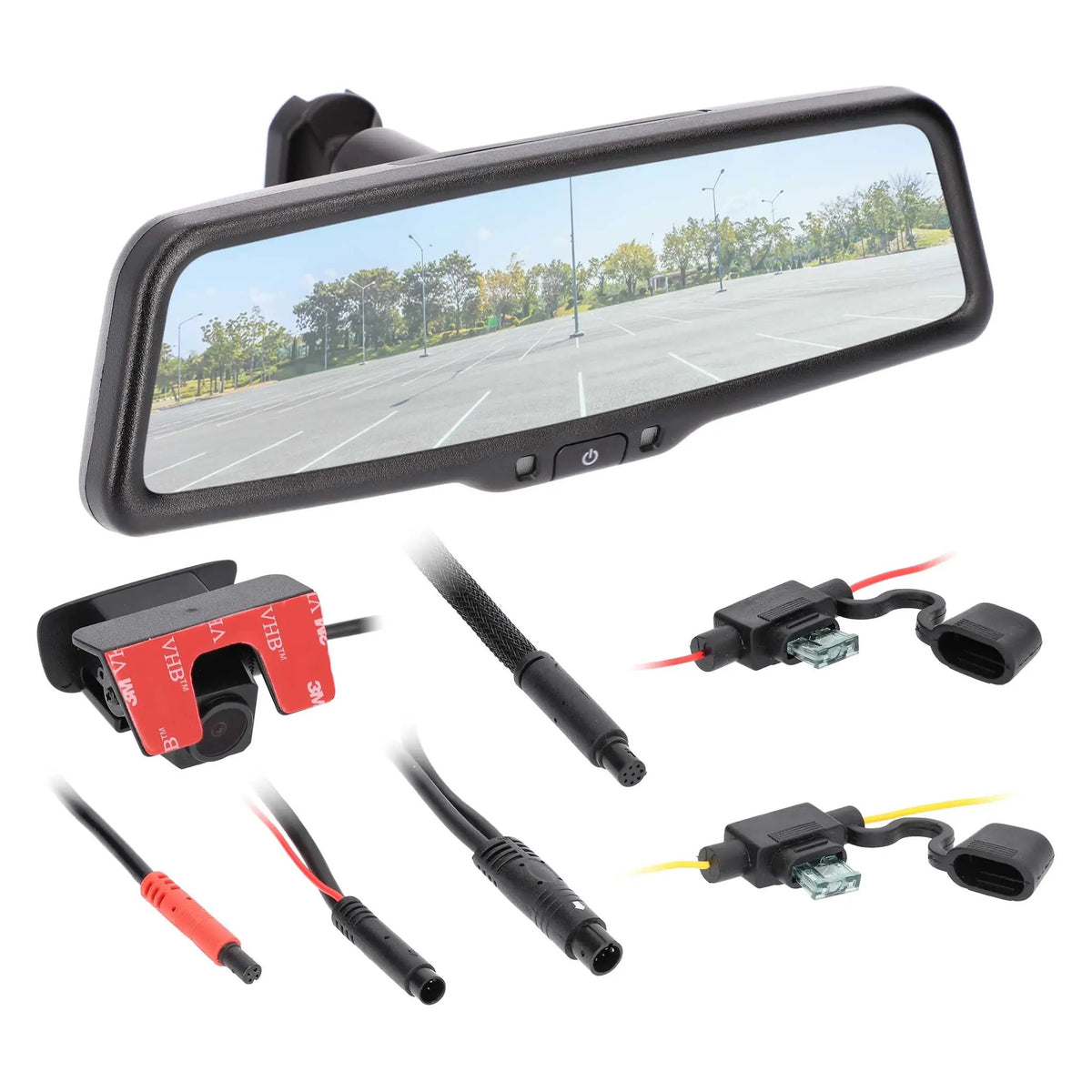

This system includes the mirror with its front camera, a separate 1080p rear camera, wiring and mounting hardware. Both views record at 1080p and 30 fps. Marketed as a 9-inch mirror system, it has a manufacturer-listed 9.66-inch display with 1280 × 320 screen resolution.

Key Features & Benefits

• Live rear view: Display the exterior rear camera feed when the view through the cabin is restricted.
• Dual-channel DVR: Record the front and rear of the vehicle rather than relying on one camera angle.
• Reverse-triggered display: The rear view can appear automatically when reverse is selected and the trigger wiring is installed correctly.

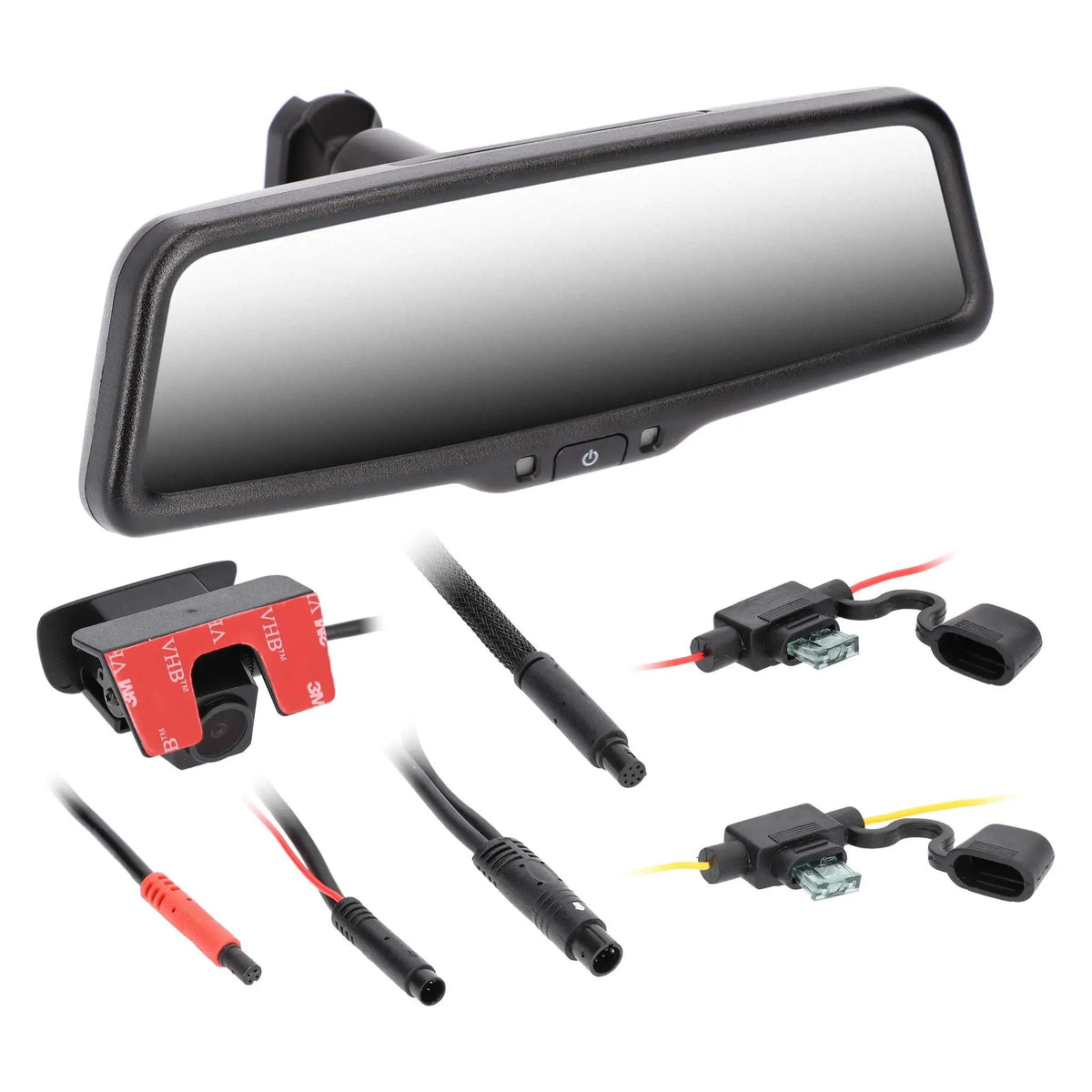

• Mirror or camera display: Choose a traditional reflective view or a live camera image.
• Included exterior camera: The rear camera provides a dedicated view from the back of the vehicle.
• G-sensor and parking monitoring: Impact-related functions support recording and protected clips when the system is correctly powered and configured.
• Local recording: Store footage on a microSD card up to 64 GB, sold separately.

Technical Specifications

Why Choose This Product?

The TE-LVM9 is a useful option for trucks, vans, RVs and other vehicles where cargo, passengers or bodywork can limit the reflective mirror's view. A camera at the rear supplies a different vantage point, and the mirror location keeps the display near a familiar viewing position.

Its front-and-rear DVR also separates the recorded road view from the rear visibility function. It is an installation-based system for someone who wants both features together, rather than a basic suction-mounted forward dash camera.

Installation & Compatibility Notes

This is a replacement mirror, not a universal clip-on overlay. The installation guide describes a D-shaped windshield mounting point and includes alternative mounts for certain vehicle makes. Verify the exact windshield mount, clearance and any factory mirror functions before ordering; universal application does not mean every vehicle is a direct fit.

Installation involves power, accessory, ground and reverse-trigger connections plus routing the camera cable to the vehicle exterior. The manual illustrates 12V wiring; follow the current manufacturer instructions for the particular vehicle and have the installation checked by a qualified mobile-electronics installer. Do not assume that factory auto-dimming, sensors or other mirror features will be retained.

Plan the rear-camera cable route before installation. Metra lists the optional MPS-ECRGB72 extension for longer vehicles and reports testing up to three extensions. Extensions are not included in this listing. Camera views assist the driver but do not eliminate blind spots or replace checking the surroundings.

Frequently Asked Questions

Does the TE-LVM9 record both front and rear?

Yes. The front and rear cameras record at 1080p and 30 fps. A separate rear camera is included.

Is the display 1080p?

The recordings are 1080p. The mirror's display resolution is 1280 × 320 pixels, so the camera recording specification and screen resolution are different.

Is the screen 9 inches or 9.66 inches?

Metra names this a 9-inch mirror system and lists a 9.66-inch display in the product specifications. The listing preserves that distinction rather than treating them as separate models.

Will it fit my original mirror mount?

Check your exact mounting point and vehicle application. The instructions describe a D-shaped mount and alternative mounting hardware, but do not establish a guaranteed fit for every model or trim.

Does it include a memory card?

No. Add a compatible microSD card no larger than 64 GB and follow the manual's setup procedure before recording.

How does parking monitoring work?

With the feature enabled and the installation providing appropriate power, the manual describes a 30-second recording when the mirror senses shaking. This is not a guarantee that every event will be captured. Save important clips separately.

Can the camera cable be extended?

Yes. Metra identifies the separately sold MPS-ECRGB72 for this purpose and reports testing up to three extensions. Confirm the required route length before purchasing installation accessories.

Explore More

Compare DVR Systems or browse Car Video at 12 Volt Outlet. For setup and operation, review the manufacturer's product information and installation documents.
