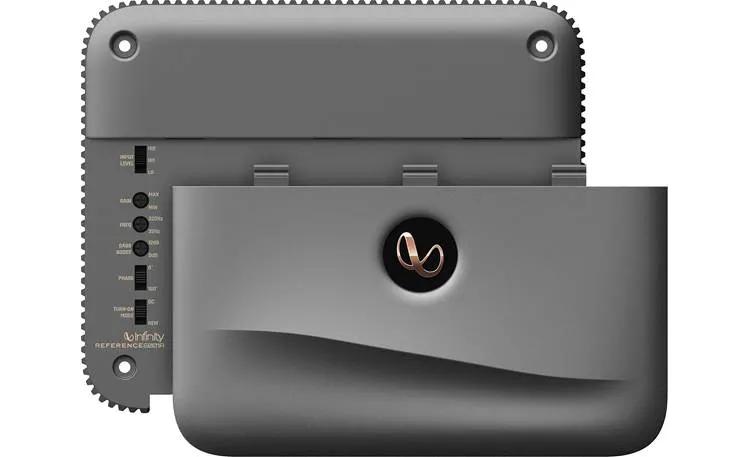

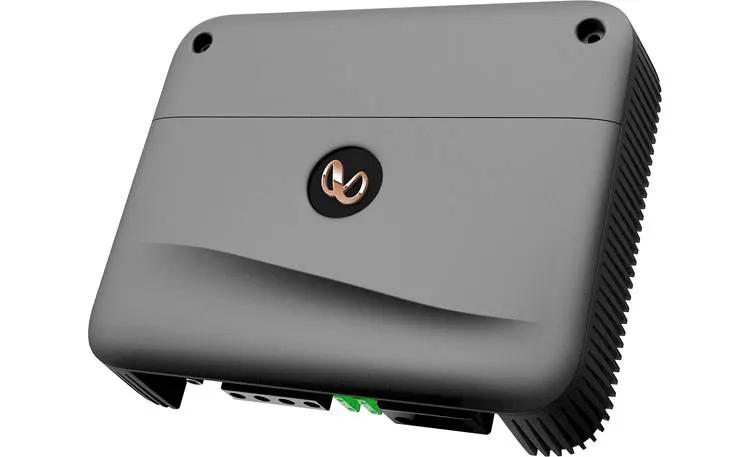

Infinity Reference 6001A 600 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 350.0 W
- RMS output at 2 ohms: 600 W
- Low-pass filter: Variable 32–320 Hz, 12 dB/octave
- Bass boost: Variable 0–12 dB at 45 Hz
- Phase switch: 0° or 180°
Infinity Reference 6001A 600 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring dedicated subwoofer power to a space-conscious car audio system with the Infinity Reference 6001A monoblock amplifier. Its Class D design, flexible signal inputs, and wired bass remote give you practical options for connecting and tuning a single subwoofer.
Key Features & Benefits
- Two power ratings: Choose 350W RMS at 4 ohms or 600W RMS at 2 ohms to match the subwoofer’s load.
- Class D design: High-efficiency operation helps reduce heat in compact installations.
- Adjustable low-pass filter: Set the cutoff from 32–320 Hz with a 12 dB/oct slope to tailor bass integration.
- Bass and phase controls: Variable 0–12 dB bass boost at 45 Hz and a 0° / 180° phase switch support system tuning.
- Flexible inputs: Preamp and speaker-level inputs with signal-sensing turn-on support factory or aftermarket radios.
- Driver-seat bass adjustment: The included wired remote and 16.5' cable let you adjust bass from the front of the vehicle.
Technical Specifications
| Product type | Monoblock subwoofer amplifier |
|---|---|
| Power output | 350W RMS x1 @ 4 ohms; 600W RMS x1 @ 2 ohms |
| Amplifier design | Class D |
| Variable low-pass filter | 32–320 Hz, 12 dB/oct |
| Variable bass boost | 0–12 dB @ 45 Hz |
| Phase switch | 0° / 180° |

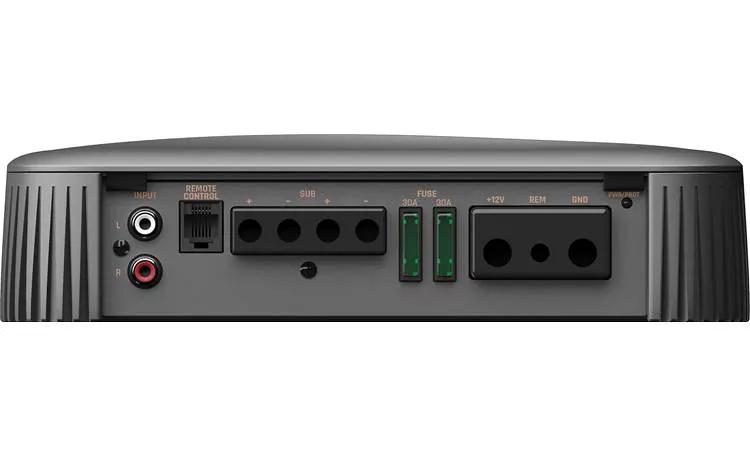

| Inputs | Preamp and speaker-level inputs; signal-sensing turn-on |
| Included connection adapters | Bare wire-to-RCA adapters |
| Remote bass control | Wired remote with 16.5' cable |
| Dimensions | 8-5/8"W x 2-1/4"H x 7"D |
| Fuses | Four 30A fuses: two installed / two spares |
| Also included | Mounting hardware |
| Warranty | 1-year warranty |
Why Choose This Product?
The Reference 6001A combines subwoofer power and useful tuning controls in a compact amplifier. Its two stated RMS ratings help you compare output against a subwoofer’s impedance, while the adjustable filter, bass boost, and phase switch give you options for refining the system’s sound.
For a build using a factory radio, speaker-level inputs and signal-sensing turn-on provide connection options without requiring a preamp-level signal. The included wired remote puts bass adjustment within reach while you’re seated in the driver’s seat.
Installation & Compatibility Notes
This amplifier is intended to power a single subwoofer. Confirm that the subwoofer’s impedance matches a listed power rating, and check the mounting area against the amplifier’s 8-5/8"W x 2-1/4"H x 7"D dimensions.
Preamp and speaker-level inputs support factory and aftermarket radios. Bare wire-to-RCA adapters, mounting hardware, four 30A fuses, and the wired remote are included.
Frequently Asked Questions
How much power does the Infinity Reference 6001A deliver?
It is rated at 350W RMS x1 at 4 ohms and 600W RMS x1 at 2 ohms.
Can I connect it to a factory radio?
Yes. The amplifier has speaker-level inputs and signal-sensing turn-on, as well as preamp inputs.
Can I adjust bass from the driver’s seat?
Yes. A wired remote with a 16.5' cable is included for bass-level adjustment.
What tuning controls does it have?
It has a variable 32–320 Hz low-pass filter, 0–12 dB bass boost at 45 Hz, and a 0° / 180° phase switch.
What comes in the package?
The package includes bare wire-to-RCA adapters, mounting hardware, four 30A fuses—two installed and two spares—and the wired remote.
What should I check before installation?
Compare the subwoofer’s impedance with the amplifier’s listed power ratings, then check the installation area and system connections.
