Infinity Reference 7005A 5-Channel Amplifier

The Infinity Reference 7005A combines four full-range speaker channels and a dedicated bass channel in one car amplifier. It accepts speaker-level or line-level signals, allowing it to be integrated with a compatible factory radio or an aftermarket source unit.

Full-system amplifier controls

• At 4 ohms: 50 watts RMS x 4 plus 320 watts RMS for the subwoofer.
• Subwoofer output: 500 watts RMS at 2 ohms.

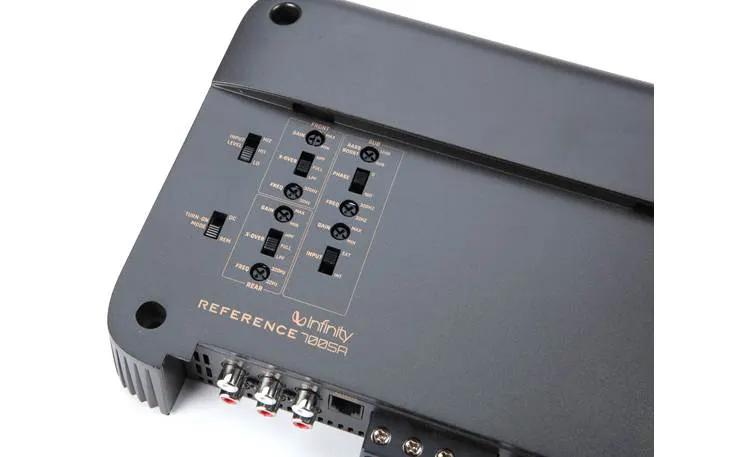

• Separate front and rear crossover controls.
• Subwoofer low-pass filtering, bass boost and phase selection.

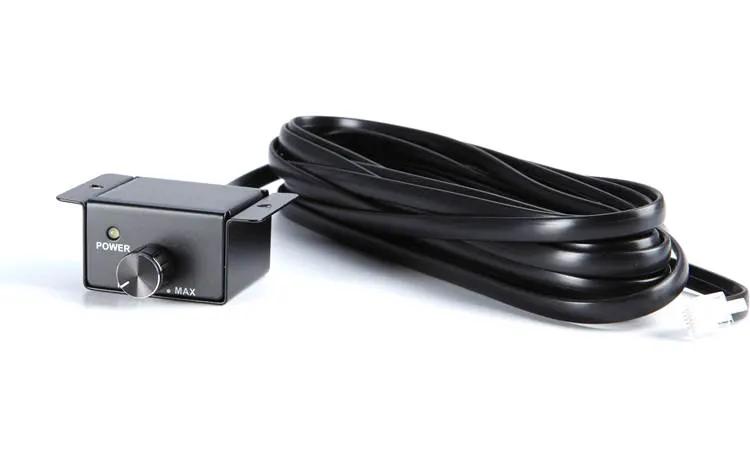

• Wired remote bass control included.

Plan the speaker and subwoofer loads independently when configuring this amplifier. Infinity recommends 4-gauge power and ground wiring; installation wiring is not included. Leave space for the connections and cooling as well as the amplifier chassis.
