Install Bay BVMD250 Blue Vinyl Male Quick Disconnects, 16-14 AWG, .250 in, 100 Pack
Key features
- Separable terminal format: The male end mates with a matching female terminal, providing a separable connection for equipment that may need to be disconnected for service.
- Specified mating size: The .250-inch blade width distinguishes this terminal from other quick-disconnect sizes.
- Defined wire range: Select 16-14 AWG conductor for this blue vinyl-insulated terminal.
- 100-piece supply: Each pack contains identical BVMD250 terminals rather than a mixed-size or mixed-gender assortment.
Install Bay BVMD250 Blue Vinyl Male Quick Disconnects, 16-14 AWG, .250 in, 100 Pack is backordered and will ship as soon as it is back in stock.
Install Bay BVMD250 Blue Vinyl Male Quick Disconnects, 16-14 AWG, .250 in, 100 Pack is backordered and will ship as soon as it is back in stock.
Description
Description

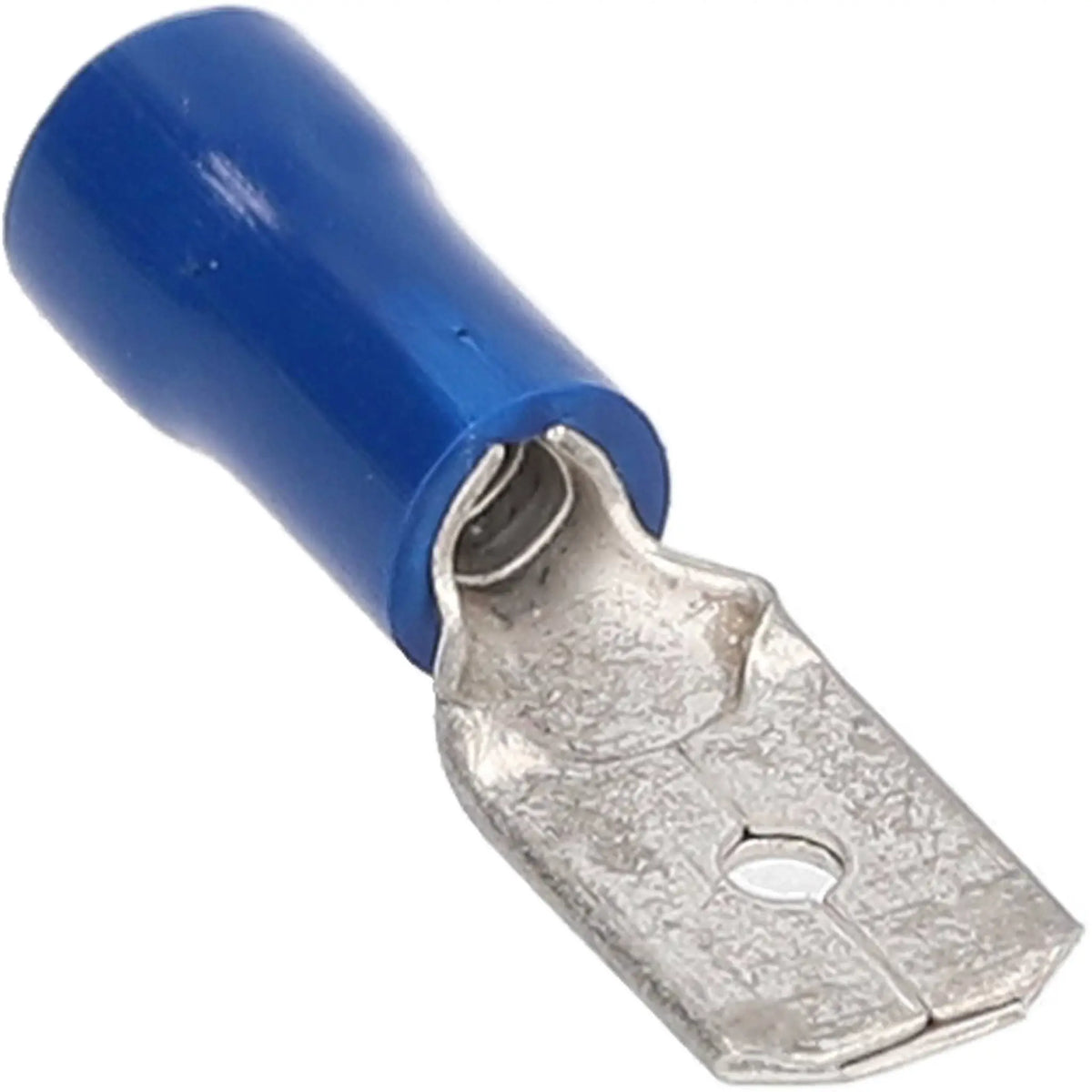

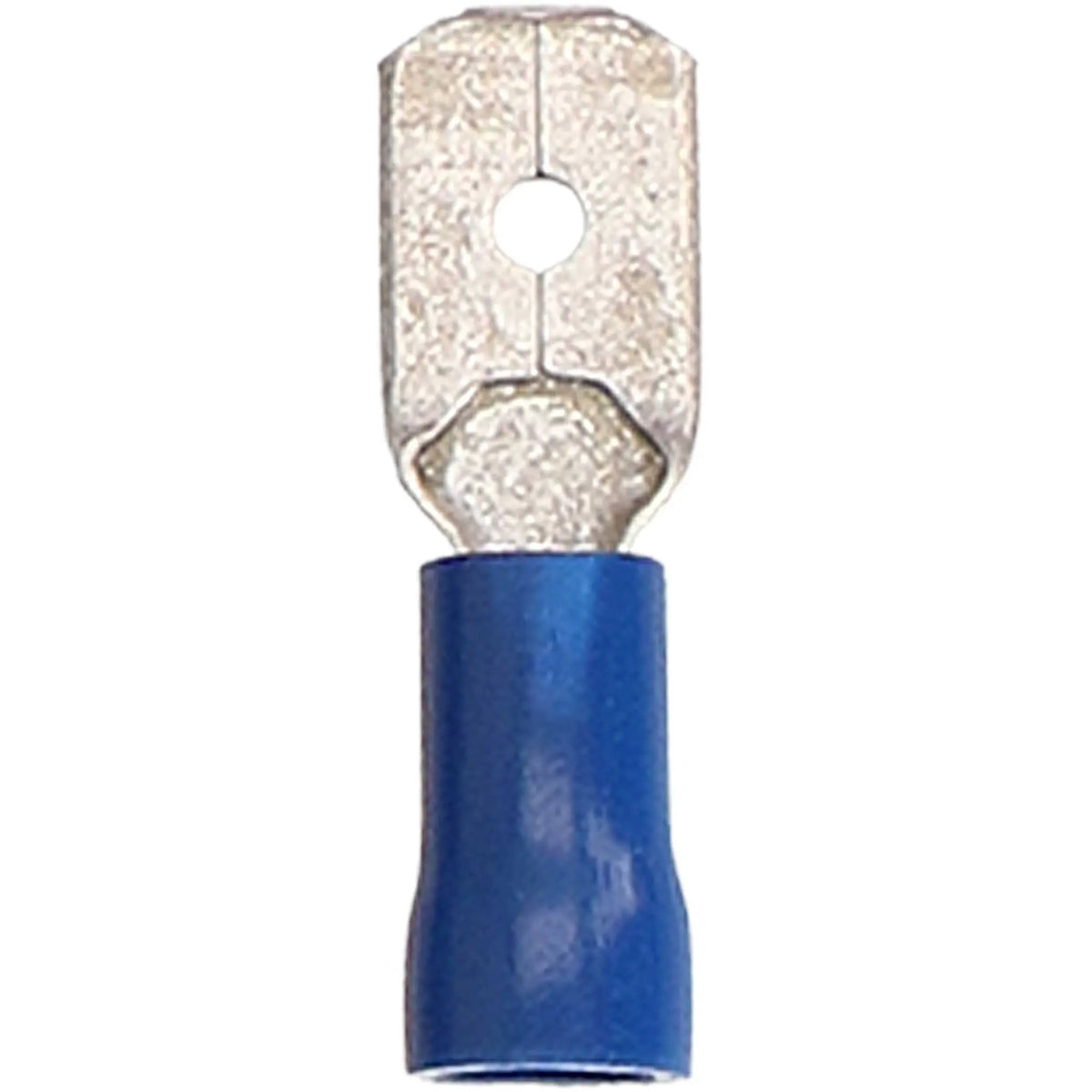

BVMD250 male quick disconnects with .250-inch fit
Make a connection that can be separated for service with Install Bay BVMD250 male quick disconnect terminals. This blue vinyl-insulated version accepts 16-14 AWG wire and is sized to connect to a matching .250-inch female terminal. The package contains 100 terminals of the same gender and size, so you can replenish the exact part your installation requires.
Why choose this quick disconnect
- Separable terminal format: The male end mates with a matching female terminal, providing a separable connection for equipment that may need to be disconnected for service.
- Specified mating size: The .250-inch blade width distinguishes this terminal from other quick-disconnect sizes.
- Defined wire range: Select 16-14 AWG conductor for this blue vinyl-insulated terminal.
- 100-piece supply: Each pack contains identical BVMD250 terminals rather than a mixed-size or mixed-gender assortment.
Specifications
| Brand | Install Bay |
|---|---|
| Manufacturer part number | BVMD250 |
| Terminal style | Quick disconnect |
| Terminal gender | Male |
| Wire size | 16-14 AWG |
| Nominal blade width | .250 in |
| Mating terminal | Female, matching .250 in size |
| Insulation material | Vinyl |
| Insulation color | Blue |
| Package quantity | 100 male quick disconnect terminals |
Choosing a compatible wire and mating terminal
Match both sides of the connection: use 16-14 AWG wire in the crimp end and a compatible .250-inch female terminal at the disconnect end. Blade width and wire gauge describe different dimensions. A matching color alone does not establish mating compatibility; confirm the terminal’s width, gender and physical fit against the equipment or mating connector specifications.
De-energize the circuit before installation or disconnection. Prepare the wire and crimp with a tool suitable for the terminal and 16-14 AWG wire, following the tool and equipment instructions. Check the crimp and mating fit before returning the circuit to service. This pack supplies male terminals only; it does not include the mating female terminals or wire.
Frequently asked questions
What size terminal mates with BVMD250?
A compatible .250-inch female terminal. The .250-inch dimension is the nominal blade width; verify the complete mating fit for your equipment.
Does this pack include both male and female terminals?
No. It contains 100 male Install Bay BVMD250 quick disconnects. Choose the matching female terminal separately when needed.
Is the insulation nylon or vinyl?
This model uses blue vinyl insulation. Its wire range is 16-14 AWG.
Can these be used as a sealed connection?
No waterproof or environmental sealing rating is listed in the available specifications. If the connection will be exposed to moisture, choose a connection system with the required documented protection rather than assuming the vinyl insulation provides a seal.
