Install Bay CC1210 12–10 AWG Nylon Crimp Caps – 100 Pack
Key features
- 12–10 AWG size designation for wire selection.
- Closed-end crimp format for a permanent connection.
- Flared entry helps guide wire strands into the cap.
- 100 connectors per package.
Install Bay CC1210 12–10 AWG Nylon Crimp Caps – 100 Pack is backordered and will ship as soon as it is back in stock.
Install Bay CC1210 12–10 AWG Nylon Crimp Caps – 100 Pack is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

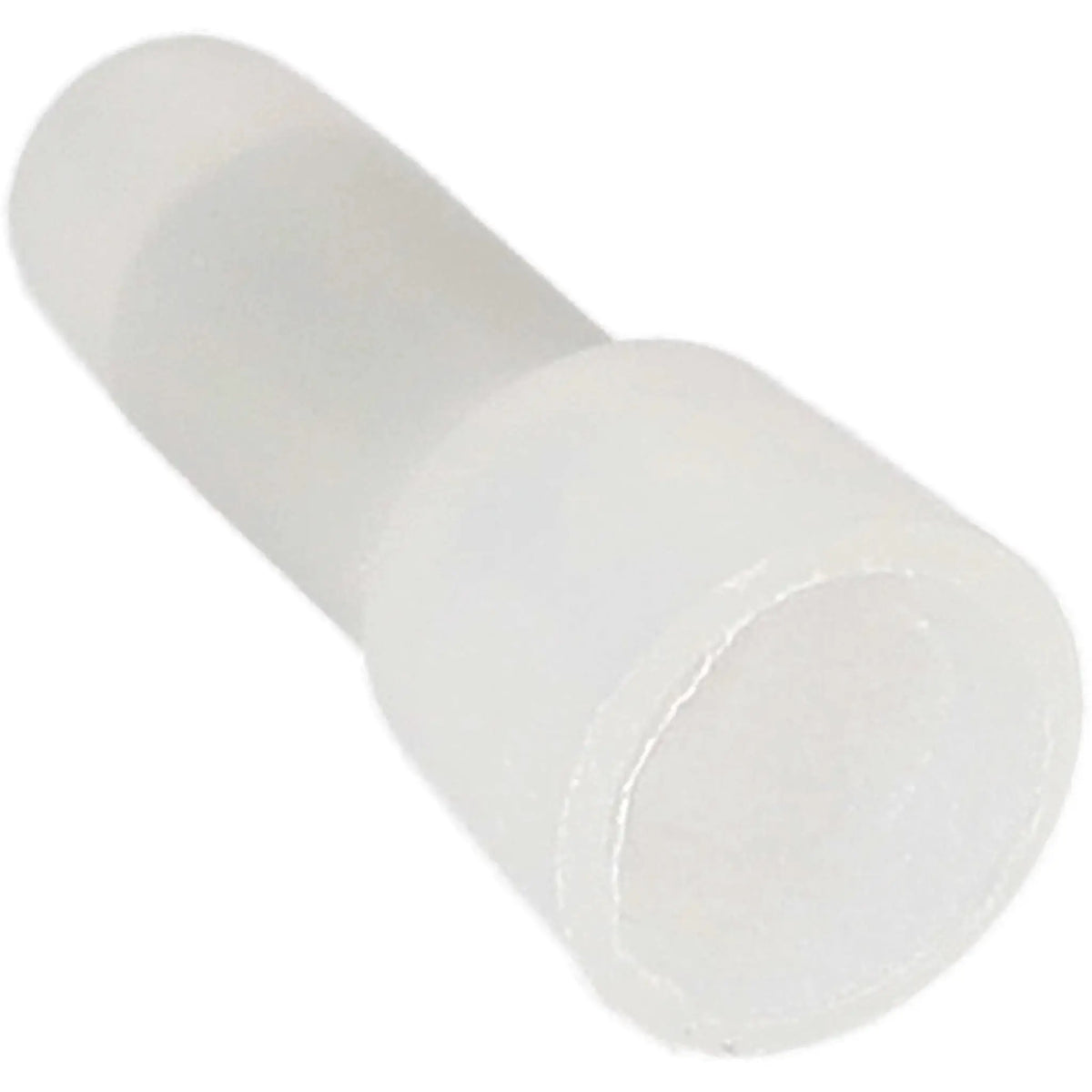

The Install Bay CC1210 is a closed-end nylon crimp cap for 12–10 AWG wiring. Supplied in a 100-piece package, it provides a permanent crimp connection for wire ends brought together inside the cap, rather than an inline splice or a removable disconnect.
A flared entry skirt helps guide stranded conductors into the connector instead of allowing strands to fold back during insertion. The manufacturer specifies nylon insulation with resistance to chemicals and corrosion.
Key Features
- 12–10 AWG size designation for wire selection.
- Closed-end crimp format for a permanent connection.
- Flared entry helps guide wire strands into the cap.
- 100 connectors per package.
Specifications
| Brand | Install Bay |
|---|---|
| Manufacturer part number | CC1210 |
| Connector style | Closed-end crimp cap |
| Wire size | 12–10 AWG |
| Insulation | Nylon |
| Neck style | Standard |
| Package quantity | 100 connectors |
Selection and Installation Notes
Check that the conductors and their combined bundle fit the connector’s 12–10 AWG specification; do not force an oversized bundle into the cap. Prepare the conductor ends, use a crimp tool suited to the cap, and inspect the completed joint with power disconnected. The nylon cap is not a documented waterproof or adhesive-lined heat-shrink seal.
Frequently Asked Questions
Is this a twist-on wire nut?
No. This is a crimp-cap connector that forms a permanent joint with an appropriate crimping tool.
Is it an inline butt connector?
No. The wire ends enter the closed-end cap from the same side. An inline butt connector accepts wire from opposite ends.
How many caps are included?

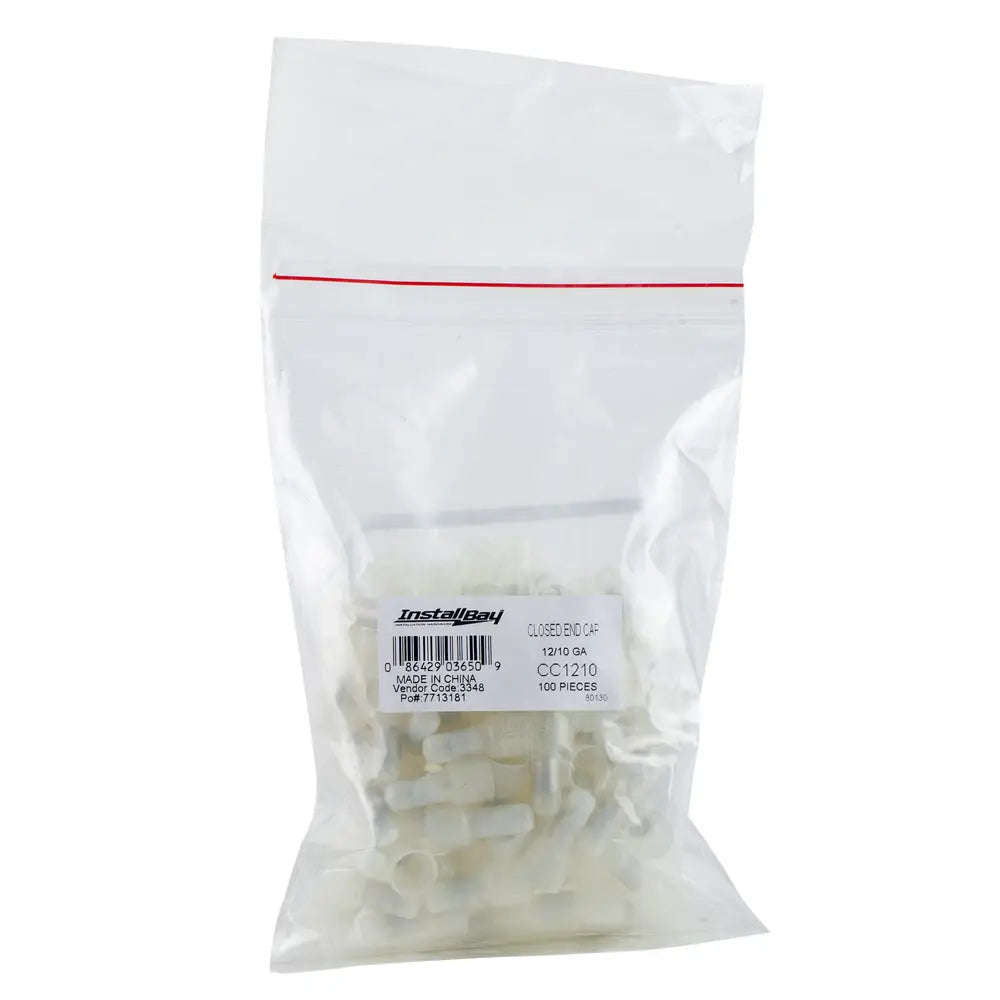

One package contains 100 individual CC1210 connectors.
What does the gauge designation mean?
The manufacturer specifies 12–10 AWG. Check the actual conductor combination and connector fit rather than assuming any number of wires of that gauge will fit.
