Install Bay CCL1614-1 16–14 AWG Long Neck Nylon Crimp Caps – 1,000 Pack
Key features
- 16–14 AWG size designation for wire selection.
- Closed-end crimp format for a permanent connection.
- Flared entry helps guide wire strands into the cap.
- 1,000 connectors per package.
Install Bay CCL1614-1 16–14 AWG Long Neck Nylon Crimp Caps – 1,000 Pack is backordered and will ship as soon as it is back in stock.
Install Bay CCL1614-1 16–14 AWG Long Neck Nylon Crimp Caps – 1,000 Pack is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

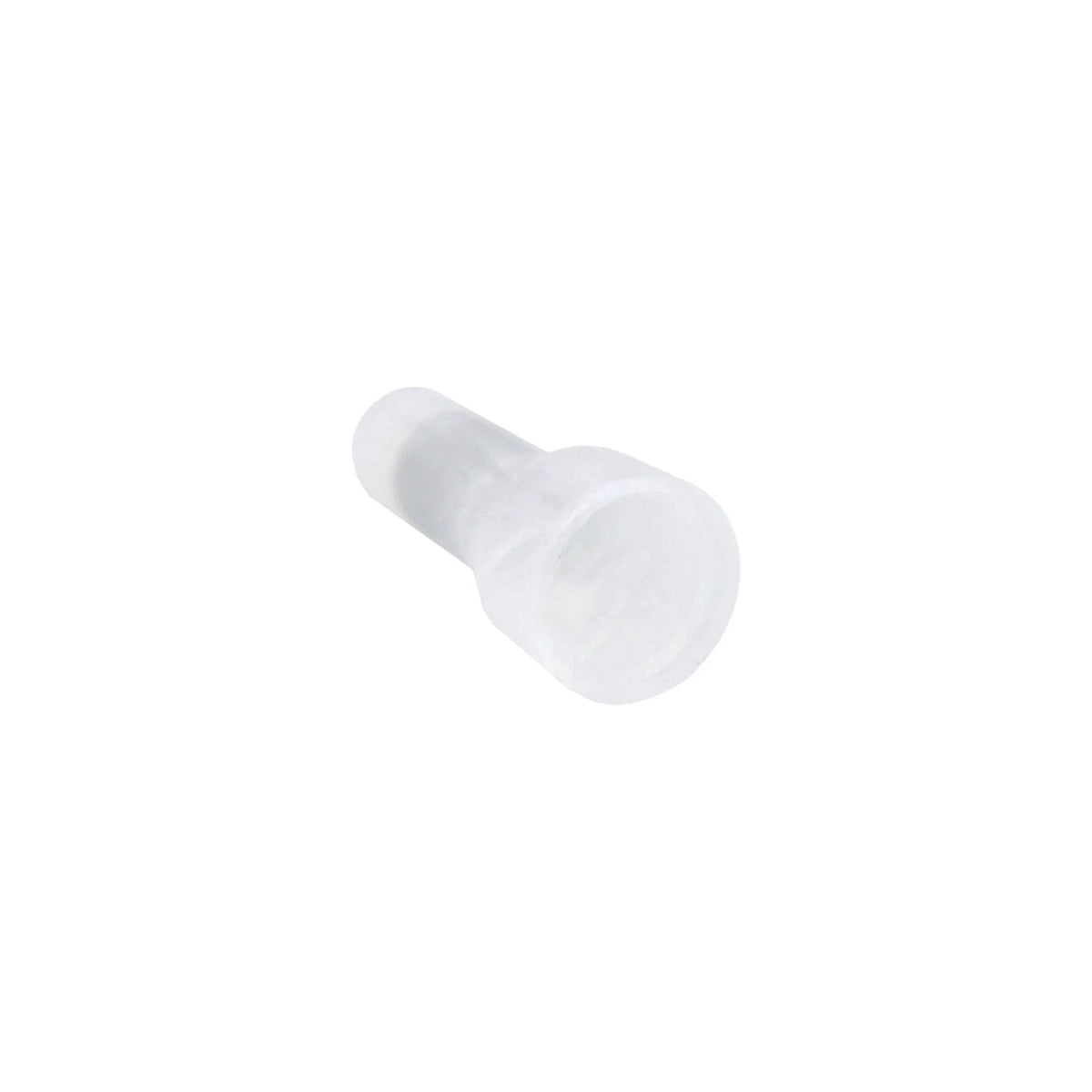

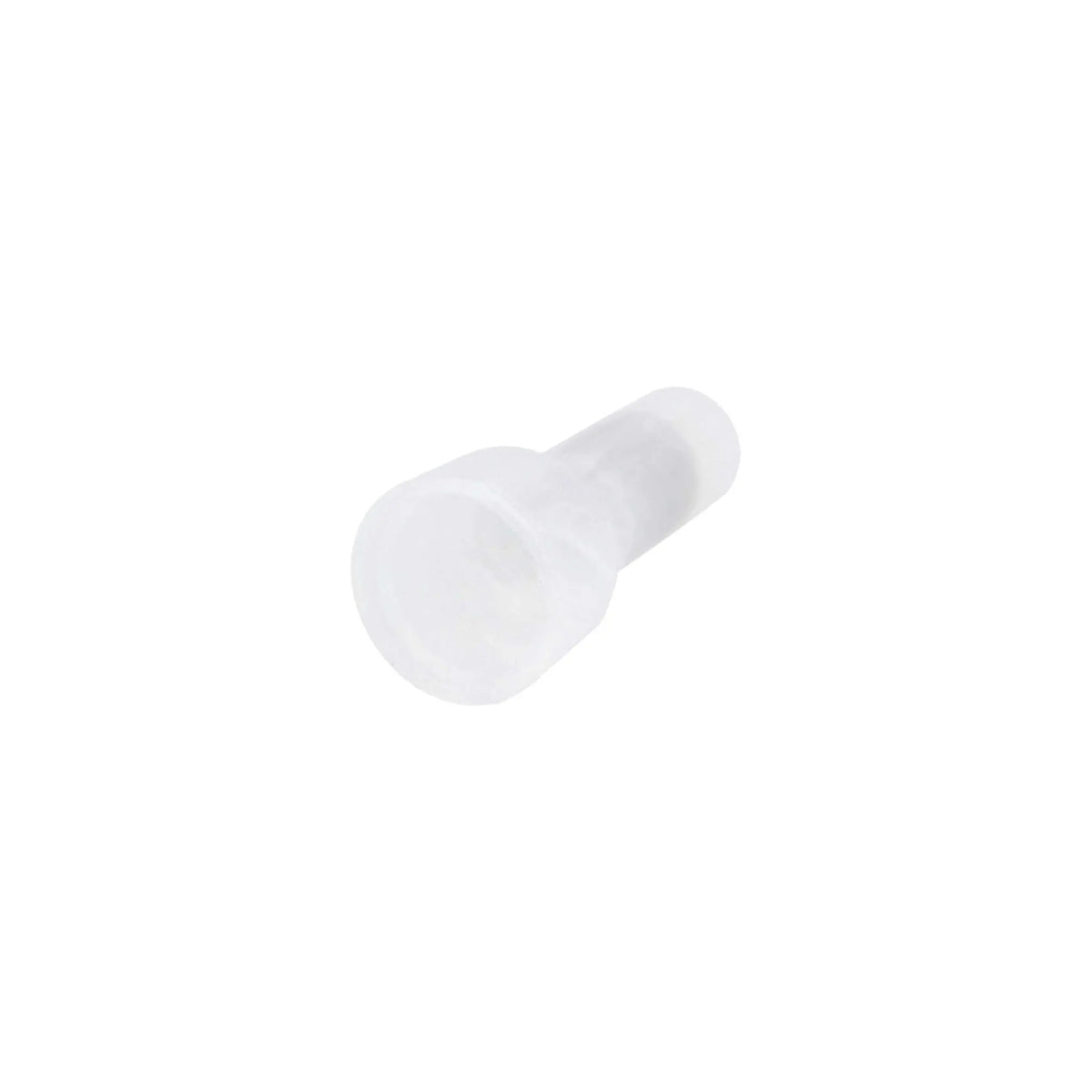

The Install Bay CCL1614-1 is a closed-end nylon crimp cap for 16–14 AWG wiring. Supplied in a 1,000-piece package, it provides a permanent crimp connection for wire ends brought together inside the cap, rather than an inline splice or a removable disconnect.

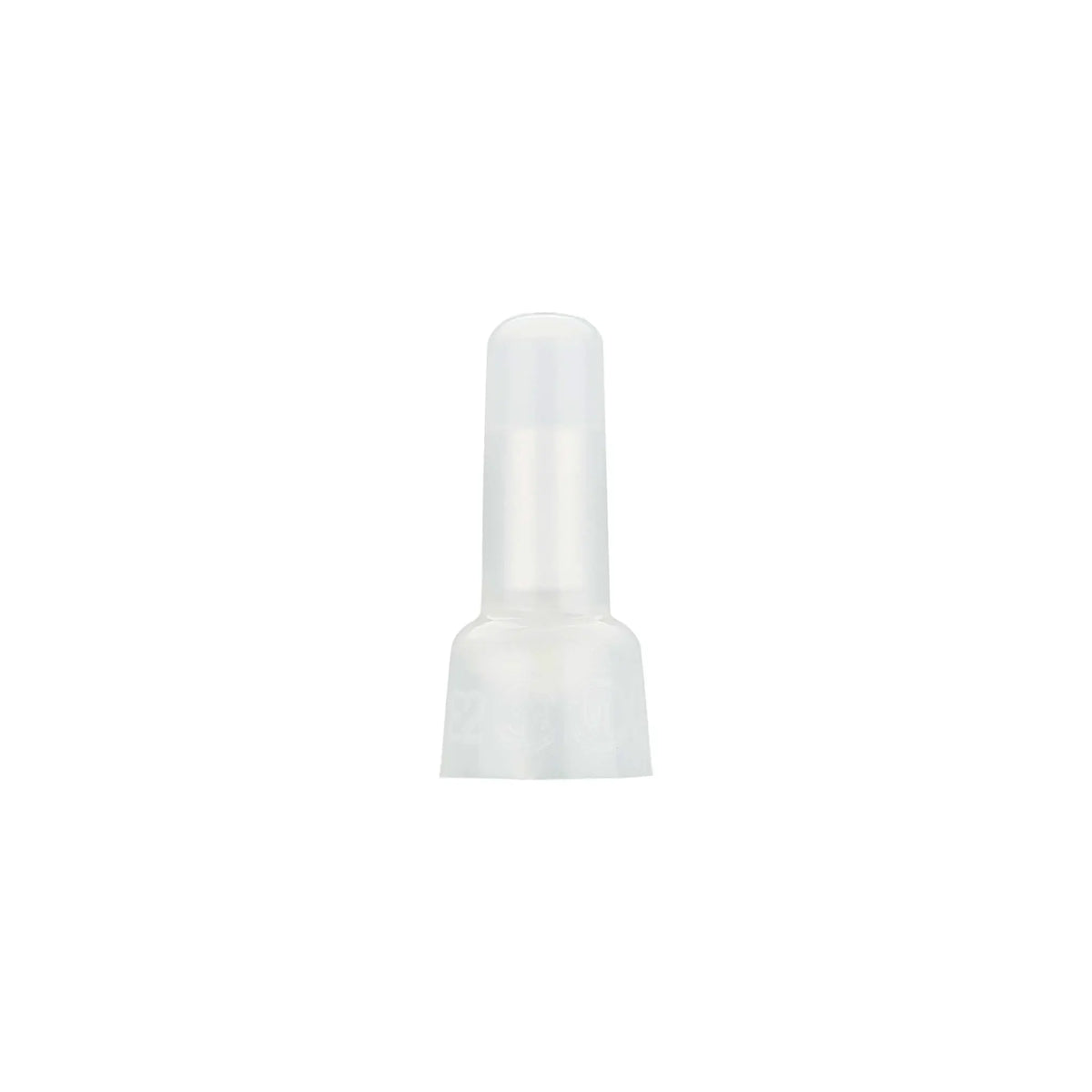

A flared entry skirt helps guide stranded conductors into the connector instead of allowing strands to fold back during insertion. The manufacturer specifies nylon insulation with resistance to chemicals and corrosion. The long-neck design is a distinguishing feature of this part; choose it when that connector shape is required for the installation.
Key Features
- 16–14 AWG size designation for wire selection.
- Closed-end crimp format for a permanent connection.
- Flared entry helps guide wire strands into the cap.
- 1,000 connectors per package.
Specifications
| Brand | Install Bay |
|---|---|
| Manufacturer part number | CCL1614-1 |
| Connector style | Closed-end crimp cap |
| Wire size | 16–14 AWG |
| Insulation | Nylon |
| Neck style | Long neck |
| Package quantity | 1,000 connectors |
Selection and Installation Notes
Check that the conductors and their combined bundle fit the connector’s 16–14 AWG specification; do not force an oversized bundle into the cap. Prepare the conductor ends, use a crimp tool suited to the cap, and inspect the completed joint with power disconnected. The nylon cap is not a documented waterproof or adhesive-lined heat-shrink seal.
Frequently Asked Questions
Is this a twist-on wire nut?
No. This is a crimp-cap connector that forms a permanent joint with an appropriate crimping tool.
Is it an inline butt connector?
No. The wire ends enter the closed-end cap from the same side. An inline butt connector accepts wire from opposite ends.
How many caps are included?

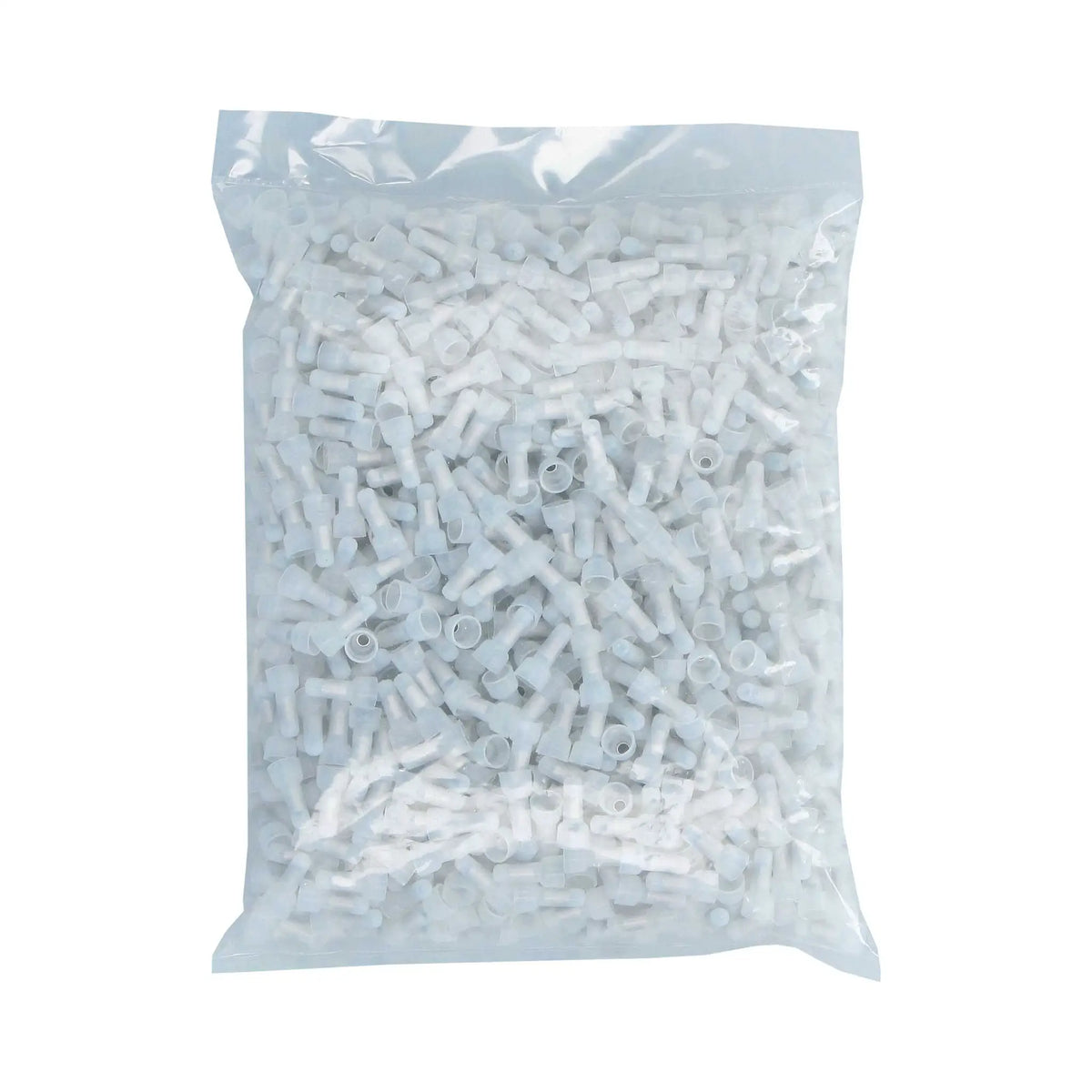

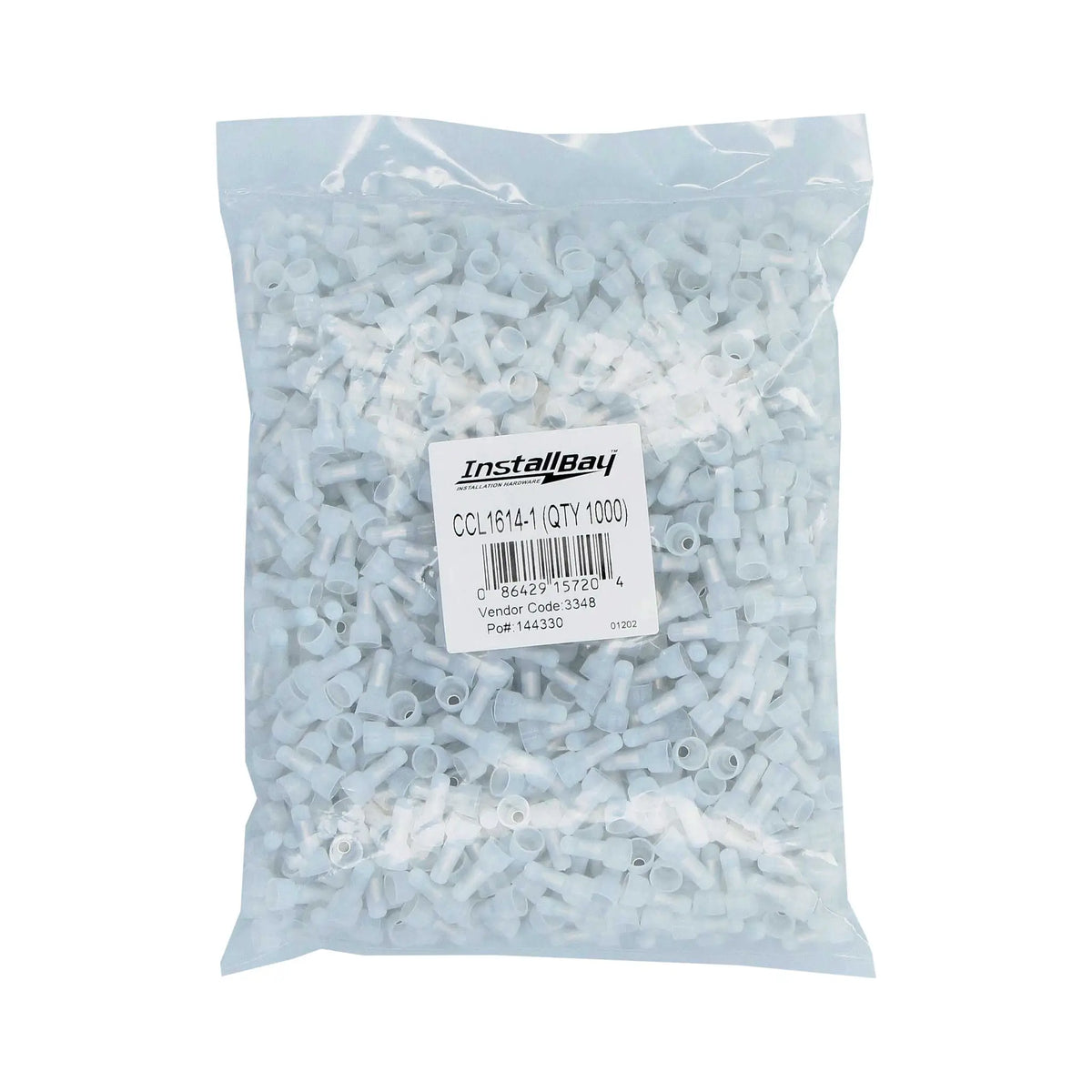

One package contains 1,000 individual CCL1614-1 connectors.
What does the gauge designation mean?
The manufacturer specifies 16–14 AWG. Check the actual conductor combination and connector fit rather than assuming any number of wires of that gauge will fit.
