Install Bay RNMB Red Male Nylon Bullet Connectors, 22–18 AWG, .156 in. – 100 Pack
Key features
- Male bullet terminal for a compatible .156-inch female mate.
- 22–18 AWG crimp range for the wire termination.
- Red nylon insulation for an insulated connection.
- 100 same-gender connectors per package for repeat wiring work.
Install Bay RNMB Red Male Nylon Bullet Connectors, 22–18 AWG, .156 in. – 100 Pack is backordered and will ship as soon as it is back in stock.
Install Bay RNMB Red Male Nylon Bullet Connectors, 22–18 AWG, .156 in. – 100 Pack is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

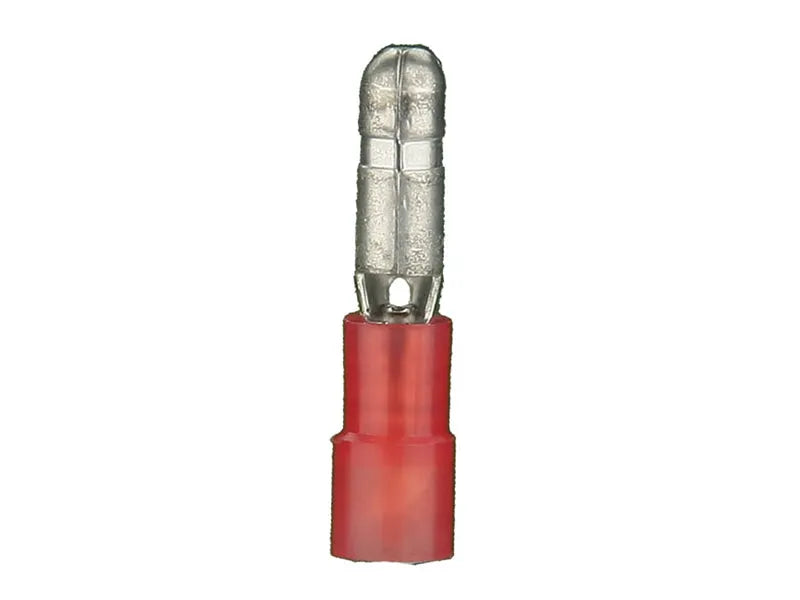

The Install Bay RNMB provides a male bullet connection for 22–18 AWG wiring. Each red nylon-insulated connector is designed to mate with a compatible .156-inch female bullet terminal, giving a crimped wire termination that can be separated at the mating connection when service is needed.
The rounded bullet format is different from a flat-blade quick disconnect. Check both the mating size and connector gender before ordering; matching wire gauge alone does not ensure that two terminals will fit together. Nylon insulation covers the wire-termination area and helps keep the connector easy to identify and inspect.
Key Features
- Male bullet terminal for a compatible .156-inch female mate.
- 22–18 AWG crimp range for the wire termination.
- Red nylon insulation for an insulated connection.
- 100 same-gender connectors per package for repeat wiring work.
Specifications
| Brand | Install Bay |
|---|---|
| Manufacturer part number | RNMB |
| Connector style | Bullet disconnect |
| Gender | Male |
| Mating size | .156 inch |
| Required mate | Female .156-inch bullet connector |
| Wire size | 22–18 AWG |
| Insulation | Nylon |
| Color | Red |
| Package quantity | 100 connectors |
Selection and Installation Notes
Verify the mating connector geometry and size, select the correct crimp die for the wire range, and inspect the crimp before joining the bullet halves. Support the wire so pulling on the harness does not load the connection. Disconnect power before assembly or servicing; no waterproof or submerged-service rating is stated for this connector.
Frequently Asked Questions
Does this package contain both halves?
No. The package contains 100 male connectors. The compatible .156-inch female connector is a separate item.
Will it fit a flat-blade quick disconnect?
No. Bullet and flat-blade terminals use different mating shapes. Select a compatible bullet connector of the specified size.
What wire size does it accept?
Install Bay specifies 22–18 AWG wire for RNMB.
Is the connection permanent?
The wire is crimped to the terminal; the compatible male/female bullet halves can be separated for service.
