Install Bay RNRT8 Red Nylon Ring Terminals, 22-18 AWG, #8, 100 Pack
Key features
- Defined wire fit: The 22-18 AWG range makes it straightforward to select a terminal for the conductor you are terminating.
- Hardware-specific ring: The #8 size matches the specified mounting hardware; the closed ring sits around the fastener for a screw- or stud-secured connection.
- Red nylon insulation: Color coding helps distinguish this wire-size group when organizing installation supplies.
- One-size bulk pack: All 100 pieces are the same terminal specification, useful for repeated connections or replenishing a parts organizer.
Install Bay RNRT8 Red Nylon Ring Terminals, 22-18 AWG, #8, 100 Pack is backordered and will ship as soon as it is back in stock.
Install Bay RNRT8 Red Nylon Ring Terminals, 22-18 AWG, #8, 100 Pack is backordered and will ship as soon as it is back in stock.
Description
Description

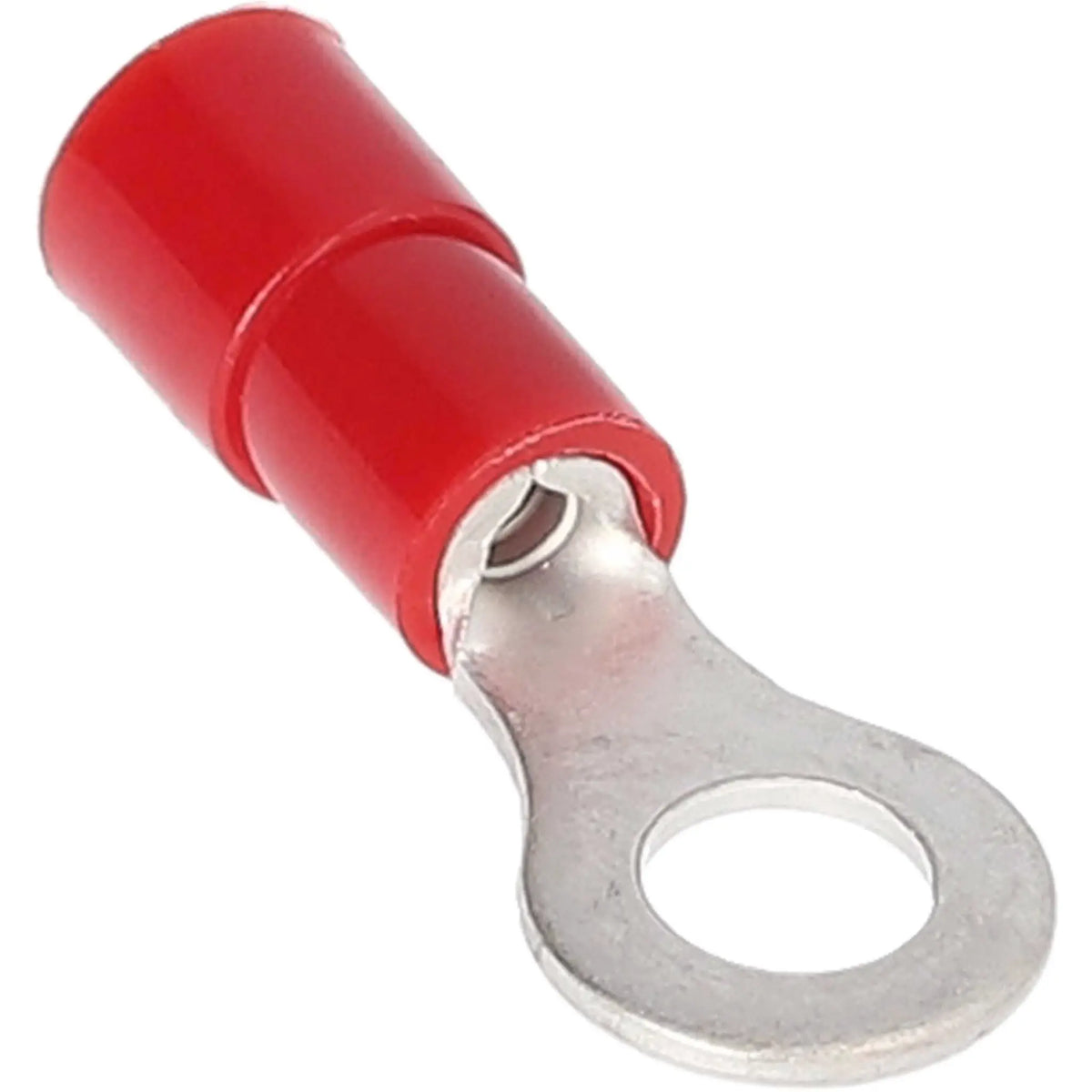

RNRT8 nylon ring terminals for #8 hardware
Build a ring-terminal connection with the correct wire and hardware fit using Install Bay RNRT8. These red nylon-insulated terminals accept 22-18 AWG wire and have a #8 stud size. This #8 version lets you match a #8 screw or stud connection without changing the specified wire-gauge range. Each package contains 100 terminals of this single size.
Why choose this terminal
- Defined wire fit: The 22-18 AWG range makes it straightforward to select a terminal for the conductor you are terminating.
- Hardware-specific ring: The #8 size matches the specified mounting hardware; the closed ring sits around the fastener for a screw- or stud-secured connection.
- Red nylon insulation: Color coding helps distinguish this wire-size group when organizing installation supplies.
- One-size bulk pack: All 100 pieces are the same terminal specification, useful for repeated connections or replenishing a parts organizer.
Specifications
| Brand | Install Bay |
|---|---|
| Manufacturer part number | RNRT8 |
| Terminal style | Ring terminal |
| Wire size | 22-18 AWG |
| Stud size | #8 |
| Insulation material | Nylon |
| Insulation color | Red |
| Package quantity | 100 ring terminals |
Choosing the correct wire and stud size
Check two measurements before ordering: the conductor must be within 22-18 AWG, and the connection point must suit a #8 ring terminal. The #8 designation identifies the hardware size, not the wire gauge. Also check the space around the connection point and follow the equipment manufacturer’s hardware requirements. Insulation color is a sorting aid, so confirm the printed wire-size specification rather than relying on color alone.
With the circuit de-energized, prepare the wire and use a crimping tool suitable for the terminal and 22-18 AWG conductor. Follow the tool and equipment instructions, inspect the finished crimp, and secure the ring with the specified hardware. Wire, tools and mounting hardware are not part of this terminal pack.
Frequently asked questions
What does #8 mean for this terminal?
It is the stud or screw size for the ring connection. The separate 22-18 AWG specification identifies the compatible wire-size range.
How many terminals are included?
One package contains 100 Install Bay RNRT8 ring terminals. This is a single-size pack, not a mixed assortment.
How is a ring terminal disconnected?
The mounting fastener must be removed or released sufficiently to lift the closed ring off the connection point. De-energize the circuit before working on the terminal.
Is a waterproof or electrical load rating provided?
The available product specifications identify the insulation, wire range and stud size, but do not give a waterproof, current or temperature rating. Select the terminal as part of a connection designed for the circuit and installation environment.
