Install Bay US410 4 AWG #10 Barrier Spade Terminals, Nickel, Red/Black – 5 Pairs
Key features
- 4 AWG wire size for the conductor connection.
- #10 spade opening for a compatible screw terminal.
- Nickel specification as listed by Install Bay.
- 5 red and 5 black terminals, 10 pieces total.
Install Bay US410 4 AWG #10 Barrier Spade Terminals, Nickel, Red/Black – 5 Pairs is backordered and will ship as soon as it is back in stock.
Install Bay US410 4 AWG #10 Barrier Spade Terminals, Nickel, Red/Black – 5 Pairs is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

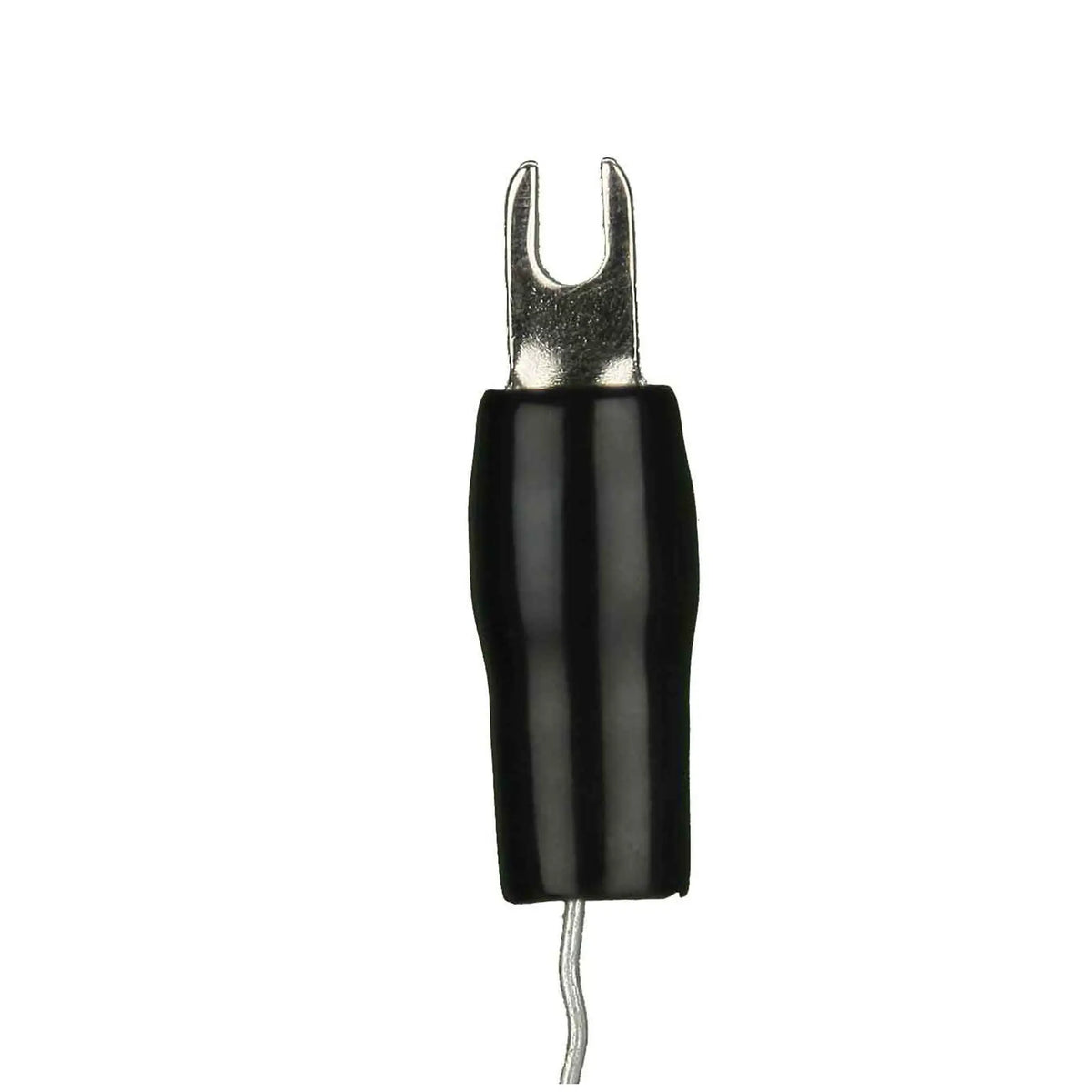

Terminate 4 AWG wire at a compatible #10 screw connection with the Install Bay US410 spade terminals. This red-and-black set includes 5 pairs, or 10 individual terminals, so both conductor colors can be organized without mixing different terminal sizes.
The open-fork spade end is intended for a matching screw or barrier-terminal connection. The manufacturer identifies these terminals as nickel and supplies red and black identification sleeves. Check the equipment terminal width and clearance as well as the #10 screw size before installation; wire gauge and stud size describe different parts of the connection.
Key Features
- 4 AWG wire size for the conductor connection.
- #10 spade opening for a compatible screw terminal.
- Nickel specification as listed by Install Bay.
- 5 red and 5 black terminals, 10 pieces total.
Specifications
| Brand | Install Bay |
|---|---|
| Manufacturer part number | US410 |
| Connector style | Barrier spade terminal |
| Wire size | 4 AWG |
| Screw/stud size | #10 |
| Manufacturer finish/material description | Nickel |
| Identification colors | Red and black |
| Package quantity | 5 pairs (10 terminals) |
| Package breakdown | 5 red + 5 black |
Selection and Installation Notes
Confirm that the equipment accepts a #10 spade terminal and the fork fits its terminal opening. Use a suitable crimp tool for 4 AWG conductors, keep stray strands contained, and tighten the equipment connection to its own instructions. De-energize the circuit before work and provide strain relief. This listing does not establish a current rating for the completed circuit.
Frequently Asked Questions
Does the number after # describe wire gauge?
No. #10 is the screw/stud size. The conductor size is 4 AWG; both must match your installation.
Are these flat-blade quick disconnects?
No. These are fork-shaped terminals for compatible screw connections, not mating male/female blade connectors.
How many terminals are included?
One package contains 5 red/black pairs, 10 terminals total.
Can I assume an amperage rating from the wire size?
No. Wire gauge is only one selection factor. Follow the equipment, wiring and protection requirements for the complete circuit.
