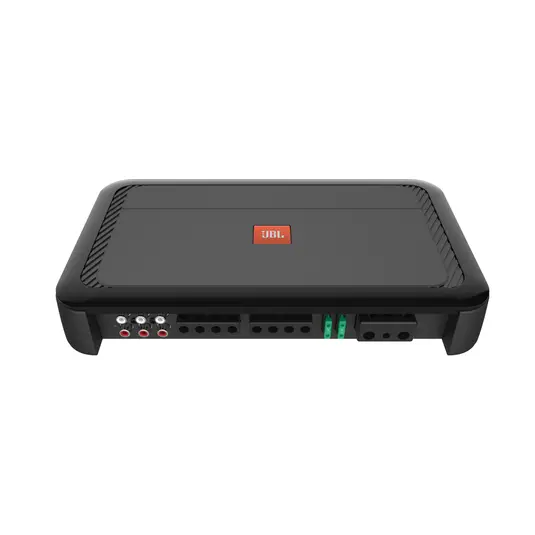

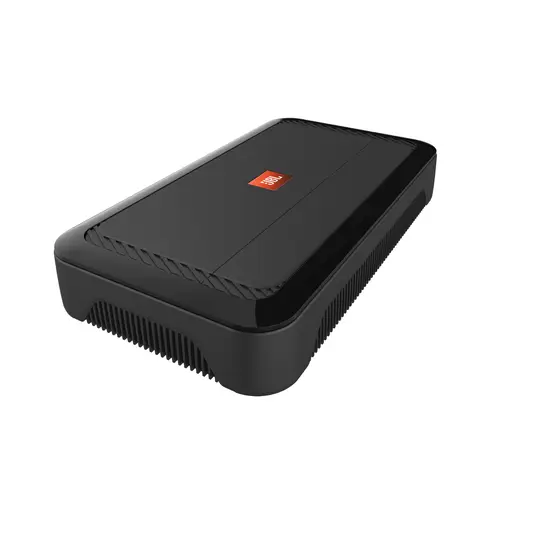

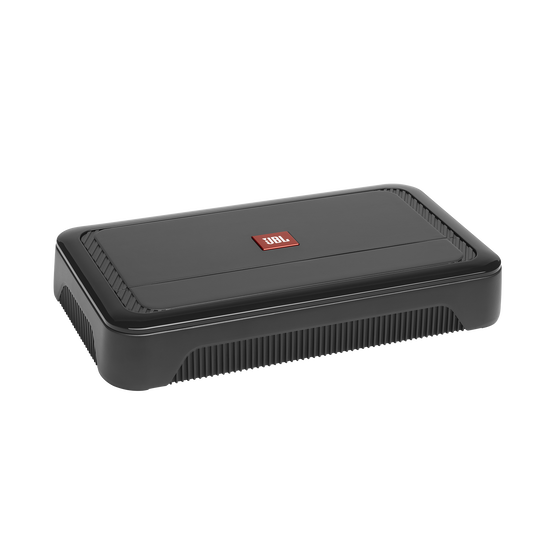

JBL Club A754 4-Channel Car Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 75 W
- RMS per channel at 2 ohms: 100 W
- Frequency response: 10 Hz–40 kHz
- Crossovers: Variable 32–320 Hz, 12 dB/octave
- Input sensitivity: 0.2–2 V RMS line level; 2–20 V RMS speaker level
JBL Club A754 4-Channel Car Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a four-speaker car audio system or add a subwoofer with the JBL Club A754 4-channel car amplifier. It provides variable high-pass and low-pass crossovers, speaker-level inputs for factory head units, and preamp outputs for system expansion.

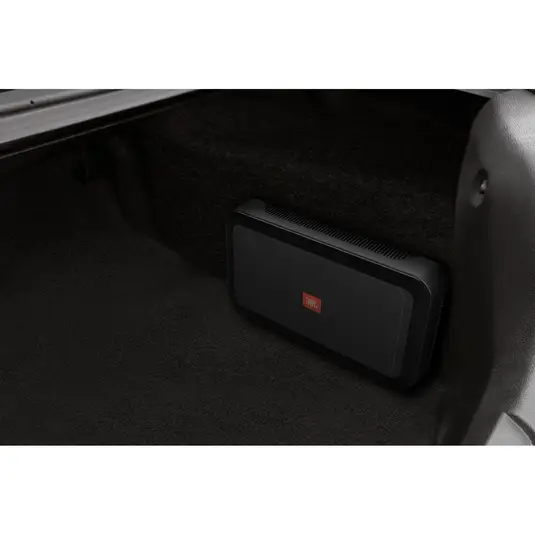

Use all four channels for speakers, configure a three-channel front-stage-and-subwoofer setup, or bridge channels for higher-power output. Its 5.1cm profile supports installation planning for tight spaces such as under a seat or behind a panel.
Key Features & Benefits
- Flexible channel setup: Choose 2-, 3-, or 4-channel operation to suit your system layout.
- Variable crossovers: Adjust the high-pass and low-pass filters from 32–320Hz to help integrate speakers and a subwoofer.
- Factory stereo inputs: Speaker-level inputs connect to factory head-unit speaker outputs.
- System expansion: Preamp outputs can feed a separate subwoofer amplifier.
- Compact chassis: The 32cm x 5.1cm x 18cm dimensions help when planning a space-conscious installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | JBL |
| Model | Club A754 |
| Channels | 4 |
| Power Output (4Ω) | 75W RMS x4 |
| Power Output (2Ω) | 100W RMS x4 |
| Bridged Power (4Ω) | 200W RMS x2 |
| Crossover | HP/LP Variable, 32–320Hz, 12dB/oct |

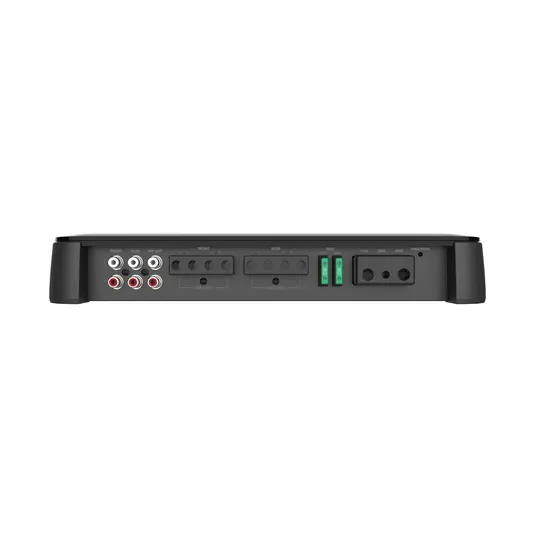

| Inputs | Preamp (RCA) & Speaker-Level |
| Outputs | Preamp (RCA) |
| Fuse Rating | 30A x2 |
| Recommended Wiring | 8-Gauge Power & Ground |
| Dimensions (W x H x D) | 32cm x 5.1cm x 18cm |
| Shipping Weight | 3.2 kg |
Why Choose This Product?
The Club A754 offers 75W RMS x4 at 4 ohms, compared with 65W RMS x4 for the Stage GT 60041. It also has preamp outputs for adding a separate subwoofer amplifier; the Stage GT 60041 includes bass EQ, which the Club A754 does not.
For a JBL Club Series speaker system, the available power and channel configurations give you options for a full speaker setup or a front stage with subwoofer support. The 3-ohm Club and Stadium Series speakers are also identified as suitable loads for its 2-ohm stable output.
Installation & Compatibility Notes
Plan for 8-gauge power and ground wiring. The source recommends a fuse within 18 inches of the battery, with a 60A total rating from the amplifier’s 30A x2 fuses.
For a four-speaker setup, the source recommends channels 1+2 for front speakers and channels 3+4 for rear speakers, with each pair high-passed at 80Hz. For a subwoofer, bridge channels 3+4 for 200W RMS at 4 ohms and use channels 1+2 for the front stage, or use the preamp outputs to feed a dedicated mono amplifier. Check the available mounting space and your system’s connections before installation.
A DSP processor between the head unit and amplifier can add time alignment and active crossover control.
Frequently Asked Questions
Can I connect the JBL Club A754 to a factory head unit?
Yes. Its speaker-level inputs connect to factory head-unit speaker outputs. Its preamp outputs can also feed a separate subwoofer amplifier.
Can I bridge the amplifier to power a subwoofer?
Yes. Bridged output is 200W RMS x2 at 4 ohms. The source describes bridging channels 3+4 for a subwoofer while channels 1+2 power the front stage.
Can I use JBL Club or Stadium Series speakers?
The source identifies JBL Club Series speakers as a match and notes that the amplifier’s 2-ohm stable output supports 3-ohm Club and Stadium Series speakers.
What mounting space should I allow?
The chassis measures 32cm x 5.1cm x 18cm. Check these dimensions against your intended installation location.
Can I add a separate subwoofer amplifier?
Yes. Use the preamp outputs to feed a dedicated mono amplifier, such as the Club A600 or Club A1000.
