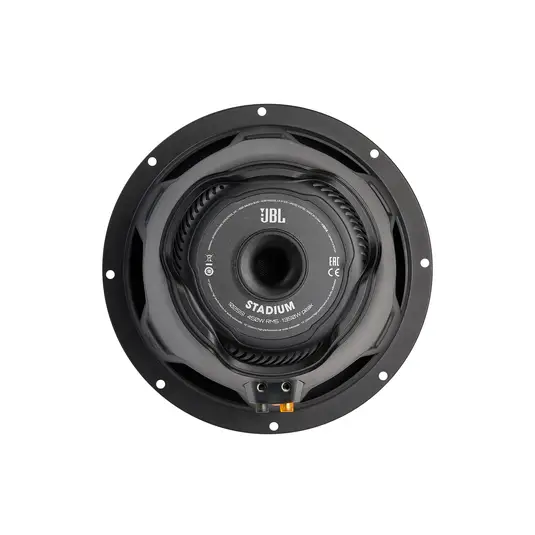

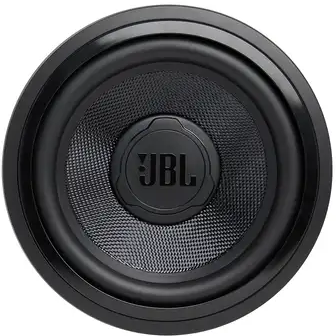

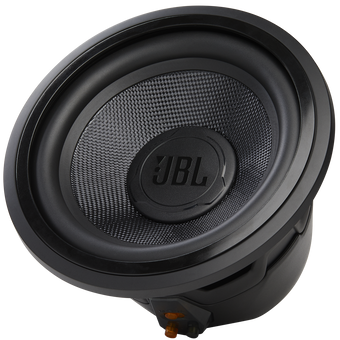

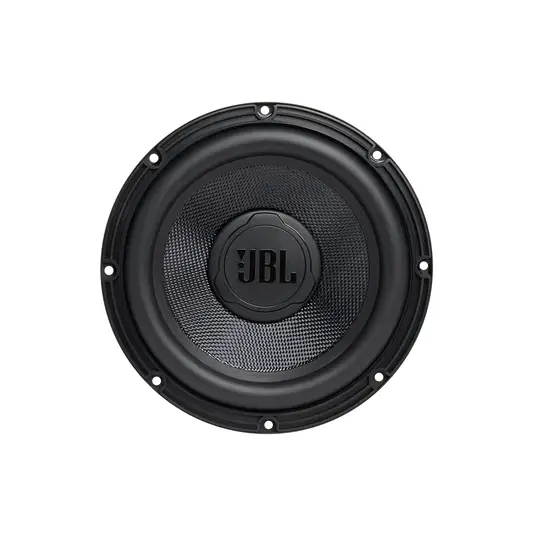

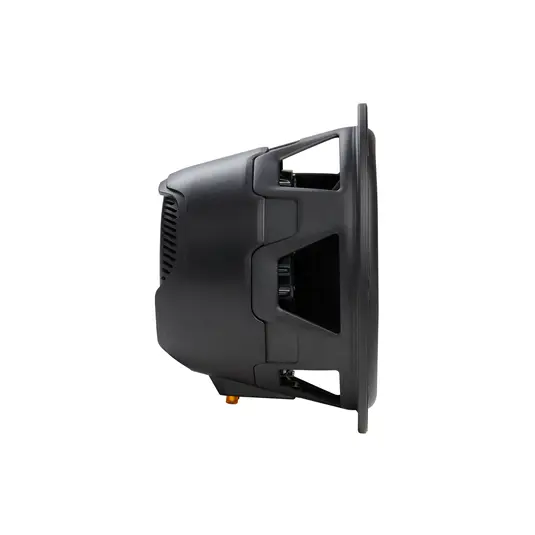

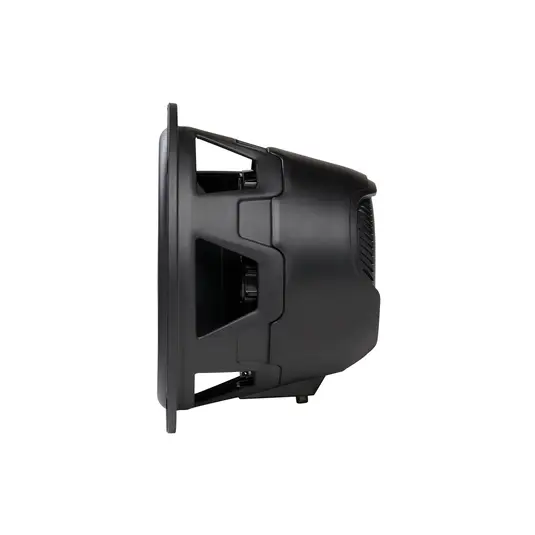

JBL Stadium 102SSI 10" SSI Car Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 450 W
- Voice-coil options: Switchable 2Ω / 4Ω
- Frequency response: 30 Hz–175 Hz
- Sensitivity (2.83 V): 91 dB
- Mounting depth: 159 mm
JBL Stadium 102SSI 10" SSI Car Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add dedicated low-frequency output to a car audio system with the JBL Stadium 102SSI 10-inch SSI car subwoofer. Its selectable 2- or 4-ohm impedance lets you match the subwoofer to your amplifier’s preferred load.
The compact 10-inch design pairs Stadium Series engineering with a 450W RMS power rating. The aero-cooled voice coil and push terminals support its high-output design.
Key Features & Benefits

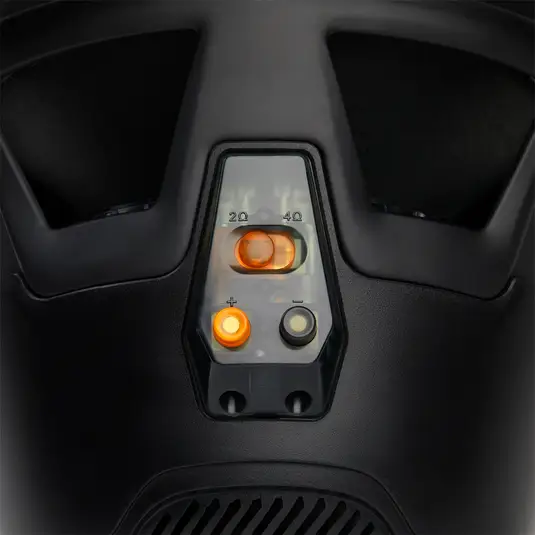

- Selectable impedance: Choose 2 or 4 ohms with the built-in selector instead of changing separate dual voice coil wiring configurations.
- Aero-cooled motor: Airflow is directed across the voice coil to manage heat during high-output listening.
- 450W RMS power handling: The 10-inch subwoofer brings this rated power handling to builds with limited space.
- 91dB sensitivity: Its sensitivity rating is measured at 2.83V/1m.
- 8 AWG terminal compatibility: Integrated push terminals accept speaker wire up to 8 AWG.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | JBL |
| Model | Stadium 102SSI |
| Size | 10" |
| Power Handling (RMS) | 450W |
| Power Handling (Peak) | 1,350W |
| Sensitivity (@ 2.83V/1m) | 91dB |
| Frequency Response | 30Hz – 175Hz |
| Impedance | 2 or 4 ohms (SSI™ Selectable) |
| Voice Coil Diameter | 2" (50mm) |
| Voice Coil Cooling | Aero-Cooled |
| Terminal Compatibility | Up to 8 AWG |
| Cutout Diameter | 22.7 cm |
| Mounting Depth | 15.9 cm |
Why Choose This Product?
The Stadium 102SSI offers selectable impedance in a 10-inch format, giving you two load options when planning an amplifier match. Its 30Hz–175Hz frequency response covers deep sub-bass through upper bass, while the aero-cooled design directs airflow across its 2-inch (50mm) voice coil.
Compared with the 12-inch Stadium 122SSI, the 102SSI is the smaller option, rated at 450W RMS; the 122SSI is rated at 500W RMS and offers more cone area. Consider available space and your output priorities when choosing between them.
Installation & Compatibility Notes
Check the enclosure’s cutout and mounting clearance against the 22.7 cm cutout diameter and 15.9 cm mounting depth before installation. The source recommends a mono amplifier rated for 350–450W RMS at the selected impedance. Suggested examples are the JBL Club A600, rated at 350W RMS at 4 ohms or 600W RMS at 2 ohms, and the JBL Stage GT 50011, rated at 300W RMS at 4 ohms or 500W RMS at 2 ohms. Keep gain conservative when using the Club A600 at 2 ohms.
A ported enclosure tuned to 32–38Hz is suggested for maximum output; a sealed enclosure is suggested for tighter, more accurate bass. For ported enclosures, the source recommends an 80Hz low-pass crossover and a 28Hz subsonic filter. It also recommends 8 AWG or heavier speaker wire between amplifier and subwoofer, and 4-gauge power and ground wire to the amplifier.
Frequently Asked Questions
How do I select the Stadium 102SSI’s impedance?
Use its built-in selector to choose 2 or 4 ohms to match your amplifier’s preferred output impedance. The source describes 2 ohms for maximizing output from a high-current amplifier and 4 ohms for cleaner, more efficient operation.
What amplifier rating should I look for?
The recommended match is a mono amplifier rated at 350–450W RMS at the chosen impedance. Check the amplifier’s output rating at that specific load before pairing it.
What enclosure is recommended?
A ported enclosure tuned to 32–38Hz is suggested for maximum output. A sealed enclosure is suggested for tighter, more accurate bass.
What mounting dimensions should I check?
Allow for a 22.7 cm cutout diameter and 15.9 cm mounting depth. Compare these measurements with your enclosure before installation.
How does it differ from the Stadium 122SSI?
The 102SSI is a 10-inch subwoofer rated at 450W RMS. The 122SSI is a 12-inch model rated at 500W RMS, with more cone area and higher output as described in the product information.
