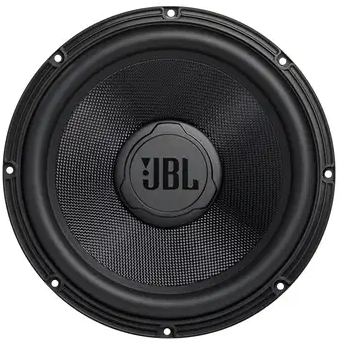

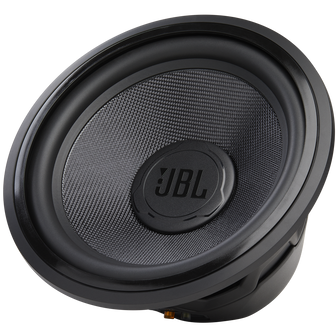

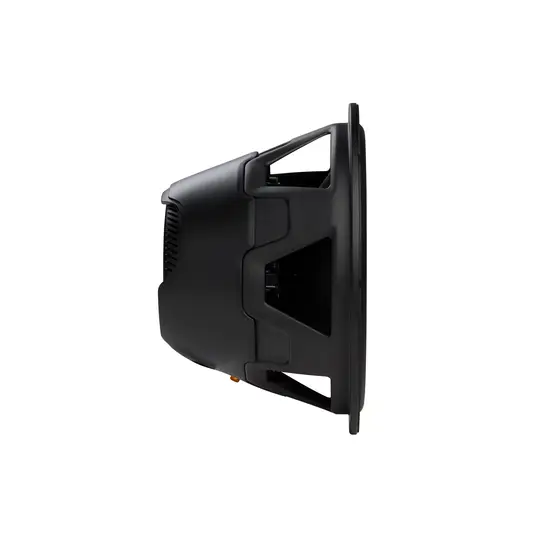

JBL Stadium 122SSI 12" Component Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 500 W
- Voice-coil options: Switchable 2Ω / 4Ω
- Frequency response: 25 Hz–175 Hz
- Sensitivity (2.83 V): 92 dB
- Mounting depth: 180 mm
JBL Stadium 122SSI 12" Component Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring deep, adjustable bass to your car audio system with the JBL Stadium 122SSI 12-inch component subwoofer. Its selectable 2- or 4-ohm impedance helps you match the subwoofer to your amplifier, while its 25Hz–175Hz response covers deep sub-bass through upper bass.
Key Features & Benefits
- Selectable impedance: Choose 2 or 4 ohms to suit your amplifier’s preferred load.
- 500W RMS power handling: Pair it with a compatible mono amplifier for substantial subwoofer power.
- Aero-cooled voice coil: Moving air helps dissipate heat during high-output listening.
- 92dB sensitivity: The specified sensitivity helps you assess the subwoofer’s output efficiency.

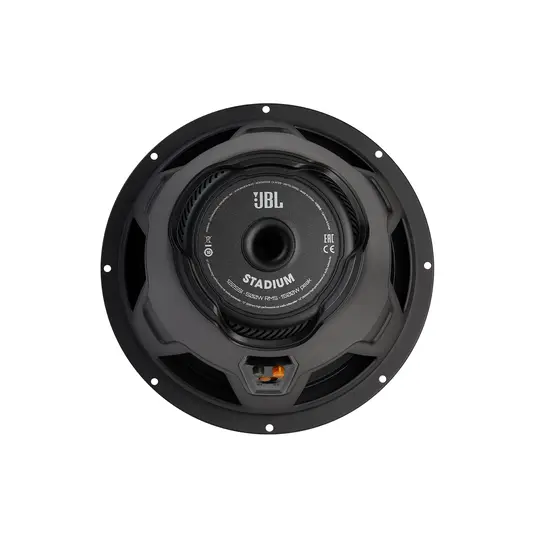

- Push terminals: Integrated terminals accept speaker wire up to 8 AWG.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | JBL |
| Model | Stadium 122SSI |
| Size | 12" |
| Power Handling (RMS) | 500W |
| Power Handling (Peak) | 1,500W |
| Sensitivity (@ 2.83V/1m) | 92dB |
| Frequency Response | 25Hz – 175Hz |
| Impedance | 2 or 4 ohms (SSI™ Selectable) |
| Voice Coil Diameter | 2" (50mm) |
| Voice Coil Cooling | Aero-Cooled |
| Terminal Compatibility | Up to 8 AWG |
| Cutout Diameter | 28.5 cm |
| Mounting Depth | 18.0 cm |
Why Choose This Product?
The Stadium 122SSI gives you a choice of impedance without managing separate dual-voice-coil wiring configurations. Select the load that matches your amplifier, then build your system around the subwoofer’s power handling and enclosure needs.
A ported enclosure tuned to 30–35Hz is recommended for low-frequency extension and output. A sealed enclosure is an option for tighter, more accurate bass. The described uses include daily listening, sound quality listening, and enthusiast builds.
Installation & Compatibility Notes
Check your enclosure’s cutout and available mounting depth against the listed measurements before installation. Match the selected 2- or 4-ohm load to your amplifier’s ratings.
The source recommends a mono amplifier rated at 400–500W RMS at the selected impedance. It also identifies the JBL Club A5055’s 500W RMS sub channel at 2 ohms as a match; for 4-ohm operation, it gives a 300–500W RMS mono amplifier recommendation. For a ported enclosure, the source suggests an 80Hz low-pass crossover and a 25Hz subsonic filter.
Frequently Asked Questions

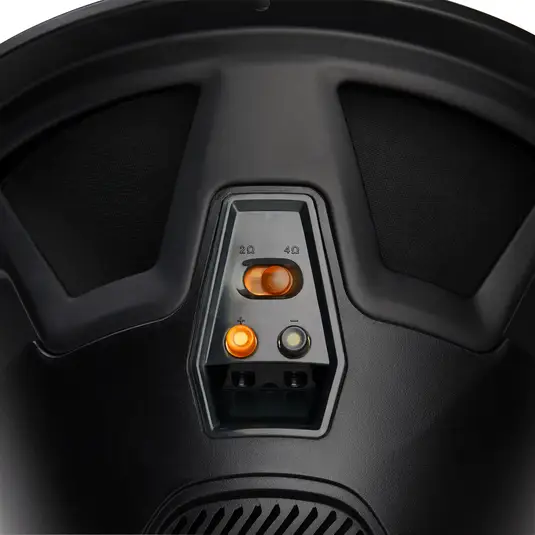

How do I select the Stadium 122SSI’s impedance?
Use its built-in selector to choose 2 or 4 ohms, matching the selected load to your amplifier’s output rating.
What amplifier power is recommended?
The source recommends a mono amplifier rated at 400–500W RMS at your chosen impedance. It also gives a 300–500W RMS range for a 4-ohm mono amplifier.
What enclosure should I use?
A ported enclosure tuned to 30–35Hz is suggested for more low-frequency extension and output. A sealed enclosure is suggested for tighter, more accurate bass.
What dimensions should I check before fitting it?
Confirm that your enclosure accommodates the 28.5 cm cutout diameter and 18.0 cm mounting depth.
