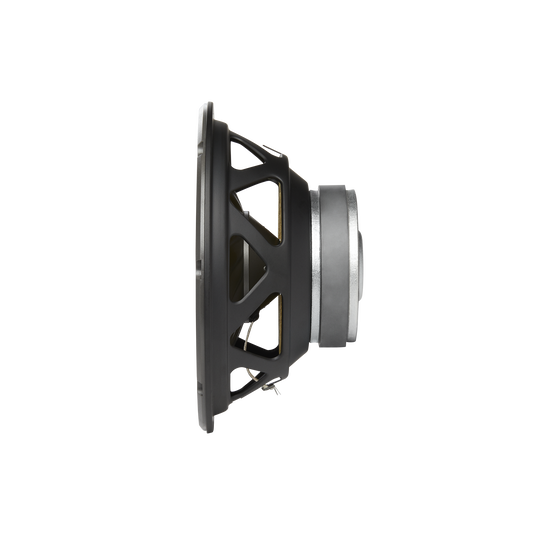

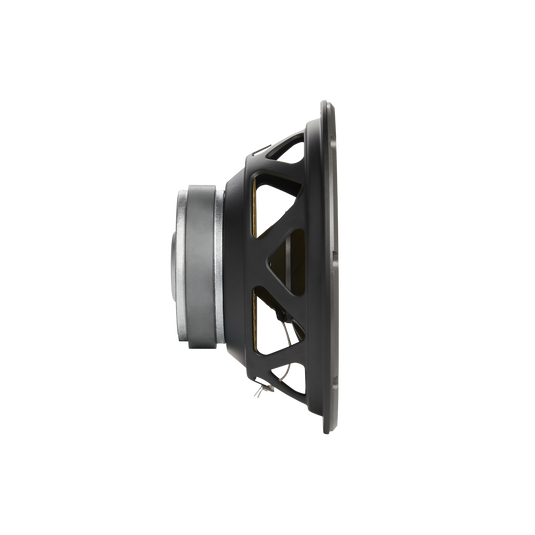

JBL Stage 102 10" 225W Car Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 225 W
- Voice-coil options: S4
- Frequency response: 35 Hz–200 Hz
- Sensitivity (2.83 V): 89 dB
- Cone and surround: Polypropylene with rubber surround
JBL Stage 102 10" 225W Car Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring JBL-voiced bass to a system with room for a 10-inch subwoofer. The JBL Stage 102 car subwoofer handles 225W RMS and uses a single 4-ohm voice coil for straightforward amplifier matching.
Its polypropylene cone and Hi-Roll rubber surround support bass response from 35Hz to 200Hz. JBL acoustic engineers individually voice each unit for consistent Stage Series sound.
Key Features & Benefits
- 225W RMS power handling: Match it with an amplifier rated for the subwoofer’s 4-ohm load.
- 10-inch size: Consider it when a 12-inch subwoofer won’t fit your planned enclosure space.
- Polypropylene cone: The lightweight, rigid cone supports accurate bass reproduction.
- Hi-Roll rubber surround: It allows cone excursion for deep, punchy bass.
- Single 4-ohm voice coil: The SVC design avoids dual-voice-coil wiring configurations.
- 89dB sensitivity: The stated sensitivity is measured at 2.83V/1m.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | JBL |
| Model | Stage 102 |
| Size | 10" |
| Power Handling (RMS) | 225W |
| Power Handling (Peak) | 900W |
| Sensitivity (@ 2.83V/1m) | 89dB |
| Frequency Response | 35Hz – 200Hz |
| Impedance | 4 ohms (Single Voice Coil) |
| Voice Coil Diameter | 38.8mm |
| Cone Material | Polypropylene |
| Surround Material | Hi-Roll Rubber |
| Weight | 3.8 kg |
Why Choose This Product?
The Stage 102 offers JBL Stage Series bass in a more compact 10-inch format. Its 35Hz–200Hz frequency response covers deep sub-bass through upper bass, while the single 4-ohm impedance keeps amplifier matching simple.
Choose an enclosure to suit your listening priorities: a ported enclosure tuned to 35–40Hz is recommended for maximum output, while a sealed enclosure is suggested for tighter, more accurate bass.
Installation & Compatibility Notes
Pair the Stage 102 with a mono amplifier rated at 150–225W RMS at 4 ohms. The JBL Stage GT 50011 is rated at 300W RMS at 4 ohms; keep its gain conservative to stay within the subwoofer’s 225W RMS rating.
The supplied wiring guidance calls for 8 AWG or heavier speaker wire from the amplifier to the subwoofer, and 4-gauge power and ground wire to the amplifier. For a ported enclosure, set the low-pass crossover at 80Hz and the subsonic filter at 30Hz. Check enclosure space and installation requirements before purchase.
Frequently Asked Questions
What amplifier rating is recommended for the JBL Stage 102?
A mono amplifier rated at 150–225W RMS at 4 ohms is recommended. The JBL Stage GT 50011 is rated at 300W RMS at 4 ohms; keep the gain conservative with this higher-rated amplifier.
Is the Stage 102 a single or dual voice coil subwoofer?
It has a single voice coil with a 4-ohm impedance.
Which enclosure should I use?
A ported enclosure tuned to 35–40Hz is recommended for maximum output. A sealed enclosure is suggested for tighter, more accurate bass.
What filter settings are recommended for a ported enclosure?
The supplied guidance recommends an 80Hz low-pass crossover and a 30Hz subsonic filter for ported enclosures.
