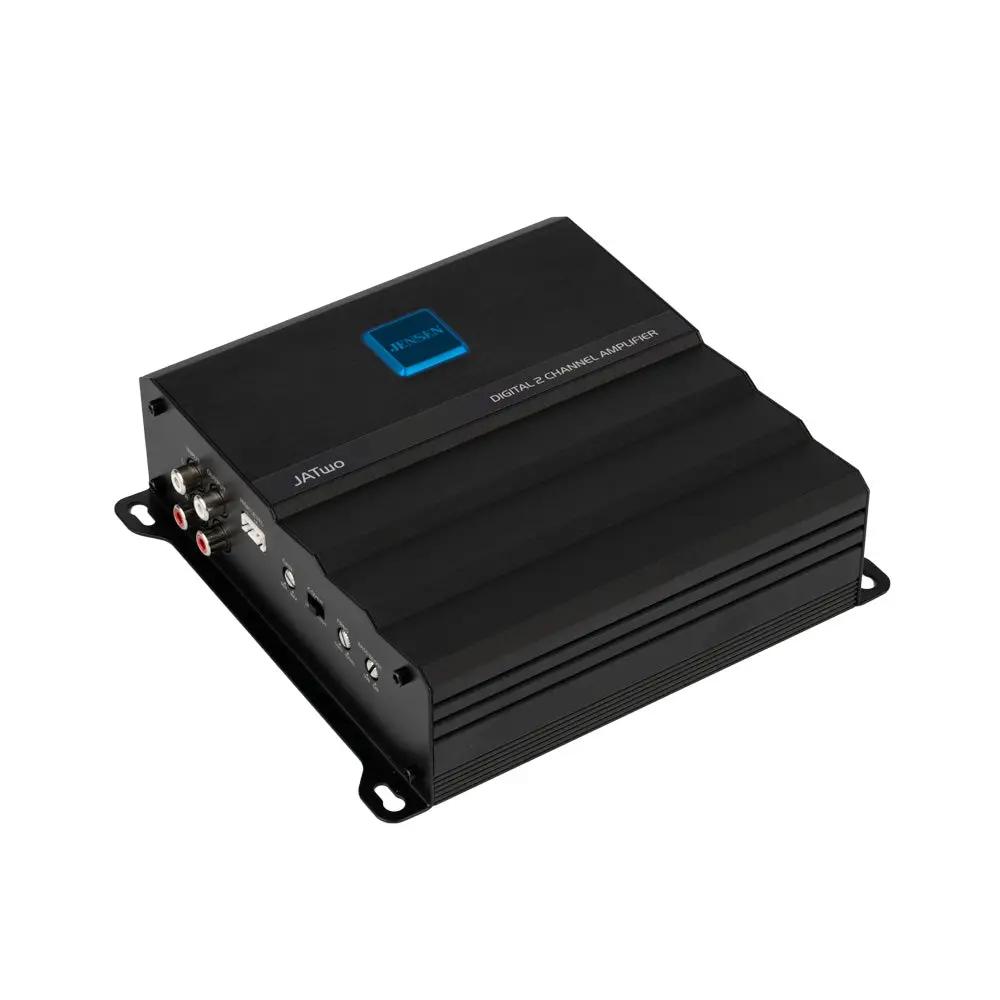

Jensen JATwo Amplifier 2-Channel MOSFET Amp
Key features
- Amplifier channels: 2
- RMS per channel at 4 ohms: 125 W
- RMS per channel at 2 ohms: 215 W
- Frequency response: 20 Hz–20 kHz
- Input gain range: 0.3–6 V
- Crossover: Selectable high-pass, low-pass or full range; 50–250 Hz
Jensen JATwo Amplifier 2-Channel MOSFET Amp is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add two-channel power to your vehicle audio system with the Jensen JATwo Class D MOSFET amplifier. It delivers up to 530 Watts peak power and accepts high-level speaker-wire or low-level RCA inputs for connection to factory or aftermarket stereo systems.
Key Features & Benefits
- Class D design: Efficient power output suits installations where compact equipment matters.

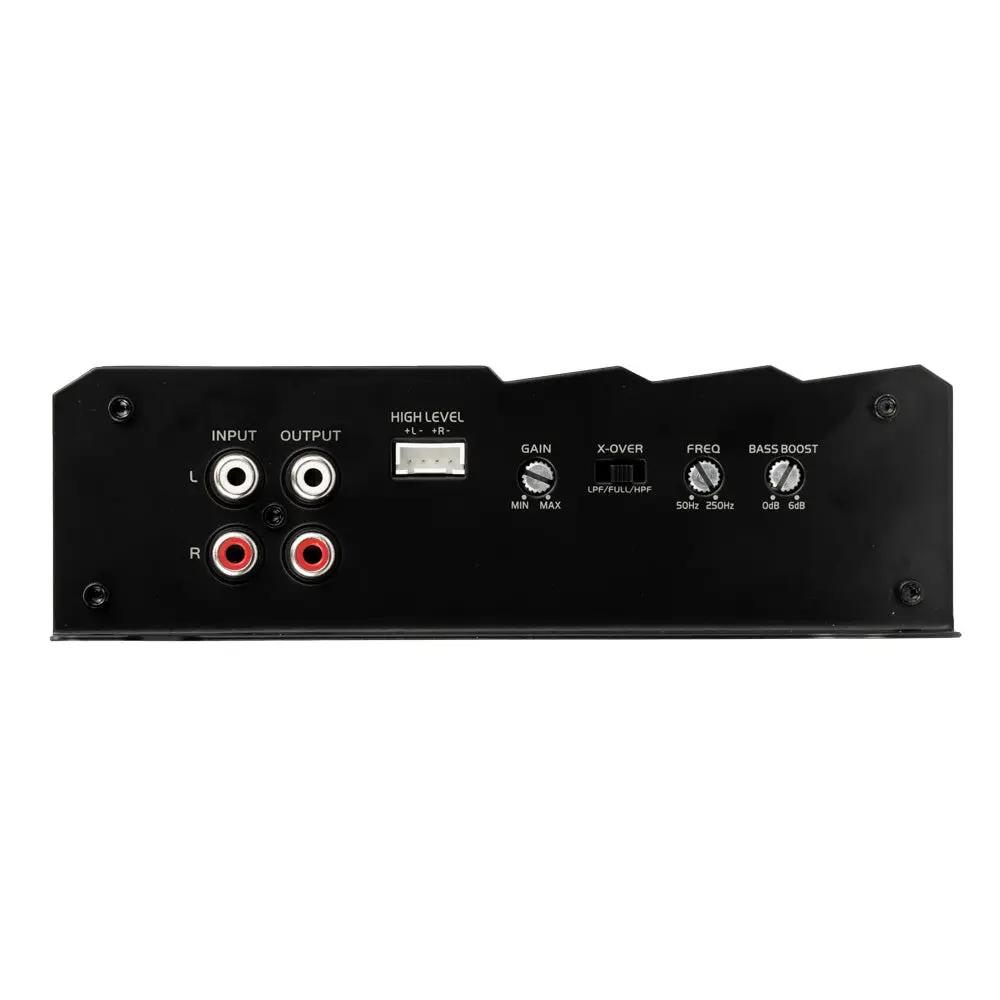

- Flexible inputs: High-level and RCA inputs support different stereo connection types.
- Adjustable sound: Variable crossovers and bass boost let you tune the output to your system.
- Stereo load support: It is stable at 2 Ohms in stereo operation.
- Compact dimensions: The amplifier measures 17.2 cm x 16.6 cm x 5.1 cm for installation planning.
Technical Specifications
| Brand | Jensen |
|---|---|
| Model | JATwo |
| Series | Apex Series |
| Amplifier Class | Class D Digital |
| Channels | 2 |
| Peak Power Output | 530 Watts |
| RMS Power Output (4 Ohms) | 125 Watts x 2 |
| RMS Power Output (2 Ohms) | 215 Watts x 2 |
| RMS Power Output (Bridged 4 Ohms) | 445 Watts x 1 |
| Frequency Response | 20 Hz – 20 kHz |
| Signal-to-Noise Ratio | 87 dBA |
| Total Harmonic Distortion (THD+N) | <0.12% |
| Audio Inputs | High Level (Speaker Wire), Low Level (RCA) |
| Variable Gain | 300 mV – 6 V |
| Bass Boost | 0–6 dB @ 45 Hz |
| Crossover | Adjustable HPF/LPF/Full Range (50 Hz – 250 Hz) |
| Fuse Rating | 20A x 3 |
| Recommended Power/Ground Wire | 8 AWG |
| Recommended Speaker Wire | 12 AWG |
| Dimensions | 17.2 cm x 16.6 cm x 5.1 cm |
| Weight | 1.8 kg |
Why Choose This Product?
The JATwo combines a compact format with multiple input options and adjustable crossover settings. Its 2-Ohm stereo stability and published power ratings help you compare it with your speakers and plan a suitable system.
Installation & Compatibility Notes
The amplifier is compatible with standard 12V automotive electrical systems. It accepts factory speaker-level signals through high-level inputs or stereo signals through low-level RCA inputs.
Recommended wiring is 8 AWG for power and ground, and 12 AWG for speaker connections. Check available mounting space against the amplifier’s dimensions before installation.
Frequently Asked Questions
What is the JATwo’s maximum peak power output?
Its peak power output is 530 Watts.
How much RMS power does it produce at 2 Ohms?
It delivers 215 Watts x 2 at 2 Ohms in stereo operation.
What input connections does this amplifier support?
It has high-level speaker-wire inputs and low-level RCA inputs.
What wire gauges are recommended?
Use 8 AWG for power and ground wiring and 12 AWG for speaker wiring.
Which owner manuals are available?
The listed manuals are Owner Manual (EN) and Owner Manual (ES).
What warranty is listed for the JATwo?
A 4-year limited warranty applies when registered within 60 days of purchase.
