Klein Tools MM460S Smart TRMS Digital Multimeter
Key features

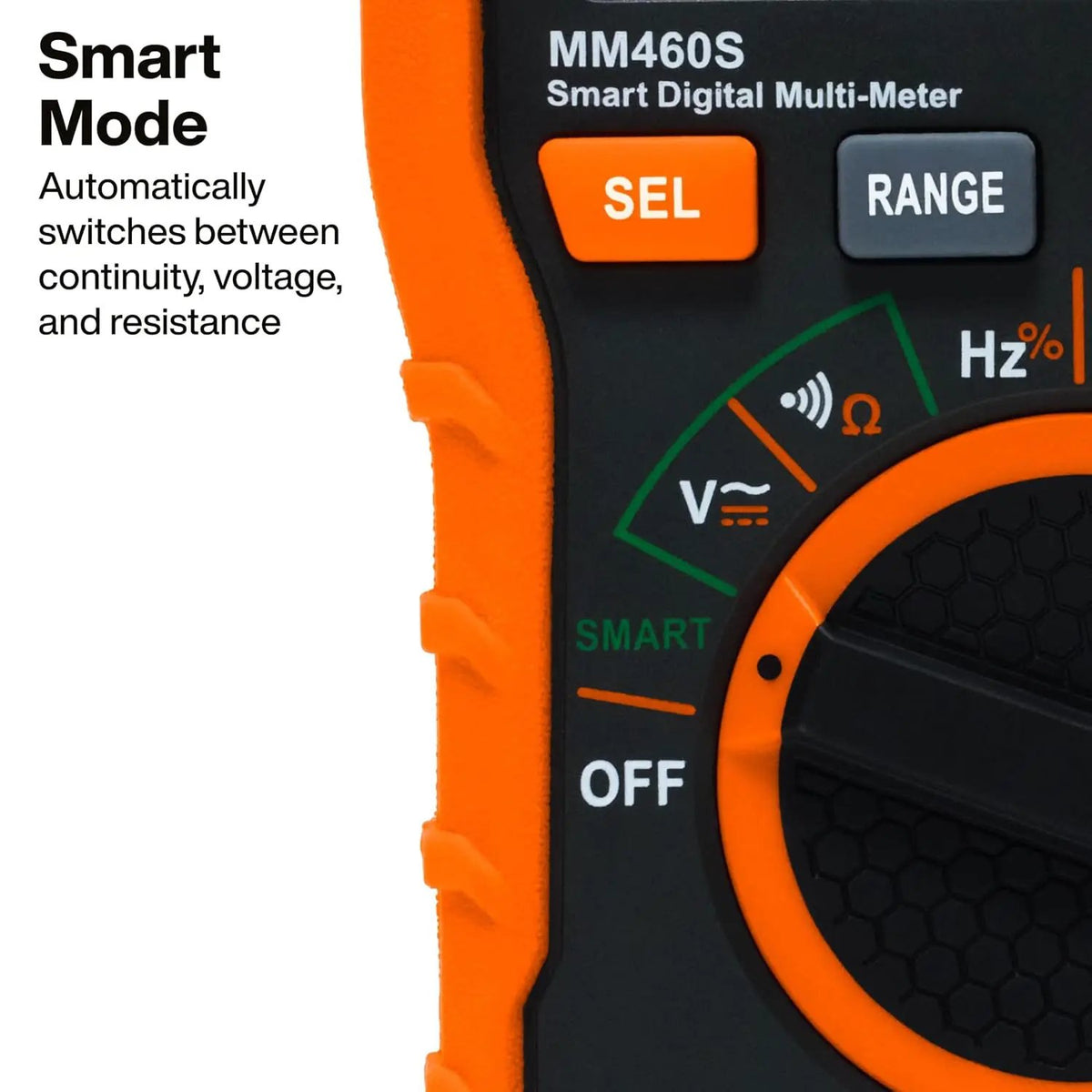

- Smart mode: Switches among continuity, AC/DC voltage, and resistance for these common checks.
- Auto-ranging true-RMS: Provides automatic range selection for AC and DC measurements.

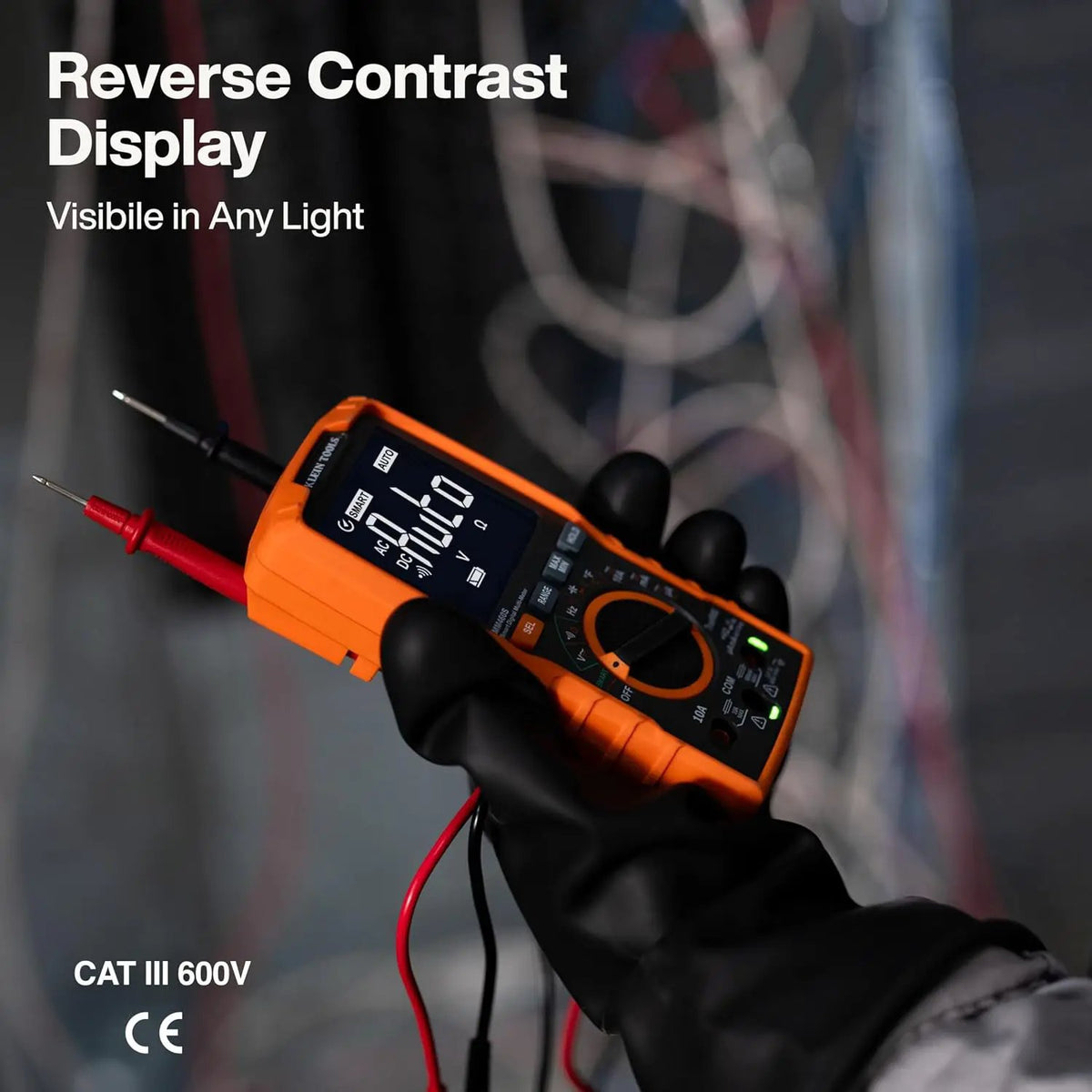

- Backlit display: The 4000-count reverse-contrast display has a backlight for viewing readings.
- Additional test functions: Capacitance, frequency, duty cycle, temperature, and diode functions broaden the checks you can perform.
- Practical handling features: A lead alert, kickstand, and test-lead holders support setup and use.
Klein Tools MM460S Smart TRMS Digital Multimeter is backordered and will ship as soon as it is back in stock.
Klein Tools MM460S Smart TRMS Digital Multimeter is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

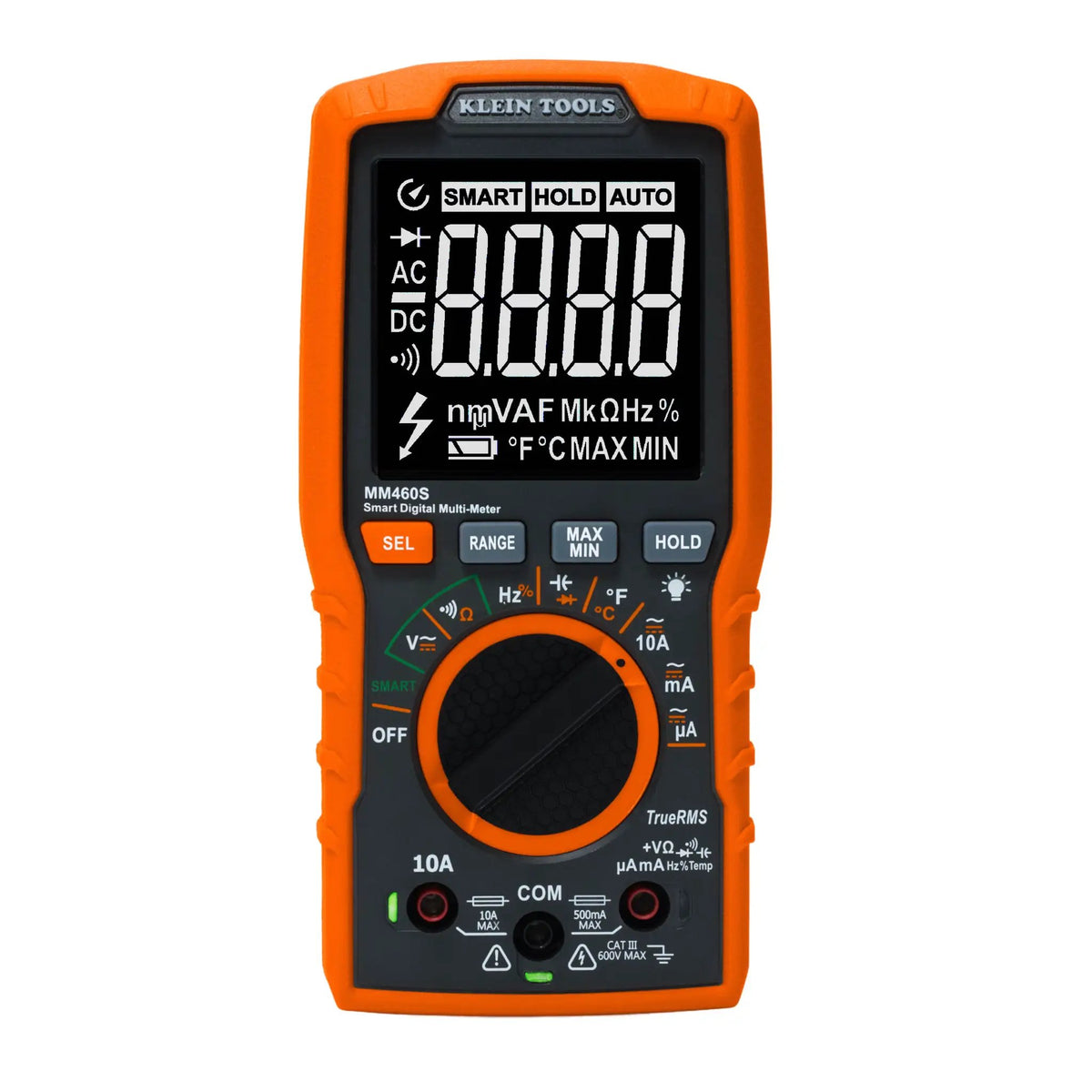

The Klein Tools MM460S Smart TRMS Digital Multimeter helps you check common electrical measurements with one handheld meter. Its smart mode switches among continuity, AC/DC voltage, and resistance, while auto-ranging true-RMS measurement supports everyday electrical testing.
Key Features & Benefits
- Smart mode: Switches among continuity, AC/DC voltage, and resistance for these common checks.
- Auto-ranging true-RMS: Provides automatic range selection for AC and DC measurements.
- Backlit display: The 4000-count reverse-contrast display has a backlight for viewing readings.
- Additional test functions: Capacitance, frequency, duty cycle, temperature, and diode functions broaden the checks you can perform.
- Practical handling features: A lead alert, kickstand, and test-lead holders support setup and use.
Technical Specifications
| Measurement type | True-RMS |
|---|---|

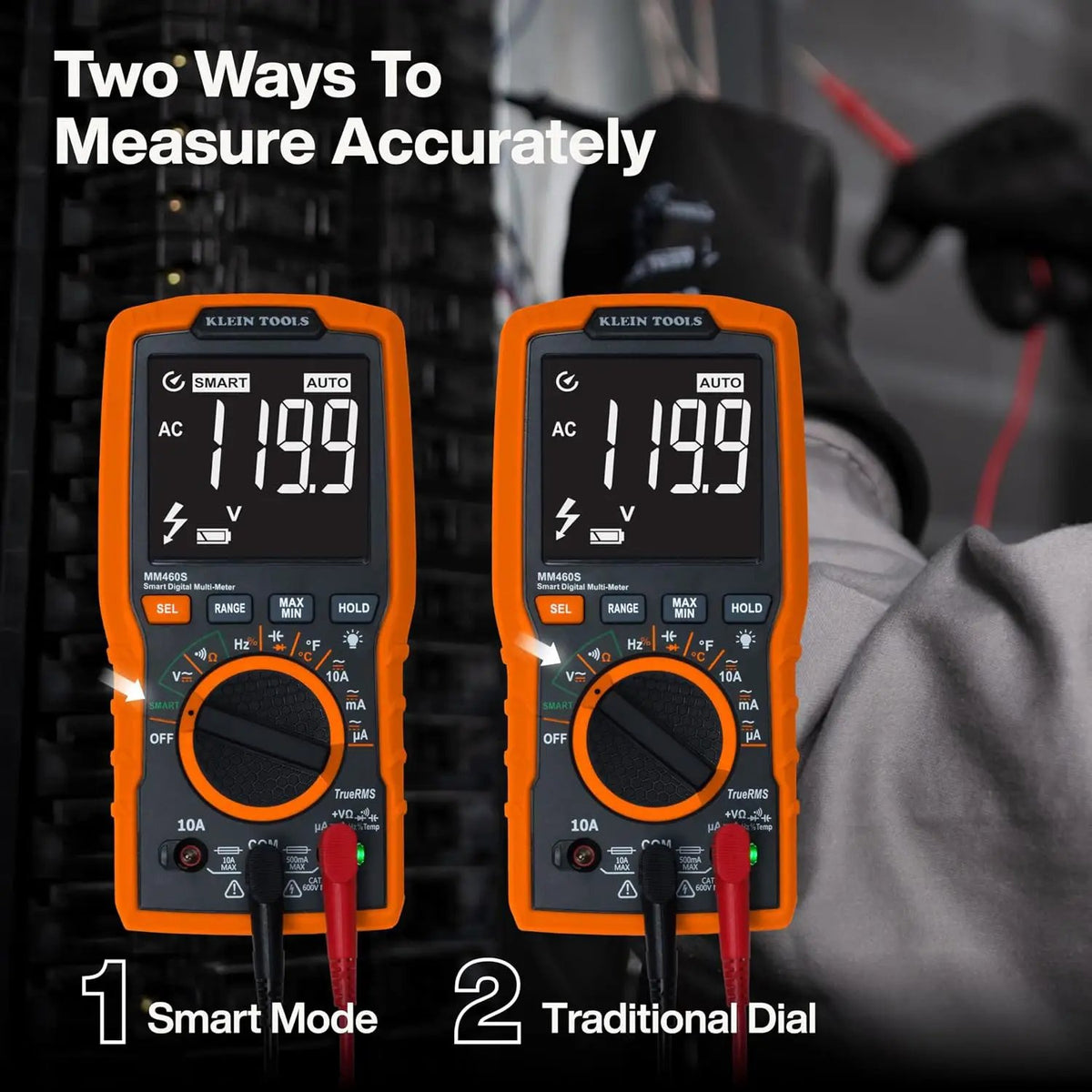

| Smart mode | Switches among continuity, AC/DC voltage, and resistance |
| Maximum AC/DC voltage | 600 V |
| Maximum AC/DC current | 10 A |
| Maximum resistance | 50 MΩ |
| Display | 4000-count, reverse-contrast display with backlight |
| Additional functions | Capacitance, frequency, duty cycle, temperature, continuity, and diode |
| Rating | CAT III 600 V |

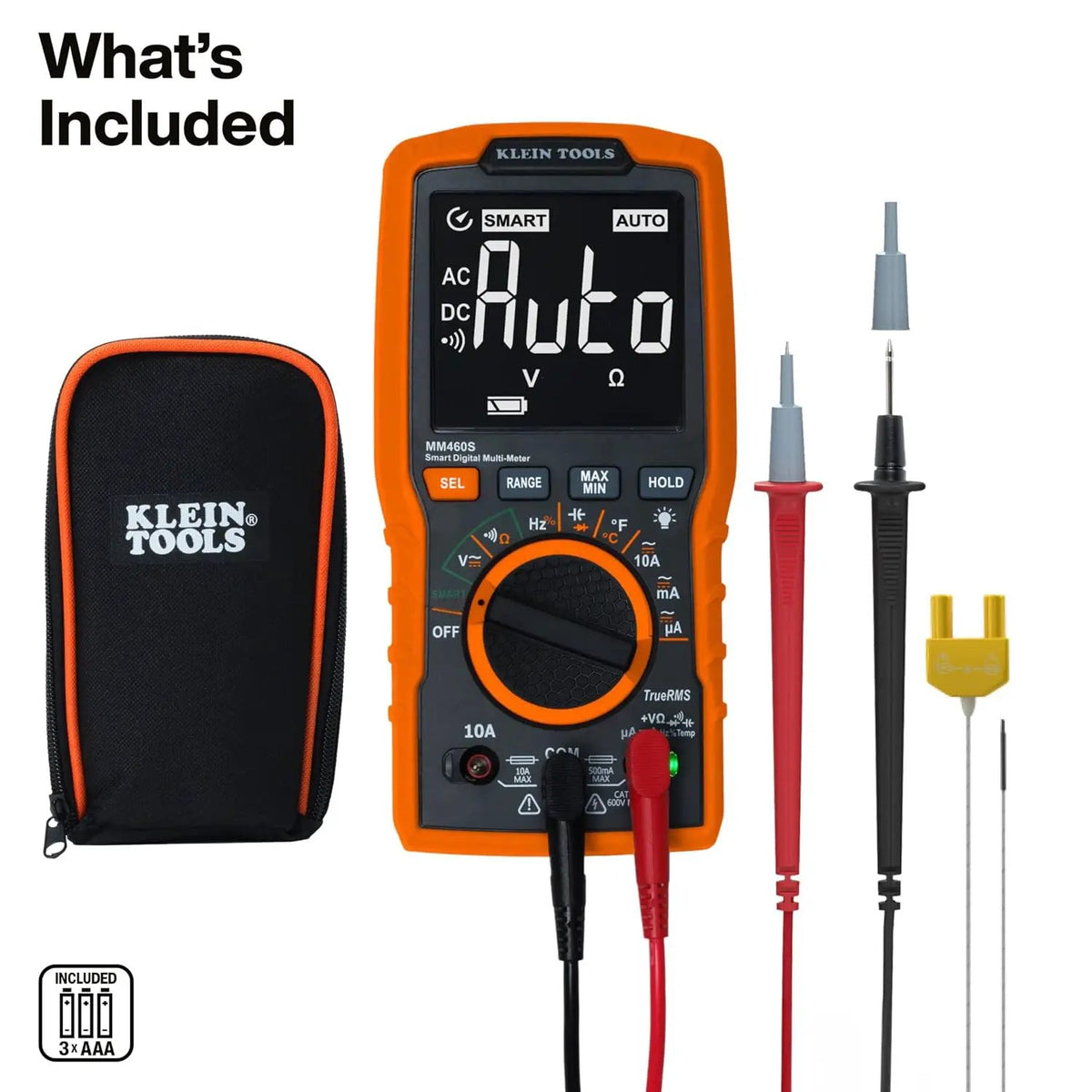

| Included | Case, leads, thermocouple, three AAA batteries, and instructions |
| Optional accessory | Magnetic hanger; not included |
| Current-use guidance | For current above 6 A, the manufacturer recommends 30-second measurements followed by 10 minutes of recovery. |
Why Choose This Product?
The MM460S combines everyday voltage, current, and resistance checks with additional measurement functions in one digital multimeter. Its smart mode handles several common test types, and the kickstand and lead holders give you practical options for positioning the meter and leads during a test.
Installation & Compatibility Notes
This is a handheld electrical testing meter. Check that the measurement type and stated range suit the circuit before testing. For current above 6 A, follow the manufacturer’s stated measurement and recovery intervals.
Frequently Asked Questions
What does smart mode measure?
It switches among continuity, AC/DC voltage, and resistance.
What are the maximum voltage, current, and resistance measurements?
The meter measures up to 600 V AC/DC, 10 A AC/DC, and 50 MΩ resistance.
What other functions does the MM460S include?
It has capacitance, frequency, duty cycle, temperature, continuity, and diode functions.
What comes with the multimeter?
The package includes a case, leads, thermocouple, three AAA batteries, and instructions.
Is the magnetic hanger included?
No. The magnetic hanger is optional and is not included.
