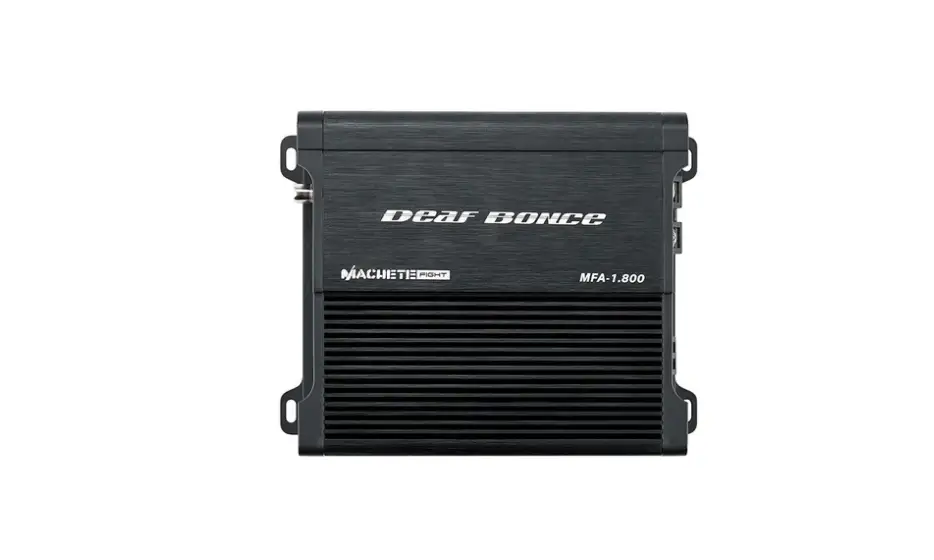

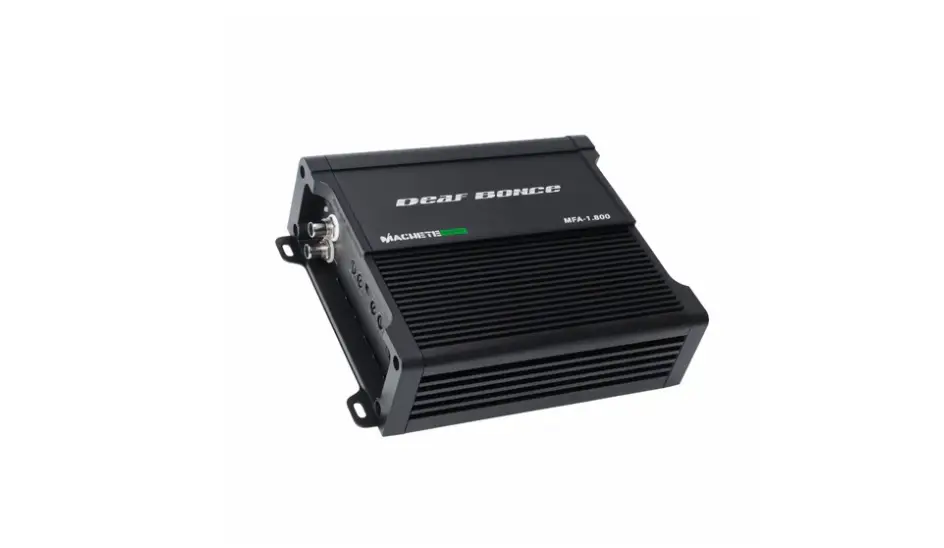

Deaf Bonce MACHETE MFA-1.800 | 800 Watt Power Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 340.0 W
- RMS output at 2 ohms: 570 W
- RMS output at 1 ohm: 800 W
Deaf Bonce MACHETE MFA-1.800 | 800 Watt Power Amplifier is backordered and will ship as soon as it is back in stock.
Deaf Bonce MACHETE MFA-1.800 | 800 Watt Power Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Deaf Bonce MACHETE MFA-1.800 is a mono Class D car audio amplifier for powering a subwoofer. It delivers 800 W RMS at 1 Ω from a 14.4 V system, with power ratings also specified for 2 Ω and 4 Ω loads.
Key Features & Benefits
- Mono Class D design: A single-channel layout provides a dedicated amplifier stage for a subwoofer setup.
- Three RMS power ratings: Choose a compatible load using the specified 800 W at 1 Ω, 570 W at 2 Ω, or 340 W at 4 Ω.

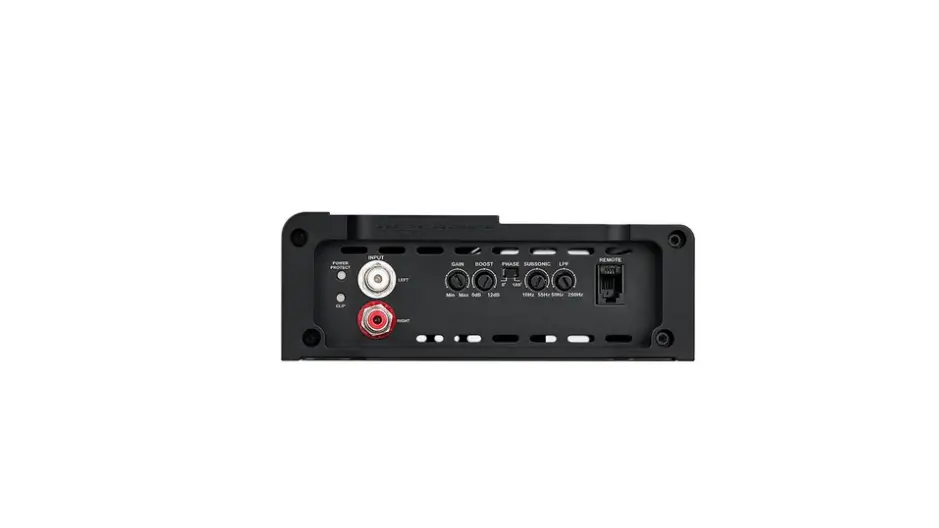

- Low-pass filter: The 50–250 Hz range gives you a specified frequency range for shaping the amplifier’s low-frequency output.
- Subsonic filter: The 10–55 Hz range offers another filter adjustment for subwoofer tuning.
- Compact dimensions: At 7.5 x 6 x 2.1 inches, the amplifier has a defined footprint to check against your planned mounting space.
Technical Specifications
| Model | MFA-1.800 |
| Class | D |
| Number of the channels | 1 |
| Frequency response | 10 - 250 Hz |
| 1 Ohm RMS Power (14.4 V) | 800 W |
| 2 Ohm RMS Power (14.4 V) | 570 W |
| 4 Ohm RMS Power (14.4 V) | 340 W |
| Minimum permissible load on the channel | 1 Ohm |
| Low pass filter | 50-250 Hz |
| Crossover | 24 dB/Oct |
| Subsonic filter | 10 - 55 Hz |
| Input terminal | 4 Ga |
| Output terminal | 8 Ga |
| Working voltage | 9 - 15 V |
| Signal-to-noise ratio | ��� 160 dB |
| Size (WxLxH) | 7.5 x 6 x 2.1 inch |
Why Choose This Product?
The MFA-1.800 gives you a clearly specified mono amplifier option for a subwoofer-focused car audio build. Its power ratings at three impedances help you compare the amplifier with a subwoofer’s load requirements before choosing your setup.
The listed low-pass and subsonic filter ranges provide tuning options for the low-frequency system. Its compact dimensions also make it easier to assess potential mounting locations before installation.
Installation & Compatibility Notes
Confirm that the connected load is no lower than the specified 1 Ω minimum. Match the subwoofer setup to the amplifier’s listed RMS power at the applicable impedance.

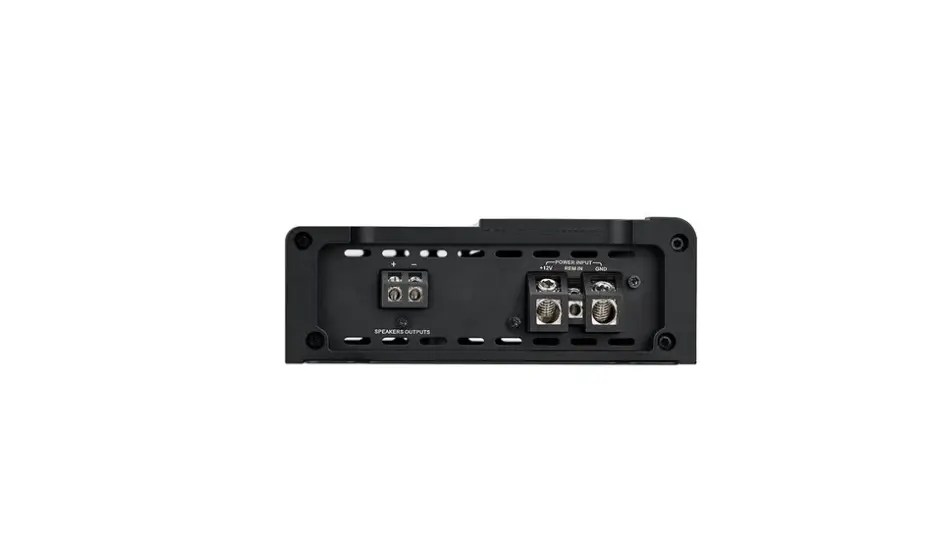

Plan around the 9–15 V working voltage, 4 Ga input terminal, and 8 Ga output terminal. Check the 7.5 x 6 x 2.1 inch dimensions against your intended mounting space.
Frequently Asked Questions
How much power does the MACHETE MFA-1.800 deliver?
Its listed RMS output at 14.4 V is 800 W at 1 Ω, 570 W at 2 Ω, and 340 W at 4 Ω.
What is the minimum load for this amplifier?
The minimum permissible channel load is 1 Ω. Check the final subwoofer load before connecting it.
What filter ranges are listed?
The low-pass filter range is 50–250 Hz, and the subsonic filter range is 10–55 Hz.
What should I check before choosing a mounting location?
Allow for the amplifier’s 7.5 x 6 x 2.1 inch size and confirm that the installation meets its listed voltage and terminal requirements.
