Deaf Bonce MACHETE MFA-4.180 | 180 Watt 4-channel amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 180 W
- RMS per channel at 2 ohms: 270 W
- Amplifier class: Class D
- Frequency response: 20 Hz - 20 kHz
- Crossover slope: 12 dB/octave
Deaf Bonce MACHETE MFA-4.180 | 180 Watt 4-channel amplifier is backordered and will ship as soon as it is back in stock.
Deaf Bonce MACHETE MFA-4.180 | 180 Watt 4-channel amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Deaf Bonce MACHETE MFA-4.180 is a four-channel Class D amplifier for building a car audio system around clearly specified power options. It delivers 180 W RMS per channel at 4 ohms or 270 W RMS per channel at 2 ohms, with a bridge option rated at 540 W RMS x 2.
Key Features & Benefits
- Four-channel output: Choose four-channel operation or the listed two-channel bridged configuration.
- Power options: Match the amplifier’s stated RMS ratings to your system’s speaker loads.

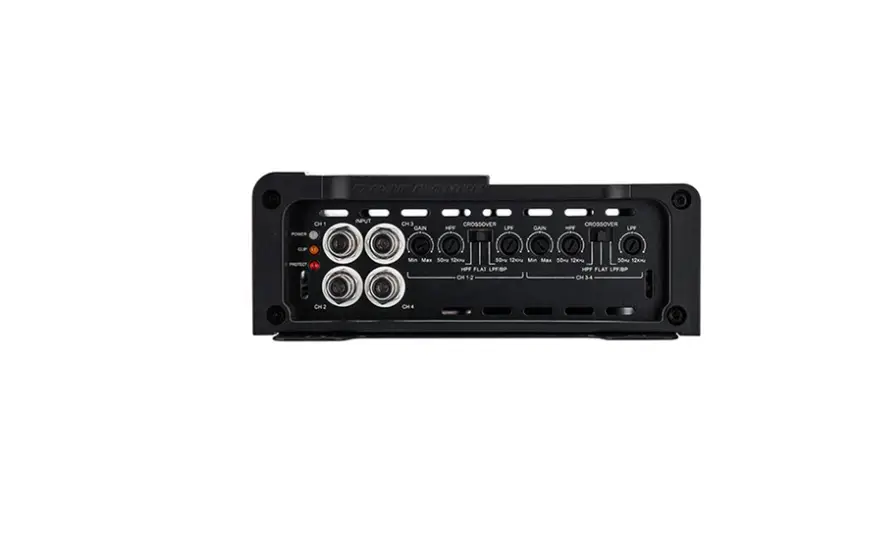

- Adjustable filters: Low-pass and high-pass filters each span 50–12000 Hz.
- Simultaneous filter operation: LPF and HPF can operate at the same time.
- Broad input range: The 0.4–8V input range provides a stated level range for system integration.
Technical Specifications
| Model | MFA-4.180 |
| Class | D |
| Number of the channels | 4 |
| Frequency response | 20-20000 Hz |
| 2 Ohm RMS Power (14.4 V) | 270 W x 4 |
| 4 Ohm RMS Power (14.4 V) | 180 W x 4 |
| 4 Ohm RMS Power (Bridge) | 540 W x 2 |
| Minimum permissible load on the channel | 2 Ohm |
| Minimum permissible load in a bridge connection | 4 Ohm |
| Input SPL | 0.4 - 8V |
| Low pass filter | 50-12000 Hz |
| High pass filter | 50-12000 Hz |
| LPF and HPF simultaneous operation | True |
| Crossover | 12 dB/Oct |
| Input terminal | 4 Ga |
| Output terminal | 10 Ga |
| Working voltage | 9 - 15V |
| Signal-to-noise ratio | ��� 90 dB |
| Size (WxLxH) | 10.1 x 6 x 2.2 inch |
Why Choose This Product?
The MFA-4.180 gives you several documented ways to configure amplification: four channels at 2 or 4 ohms, or two bridged outputs at 4 ohms. Its adjustable low-pass and high-pass filters, with simultaneous operation supported, offer flexibility when setting up signal filtering for your system.
Installation & Compatibility Notes
Check your speaker impedance and planned wiring against the minimum load ratings: 2 ohms per channel or 4 ohms in a bridge connection. The stated working voltage is 9–15V. Allow for the amplifier’s listed dimensions of 10.1 x 6 x 2.2 inches when planning its mounting location.

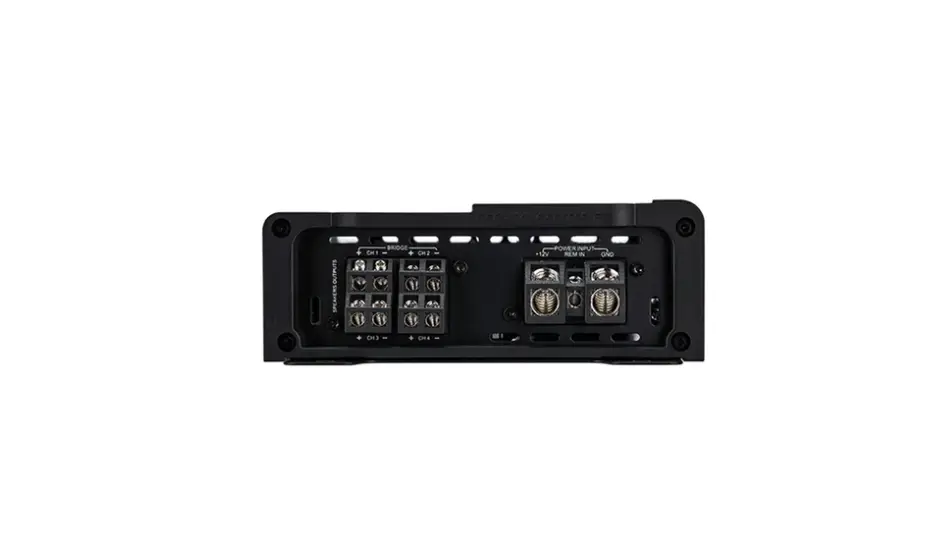

The specifications list 4 Ga input and 10 Ga output terminals. Confirm the installation and connection requirements for your system before fitting the amplifier.
Frequently Asked Questions
What is the MFA-4.180’s RMS power at 4 ohms?
It is rated at 180 W x 4 at 4 ohms and 14.4 V.
Can the amplifier be bridged?
Yes. Its listed bridged rating is 540 W x 2 at 4 ohms. The minimum permissible bridged load is 4 ohms.
What is the minimum load for each channel?
The minimum permissible load on a channel is 2 ohms.
What are the amplifier’s dimensions?
The listed size is 10.1 x 6 x 2.2 inches, measured as width x length x height.
Explore More
