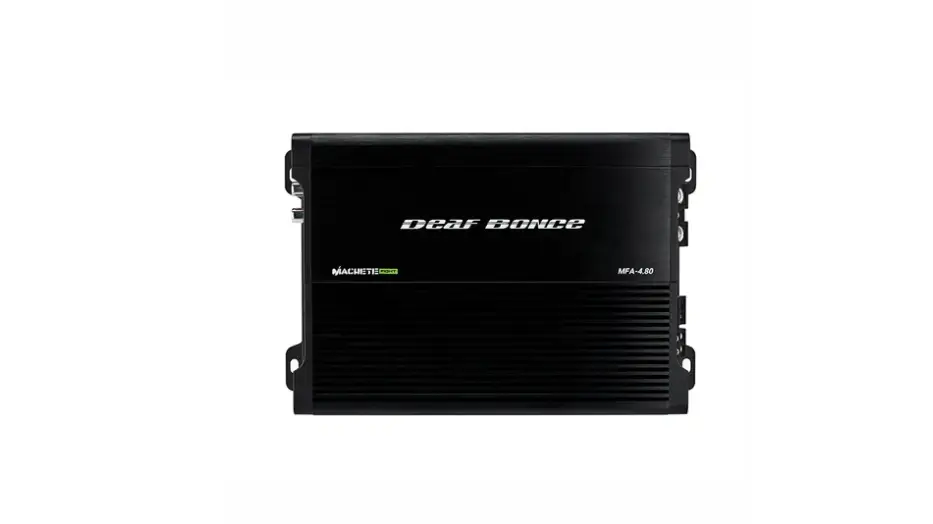

Deaf Bonce MACHETE MFA-4.80 | 80 Watt 4-channel amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 80 W
- RMS per channel at 2 ohms: 120 W
- Amplifier class: Class D
- Frequency response: 20 Hz - 20 kHz
- Crossover slope: 12 dB/octave
Deaf Bonce MACHETE MFA-4.80 | 80 Watt 4-channel amplifier is backordered and will ship as soon as it is back in stock.
Deaf Bonce MACHETE MFA-4.80 | 80 Watt 4-channel amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Deaf Bonce MACHETE MFA-4.80 is a four-channel Class D car audio amplifier for building a flexible multi-speaker system. It delivers 80 W x 4 RMS at 4 Ω, with higher output at 2 Ω and two bridged outputs for system designs that need a different channel arrangement.
Key Features & Benefits
- Four channels: Power multiple speakers from one amplifier in a front-and-rear setup.
- Selectable load ratings: The amplifier is rated for 120 W x 4 RMS at 2 Ω or 80 W x 4 RMS at 4 Ω, both at 14.4 V.
- Bridge power: Two bridged outputs provide 240 W x 2 RMS at 4 Ω.
- Adjustable filters: Low-pass and high-pass filters each cover 50–12000 Hz for tuning connected system components.
- Flexible input range: The 0.4–8 V input range supports integration with a range of head-unit and preamp outputs.
- Compact dimensions: Its 9.2 x 6 x 2.2 inch size helps with planning an installation where space is limited.
Technical Specifications
| Model | MFA-4.80 |
| Class | D |
| Number of the channels | 4 |
| Frequency response | 20-20000 Hz |
| 2 Ohm RMS Power (14.4 V) | 120 W x 4 |
| 4 Ohm RMS Power (14.4 V) | 80 W x 4 |
| 4 Ohm RMS Power (Bridge) | 240 W x 2 |
| Minimum permissible load on the channel | 2 Ohm |
| Minimum permissible load in a bridge connection | 4 Ohm |
| Input SPL | 0.4 - 8V |
| Low pass filter | 50-12000 Hz |
| High pass filter | 50-12000 Hz |
| LPF and HPF simultaneous operation | True |
| Crossover | 12 dB/Oct |
| Input terminal | 4 Ga |
| Output terminal | 10 Ga |
| Working voltage | 9 - 15V |
| Signal-to-noise ratio | ��� 90 dB |
| Size (WxLxH) | 9.2 x 6 x 2.2 inch |
Why Choose This Product?
The MFA-4.80 gives you four channels with multiple rated power options, so you can plan around the speaker loads in your system. Its bridge rating also offers another configuration option when two channels are paired.
The independently listed low-pass and high-pass ranges both span 50–12000 Hz, and the specifications state that they can operate simultaneously. That gives you crossover adjustment options within the amplifier when tuning your setup.
Installation & Compatibility Notes
Check each speaker load against the amplifier’s minimum ratings: 2 Ω per channel or 4 Ω in a bridged connection. Use the matching power rating for the load and operating configuration when planning your system.
Allow for the 9.2 x 6 x 2.2 inch chassis when choosing an installation location. The listed working voltage is 9–15V; confirm your vehicle’s electrical system and installation requirements before connecting the amplifier.
Frequently Asked Questions
How much power does the MFA-4.80 deliver?
It is rated at 120 W x 4 RMS at 2 Ω and 80 W x 4 RMS at 4 Ω, measured at 14.4 V. Its 4 Ω bridge rating is 240 W x 2 RMS.
What is the minimum speaker load?
The minimum permissible load is 2 Ω on a channel and 4 Ω for a bridged connection.
Can the low-pass and high-pass filters operate together?
Yes. The specifications list simultaneous LPF and HPF operation, with each filter adjustable from 50–12000 Hz.
What space should I allow for the amplifier?
The listed dimensions are 9.2 x 6 x 2.2 inches. Check the available mounting space against these measurements.
