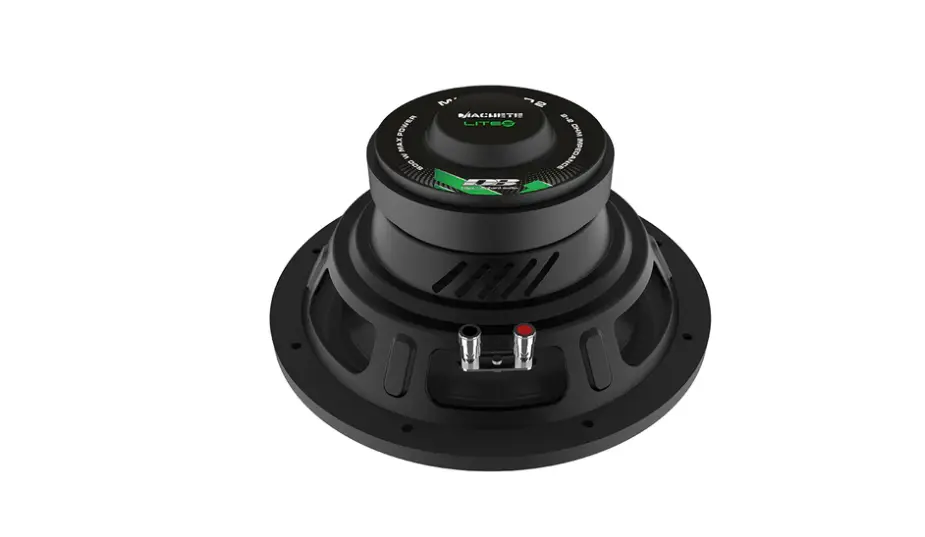

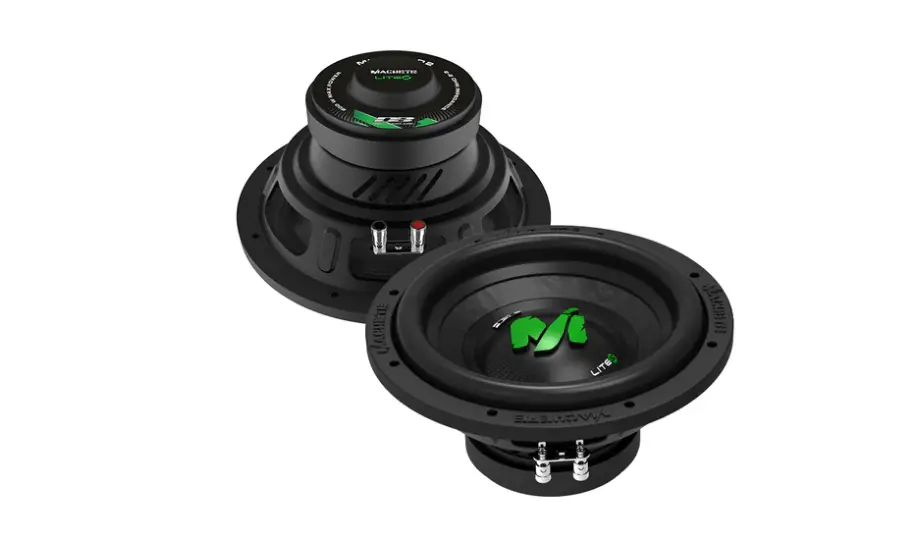

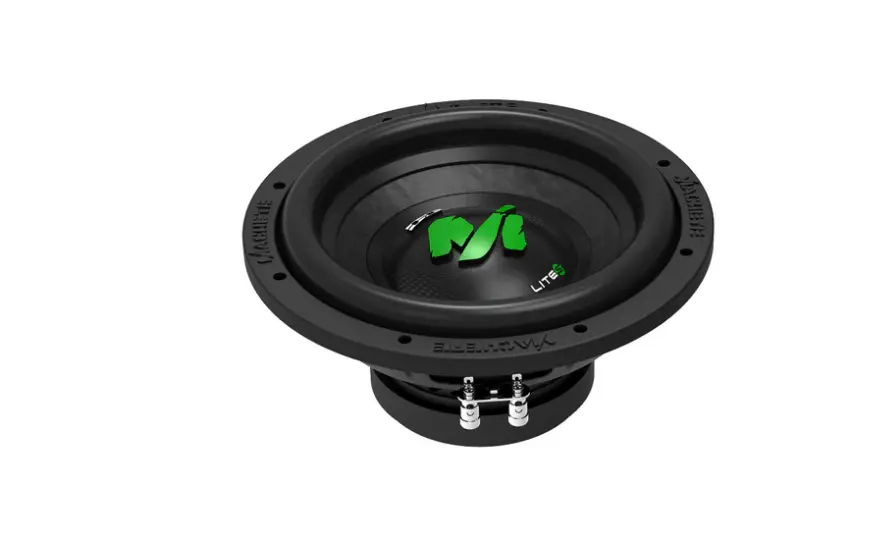

Deaf Bonce Machete ML-10S D2 10" 300W RMS Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 300 W
- Voice-coil options: D2
- Voice-coil diameter: 1.75 in
- Xmax: 10 mm
- Mounting depth: 116.3 mm
Deaf Bonce Machete ML-10S D2 10" 300W RMS Subwoofer is backordered and will ship as soon as it is back in stock.
Deaf Bonce Machete ML-10S D2 10" 300W RMS Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Deaf Bonce Machete ML-10S D2 10-inch subwoofer adds low-frequency output to a compatible car audio system. Its dual 2-ohm voice coils and 300 W RMS rating give you key details to consider when matching it with an amplifier.
Key Features & Benefits
- Dual 2-ohm voice coils: The 2+2-ohm design offers wiring options when matching the subwoofer to your amplifier.
- 300 W RMS power: Use the continuous power rating when assessing amplifier pairing.
- 10-inch driver: The stated diameter helps you compare it with available enclosure openings.
- Paper cone and foam surround: These materials make up the moving assembly that produces bass.
- Steel frame and ferrite magnet: These components form the subwoofer’s supporting frame and motor assembly.
- 10.00 mm Xmax: This excursion specification helps inform system and enclosure planning.
Technical Specifications
| Model | ML-10S D2 |
| Type | Subwoofer |
| Size | 10 inch |
| Voice coil size | 1.75 inch |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | Copper |
| Surround | Foam |
| RMS Power | 300 W |
| MAX Power | 600 W |
| Frame | Steel |
| Impedance | 2+2 Ohm |
| SPL | 85.9 dB |
| Fs | 39.7 Hz |
| Qts | 0.4 |
| BL | 16 |
| Vas | 16.2 L |
| Xmeh | 20.00 20.00 mm |
| Xmax | 10.00 mm |
| Mounting depth | (116.3 mm) |
| Cut-out dimension | (232 mm) |
| Gross weight | (4.60 kg) |
Why Choose This Product?
The ML-10S D2 combines a 10-inch size with a dual-coil configuration, so you can consider both enclosure space and amplifier load when planning your system. Its Fs, Qts, and Vas specifications also give you useful reference points when evaluating an enclosure design.
Installation & Compatibility Notes
Allow for a 232 mm cut-out and 116.3 mm mounting depth when checking enclosure clearance. Confirm that your amplifier supports the final load created by your chosen voice-coil wiring configuration.
Use the listed enclosure and driver specifications when assessing a box design. Check available space and mounting requirements before installation.
Frequently Asked Questions
What is the power rating of the ML-10S D2?
It is rated at 300 W RMS and 600 W MAX. Consider the RMS rating when assessing amplifier pairing.
What impedance does this subwoofer have?
It has dual 2-ohm voice coils, listed as 2+2 Ohm. Check your amplifier’s supported load before selecting a wiring configuration.
What cut-out and mounting depth should I allow?
The listed cut-out dimension is 232 mm, and the mounting depth is 116.3 mm. Check both against your enclosure before installation.
Which enclosure should I use?
The listed Fs, Qts, and Vas values can help inform enclosure planning. Assess them alongside your intended design and available space.
