Deaf Bonce Machete MLA-500.1 XS | 500 Watt Power Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 200.0 W
- RMS output at 2 ohms: 360 W
- RMS output at 1 ohm: 500 W
Deaf Bonce Machete MLA-500.1 XS | 500 Watt Power Amplifier is backordered and will ship as soon as it is back in stock.
Deaf Bonce Machete MLA-500.1 XS | 500 Watt Power Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Give your subwoofer its own 500-watt RMS channel with the Deaf Bonce Machete MLA-500.1 XS mono Class D car audio amplifier. Its 1 Ohm capability and adjustable low-pass and subsonic filters let you tailor bass for your subwoofer setup.
Key Features & Benefits
- 500 W RMS at 1 Ohm: Match the amplifier to a suitable 1 Ohm subwoofer load for its highest stated RMS output.
- Three load ratings: Choose from 500 W at 1 Ohm, 360 W at 2 Ohms, or 200 W at 4 Ohms, all measured at 14.4 V.

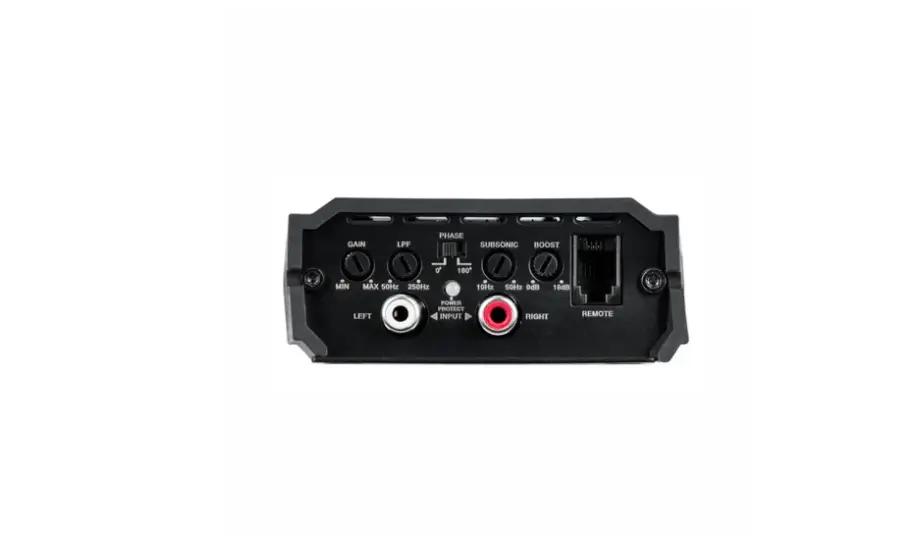

- Adjustable low-pass filter: Set the cutoff from 50 to 250 Hz to shape the upper range sent to the subwoofer.
- Subsonic filter: Adjust from 10 to 50 Hz to help limit ultra-low frequencies that can cause excessive cone movement.

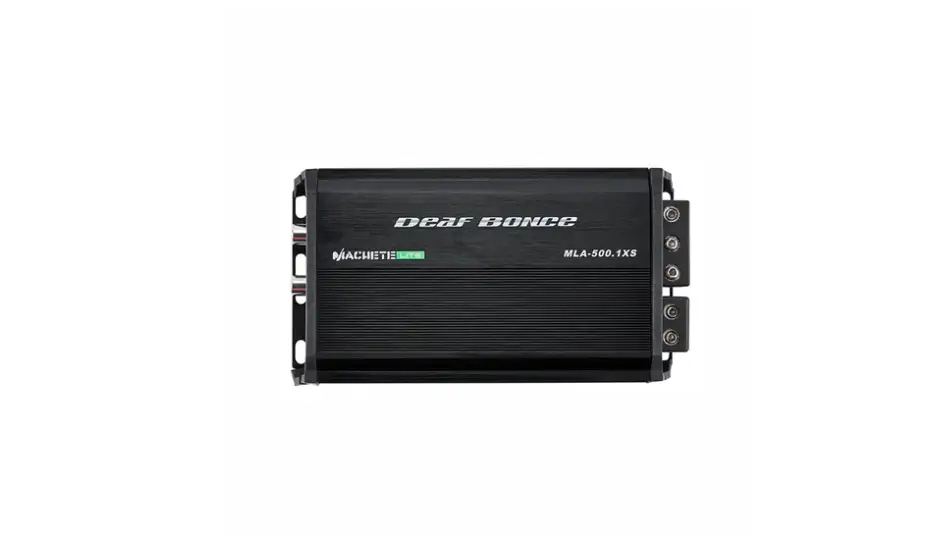

- Compact dimensions: The 6 x 3.2 x 1.4-inch chassis offers mounting flexibility in space-conscious installations.
Technical Specifications
| Model | MLA-500.1 XS |
| Class | D |
| Number of the channels | 1 |
| Frequency response | 10 - 250 Hz |
| 1 Ohm RMS Power (14.4 V) | 500 W |
| 2 Ohm RMS Power (14.4 V) | 360 W |
| 4 Ohm RMS Power (14.4 V) | 200 W |
| Minimum permissible load on the channel | 1 Ohm |
| Low pass filter | 50 - 250 Hz |
| Crossover | 12 dB/Oct |
| Subsonic filter | 10 - 50 Hz |
| Input terminal | 4 Ga |
| Output terminal | 8 Ga |
| Working voltage | 9 - 15 V |
| Signal-to-noise ratio | ��� 100 dB |
| Size (WxLxH) | 6 x 3.2 x 1.4 inch |
Why Choose This Product?
The MLA-500.1 XS is built around a single subwoofer channel, with output ratings for 1, 2, and 4 Ohm loads. Its Class D design is described as a high-efficiency switching design that minimizes heat and power draw, while its compact chassis suits installations where mounting space is limited.
Use the adjustable filters to shape the bass signal for your subwoofer and listening space. The stated 12 dB/Oct crossover gives the low-pass filter a defined roll-off.
Installation & Compatibility Notes

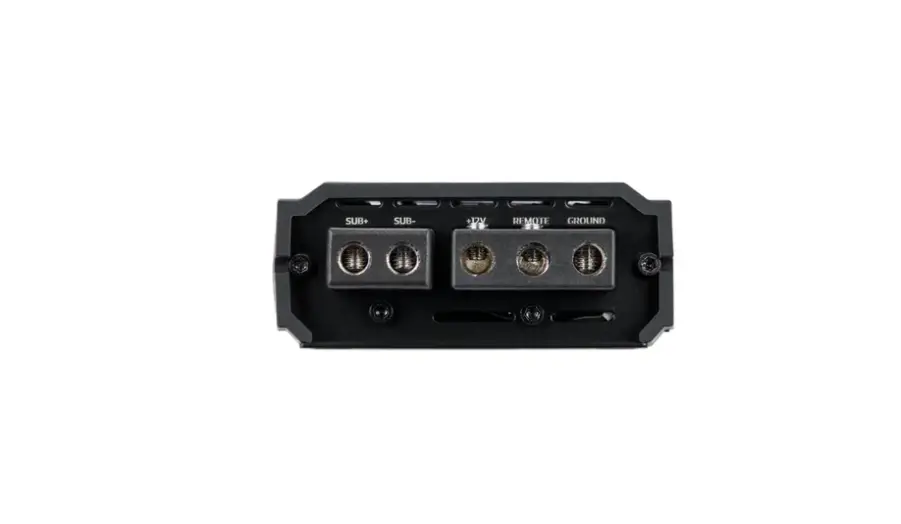

Plan your wiring around the amplifier’s minimum permissible 1 Ohm load, 4 Ga input terminal, and 8 Ga output terminal. Confirm that your subwoofer configuration presents a supported load before connecting it.
Check that the mounting area can accommodate the 6 x 3.2 x 1.4-inch amplifier and that the vehicle’s working voltage falls within 9 - 15 V.
Frequently Asked Questions
How much power does the MLA-500.1 XS deliver?
Its ratings are 500 W RMS at 1 Ohm, 360 W RMS at 2 Ohms, and 200 W RMS at 4 Ohms, each at 14.4 V.
What is the minimum load for this amplifier?
The minimum permissible channel load is 1 Ohm. Make sure your subwoofer wiring presents a load of at least 1 Ohm.
Can I adjust the bass filtering?
Yes. The low-pass filter adjusts from 50 to 250 Hz, and the subsonic filter adjusts from 10 to 50 Hz.
What are the amplifier’s dimensions?
It measures 6 x 3.2 x 1.4 inches (width x length x height).
