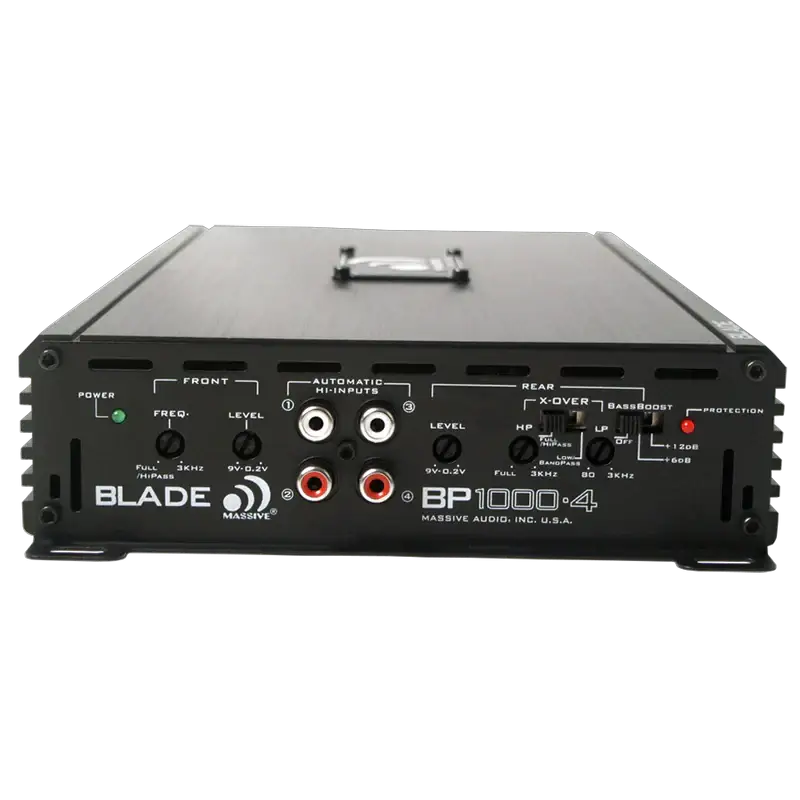

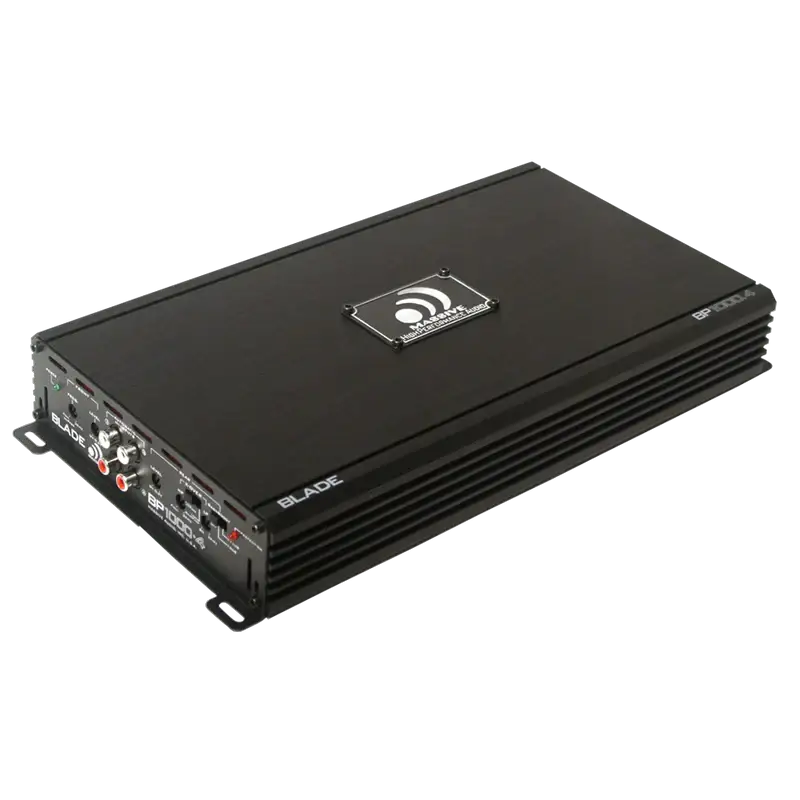

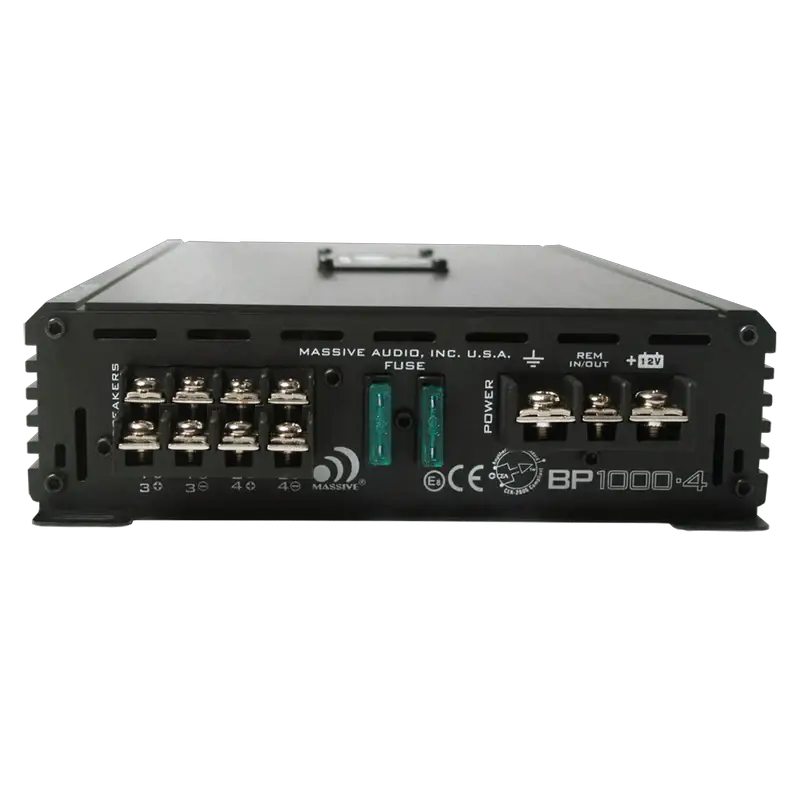

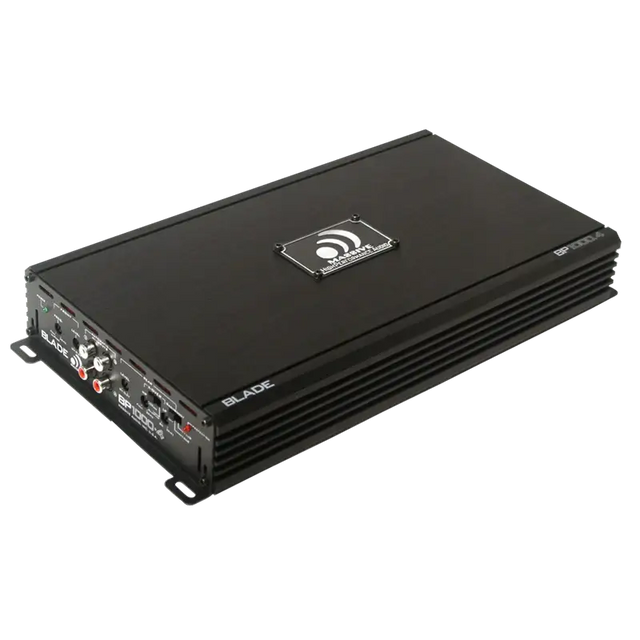

Massive Audio BP1000.4v2 4-Channel Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 80 W
- RMS per channel at 2 ohms: 160 W
- Frequency response: 10 Hz–35 kHz
- Input level: 0.2–9 V
- Turn-on: DC-offset sensing with high-level inputs
Massive Audio BP1000.4v2 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Massive Audio BP1000.4v2 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a four-speaker system with the Massive Audio BP1000.4v2 4-channel amplifier, rated at 160W RMS per channel at 2 ohms. Its built-in OEM line converter accepts high-level signals, helping integrate the amplifier with a factory radio.
Key Features & Benefits
- Four-channel output: Choose 160W RMS per channel at 2 ohms or 80W RMS per channel at 4 ohms for your speaker setup.
- Bridged rating: The 4-ohm bridged rating is 320W x 2 for supported bridged applications.
- Factory-radio integration: The 0.2–9.0V input level and built-in OEM line converter support high-level signal connections.
- Adjustable sound: Set bass boost from 0–12dB at 45Hz and use the 50Hz–750Hz low-pass crossover to tailor output.
- Automatic integration features: Auto turn-on with DC offset sensing and a 12V remote output support system integration.
Technical Specifications
| Peak Output Power @ 14.4V | 250W x 4 |
| 1 Ohm RMS | N/A |
| 2 Ohm RMS | 160W x 4 |
| 4 Ohm RMS | 80W x 4 |
| 4 Ohm Bridged | 320W x 2 |
| Input Level | 0.2~9.0v |
| Freq. Response | 10Hz~35KHz |
| THD at 4 Ohm Load 30% Rated Power | <0.05% |
| S/N Ratio | >90dB |
| BassBoost | 0~12dB (45Hz) |
| Minimum Load | 2 Ohm Stereo |
| Gain Remote | n/a |
| Dimension | 2"H x 7.1"W x 12.6"L |
Why Choose This Product?
The BP1000.4v2 gives you options for a four-speaker setup or a bridged configuration, with ratings specified for 2-ohm and 4-ohm loads. Its low-pass crossover and adjustable bass boost let you shape the output to suit your system plan.
The 10Hz–35kHz frequency response and <0.05% THD at a 4-ohm load and 30% rated power describe its stated audio performance. The compact chassis measures 2"H x 7.1"W x 12.6"L.
Installation & Compatibility Notes
Plan your speaker configuration around the 2-ohm stereo minimum load and the amplifier’s listed power ratings. For bridged operation, consult the product documentation for the correct connections and supported load.
The built-in line converter accepts high-level signals from factory radios. Check available mounting space against the amplifier’s dimensions before installation.
Frequently Asked Questions
How much RMS power does the BP1000.4v2 deliver?
It is rated at 160W x 4 at 2 ohms and 80W x 4 at 4 ohms. Peak output at 14.4V is 250W x 4.
Can this amplifier connect to a factory radio?
Yes. Its built-in OEM line converter accepts high-level signals, and its input level is 0.2~9.0v.
What is the 4-ohm bridged rating?
The listed rating is 320W x 2 at 4 ohms bridged. Check the product documentation for the correct connection method.
What space should I allow for installation?
The amplifier measures 2"H x 7.1"W x 12.6"L. Check the available mounting area against these dimensions.
