Massive Audio CT1X 25mm Silk-Dome Tweeter and Crossover Kit, Pair
Key features
- 25 mm silk domes: Silk diaphragms with ferrofluid cooling form the tweeter drivers.
- Adjustable attenuation: Set tweeter output to better suit your installation.
- Dedicated crossovers: The included 12 dB crossover networks support integration with compatible midrange speakers.
- Compact driver assembly: Chrome chambers and neodymium magnets are part of the tweeter design.
- Flexible mounting: Install the tweeters flush or behind a panel, subject to available clearance.
- Included mounting details: Removable grilles and trim rings, plus screw terminals, are part of the kit.
Massive Audio CT1X 25mm Silk-Dome Tweeter and Crossover Kit, Pair is backordered and will ship as soon as it is back in stock.
Massive Audio CT1X 25mm Silk-Dome Tweeter and Crossover Kit, Pair is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

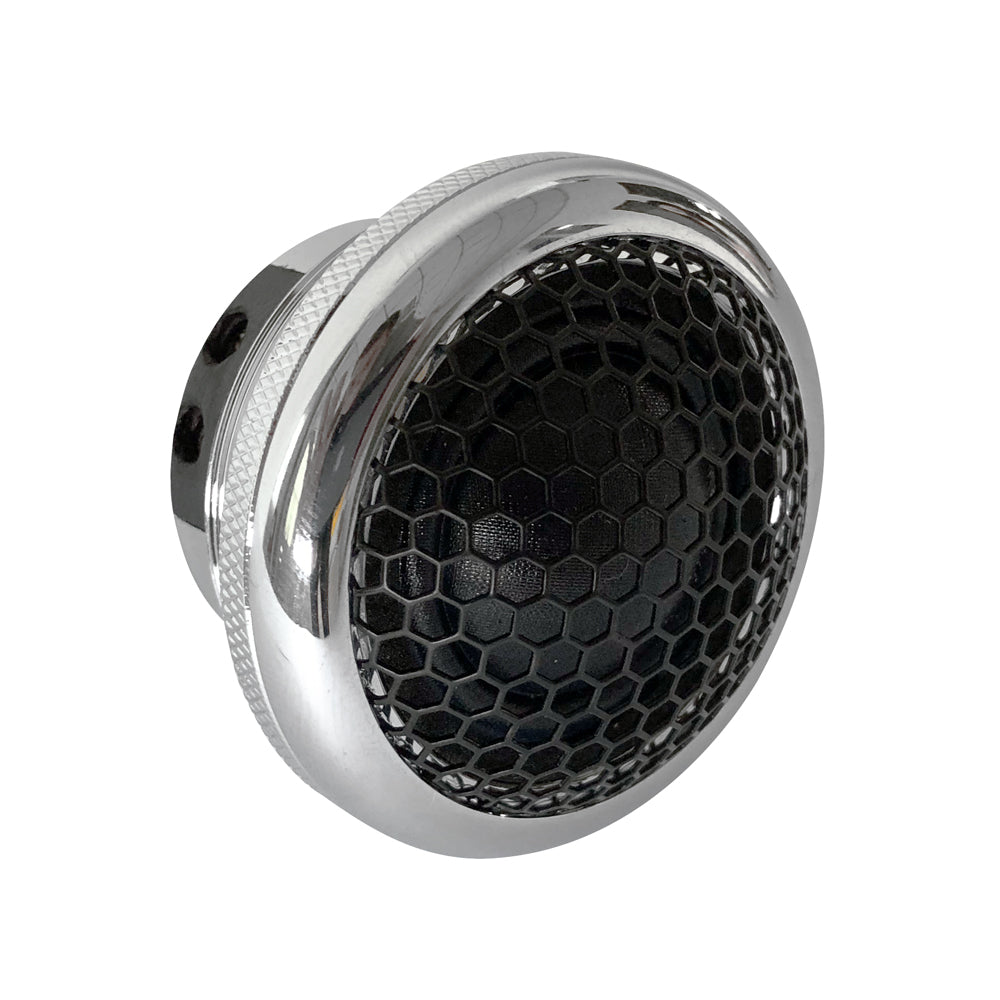

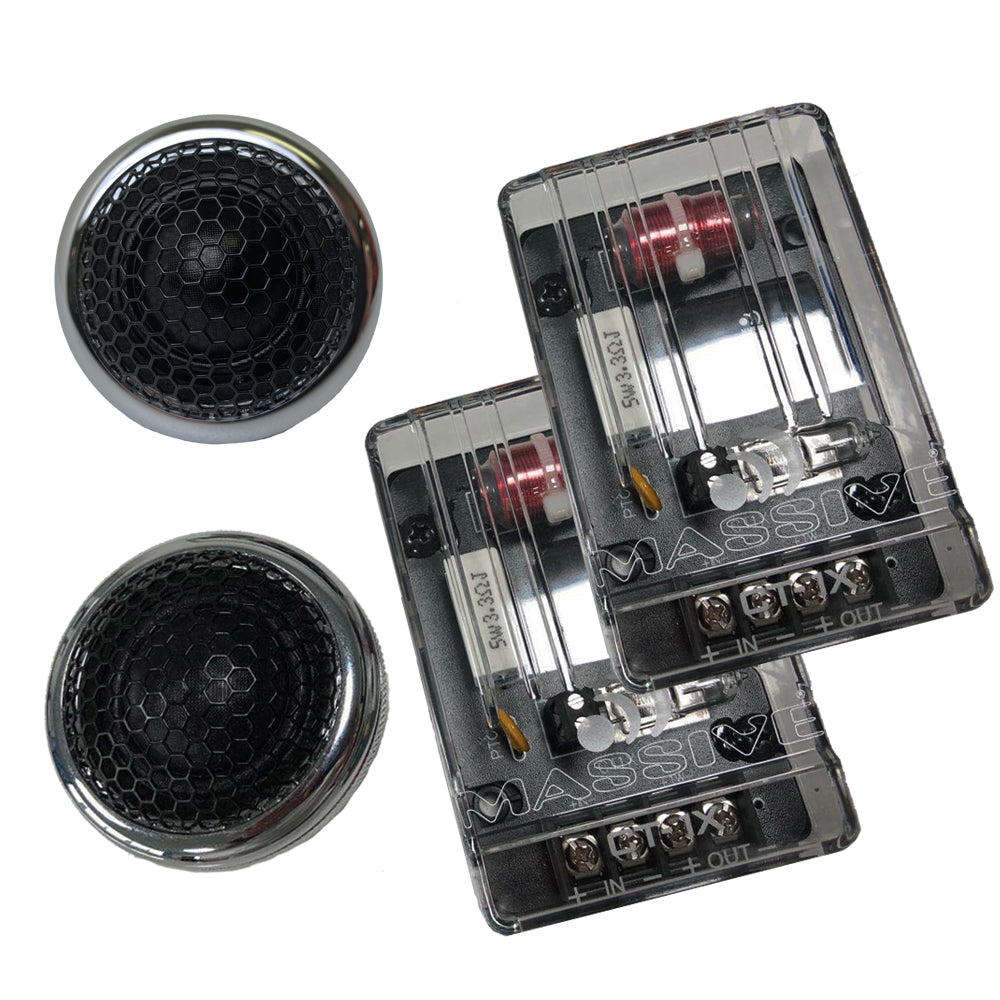

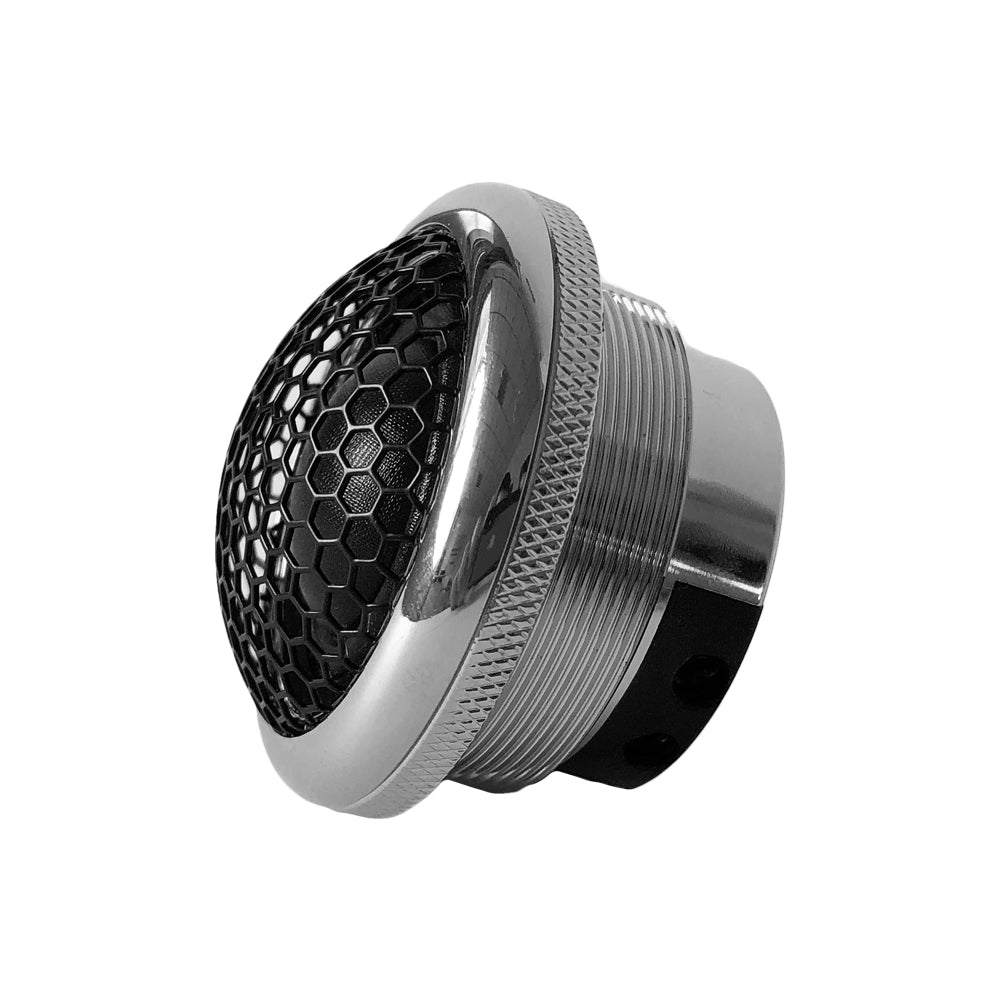

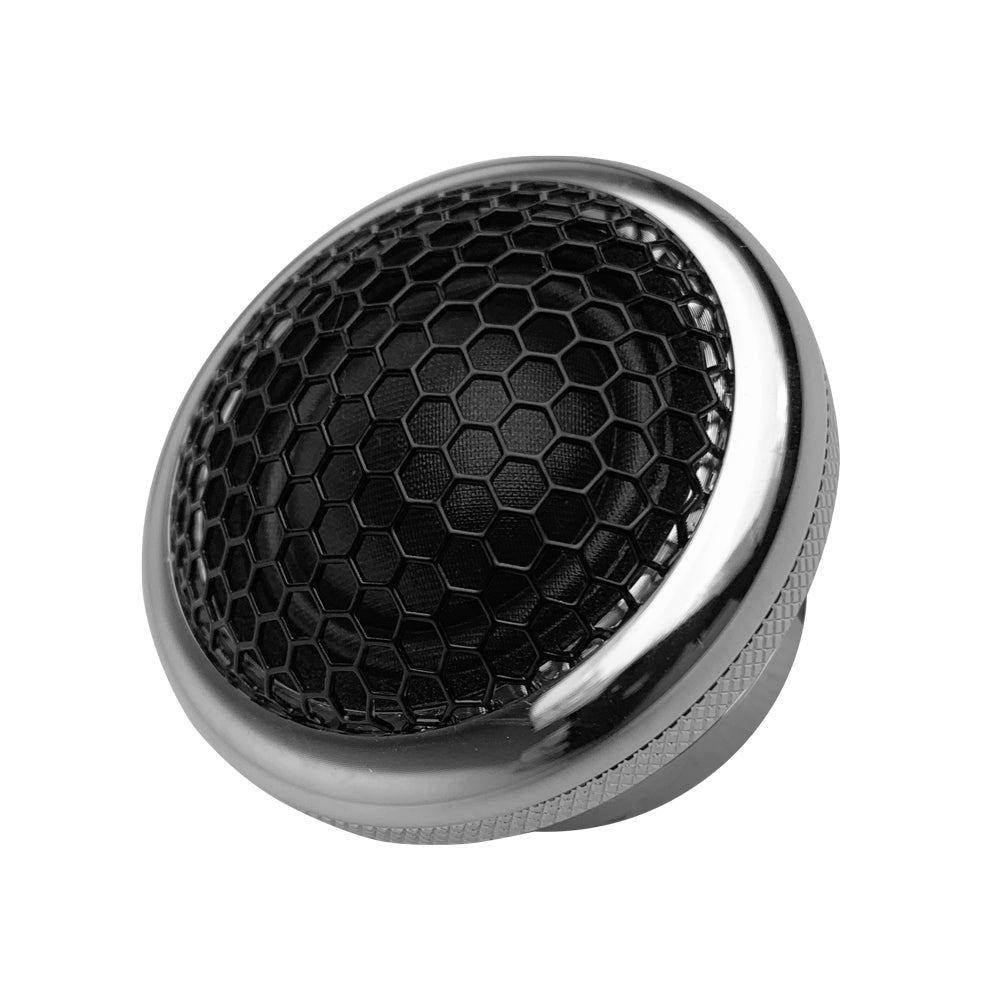

Add high-frequency detail to a compatible audio system with the Massive Audio CT1X 25mm silk-dome tweeter and crossover kit. The pair includes dedicated 12 dB crossovers with adjustable tweeter attenuation to help match output to your installation.
Key Features & Benefits
- 25 mm silk domes: Silk diaphragms with ferrofluid cooling form the tweeter drivers.
- Adjustable attenuation: Set tweeter output to better suit your installation.
- Dedicated crossovers: The included 12 dB crossover networks support integration with compatible midrange speakers.
- Compact driver assembly: Chrome chambers and neodymium magnets are part of the tweeter design.
- Flexible mounting: Install the tweeters flush or behind a panel, subject to available clearance.
- Included mounting details: Removable grilles and trim rings, plus screw terminals, are part of the kit.
Technical Specifications
| Package | Two tweeters with crossovers |
|---|---|
| Dome size | 25 mm |
| Impedance | 4 ohms |
| Power handling | 50 W RMS per tweeter; 100 W RMS per pair; 300 W peak per pair |
| Frequency range | 1.3 kHz–20 kHz |
| Sensitivity | 92 dB |
| Flush mounting depth | 1.25 inches |
| Diaphragm and cooling | Silk diaphragms with ferrofluid cooling |
| Crossover | 12 dB crossovers with attenuation settings |
| Installation options | Flush or behind-panel installation |

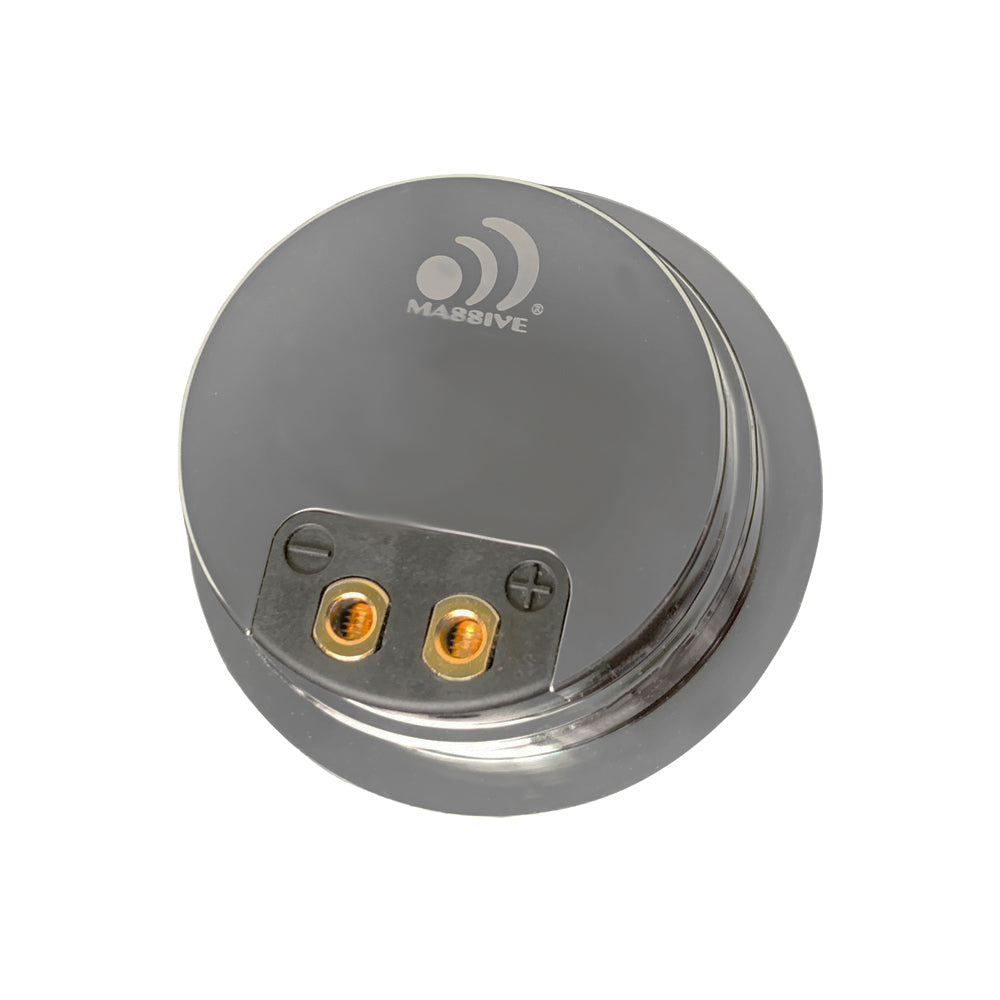

| Other included features | Removable grilles and trim rings; screw terminals |
| Driver assembly | Chrome chambers and neodymium magnets |
Why Choose This Product?
The CT1X combines a matched pair of silk-dome tweeters with dedicated crossover networks in one kit. Adjustable attenuation gives you a way to match tweeter output to your installation, while the flush or behind-panel mounting options support different placement plans.
Installation & Compatibility Notes
Use the supplied crossover network when integrating these tweeters with compatible midrange speakers. Check the available mounting clearance before installation; flush mounting depth is 1.25 inches. The source lists a 4-ohm impedance and power ratings for each tweeter and the pair, so match your system to the appropriate rating.
Frequently Asked Questions
What is included in the CT1X kit?
The package includes two tweeters with crossovers. The tweeters also have removable grilles and trim rings, and use screw terminals.
How should I interpret the power ratings?
Each tweeter is rated at 50 W RMS. The pair is rated at 100 W RMS and 300 W peak.
What mounting depth should I allow for?
The listed flush mounting depth is 1.25 inches. Check the available clearance for your chosen installation location.
Can I install these tweeters with midrange speakers?
Use the supplied crossover network when integrating the tweeters with compatible midrange speakers.
