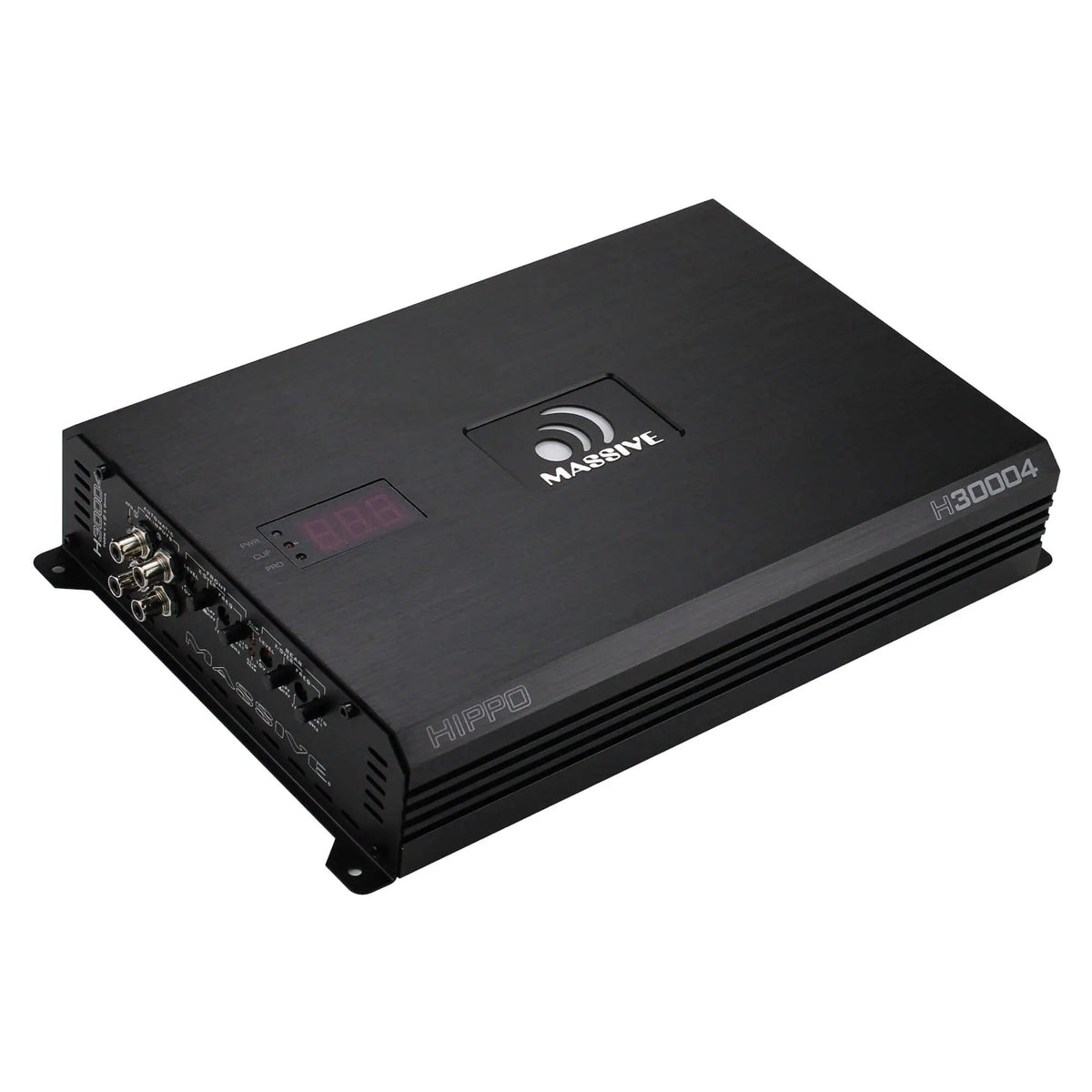

Massive Audio H30004 Hippo 4-Channel Amplifier
Key features
- 2 Ohm RMS: 700w x 4
- 4 Ohm RMS: 500w x 4
- 4 Ohm Bridged: 1400w x 2
- Input Level: 0.3 ~ 7V (High or Low)
- Freq. Response: 10Hz ~ 20KHz
- SubSonic (HPF): N/A
Massive Audio H30004 Hippo 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Massive Audio H30004 Hippo 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add four amplified channels to your car audio system with the Massive Audio H30004 Hippo 4-Channel Amplifier. It delivers 700W RMS per channel at 2 ohms or 500W RMS per channel at 4 ohms, with a digital voltage display and built-in crossover controls.
Key Features & Benefits
- Four-channel output: Separate amplified channels let you power speakers through one amplifier.

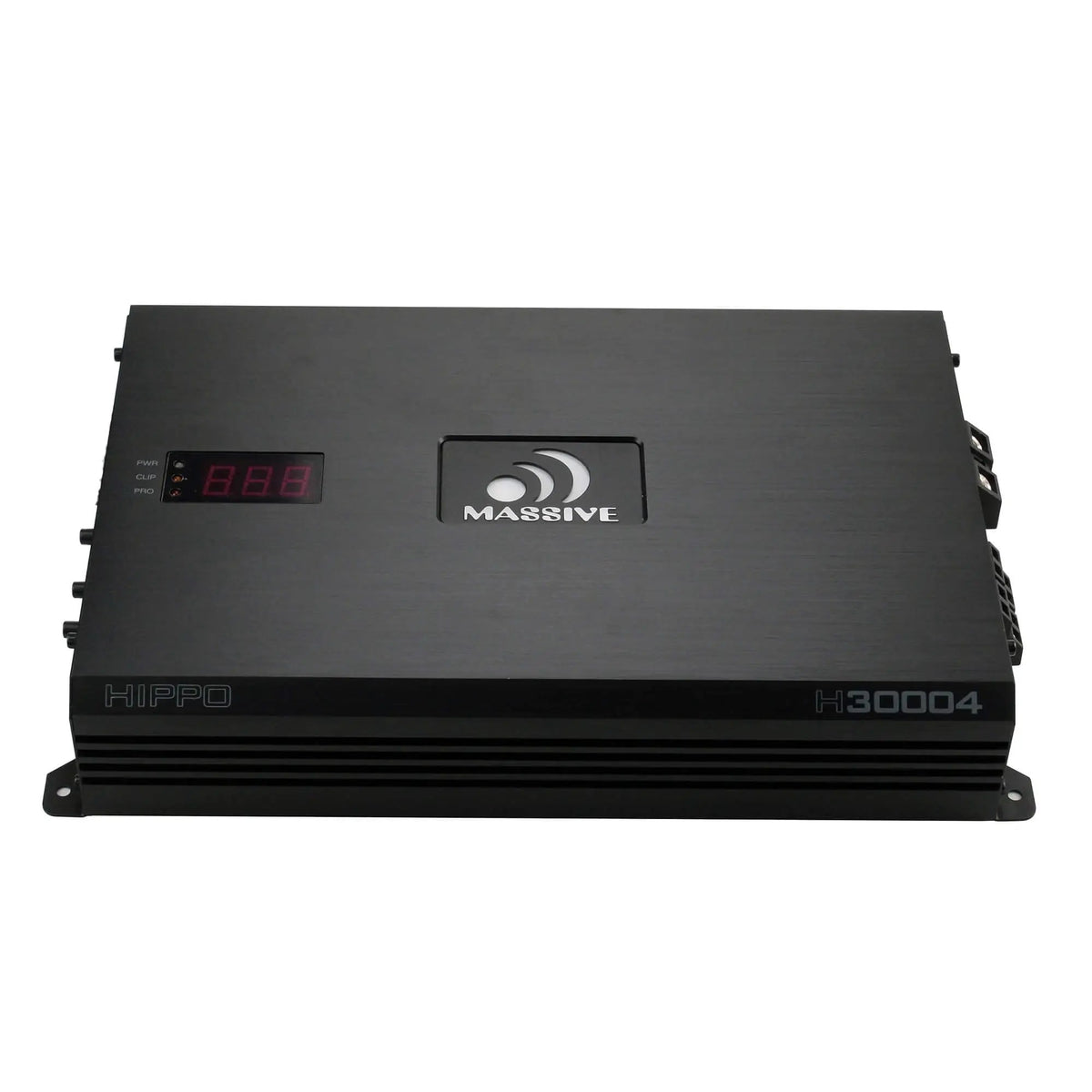

- Digital voltage display: The display includes PWR, CLIP, and PROTECT indicators for at-a-glance status.
- High- and low-level inputs: The 0.3 ~ 7V input range supports either input level.

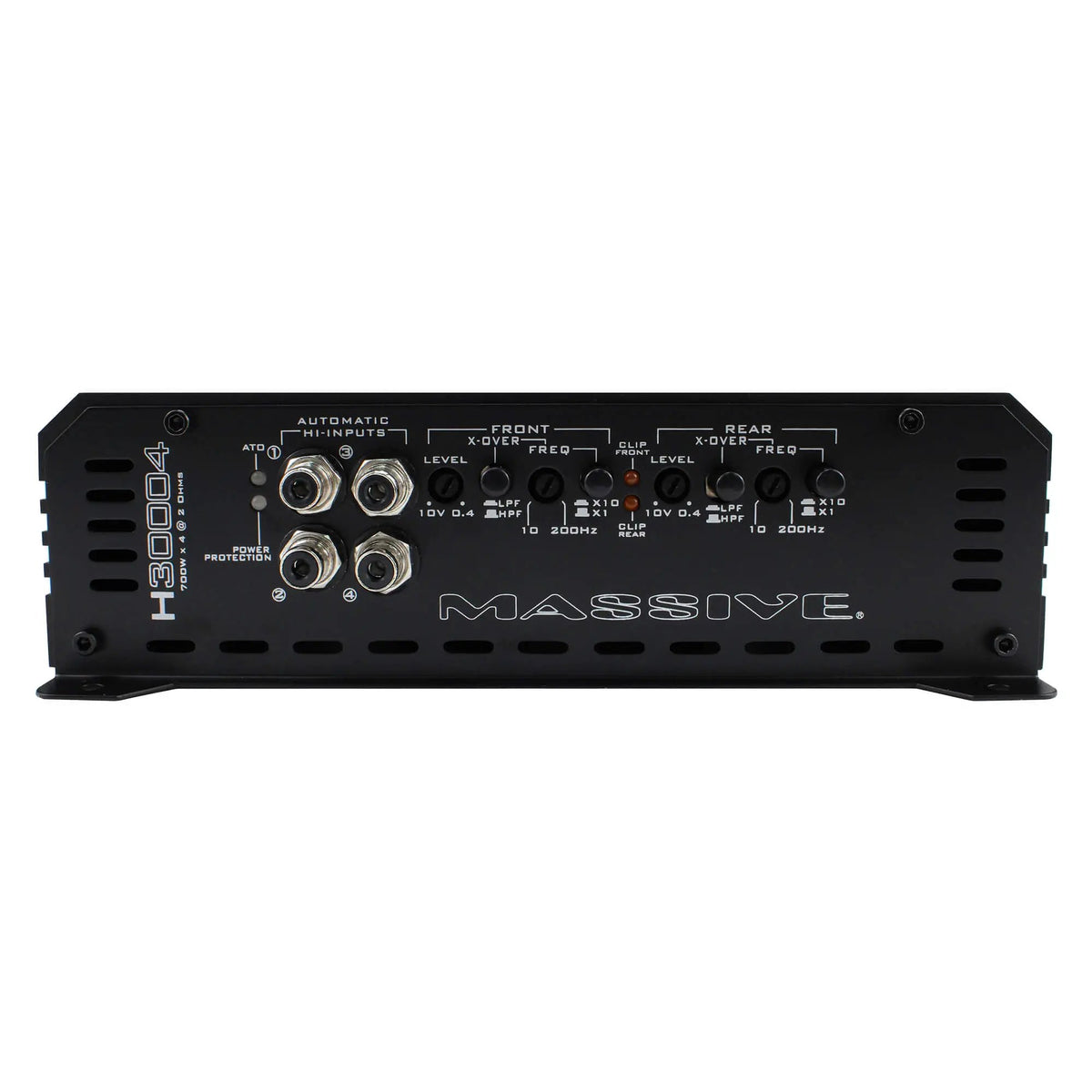

- Hi-input functions: Auto-sensing turn-on and a 12V remote output for external devices are available with Hi-Inputs.
- Built-in circuitry: Noise reduction circuitry and next-generation five-way protection circuitry are included.
- Illuminated logo: Adds a visible accent to the amplifier.
Technical Specifications
| Specification | Value |
|---|---|

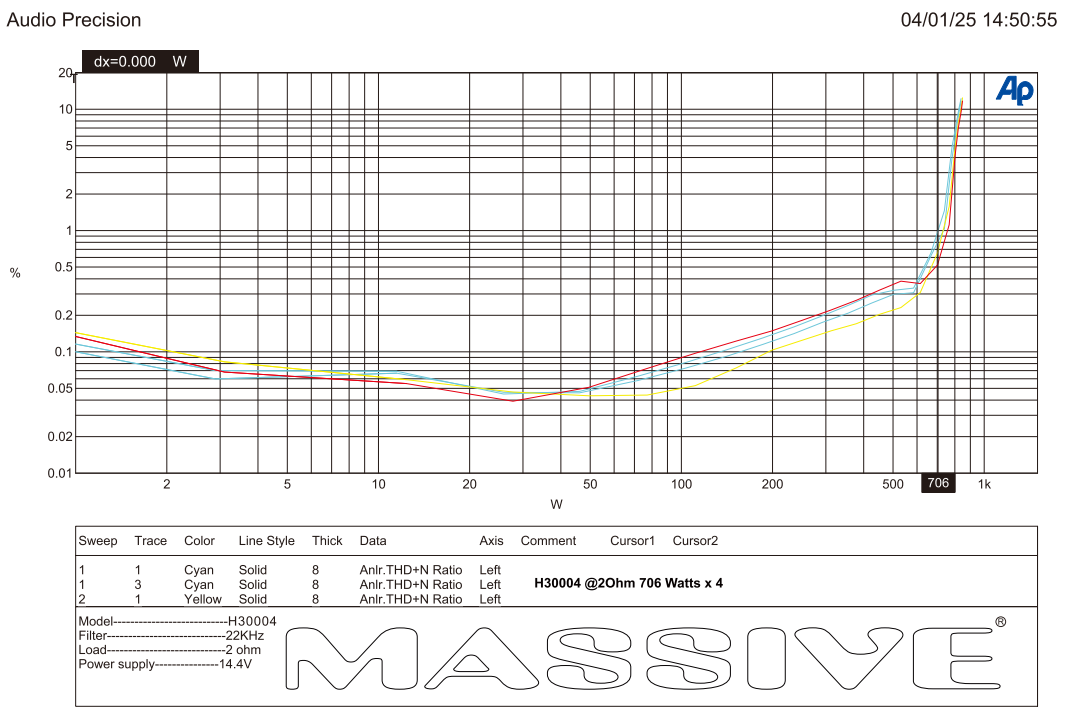

| 2 Ohm RMS | 700w x 4 |

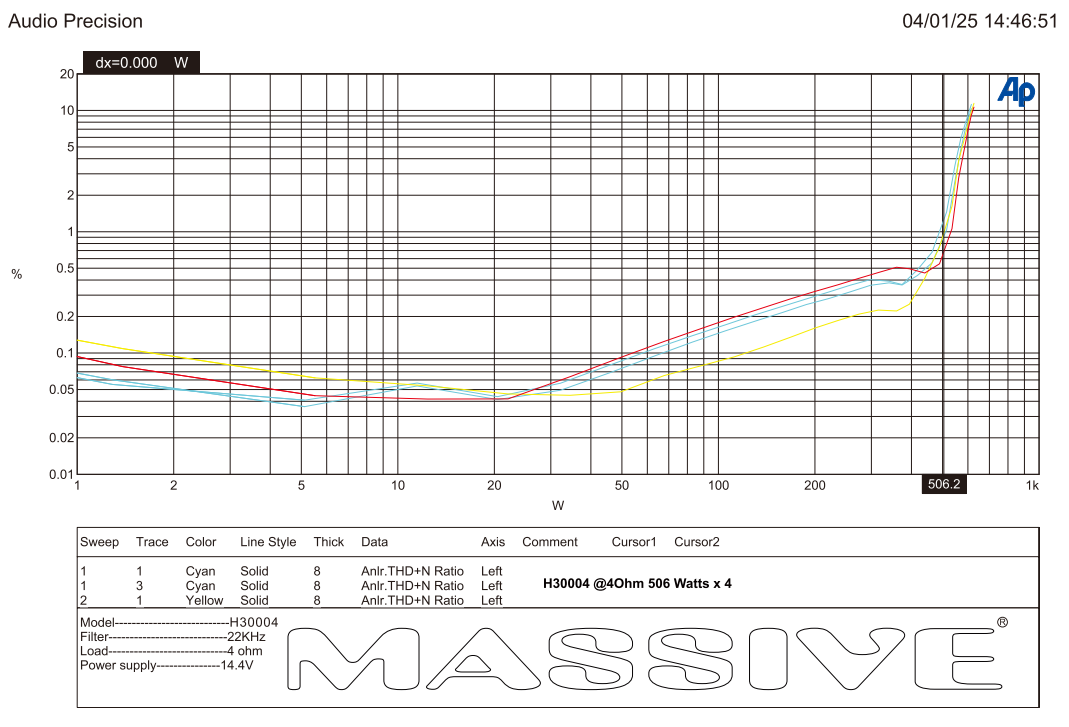

| 4 Ohm RMS | 500w x 4 |
| 4 Ohm Bridged | 1400w x 2 |
| Input Level | 0.3 ~ 7V (High or Low) |

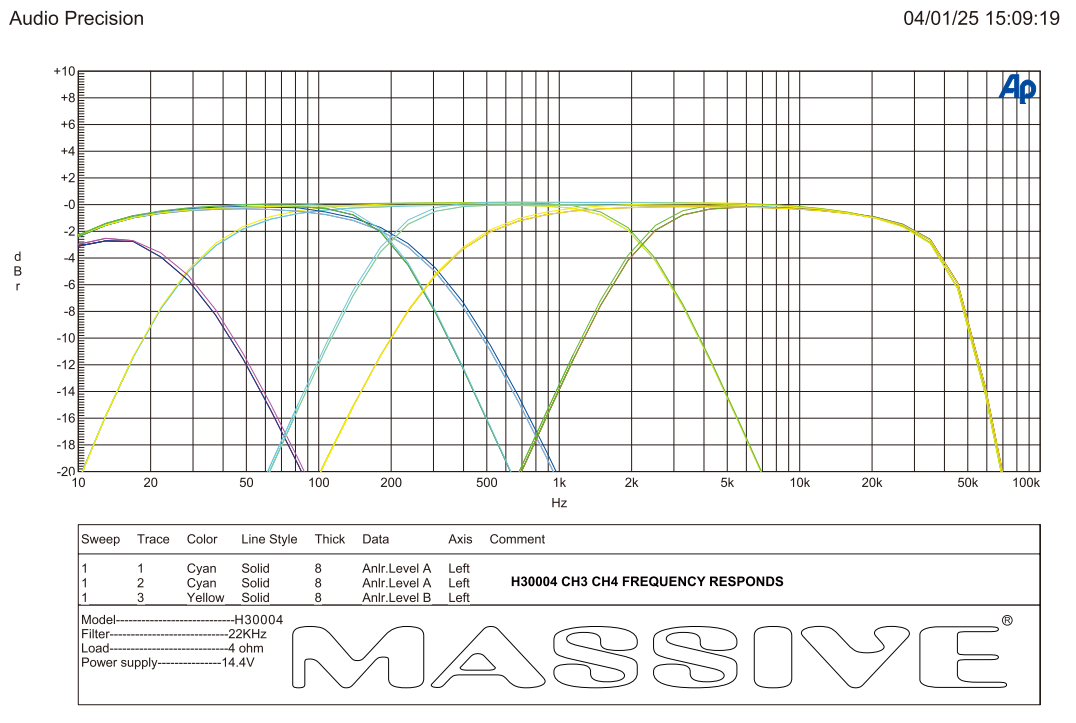

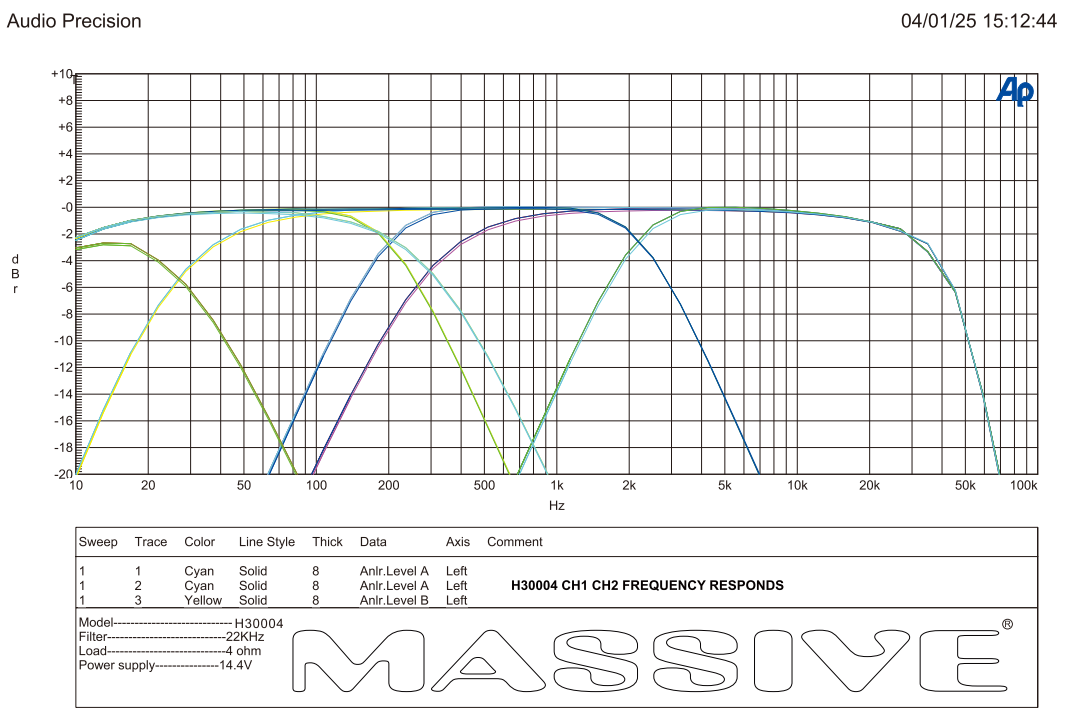

| Freq. Response | 10Hz ~ 20KHz |
| SubSonic (HPF) | N/A |
| THD at 4 Ohm | <0.1% |
| S/N Ratio | 93dB |
| Bass Boost | N/A |
| Minimum Load | 2 Ohm |
| Gain Remote | n/a |
| Dimensions | 11.53 (in) x 7.95 (in) x 2.22 (in) |
Additional features include full-range digital operation, full-bandwidth sound-quality tuning, and full MOSFET construction with high-grade switching devices.
Why Choose This Product?
The H30004 combines four-channel amplification with ratings for 2-ohm and 4-ohm loads. Its input-level range, voltage display, and onboard indicators give you useful details to consider when selecting and setting up an amplifier for your system.
Installation & Compatibility Notes
Check that your planned mounting space can accommodate the amplifier’s 11.53 (in) x 7.95 (in) x 2.22 (in) dimensions. Confirm that the connected load meets the 2 Ohm minimum load specification.
The amplifier accepts high- or low-level input from 0.3 ~ 7V. Auto-sensing turn-on and the 12V remote output for external devices are specified for Hi-Inputs.
Frequently Asked Questions
What is the RMS output at 2 ohms and 4 ohms?
The listed ratings are 700w x 4 at 2 Ohm RMS and 500w x 4 at 4 Ohm RMS.
What is the bridged output rating?
The specification lists 1400w x 2 at 4 Ohm Bridged.
Can I use high-level or low-level inputs?
Yes. The listed input level is 0.3 ~ 7V (High or Low).
What are the amplifier’s dimensions?
It measures 11.53 (in) x 7.95 (in) x 2.22 (in). Compare these dimensions with your intended mounting space.
