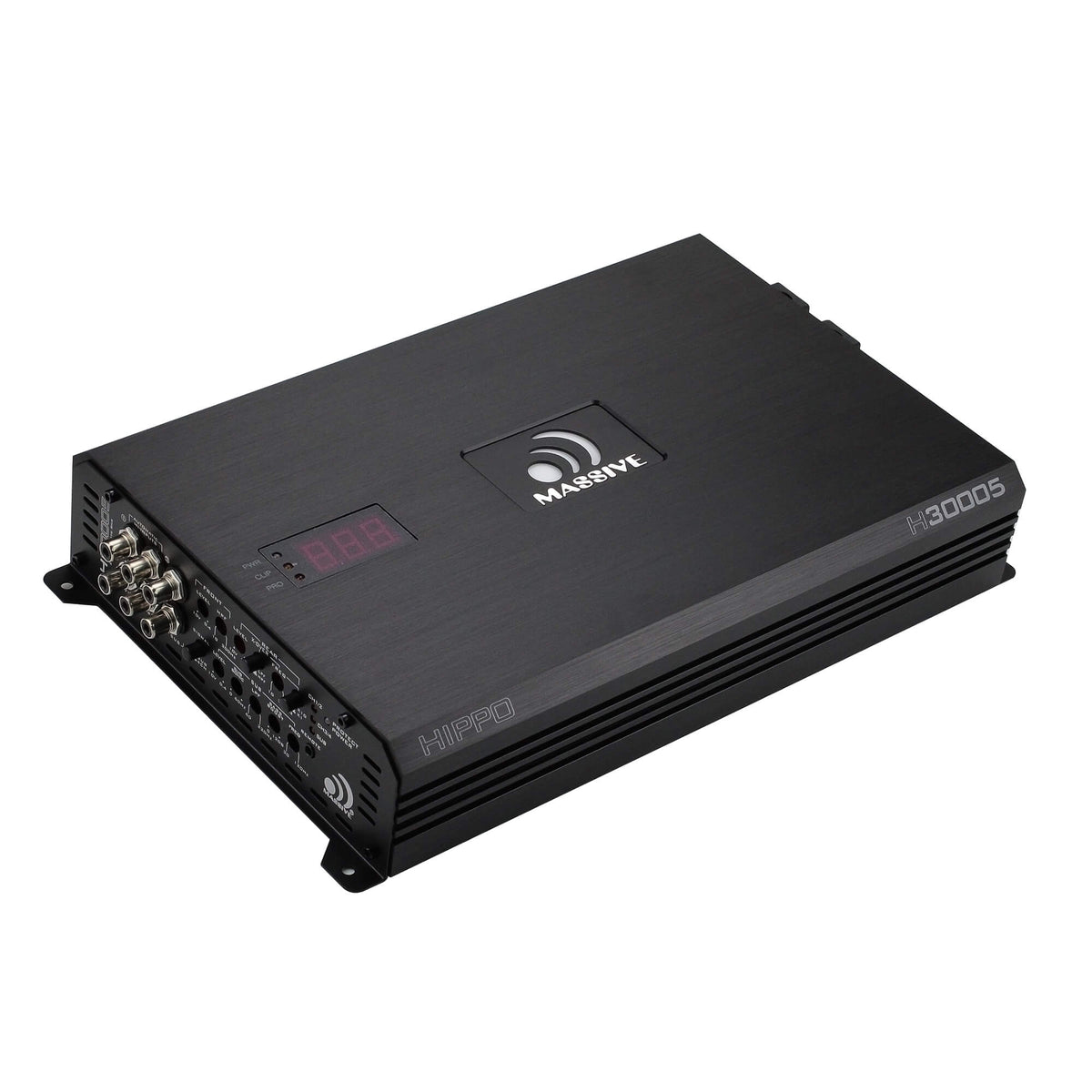

Massive Audio H30005 Hippo 5-Channel Amplifier
Key features
- 2 Ohm RMS: 308w x 4 + 1034w x 1
- 4 Ohm RMS: 202w x 4 + 596w x 1
- 1 Ohm RMS: N/A x 4 + 1515w x 1
- Input Level: 0.3 ~ 7V (High or Low)
- Freq. Response: 10Hz ~ 20KHz
- THD at 4 Ohm: <0.1%
Massive Audio H30005 Hippo 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Massive Audio H30005 Hippo 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Power four speakers and a subwoofer from one car audio amplifier with the Massive Audio H30005 Hippo 5-channel amplifier. Its published RMS ratings vary by load, and its digital voltage display includes power, clip, and protect indicators to help you monitor operation.
Key Features & Benefits

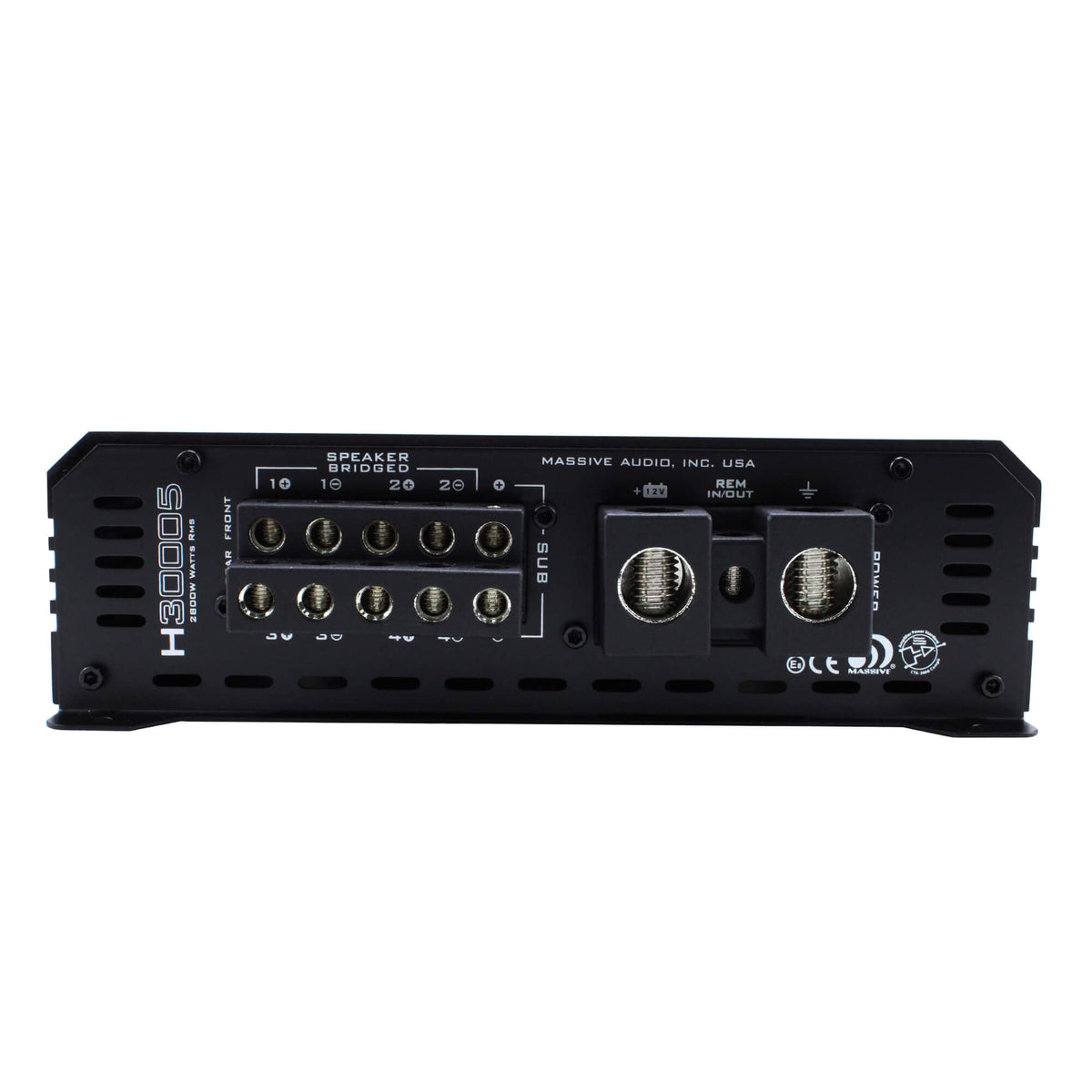

- Five-channel design: Separate speaker and subwoofer channels let you build a complete system around one amplifier.

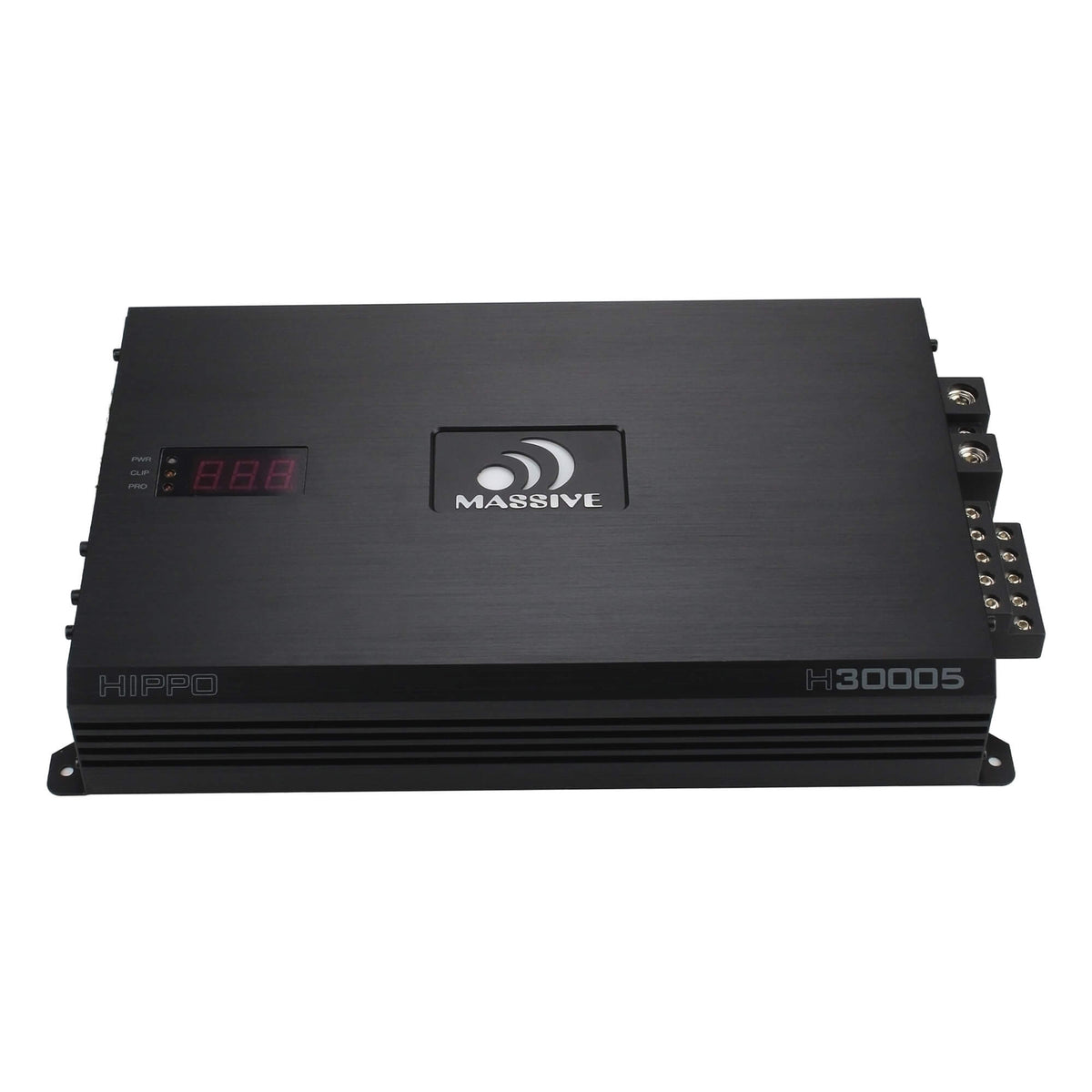

- Digital voltage display: PWR, CLIP, and PROTECT indicators make amplifier status easy to check.

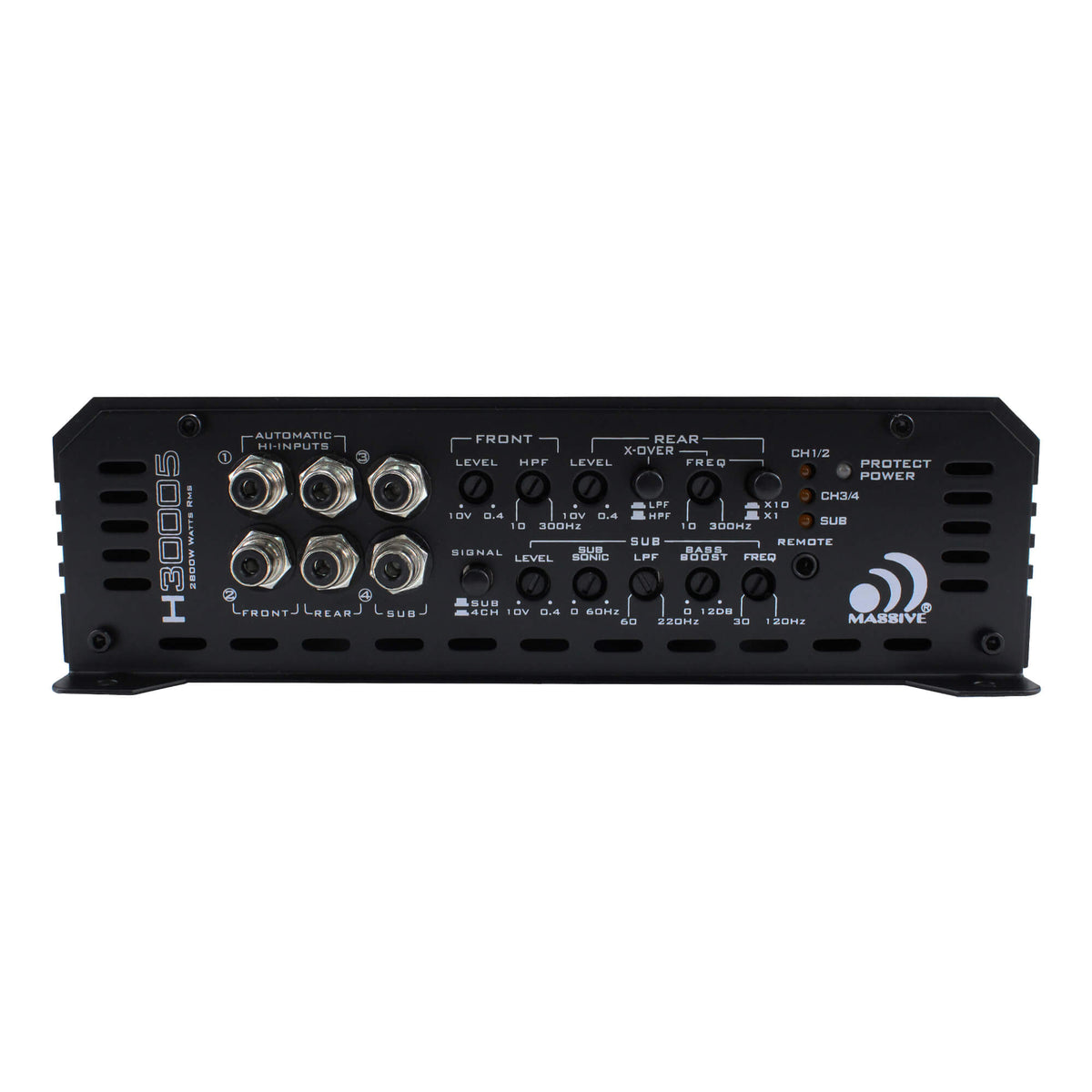

- High- or low-level inputs: The 0.3 ~ 7V input range supports either input type.
- Hi-input turn-on features: Auto sensing and a 12V remote output support connections to external devices.
- Built-in circuitry: Noise reduction, full MOSFET switching devices, and advanced 5-way protection are included.

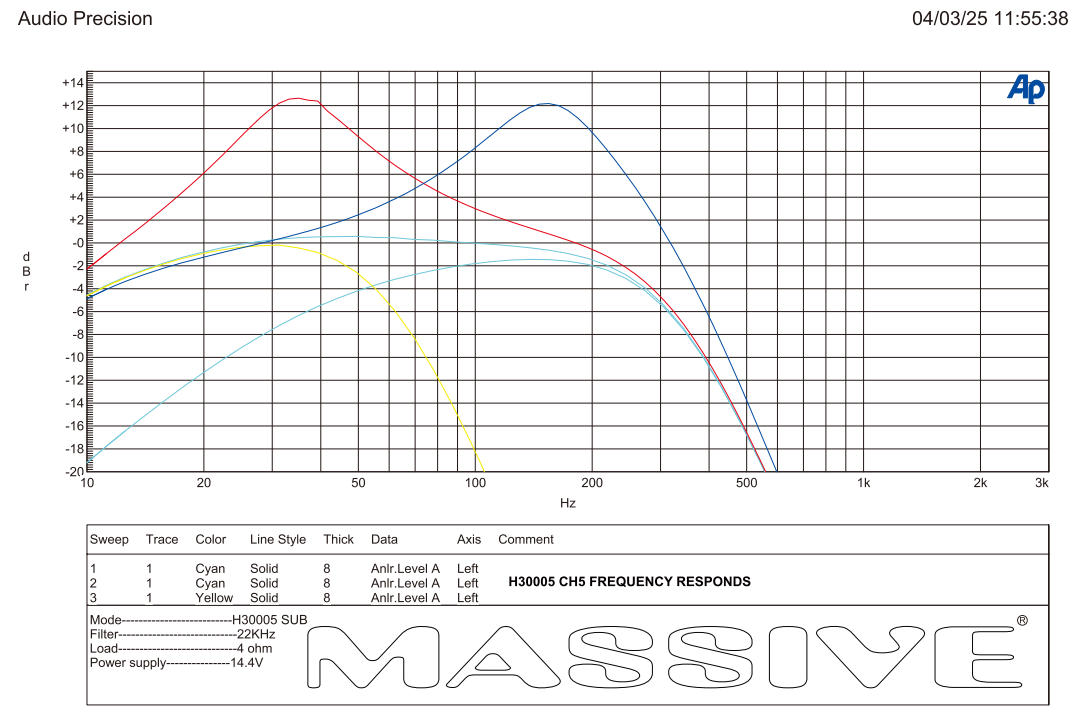

- Sound adjustment: Full-bandwidth tuning and 30Hz - 120Hz bass boost give you adjustment options for your system.
Technical Specifications
| Specification | Value |
|---|---|
| 2 Ohm RMS | 308w x 4 + 1034w x 1 |

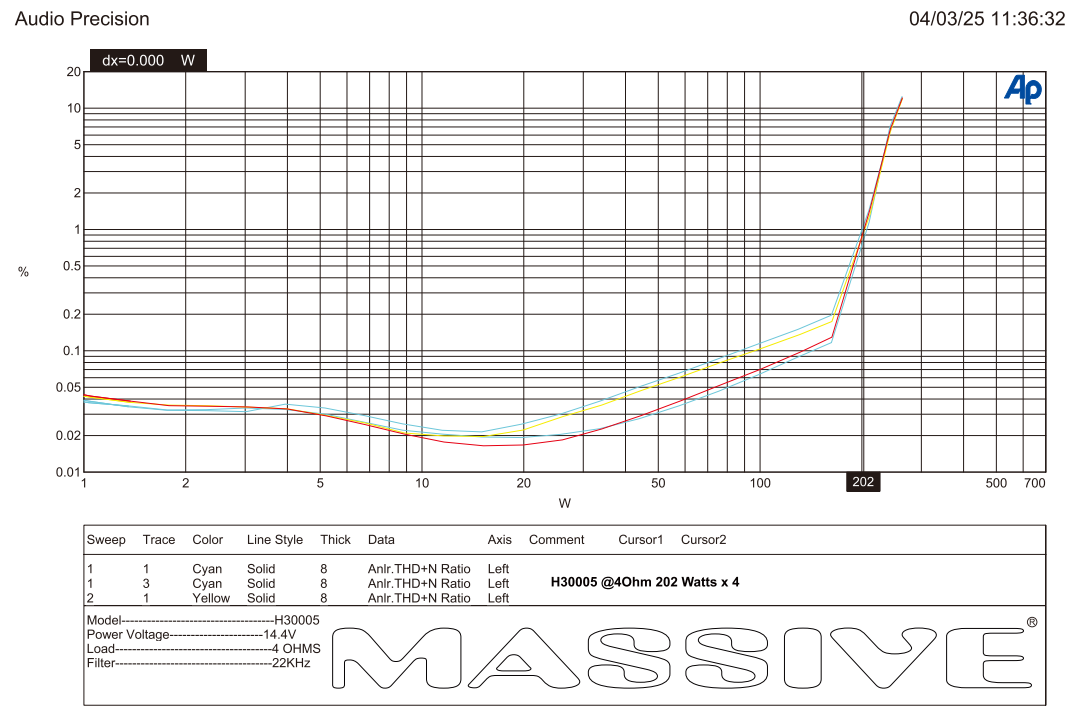

| 4 Ohm RMS | 202w x 4 + 596w x 1 |

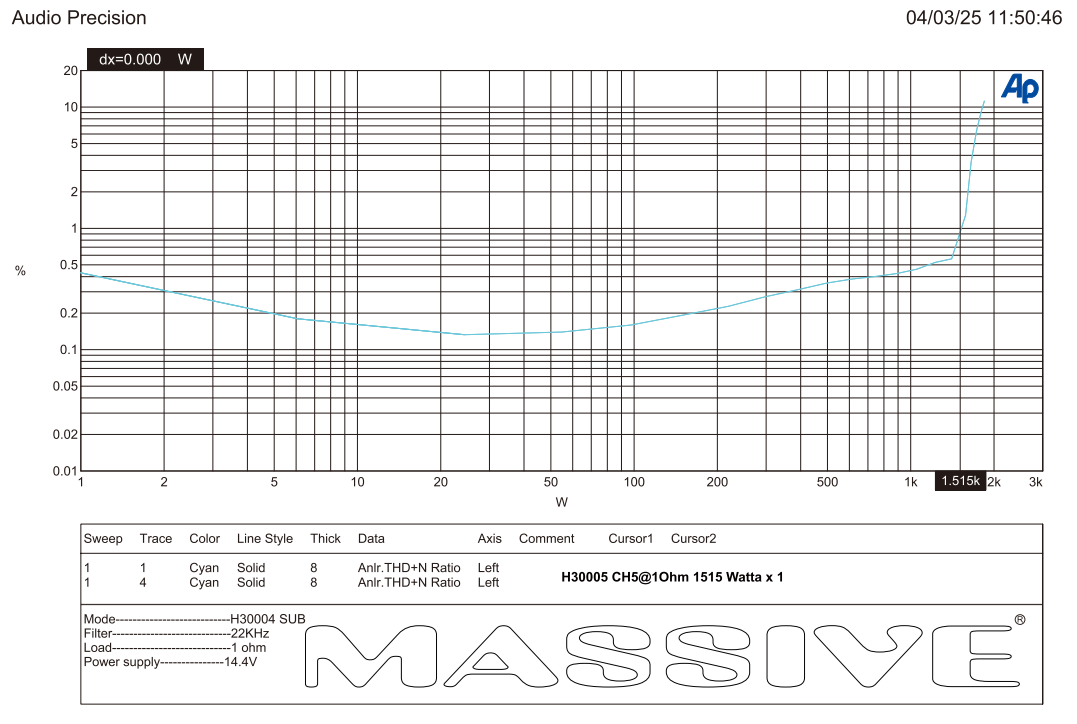

| 1 Ohm RMS | N/A x 4 + 1515w x 1 |
| Input Level | 0.3 ~ 7V (High or Low) |

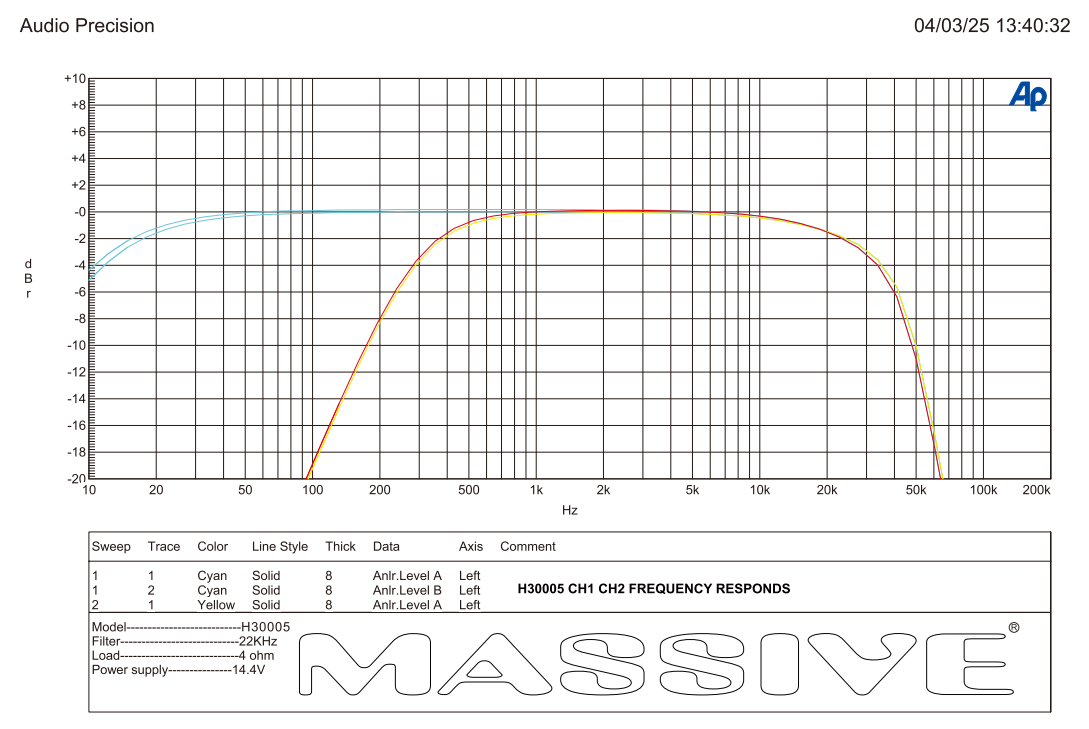

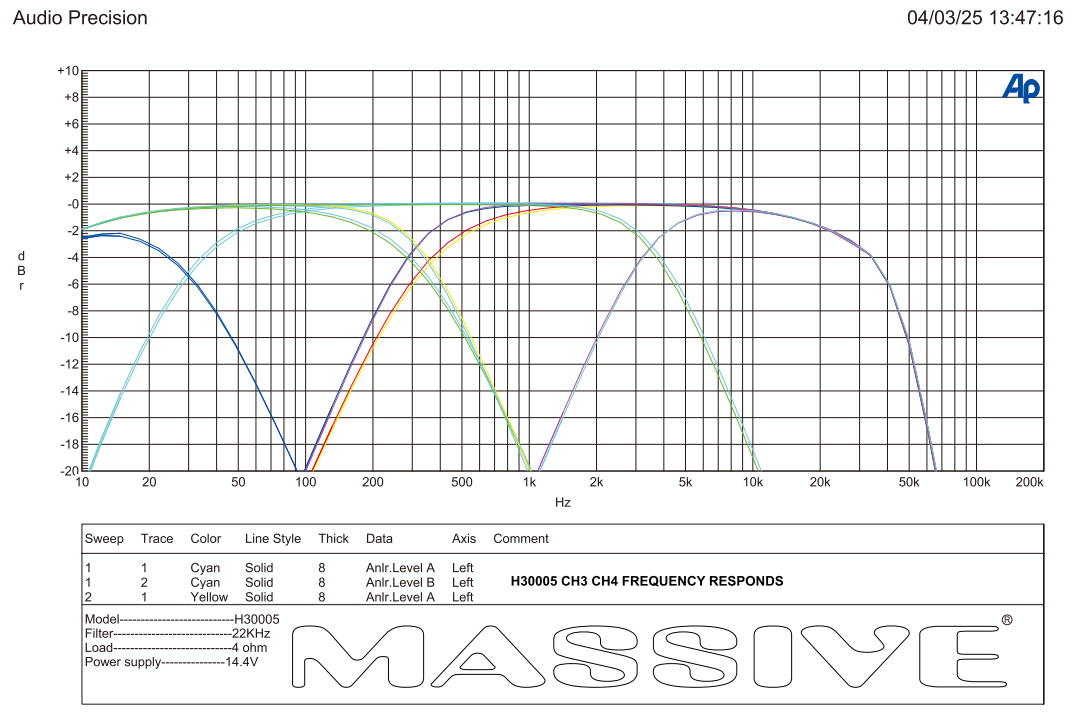

| Freq. Response | 10Hz ~ 20KHz |
| THD at 4 Ohm | <0.1% |
| S/N Ratio | 93dB |
| Bass Boost | 30hz - 120Hz |
| Minimum Load | 1 Ohm Mono |
| Gain Remote | Included |
| Dimensions | 11.96 (in) x 7.95 (in) x 2.22 (in) |
Additional features: Full Range Digital Low Distortion Full Band Width for Sound Quality Tuning; built-in noise reduction circuitry; full MOSFET with High-Grade switching devices; built-in Auto Sensing turn on function with LED Indicator (Hi-Inputs); 12V Remote Output for External Devices (Hi-Inputs); Next Generation Advanced 5 Way Protection Circuitry; Illuminated Logo.
Why Choose This Product?
The H30005 combines four speaker channels and a dedicated subwoofer channel in one amplifier. Its listed RMS output changes with impedance, so compare the ratings with your speakers and subwoofer before choosing a system configuration.
The display and status indicators give you a quick visual reference, while the bass boost and full-bandwidth tuning features provide options for adjusting the sound to your setup.
Installation & Compatibility Notes
Check the amplifier’s dimensions against your planned mounting space. Match speaker and subwoofer loads to the published ratings, and note that the minimum load is listed as 1 Ohm Mono. The H30005 accepts high- or low-level inputs; its auto-sensing turn-on and 12V remote output are specified for Hi-Inputs.
Frequently Asked Questions
What does the H30005’s 5-channel layout power?
It has separate speaker and subwoofer channels, with published output ratings listed for four channels plus one subwoofer channel.
How do the output ratings change with impedance?
The listed RMS ratings are 308w x 4 + 1034w x 1 at 2 Ohm and 202w x 4 + 596w x 1 at 4 Ohm. At 1 Ohm, the listing states N/A x 4 + 1515w x 1.
Can I connect high-level or low-level inputs?
Yes. The input level is listed as 0.3 ~ 7V (High or Low).
What are the amplifier’s dimensions?
Its listed dimensions are 11.96 (in) x 7.95 (in) x 2.22 (in). Compare these measurements with the space available for installation.
Is a gain remote included?
Yes. The specifications list “Gain Remote: Included.”
