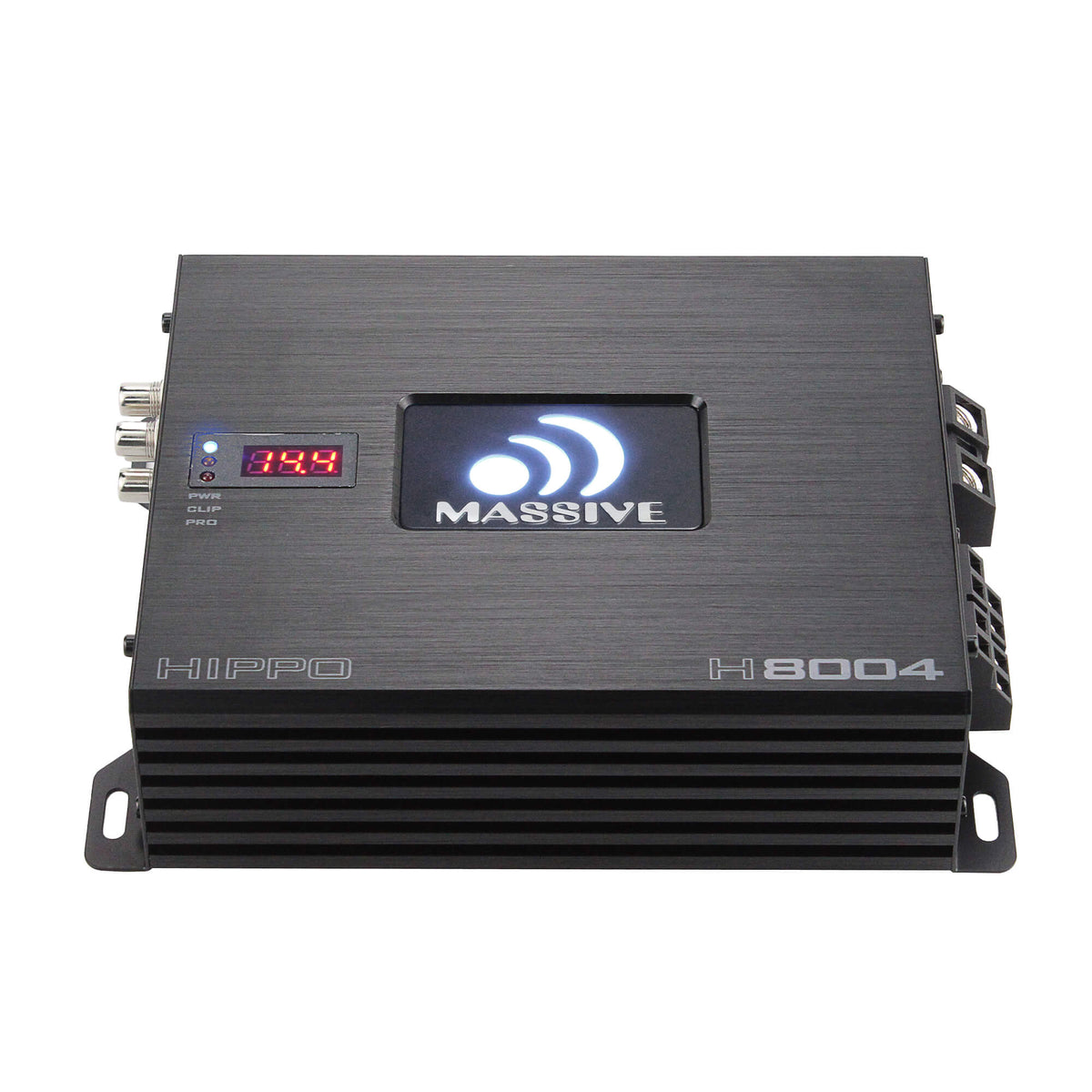

Massive Audio H8004 Hippo 4-Channel Amplifier
Key features
- 2 Ohm RMS: 220w x 4
- 4 Ohm RMS: 125w x 4
- 4 Ohm Bridged: 450w x 2
- Input Level: 0.4 ~ 8V (High or Low)
- Freq. Response: 10Hz ~ 20KHz
- Low Pass Freq.: 20Hz ~ 3KHz
Massive Audio H8004 Hippo 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Massive Audio H8004 Hippo 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Massive Audio H8004 Hippo 4-Channel Amplifier gives your car audio system four amplified speaker channels, with ratings of 220W RMS per channel at 2 ohms or 125W RMS per channel at 4 ohms. It also lists bridged output ratings and crossover controls for system tuning.
Key Features & Benefits

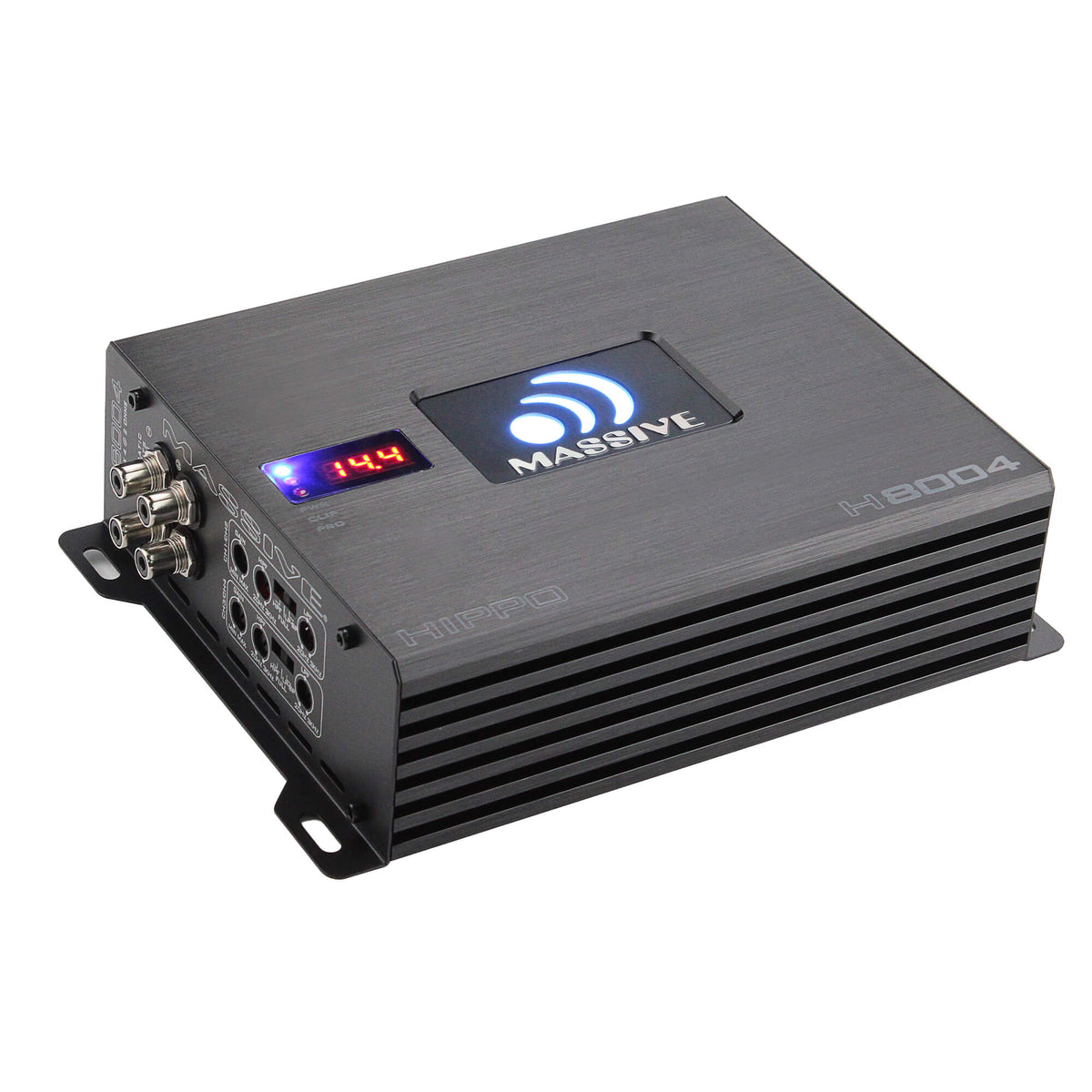

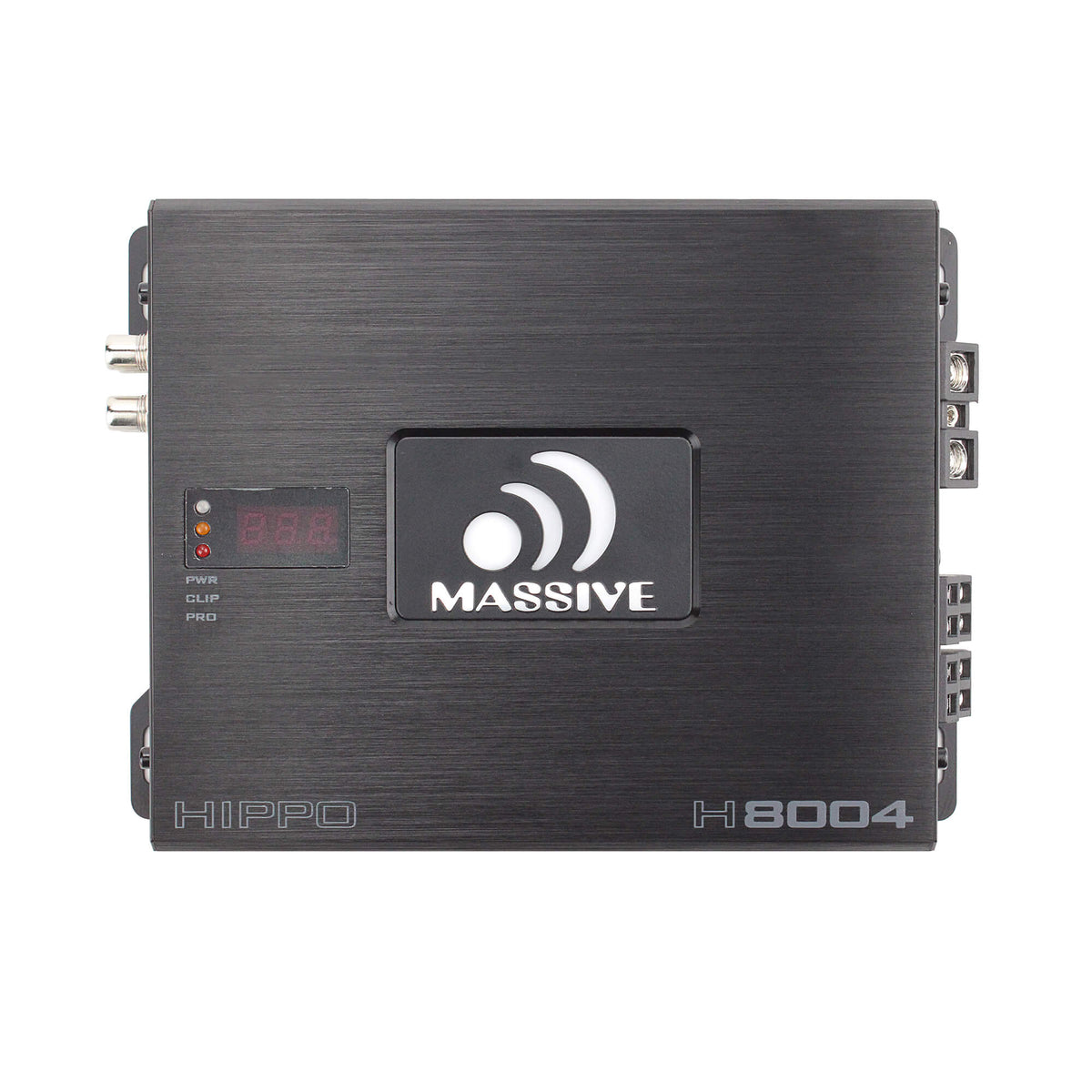

- Digital voltage display: The display and PWR, CLIP, and PROTECT indicators help you monitor amplifier status.
- Full-bandwidth design: Full-range digital operation is described as low distortion and designed for sound-quality tuning.
- Input-sensing turn-on: With Hi-Inputs, auto-sensing turn-on and an LED indicator are built in.
- Remote output: Hi-Inputs provide a 12V remote output for external devices.
- Protection circuitry: The amplifier includes next-generation five-way protection circuitry and built-in noise-reduction circuitry.
- MOSFET switching: Full MOSFET construction uses high-grade switching devices; the logo is illuminated.
Technical Specifications
| Specification | Value |
|---|---|
| 2 Ohm RMS | 220w x 4 |

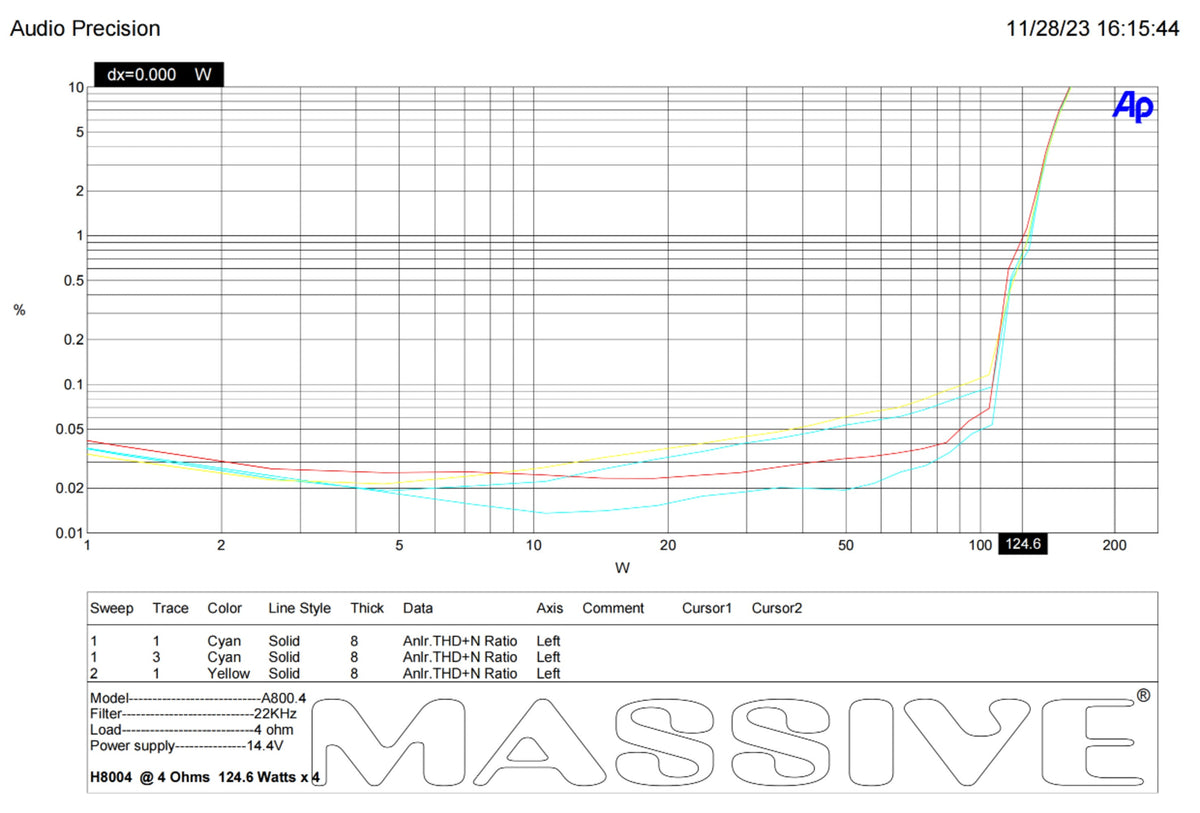

| 4 Ohm RMS | 125w x 4 |

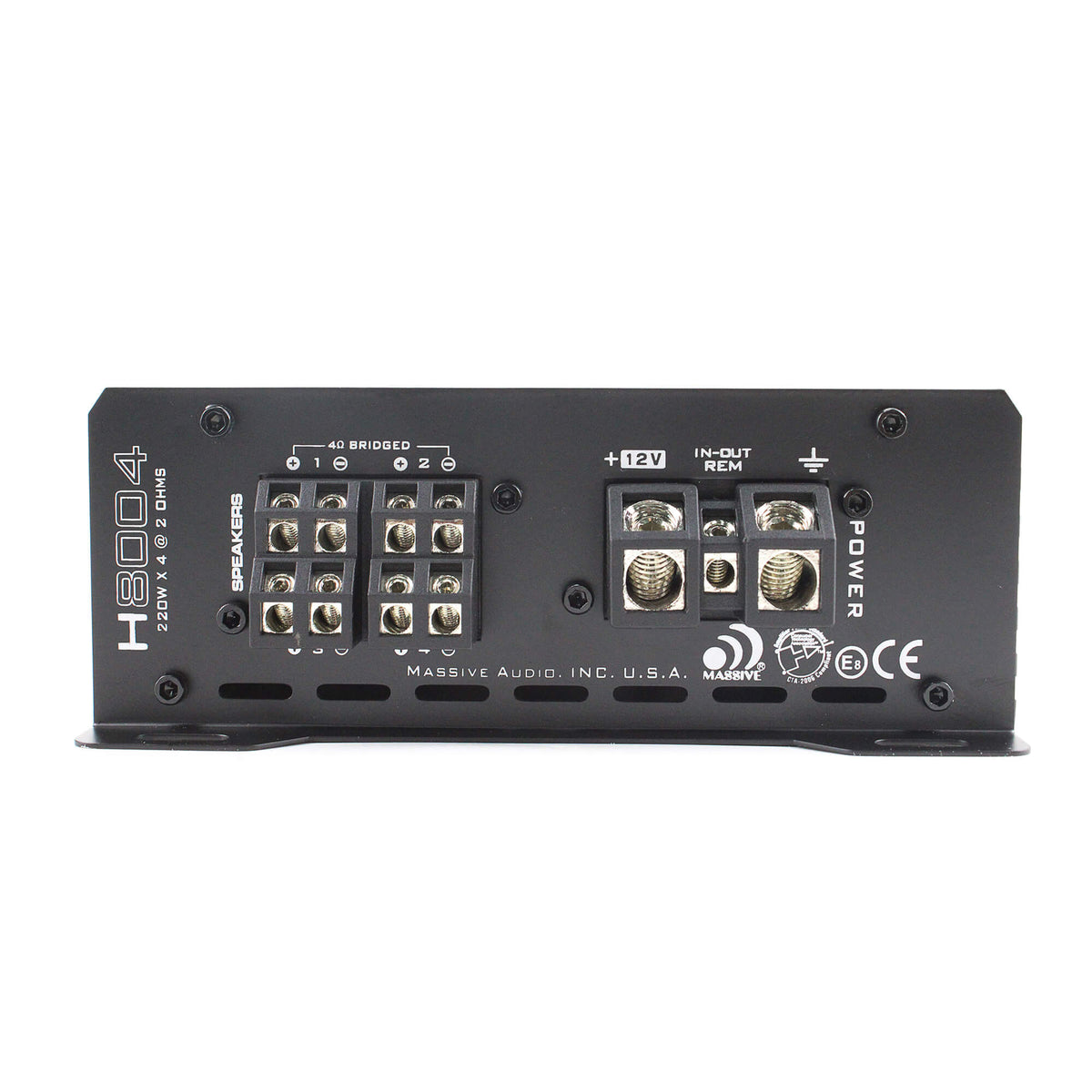

| 4 Ohm Bridged | 450w x 2 |
| Input Level | 0.4 ~ 8V (High or Low) |

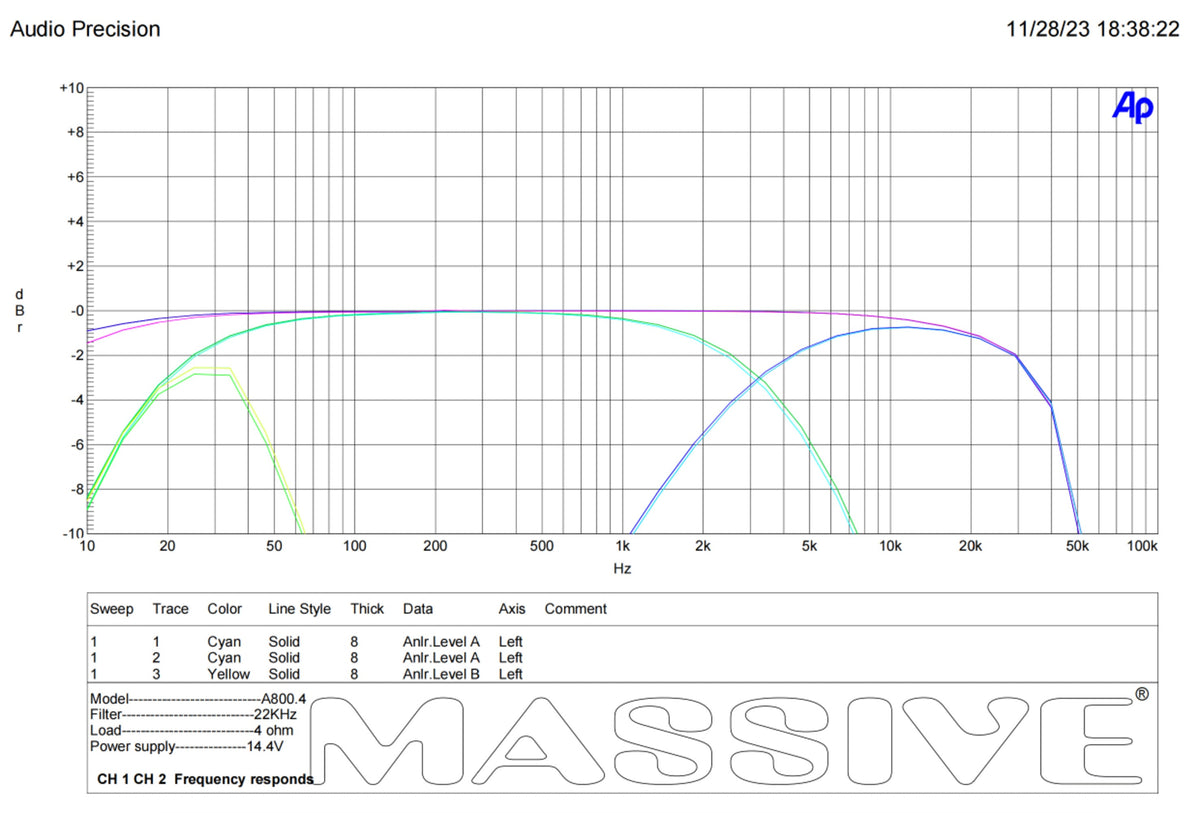

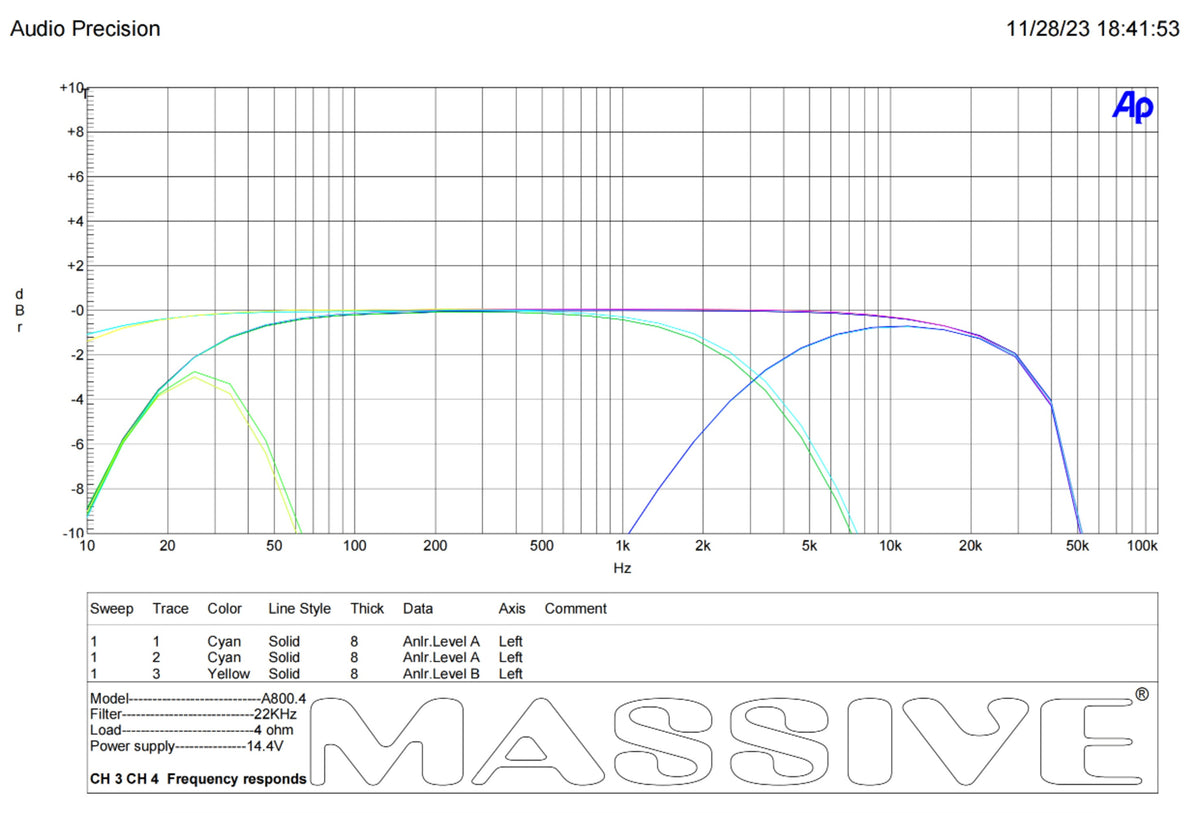

| Freq. Response | 10Hz ~ 20KHz |
| Low Pass Freq. | 20Hz ~ 3KHz |
| SubSonic (HPF) | 20Hz ~ 3KHz |
| THD at 4 Ohm | <0.5% |
| S/N Ratio | >95dB |
| Bass Boost | N/A |
| Minimum Load | 2 Ohm |
| Gain Remote | n/a |

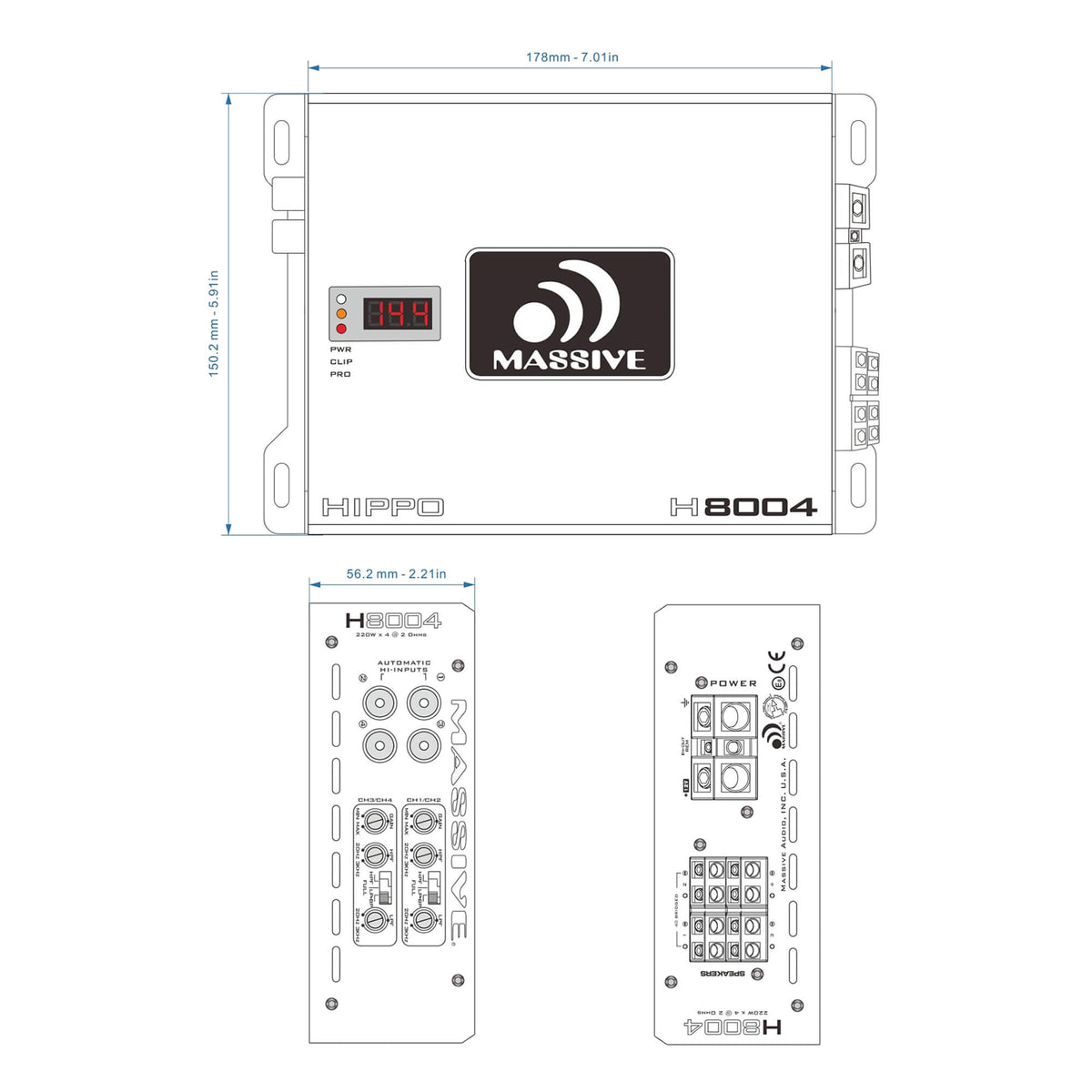

| Dimensions | 6.97 (in) x 5.9 (in) x 2.17 (in) |
Why Choose This Product?
The H8004 offers four amplified channels in a compact chassis measuring 6.97 x 5.9 x 2.17 inches. Its listed output varies with speaker impedance, so you can compare the 2-ohm and 4-ohm ratings with your system’s requirements.
Low-pass and subsonic filter ranges provide tuning options, while the digital display and status indicators make amplifier operation easier to monitor.
Installation & Compatibility Notes
Check that your speakers’ impedance meets the amplifier’s 2-ohm minimum load. Confirm the available installation space against the listed dimensions before planning placement.

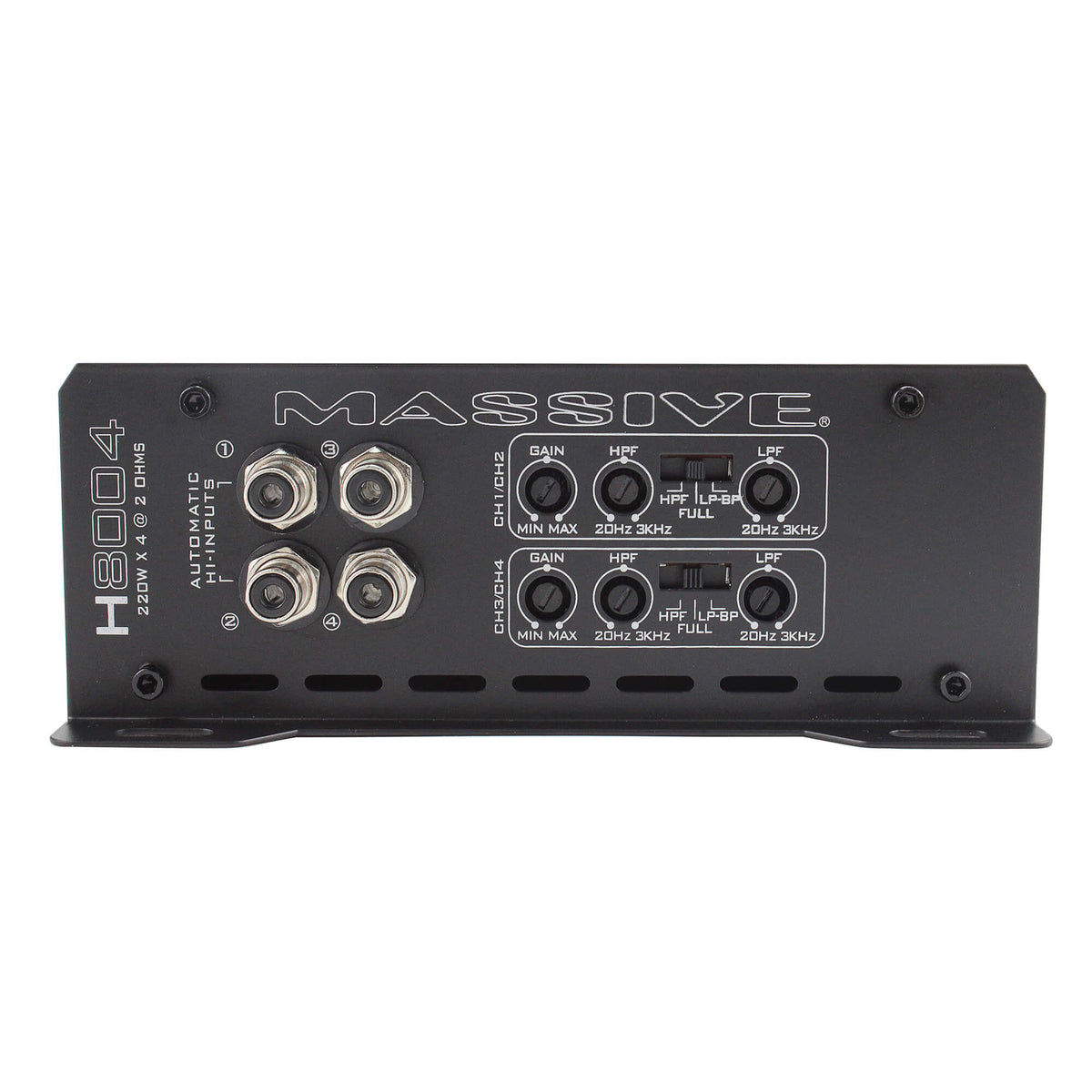

The input level is listed as 0.4 ~ 8V for high- or low-level input. Auto-sensing turn-on and the 12V remote output are specified for Hi-Inputs.
Frequently Asked Questions
How much power does the H8004 provide?
Its listed ratings are 220w x 4 at 2 ohms RMS and 125w x 4 at 4 ohms RMS. The 4-ohm bridged rating is 450w x 2.
What is the minimum speaker load?
The minimum load is listed as 2 Ohm. Check your speaker configuration against this rating before connecting the amplifier.
Can I use high- or low-level inputs?
Yes. The input level specification is 0.4 ~ 8V (High or Low).
What are the amplifier’s dimensions?
It measures 6.97 (in) x 5.9 (in) x 2.17 (in). Compare these measurements with your intended mounting space.
