Massive Audio T4 Trident Monoblock Marine Amplifier
Key features
- Peak Output Power @ 14.4V: 4000W Max Mono
- 1 Ohm RMS: 2000w X 1
- 2 Ohm RMS: 1000W x 1
- 4 Ohm RMS: 500w x 1
- 4 Ohm Bridged: N/A
- Input Level: 0.2~9.0v
Massive Audio T4 Trident Monoblock Marine Amplifier is backordered and will ship as soon as it is back in stock.
Massive Audio T4 Trident Monoblock Marine Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add dedicated bass amplification to your marine audio system with the Massive Audio T4 Trident monoblock marine amplifier. It delivers up to 2000W RMS at 1 ohm, with additional RMS ratings for 2-ohm and 4-ohm loads.
Its conformal-coated circuit board helps resist moisture, dust, and extreme heat. Install the amplifier in a protected location, and match your speaker load to its supported impedance.
Key Features & Benefits
- 1-ohm stable design: Supports a minimum 1-ohm mono load.
- Conformal-coated circuit board: Helps resist moisture, dust, and extreme heat.
- Four-layer PCB with SMD parts: Uses a four-layer circuit board design with surface-mount components.

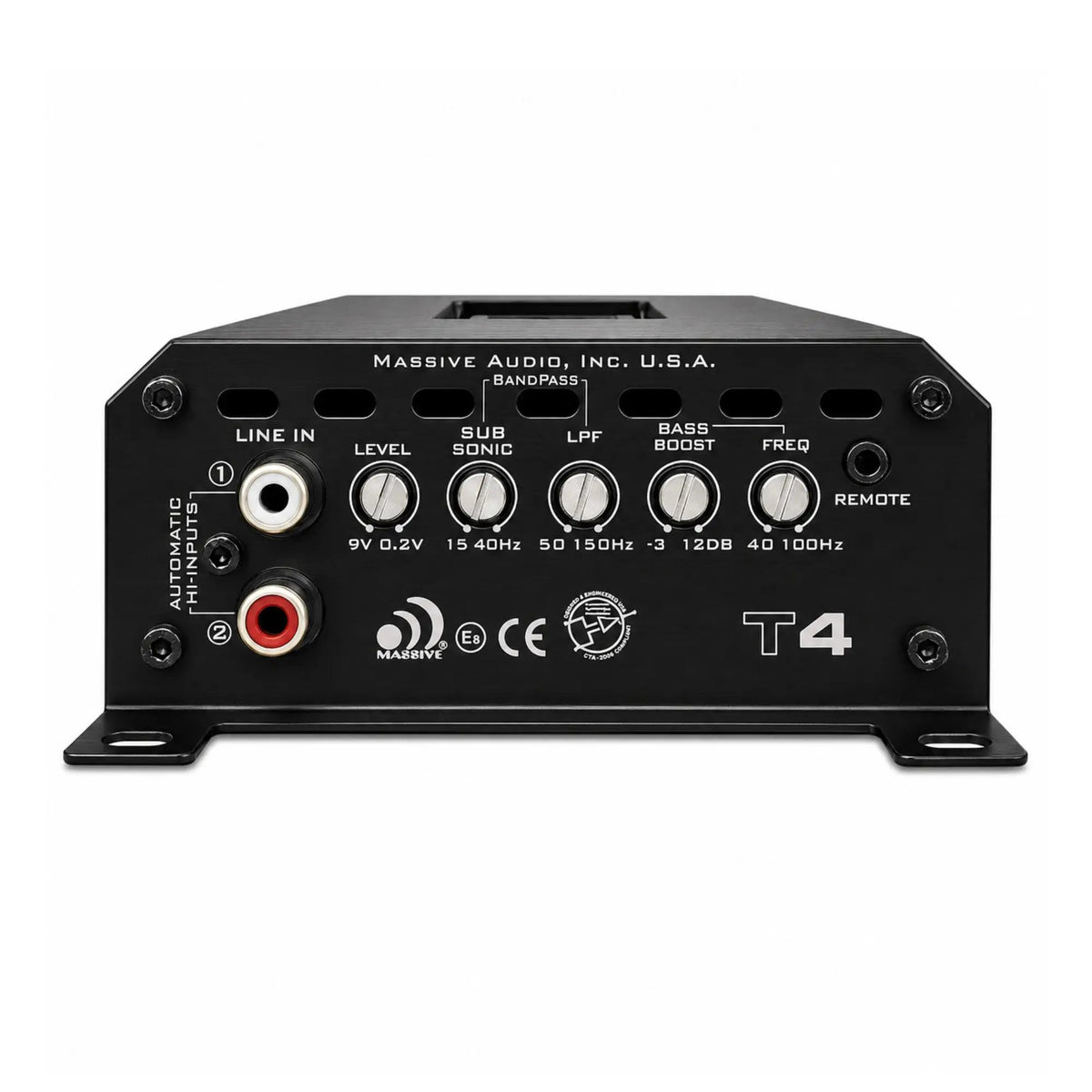

- Variable bass boost: Adjust bass boost from 40Hz to 100Hz, with a range of -3 to +12dB.
- Noise reduction circuitry: Built-in circuitry is designed to reduce system noise.

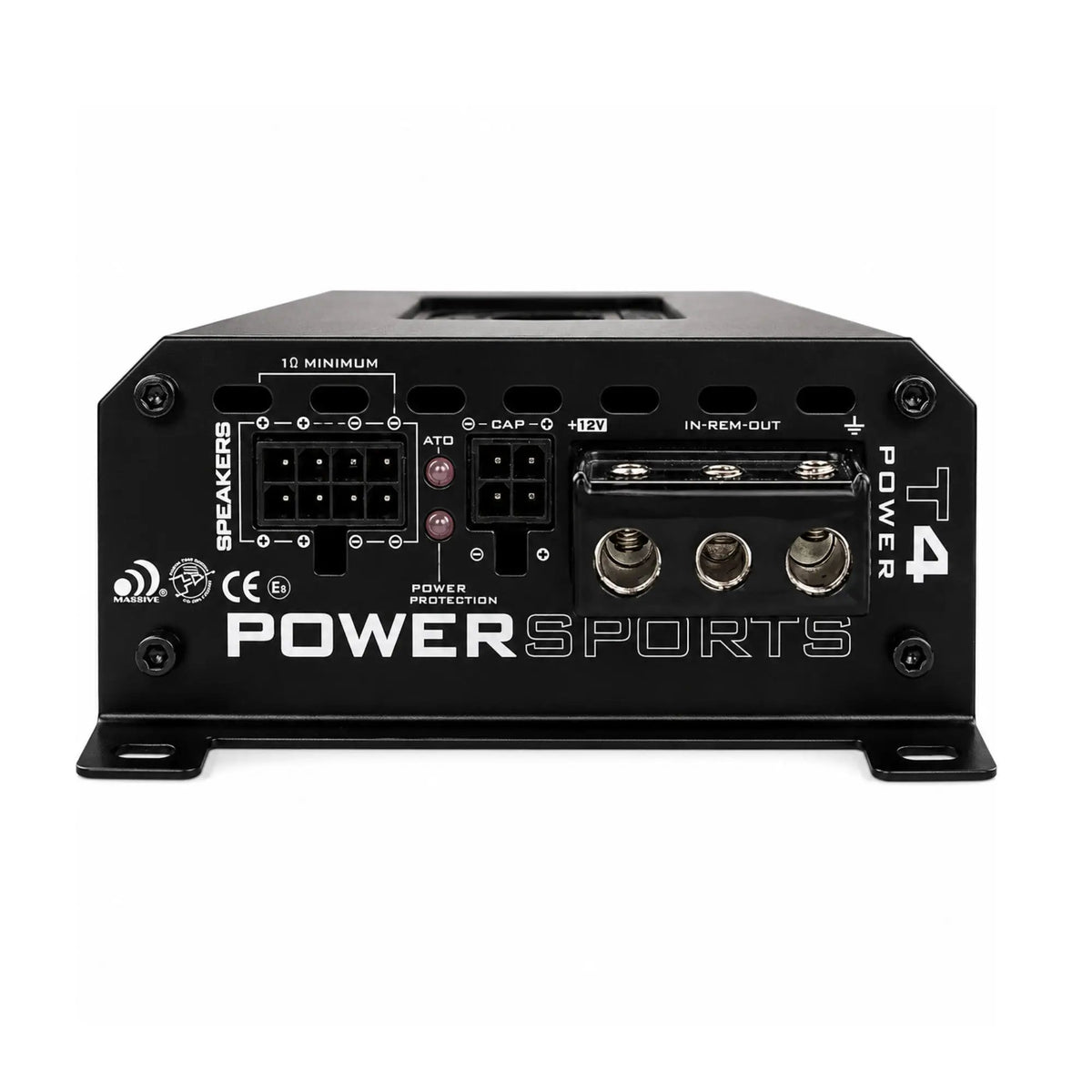

- Protection and integration features: Includes five-way protection circuitry, Hi-Inputs auto-sensing turn-on, and a 12V remote output for external devices when using Hi-Inputs.
Technical Specifications
| Specification | Value |
|---|---|
| Peak Output Power @ 14.4V | 4000W Max Mono |
| 1 Ohm RMS | 2000w X 1 |
| 2 Ohm RMS | 1000W x 1 |
| 4 Ohm RMS | 500w x 1 |
| 4 Ohm Bridged | N/A |
| Input Level | 0.2~9.0v |
| Frequency Response | 10Hz~150Hz |
| THD at 4 Ohm Load 30% Rated Power | <0.03% |
| S/N Ratio | >85dB |
| BassBoost | 40Hz~100Hz |
| Minimum Load | 1 Ohm Mono |
| Gain Remote | UR1 (Optional) |

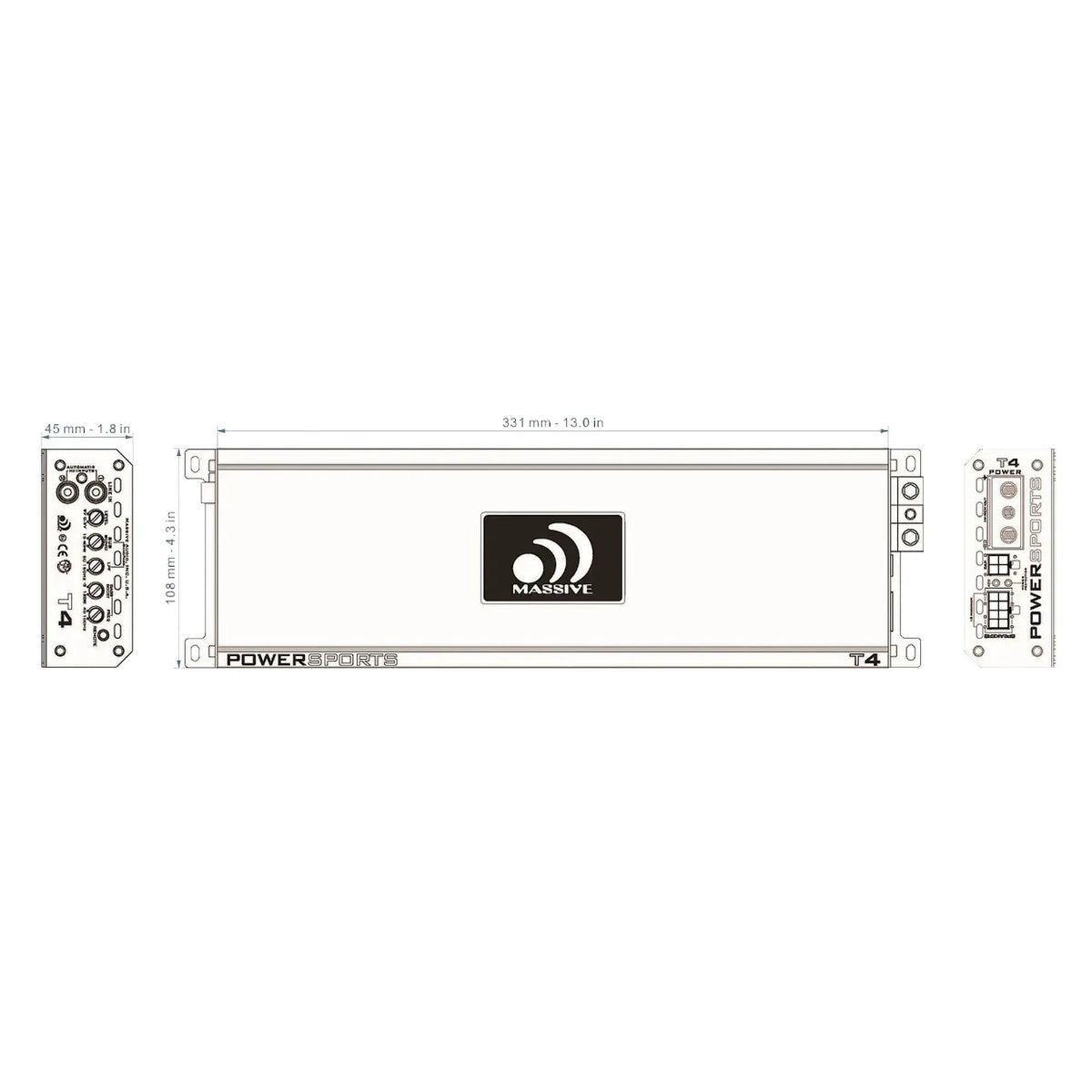

| Dimension | 1.6"H x 4.25"W x 13.00"L |
Additional features: Full MOSFET with high-grade switching devices; RCLX ~ Railcap Booster (Optional).
Why Choose This Product?
The T4 gives you three stated mono RMS power ratings, so you can compare its output at 1, 2, or 4 ohms against your planned speaker load. Variable bass boost provides an adjustment range from -3 to +12dB across 40Hz to 100Hz.
Its listed marine-oriented design details include a conformal-coated circuit board and five-way protection circuitry. The compact dimensions also give you clear measurements to consider when planning an installation.
Installation & Compatibility Notes
Check that the final speaker load meets the 1-ohm mono minimum and that your system connections suit the listed 0.2~9.0v input level. The stated dimensions are 1.6" high, 4.25" wide, and 13.00" long.
Install the amplifier in a protected location. Hi-Inputs provide the listed auto-sensing turn-on function and 12V remote output for external devices.
Frequently Asked Questions
What is the T4's RMS output at each listed impedance?
It is rated at 2000W x 1 at 1 ohm, 1000W x 1 at 2 ohms, and 500W x 1 at 4 ohms.
Can this amplifier operate at a 1-ohm mono load?
Yes. Its listed minimum load is 1 ohm mono, and it is described as 1-ohm stable.
What are the amplifier's dimensions?
It measures 1.6"H x 4.25"W x 13.00"L.
Does it include a gain remote?
The listed gain remote is the UR1, marked optional. Confirm the specific package contents before purchase.
