Massive Audio TX44 Trident 4-Channel Marine Amplifier
Key features
- Peak Output Power @ 14.4V: 960 Watts
- 1 Ohm RMS: n/a
- 2 Ohm RMS: 240W x 4
- 4 Ohm RMS: 120W x 4
- 4 Ohm Bridged: 480W x 2
- Input Level: 0.2~9.0v
Massive Audio TX44 Trident 4-Channel Marine Amplifier is backordered and will ship as soon as it is back in stock.
Massive Audio TX44 Trident 4-Channel Marine Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Massive Audio TX44 Trident 4-channel marine amplifier gives your marine audio system four amplified speaker channels. It delivers 240W RMS per channel at 2 ohms or 120W RMS per channel at 4 ohms, with selectable LPF, HPF, and full-range crossover modes.
Key Features & Benefits
- Four-channel output: Separate amplified channels let you power speakers from one amplifier.

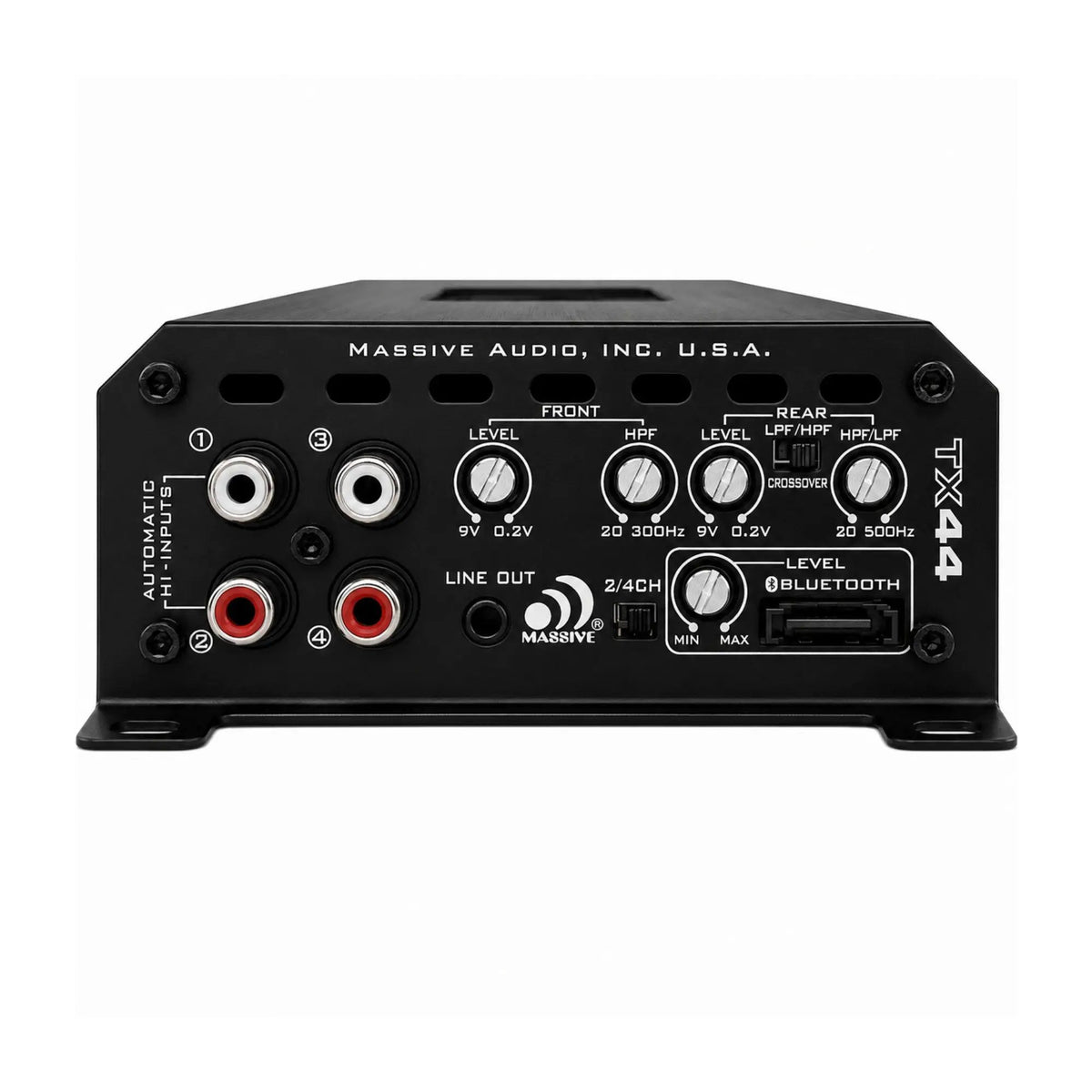

- Flexible input configuration: The 2/4-channel switcher lets you select the input configuration for your setup.
- Crossover switching: Choose LPF, HPF, or full range to match the amplifier’s output mode to your system plan.
- Moisture-resistant circuit board: The conformal-coated PC board helps resist moisture, dust, and extreme heat.
- Linking output: The full-range line output supports linking to a monoblock amplifier.
- System integration: Hi-input auto-sensing turn-on and a 12V remote output support connections to external devices.
Technical Specifications
| Specification | Value |
|---|---|
| Peak Output Power @ 14.4V | 960 Watts |
| 1 Ohm RMS | n/a |
| 2 Ohm RMS | 240W x 4 |
| 4 Ohm RMS | 120W x 4 |
| 4 Ohm Bridged | 480W x 2 |
| Input Level | 0.2~9.0v |
| Freq. Response | 10Hz~25KHz |
| THD at 4 Ohm Load 30% Rated Power | <0.03% |
| S/N Ratio | >90dB |
| Bass Boost | 0~12dB |
| Minimum Load | 2 Ohm Stereo |
| Gain Remote | n/a |

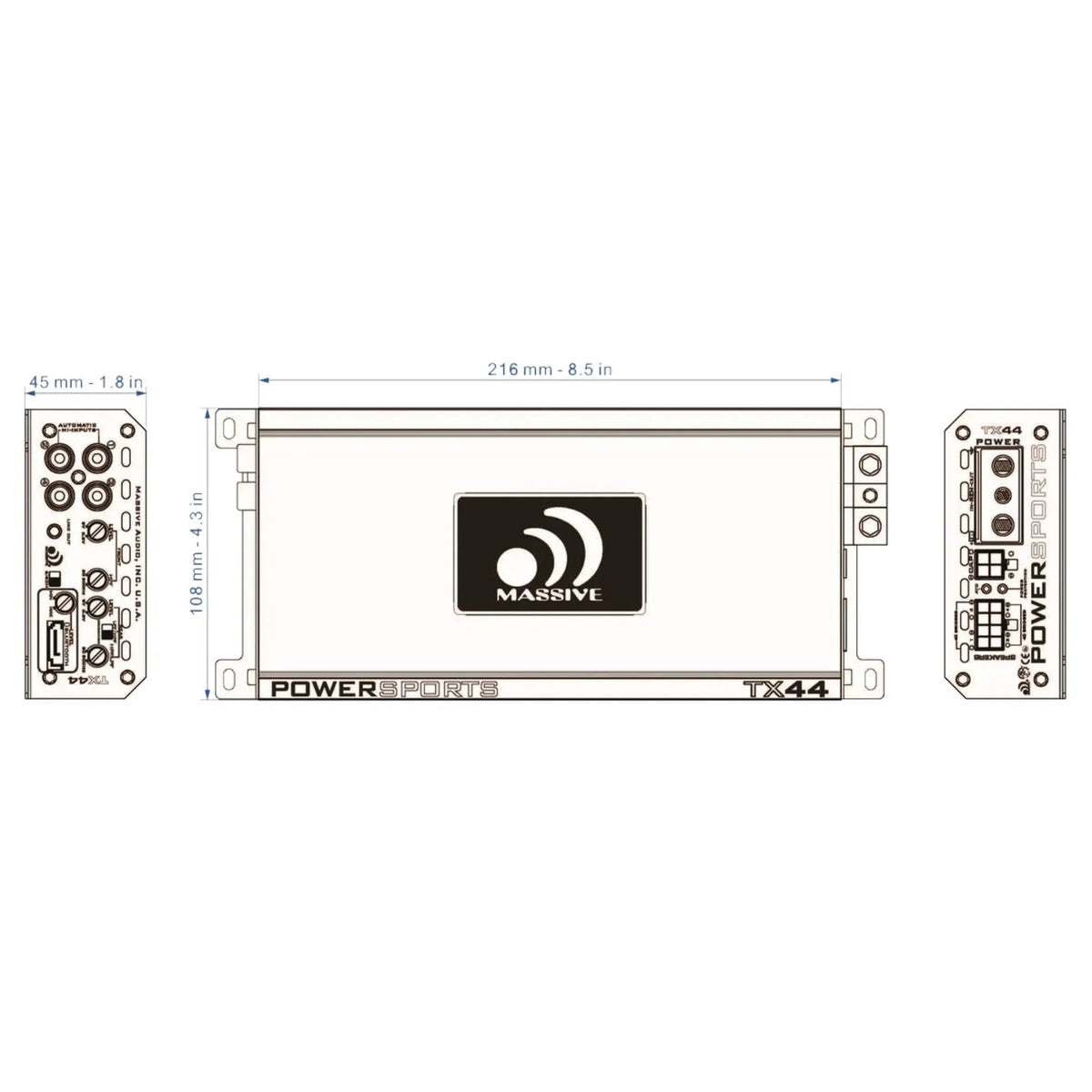

| Dimensions | 1.6" x 4.25" x 9.76" |
- Construction: Full Range Digital Class; 4 Layers PCB design with SMD parts; Full MOSFET with High Grade Switching Devices.
- Additional features: Built-in Noise Reduction Circuitry; Advanced 5 Way Protection Circuitry; LPF/HPF/FULL Crossover Switching.
- Bluetooth: Audio streaming requires the optional UBT1 SATA dongle; Bluetooth is not built in.
- Hi-input features: Built-in Auto Sensing Turn On Function and 12V Remote Output for External Devices.
Why Choose This Product?
The TX44 combines four-channel amplification with selectable crossover modes, giving you useful setup options in one marine audio amplifier. Its published RMS ratings show the output at both 2-ohm and 4-ohm loads, while the bridged rating provides another configuration to consider when planning your system.
Installation & Compatibility Notes
Install the amplifier in a protected location. Its conformal-coated circuit board helps resist moisture, dust, and extreme heat, but the product guidance still calls for protected placement.
Check your speaker load and planned connections against the 2-ohm stereo minimum load and the ratings above. For Bluetooth streaming, the optional UBT1 SATA dongle is required.
Frequently Asked Questions
What is the TX44’s RMS output per channel?
It is rated at 240W RMS per channel at 2 ohms and 120W RMS per channel at 4 ohms.
Can the TX44 be bridged?
Its listed 4-ohm bridged output is 480W x 2.
Does this marine amplifier have built-in Bluetooth?
No. Bluetooth audio streaming requires the optional UBT1 SATA dongle.
What crossover modes are available?
The amplifier has LPF, HPF, and full-range crossover switching.
What are the amplifier’s dimensions?
It measures 1.6" x 4.25" x 9.76".
