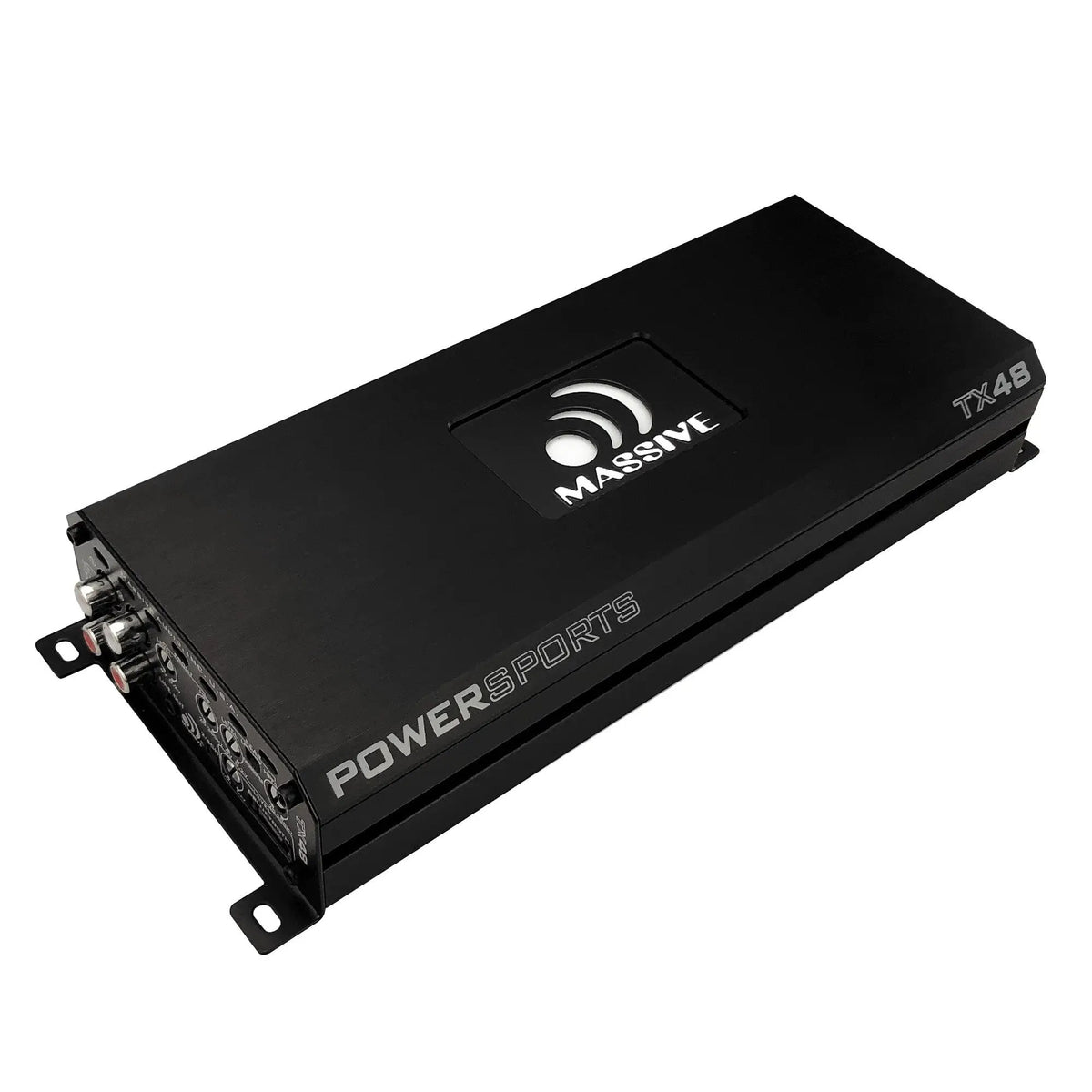

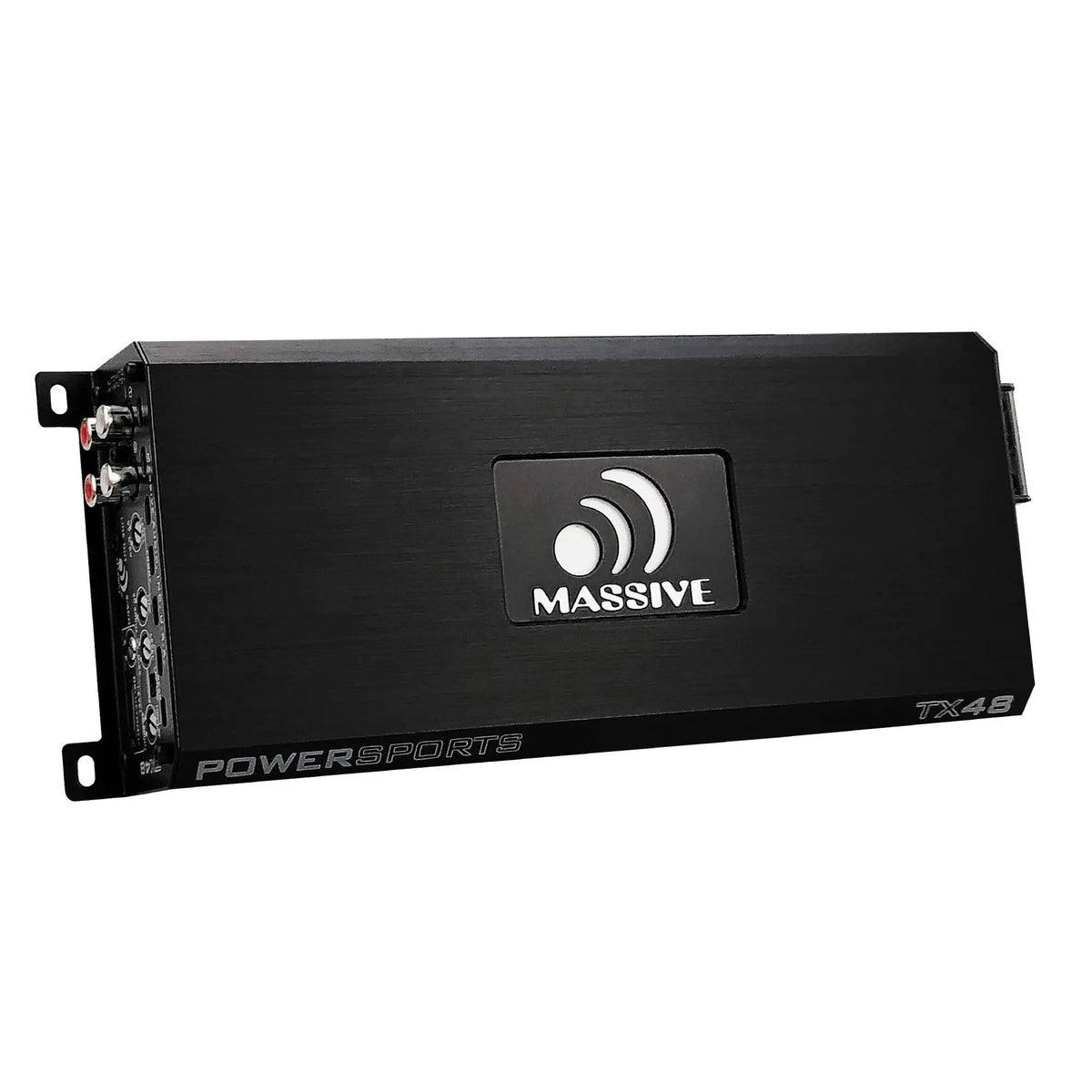

Massive Audio TX48 Trident 4-Channel Marine Amplifier

Product Overview

The Massive Audio TX48 Trident is a 4-channel marine amplifier that gives you four amplified speaker channels. It is rated at 400W RMS per channel at 2 ohms or 200W RMS per channel at 4 ohms, with crossover controls for configuring the output.

Its conformal-coated circuit board helps resist moisture, dust, and extreme heat. For marine installation, place the amplifier in a protected location.

Key Features & Benefits

• Four amplified channels: Choose between the listed 2-ohm and 4-ohm RMS ratings to plan your speaker setup.

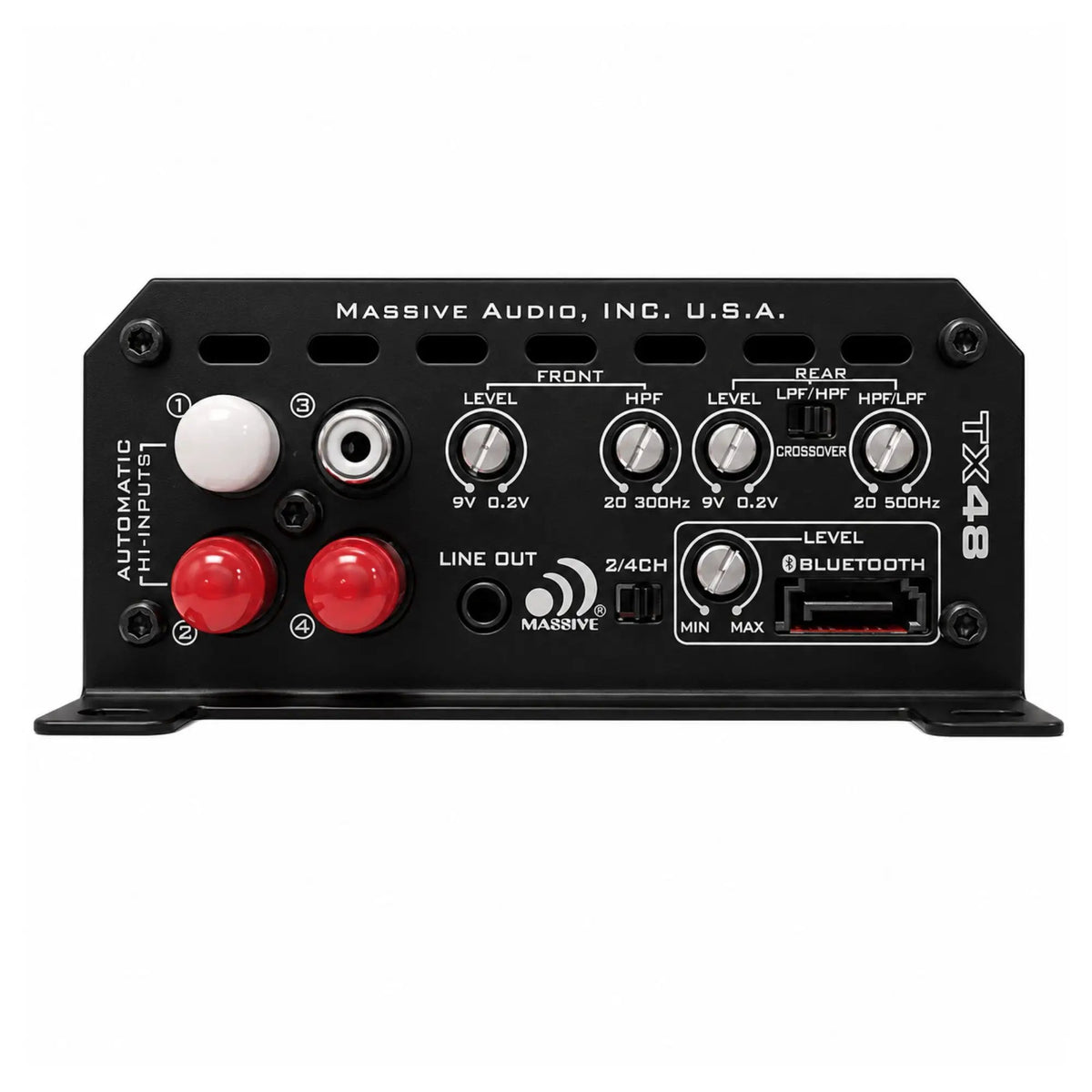

• Flexible input configuration: The 2/4-channel switcher supports different input configurations.
• Selectable crossover: LPF, HPF, and FULL settings let you select the listed crossover mode.
• Moisture-resistant board: The conformal-coated circuit board helps resist moisture, dust, and extreme heat.
• Optional Bluetooth streaming: Add the optional UBT1 dongle for Bluetooth audio streaming; Bluetooth is not built in.

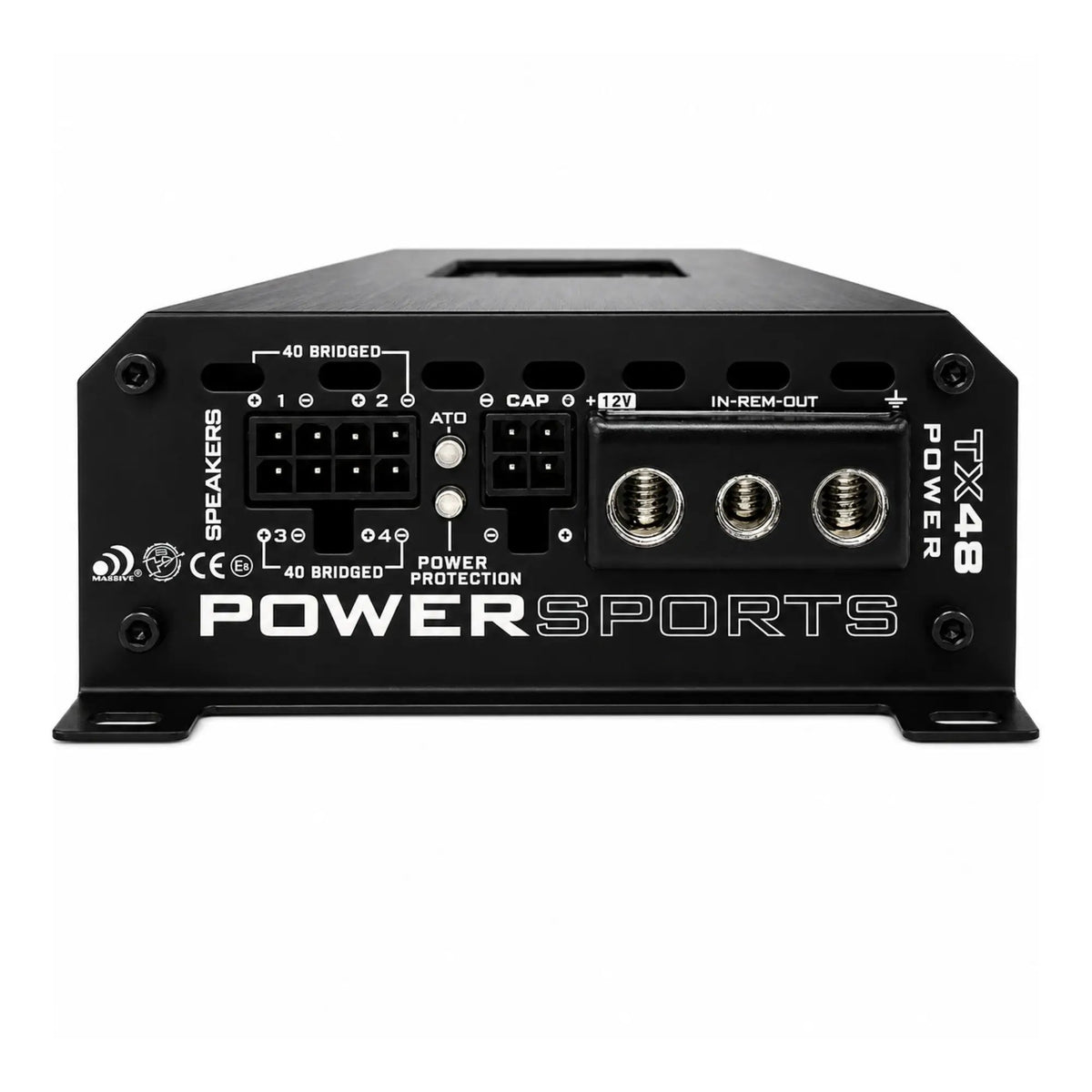

• Additional system features: Full-range line output supports monoblock linking, while Hi-Inputs provide auto-sensing turn-on and a 12V remote output for external devices.

Technical Specifications

• Design and circuitry: Full Range Digital Class; 4 Layers PCB design with SMD parts; Full MOSFET with High Grade Switching Devices.
• Signal and system features: Built-in Noise Reduction Circuitry; Full Range Line Output for Monoblock Linking; LPF/HPF/FULL Crossover Switching.
• Protection: Advanced 5 Way Protection Circuitry.
• Optional streaming: Bluetooth Audio Streaming with Optional (UBT1) SATA Dongle.
• Hi-Inputs: Built-in Auto Sensing Turn On Function and 12V Remote Output for External Devices.
• Moisture resistance: Conformal Coated PC Board to Resist Moisture, Dust and Extreme Heat.

Why Choose This Product?

The TX48 combines four speaker channels with selectable crossover modes and a switch for 2- or 4-channel input configuration. Its full-range line output is specified for monoblock linking, making that feature relevant when planning a system that includes a monoblock amplifier.

The coated circuit board and built-in noise reduction and protection circuitry are useful design considerations for a marine audio system. Bluetooth streaming is an add-on option, not a built-in feature.

Installation & Compatibility Notes

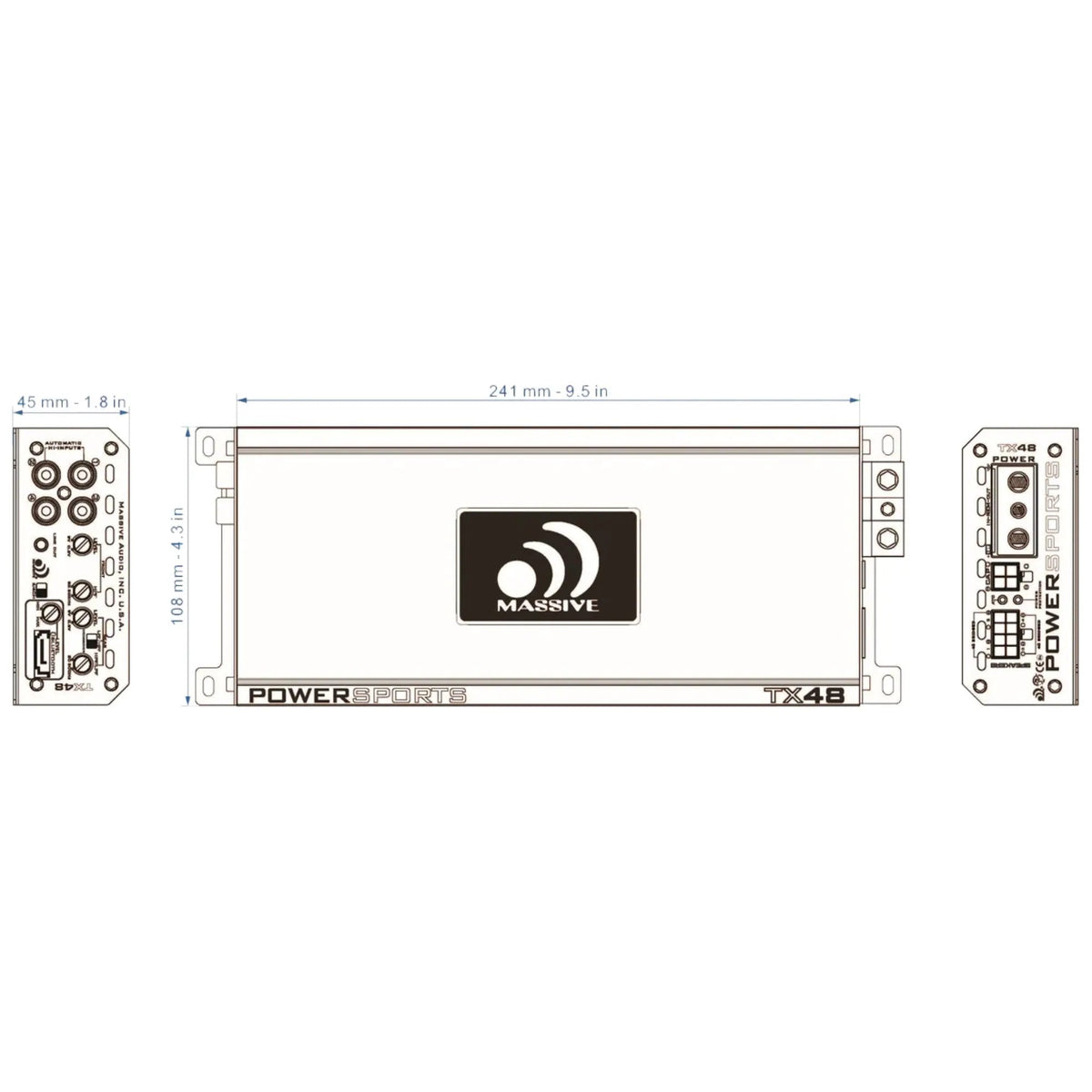

Check the amplifier’s dimensions—1.6" x 4.25" x 10.75"—against your available mounting space. Install it in a protected location, as directed in the product information.

Confirm your speaker load and wiring plan against the listed 2-ohm stereo minimum load and the amplifier’s ratings. Bluetooth audio streaming requires the optional UBT1 dongle.

Frequently Asked Questions

What is the TX48’s RMS output per channel?

It is rated at 400W RMS x 4 at 2 ohms and 200W RMS x 4 at 4 ohms.

What is the bridged output rating?

The listed 4-ohm bridged rating is 800W x 2.

Does the TX48 have built-in Bluetooth?

No. Bluetooth audio streaming requires the optional UBT1 dongle.

What are the amplifier’s dimensions?

Its listed dimensions are 1.6" x 4.25" x 10.75". Compare these with your intended mounting space.

Can I install it in an exposed marine location?

The conformal-coated circuit board helps resist moisture, but the product information advises installing the amplifier in a protected location.
