Memphis MOJO1212 12" 1500W RMS Selectable 1/2-Ohm Subwoofer
Key features

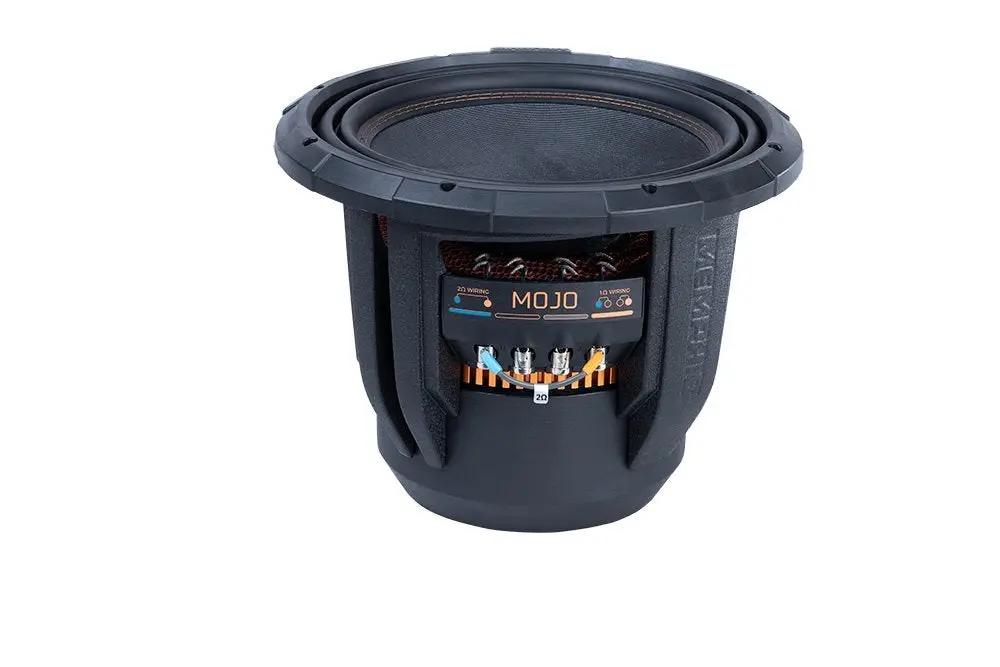

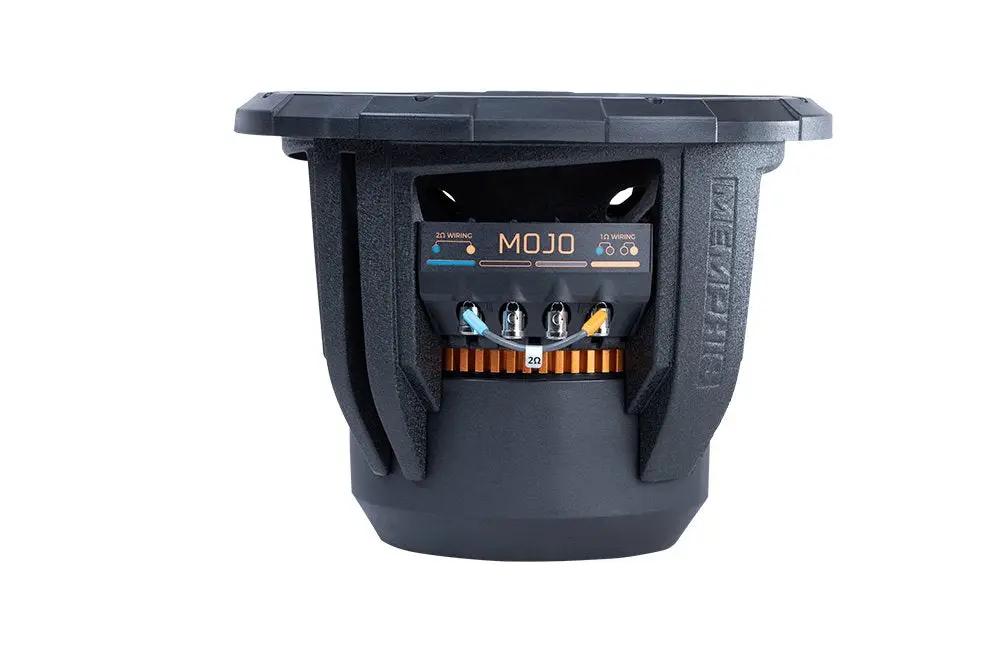

- Selectable impedance: FLEX technology offers 1- or 2-ohm load configuration.
- Triple voice coil: The 3.5-inch aluminum triple voice coil is part of the subwoofer’s selectable-impedance design.

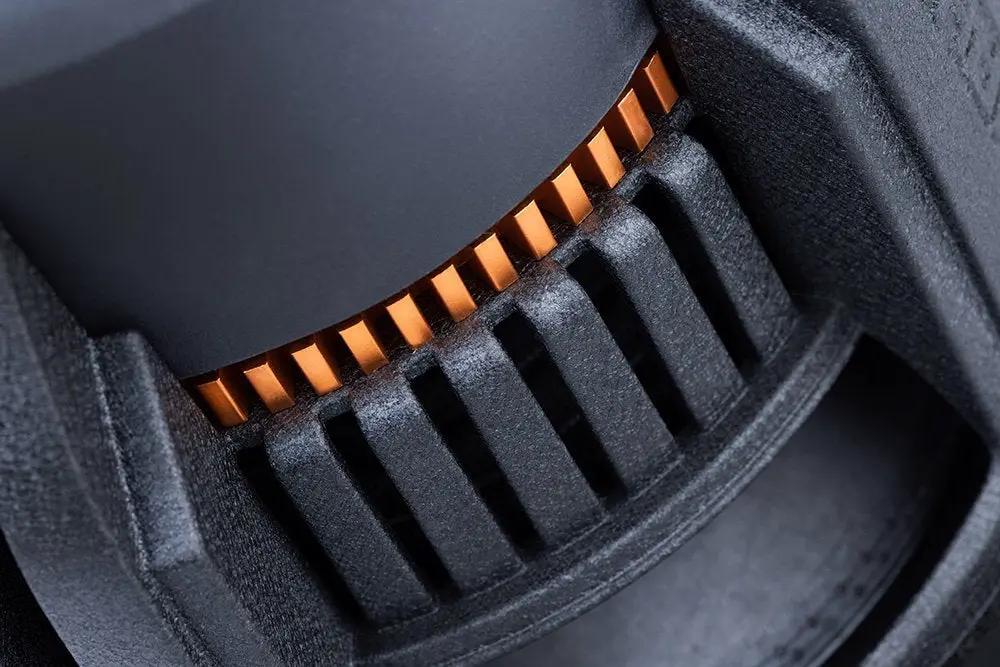

- Voice-coil cooling: Direct Vent Voice Coil cooling is built into the subwoofer.

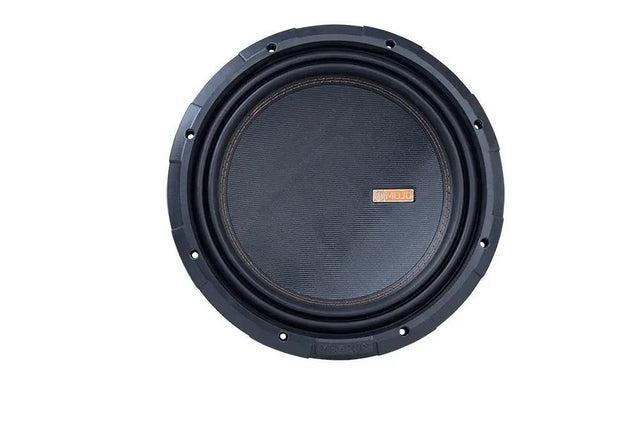

- Long-travel surround: The double-stitched V-groove folded surround supports long cone travel while preserving effective radiating area.

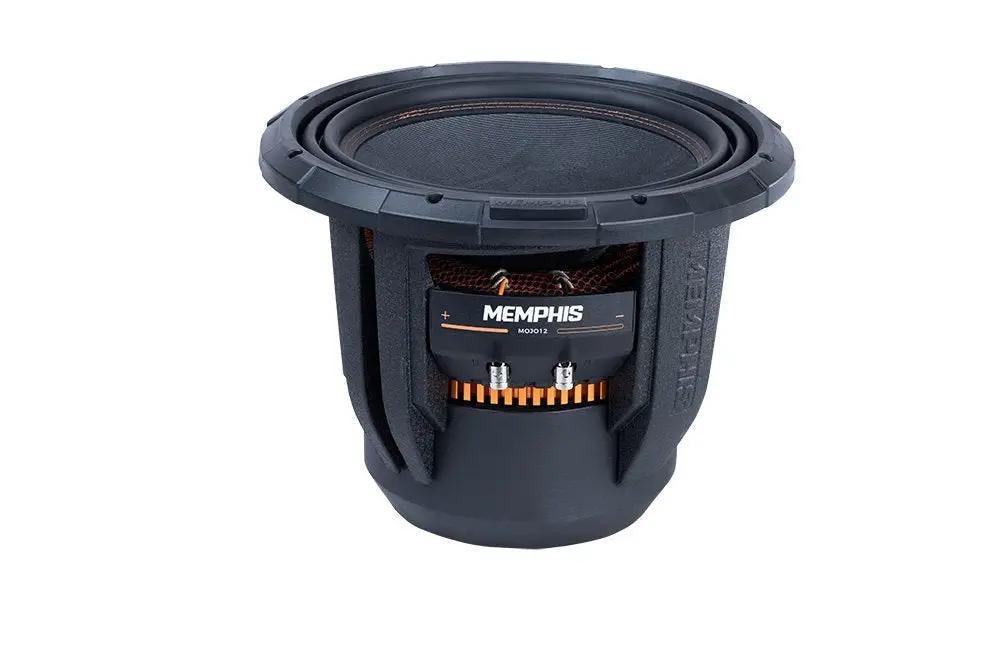

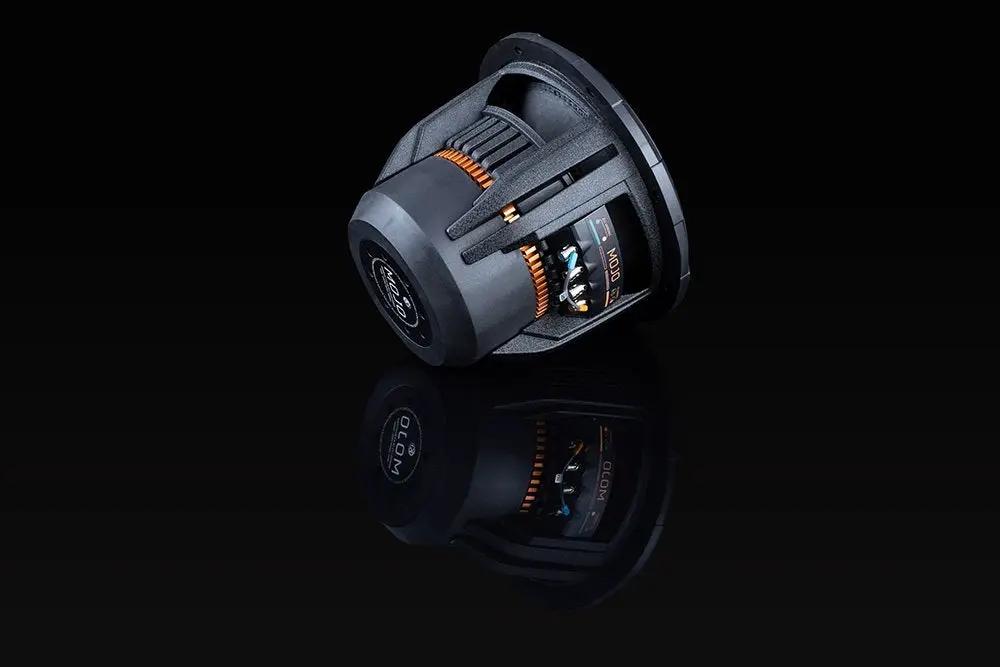

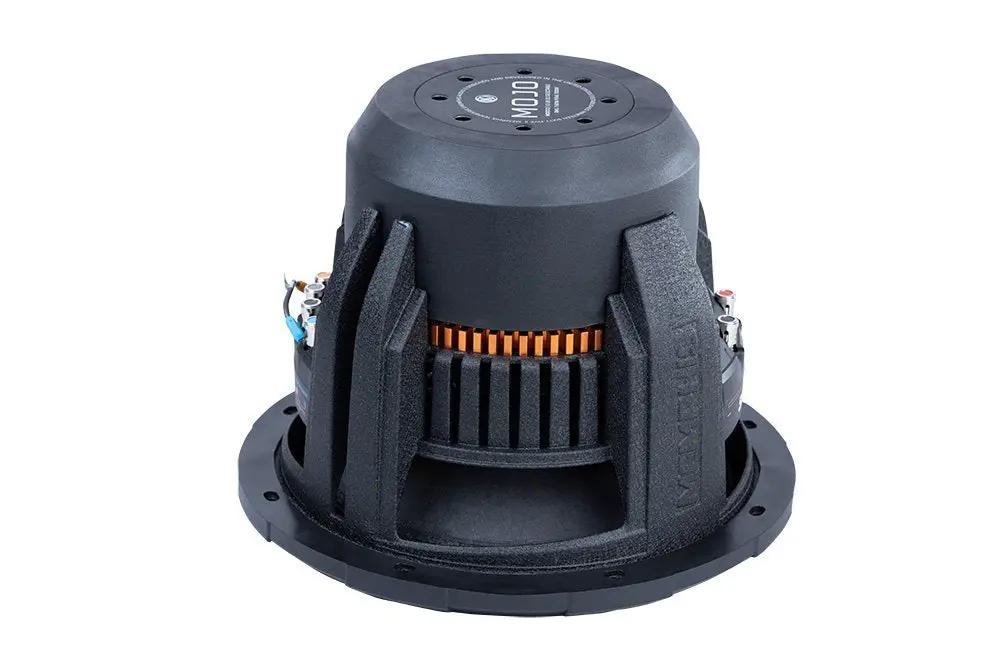

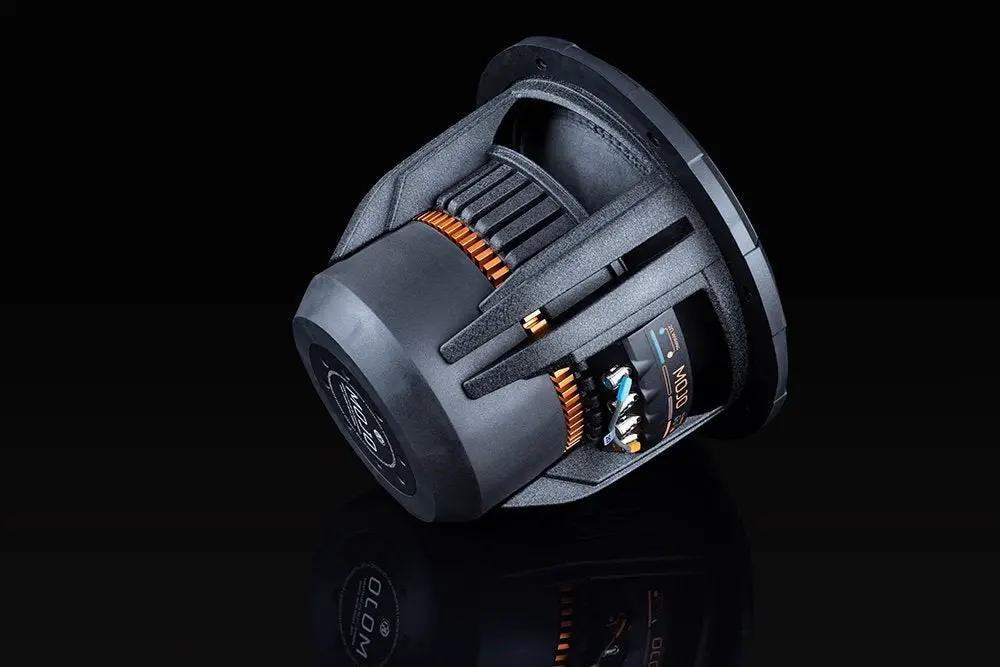

- Reinforced construction: The subwoofer combines a vented cast-aluminum basket, reinforced spider, fiberglass-reinforced dust cap, and 230-ounce magnet.
Memphis MOJO1212 12" 1500W RMS Selectable 1/2-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Memphis MOJO1212 12" 1500W RMS Selectable 1/2-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a serious bass system around the Memphis MOJO1212 12-inch subwoofer, rated for 1500W RMS and 3000W peak power handling. Its FLEX selectable impedance lets an installer configure a 1- or 2-ohm load, while the folded surround supports long cone travel without reducing effective radiating area.
Key Features & Benefits
- Selectable impedance: FLEX technology offers 1- or 2-ohm load configuration.
- Triple voice coil: The 3.5-inch aluminum triple voice coil is part of the subwoofer’s selectable-impedance design.
- Voice-coil cooling: Direct Vent Voice Coil cooling is built into the subwoofer.

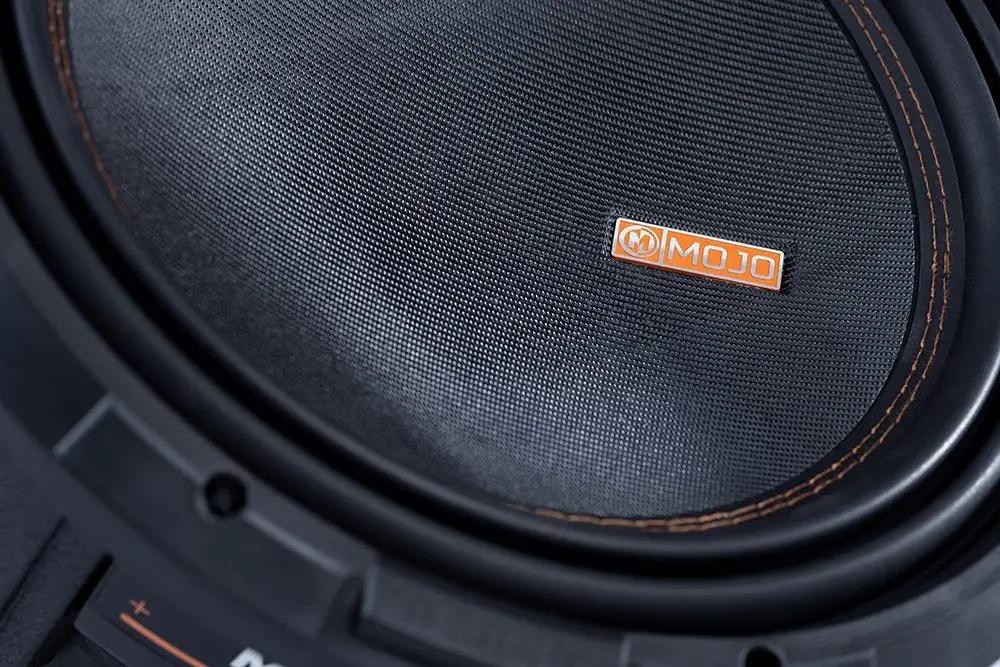

- Long-travel surround: The double-stitched V-groove folded surround supports long cone travel while preserving effective radiating area.
- Reinforced construction: The subwoofer combines a vented cast-aluminum basket, reinforced spider, fiberglass-reinforced dust cap, and 230-ounce magnet.
Technical Specifications
| Nominal size | 12 inches |
|---|---|
| Power handling | 1500W RMS / 3000W peak |
| Selectable impedance | 1 or 2 ohms |
| Sensitivity | 83.5 dB at 1 ohm; 84 dB at 2 ohms |
| Mounting depth | 8.58 inches |
| Cutout diameter | 10.7 inches |
| Voice-coil diameter | 3.5 inches |
| Voice-coil construction | Aluminum triple voice coil |
| Cooling system | Direct Vent Voice Coil |
| Basket | Vented cast aluminum |
| Surround | Double-stitched V-groove folded surround |
| Dust cap | Fiberglass-reinforced |
| Magnet | 230 ounces |
| Package contents | Single raw subwoofer |
A suitable enclosure and amplifier are required; neither is included.
Why Choose This Product?
The MOJO1212 pairs high power handling with selectable 1- or 2-ohm impedance, giving an installer options when planning the system’s load. Its long-travel folded surround and Direct Vent Voice Coil cooling system are specific design features for a subwoofer built for serious bass systems.
Installation & Compatibility Notes
Allow for the 8.58-inch mounting depth and 10.7-inch cutout diameter when checking enclosure fit. Confirm that the selected impedance and power handling suit the amplifier and system design. A suitable enclosure and amplifier must be supplied separately.
Frequently Asked Questions
What impedance can the MOJO1212 be configured for?
Its FLEX selectable-impedance design supports a 1- or 2-ohm load. Match the chosen configuration to the amplifier and system design.
What do the RMS and peak power ratings mean?
The listed power handling is 1500W RMS / 3000W peak. Consider the RMS rating when matching an amplifier.
What mounting space does this subwoofer need?
Its mounting depth is 8.58 inches, and its cutout diameter is 10.7 inches. Check both measurements against the enclosure before installation.
Are an enclosure and amplifier included?
No. The package is a single raw subwoofer; a suitable enclosure and amplifier are required and sold separately.
