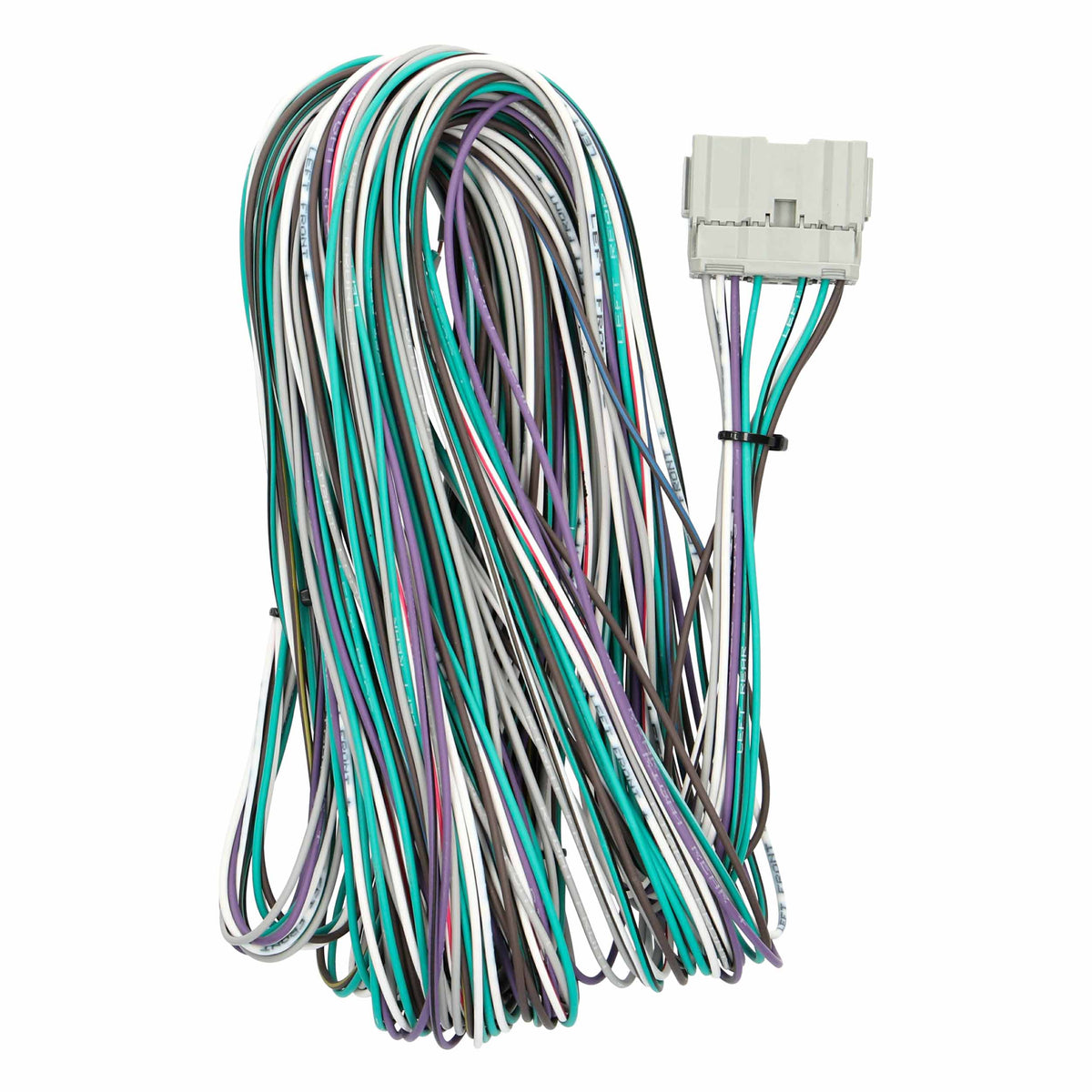

Amp Bypass Harness - Honda Element 2003-2011 — 70-1726
Key features
- For select Honda Element 2003-2011
- Factory subwoofer is not retained in select vehicles

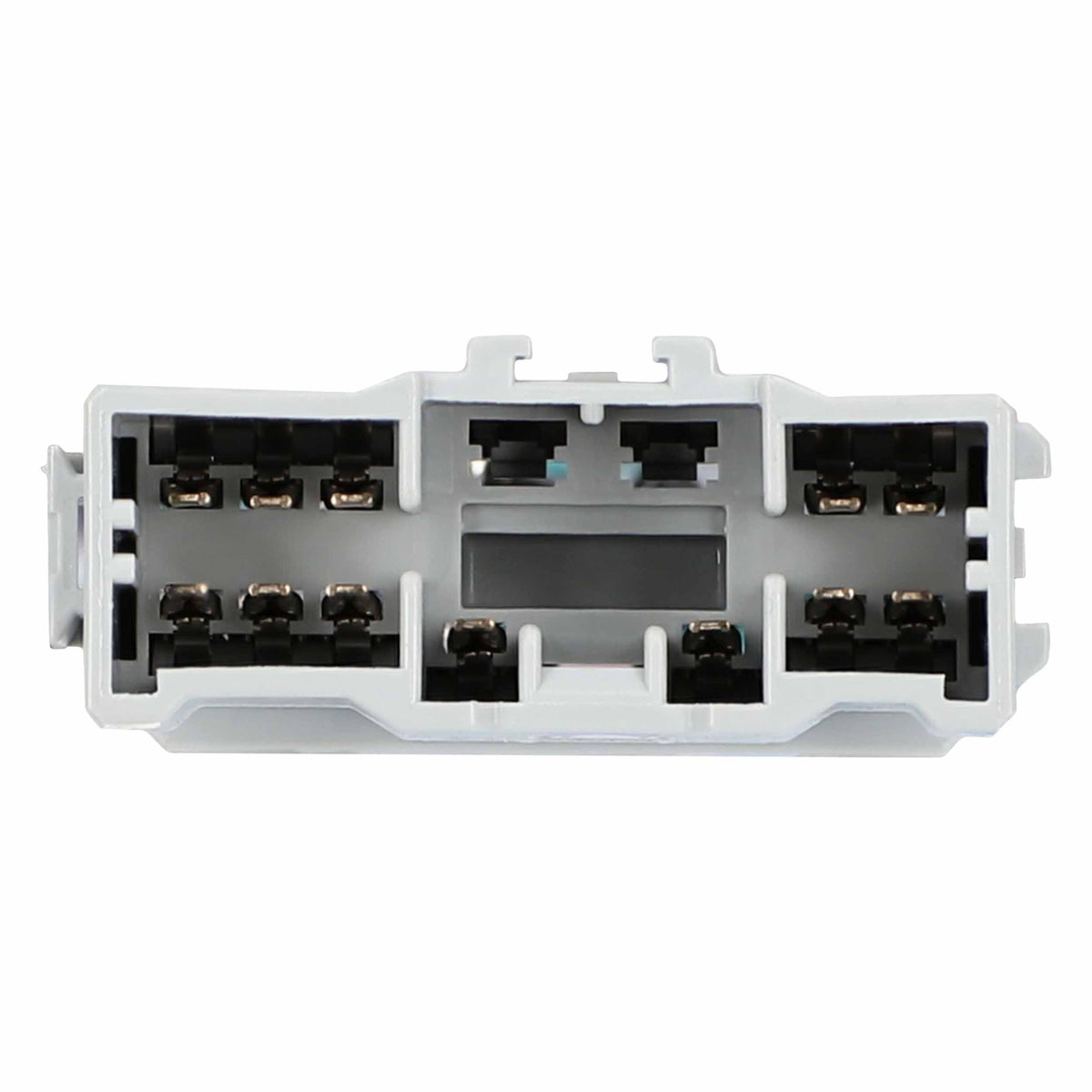

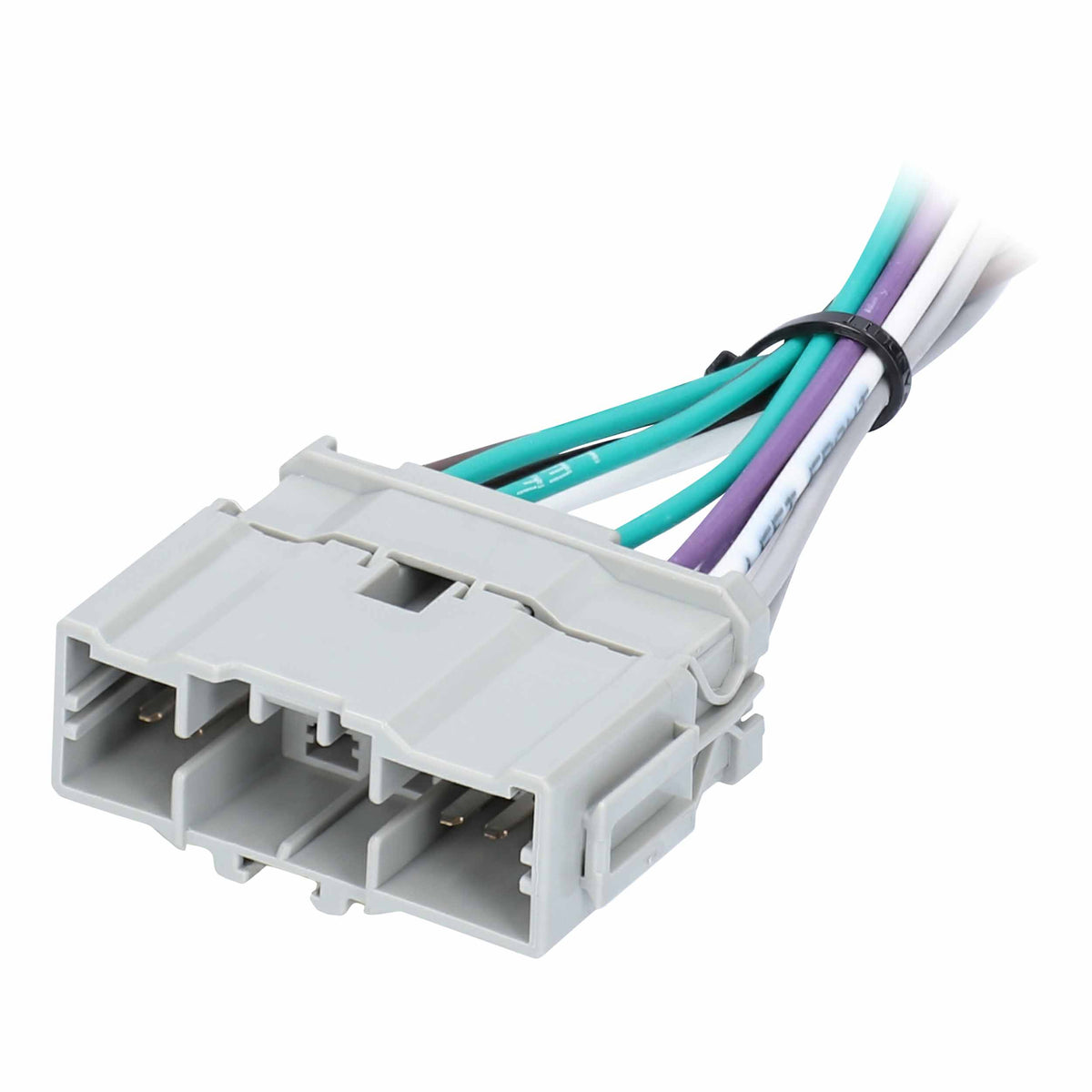

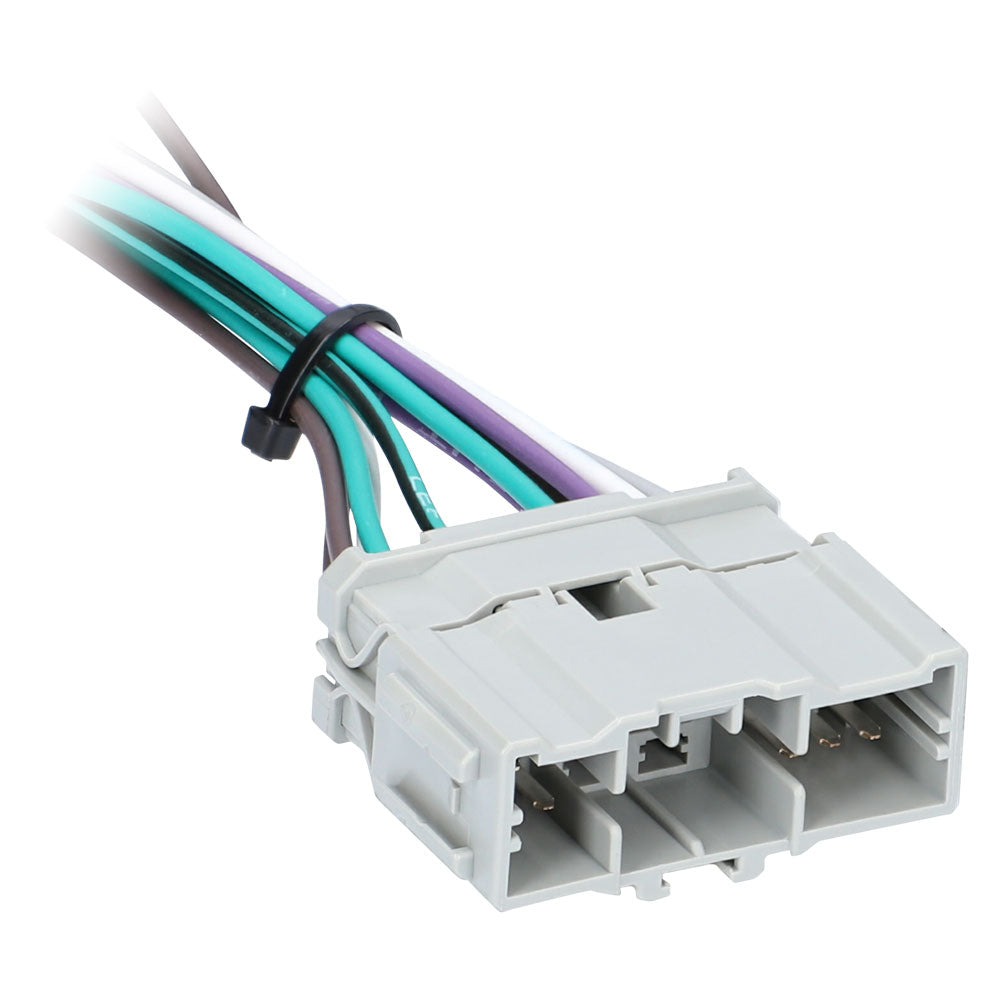

- Plugs into the car's original radio connectors on one side as well as the factory amplifier
- Wire Colors for Bypass Harness Green / White Sub Coil 1(+) White / Red Sub Coil 1 (-) Brown / Yellow Sub Coil 2 (+) Brown / Blue Sub Coil 2 (-)
- Harness length is 204"
- No wire cutting needed for factory radio connectors
Amp Bypass Harness - Honda Element 2003-2011 — 70-1726 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Connect an aftermarket radio in a 2003–2011 Honda Element with the 70-1726 factory amplifier bypass harness. Its vehicle-specific connectors mate with the original radio connections and factory amplifier, while color-coded leads connect to your new receiver.
Key Features & Benefits
- Vehicle-specific connections: Connects to the factory radio connectors without cutting each factory wire.
- Aftermarket radio leads: Color-coded wires make it easier to identify connections to the new receiver.
- Radio power: Provides electrical power to the radio.
- Long harness: The 204-inch length gives you the specified harness reach for installation routing.
- Installation help: A tech support number is available 7 days a week.
Technical Specifications
| Product | Amp Bypass Harness |
|---|---|
| Model | 70-1726 |
| Vehicle fitment | Honda Element 2003–2011 |
| Harness length | 204" |
| Factory amp location | Passenger Side Kick Panel |
| Sub Coil 1 (+) | Green / White |
| Sub Coil 1 (-) | White / Red |
| Sub Coil 2 (+) | Brown / Yellow |
| Sub Coil 2 (-) | Brown / Blue |

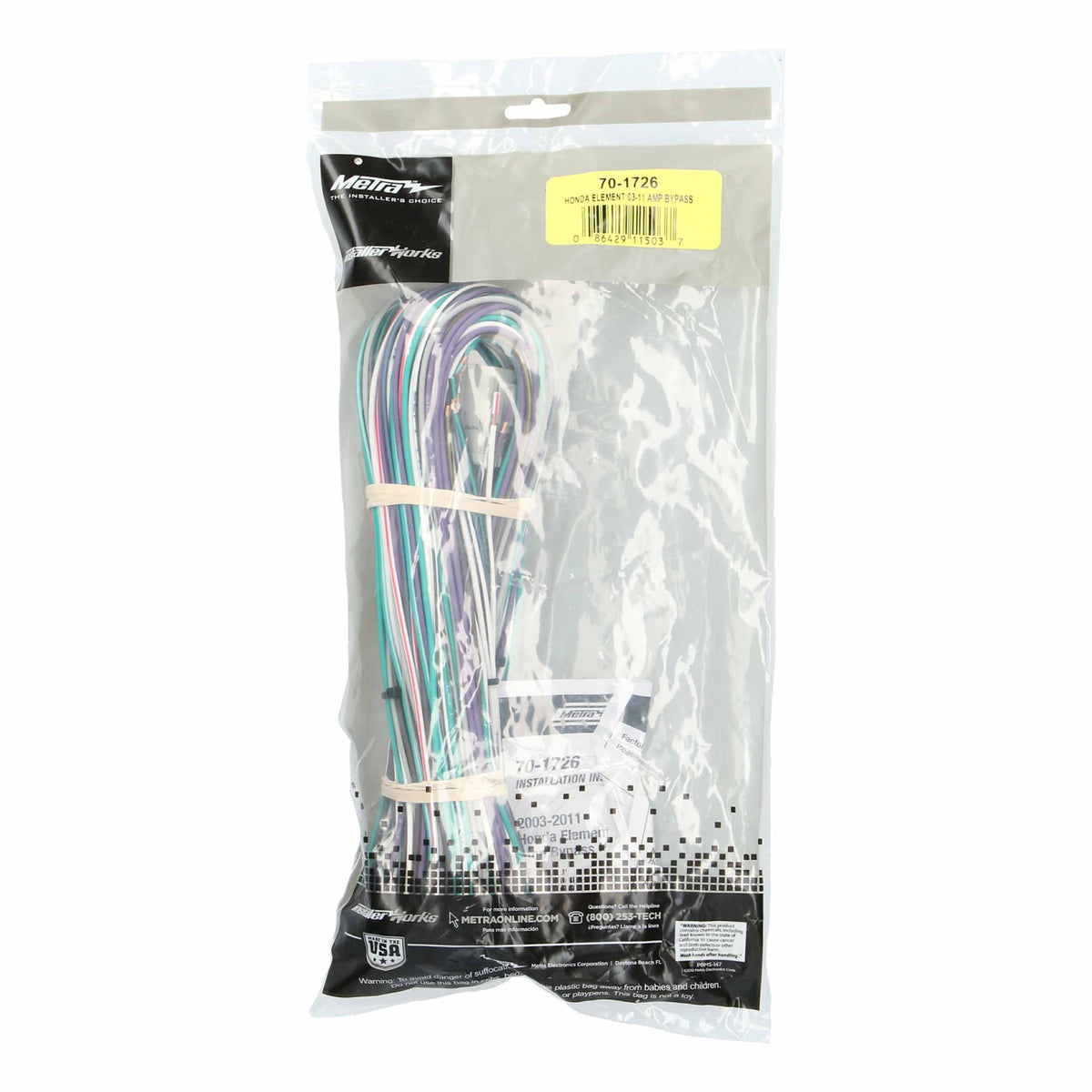

| Other wire colors | Standard EIA / Metra color code; the code is on the back of the package. |
| Factory subwoofer | Not retained in select vehicles. |
| Subwoofer note | Honda uses a dual voice coil subwoofer that needs to be crossed over to avoid damage to it. |
Why Choose This Product?
The 70-1726 keeps the factory radio connectors intact while providing color-coded leads for the aftermarket receiver. Its connection points are intended for the Honda Element application listed above, and the harness also connects at the factory amplifier.
Note the factory subwoofer details before planning the installation. It is not retained in select vehicles, and the Honda dual voice coil subwoofer needs to be crossed over to avoid damage.
Installation & Compatibility Notes
Connect the harness’s color-coded wires to the aftermarket radio or receiver. They may be connected or soldered. The vehicle-specific side plugs into the original radio connectors, avoiding the need to cut each factory wire.
A dash kit, antenna adapter, or special interface adapter may also be needed, depending on the vehicle and functions you want to retain. Such an interface may be needed for steering-wheel audio controls or functions such as navigation and video. Check your vehicle’s installation requirements before purchasing additional parts.
Frequently Asked Questions
Which Honda Element years does the 70-1726 fit?
It is listed for the Honda Element from 2003 through 2011.
Do I need to cut the factory radio wires?
The harness plugs into the original radio connectors, so you do not need to cut each factory wire. The color-coded leads connect to the aftermarket radio.
Will the factory subwoofer remain connected?
The factory subwoofer is not retained in select vehicles. Honda’s dual voice coil subwoofer needs to be crossed over to avoid damage.
What other parts might the installation require?
Depending on your vehicle, you may need a dash kit, antenna adapter, or special interface adapter to retain steering-wheel audio controls or other functions.
Where is the factory amplifier located?
Its listed location is the passenger-side kick panel.
