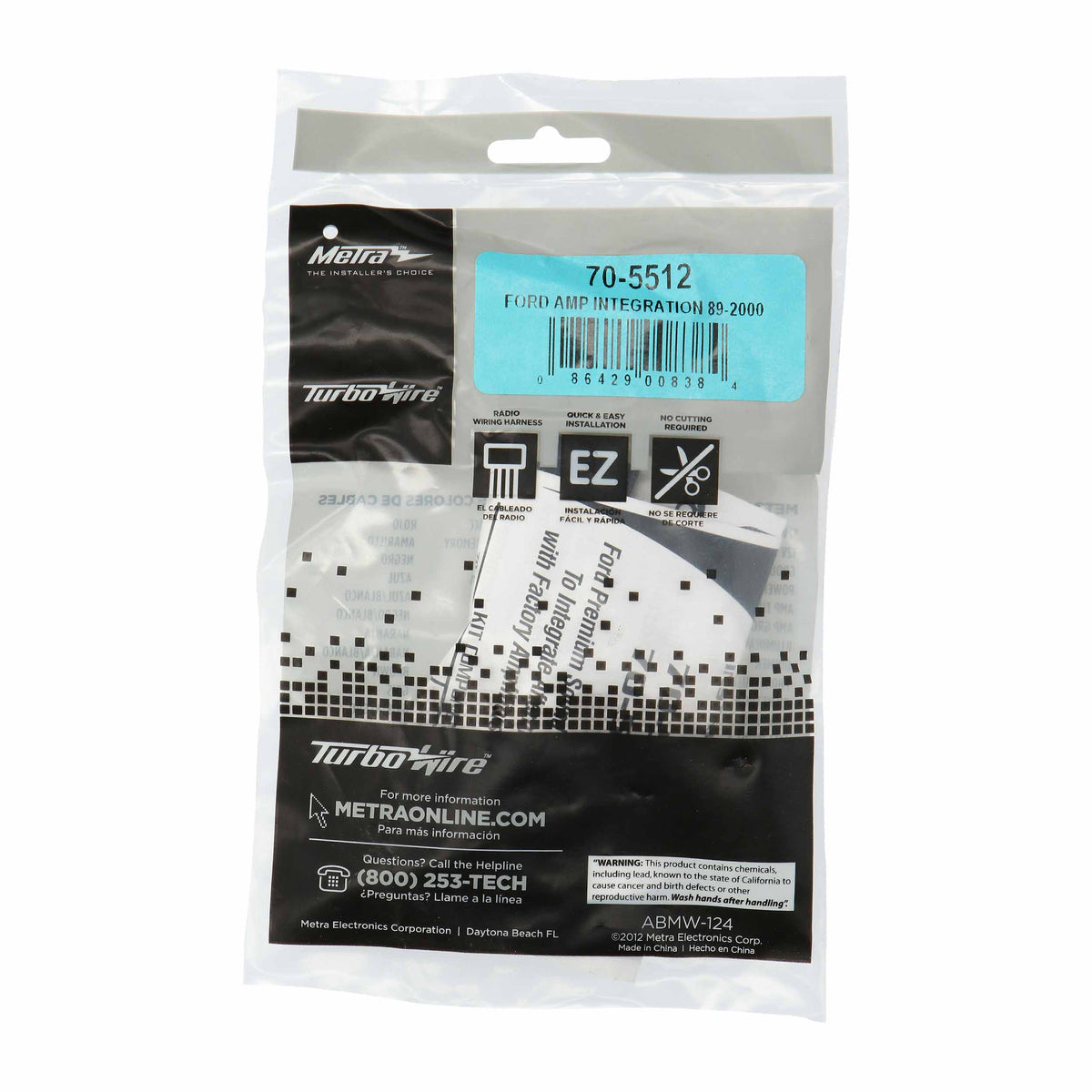

Amp Integration Harness - Ford 1989-2000 — 70-5512
Key features
- For select Ford 1989-2000
- Plugs into the car's original radio connectors on one side
- Designed for aftermarket radios that are 35 watts or less
- Includes (1) 8-pin power plug and (1) 8-pin speaker plug
- No wire cutting needed for factory radio connectors
Amp Integration Harness - Ford 1989-2000 — 70-5512 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Connect an aftermarket radio to the factory radio connectors in a compatible Ford without cutting the vehicle-side wires. The 70-5512 amplifier integration harness is designed for aftermarket radios rated at 35 watts or less and covers Ford applications from 1989 to 2000.
Key Features & Benefits

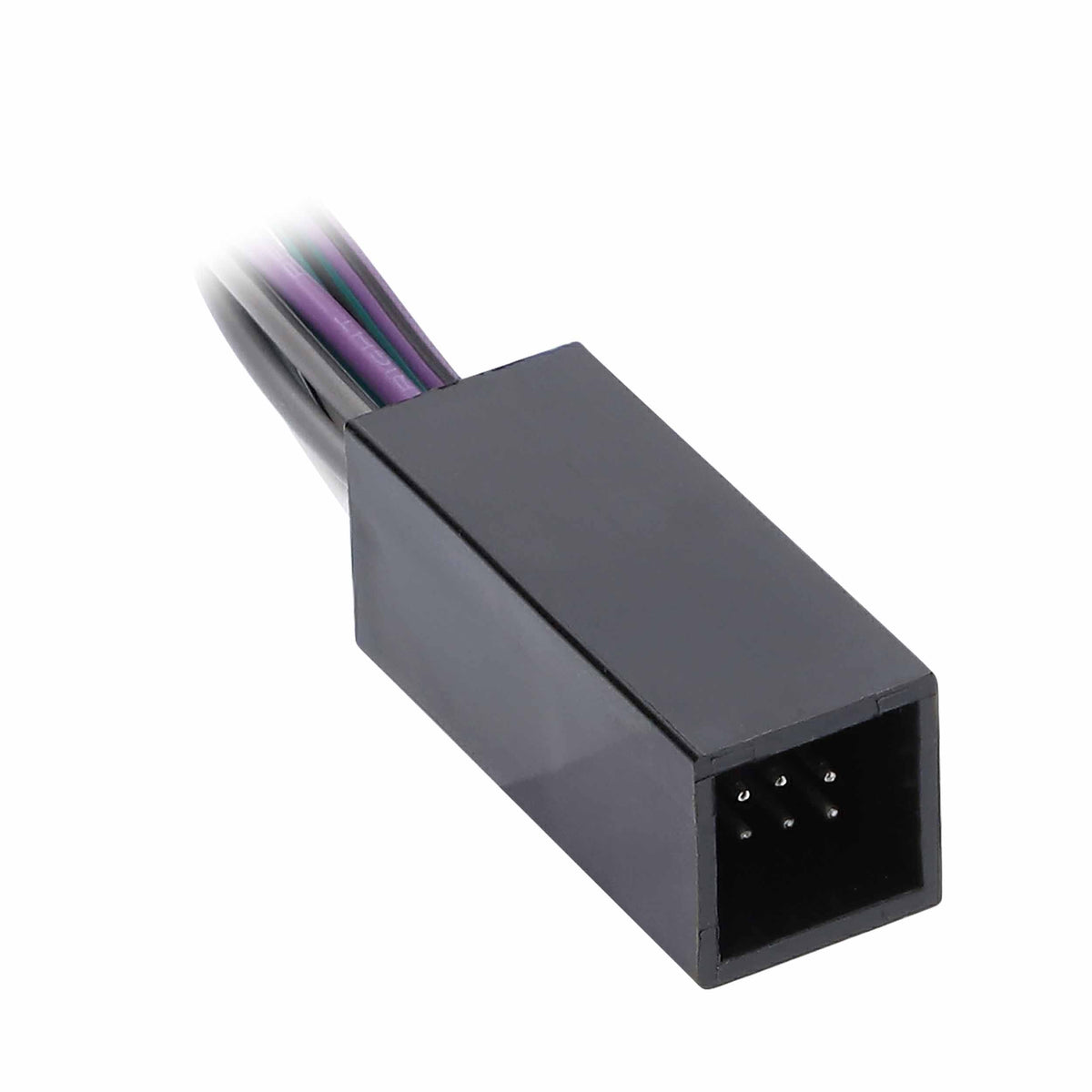

- Vehicle-side adapter: Plugs into the original radio connectors, avoiding cuts to the factory connector wiring.

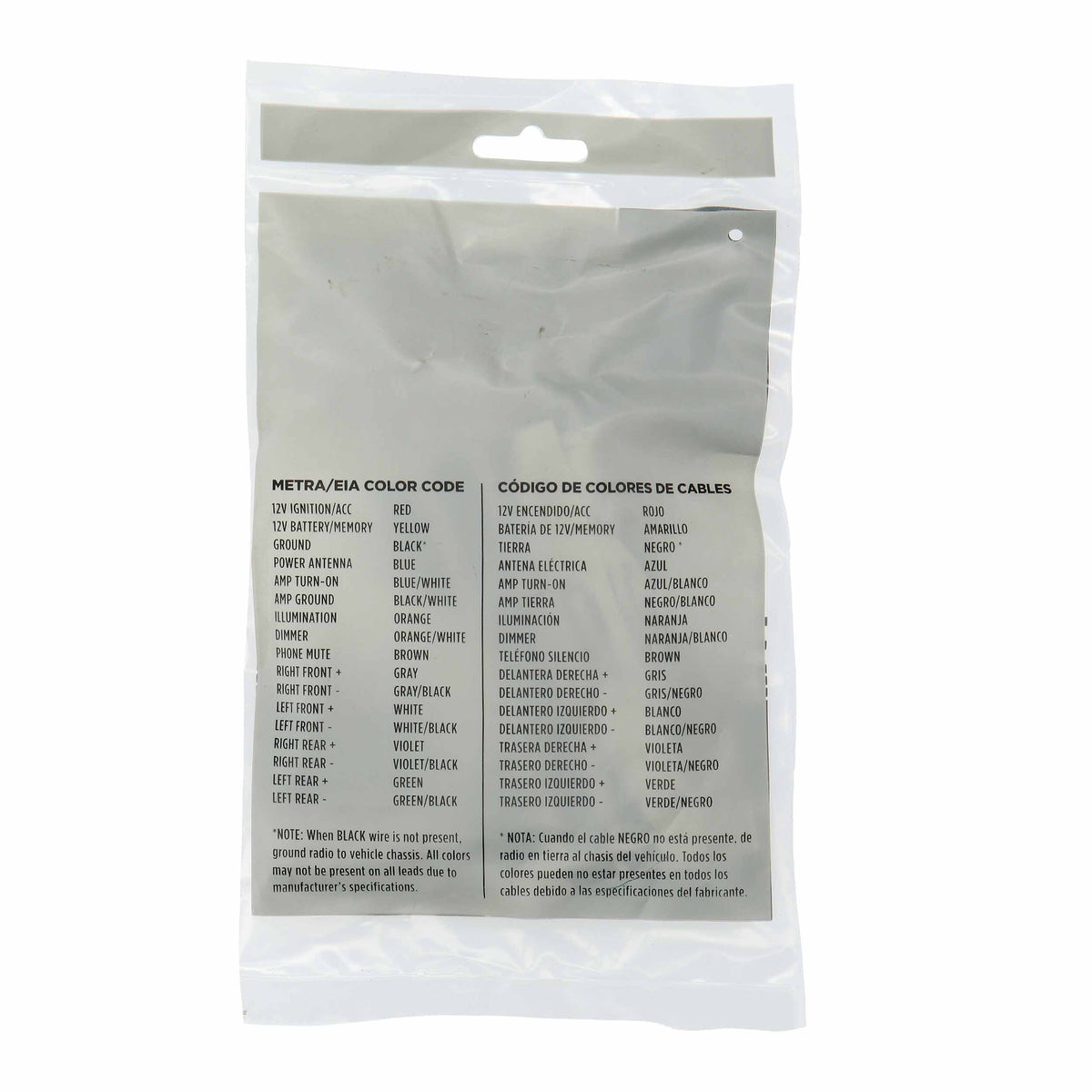

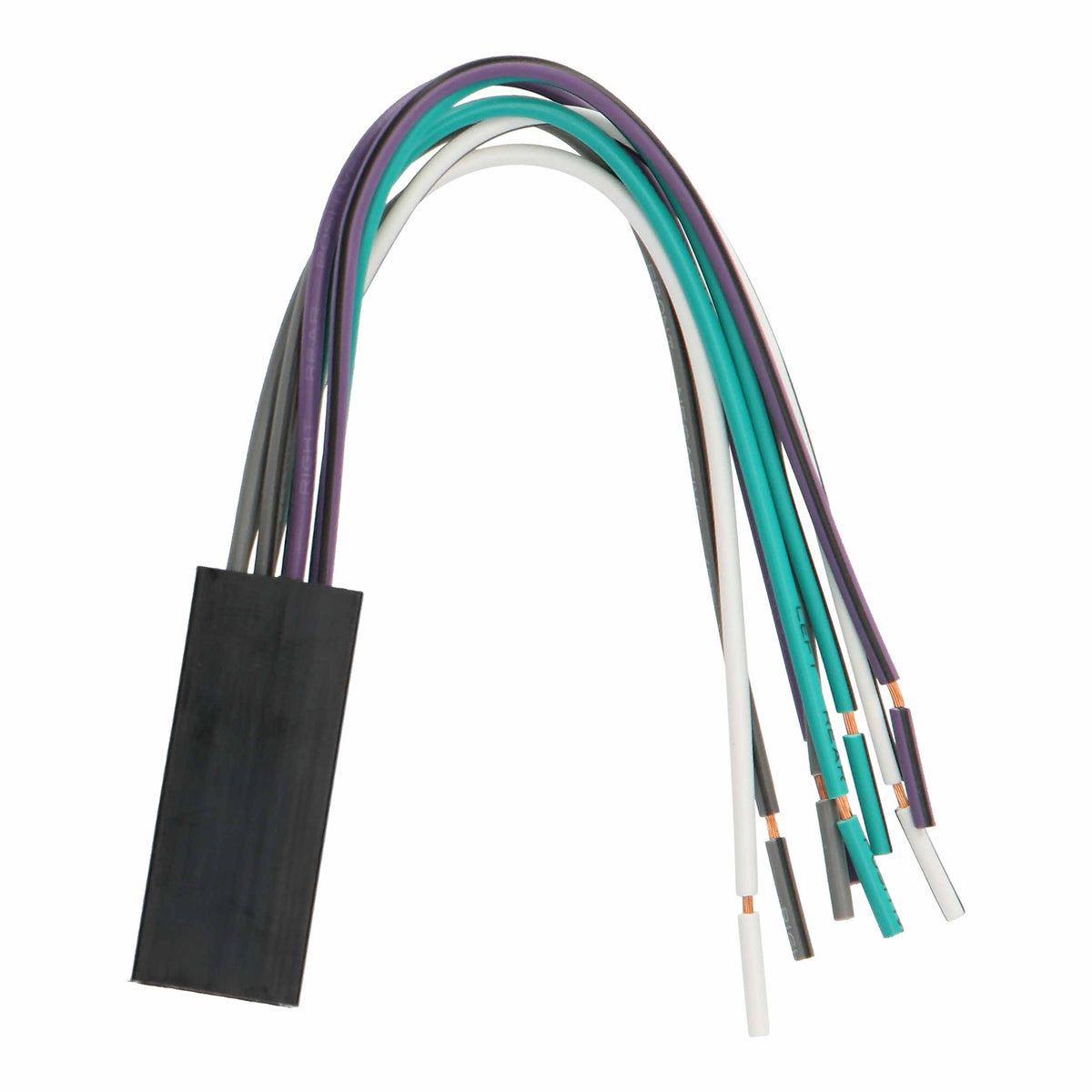

- Color-coded wires: Connect or solder the harness wires to the aftermarket radio.

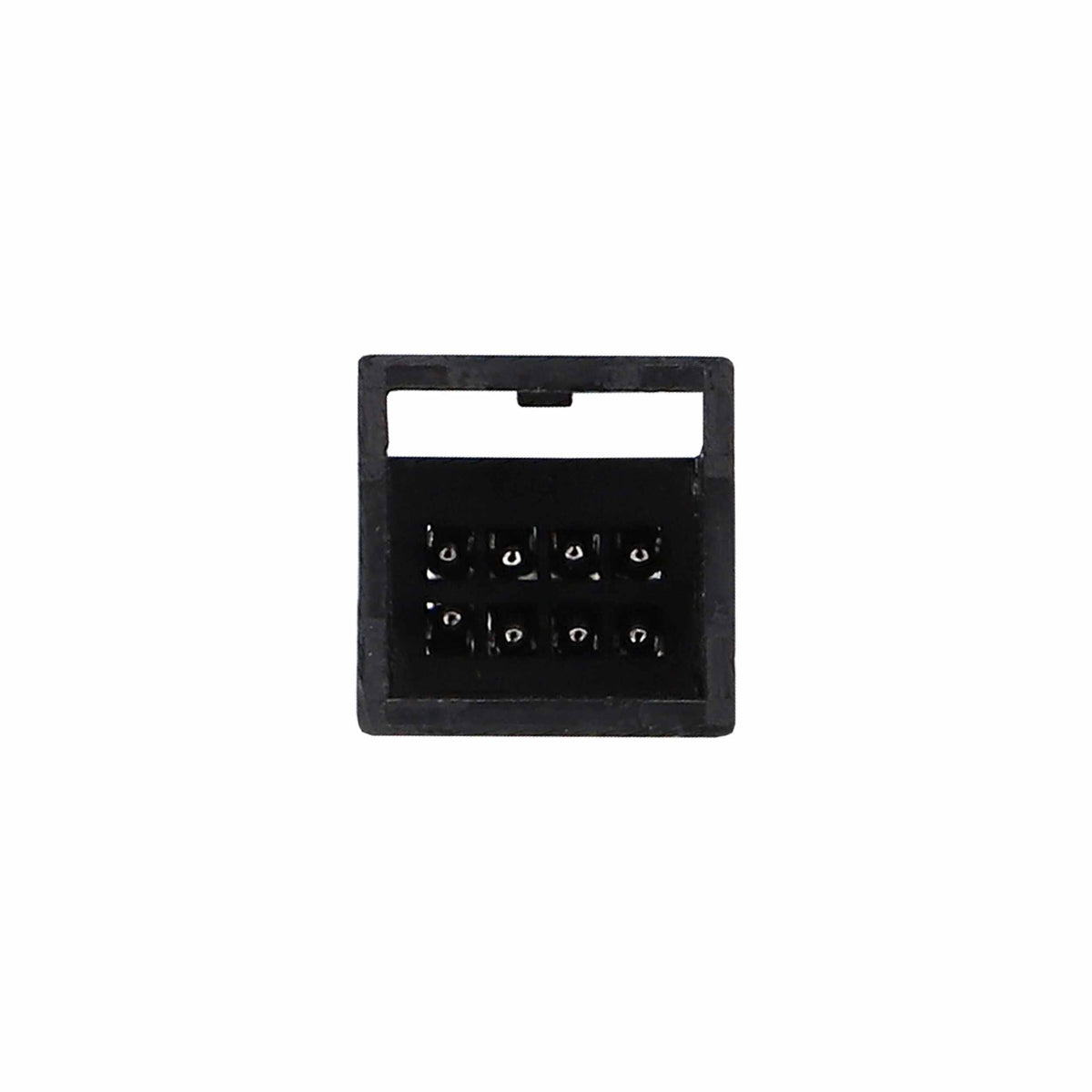

- Two included plugs: Comes with one 8-pin power plug and one 8-pin speaker plug.
- Power limit: Designed for aftermarket radios rated at 35 watts or less.
- Installation help: A tech support number is available seven days a week.
Technical Specifications
| Product | Amp integration harness |
|---|---|
| Model | 70-5512 |
| Vehicle application | Ford, 1989–2000 |
| Aftermarket radio rating | 35 watts or less |
| Included connectors | (1) 8-pin power plug and (1) 8-pin speaker plug |
| Vehicle-side connection | Original radio connectors |
| Aftermarket radio connection | Color-coded wires for connection or soldering |
Why Choose This Product?
The 70-5512 provides a vehicle-specific connection at the factory radio plugs, while its color-coded wires give you connection points for the aftermarket radio. This separates the factory connector connection from the wiring work needed on the new radio side.
Installation & Compatibility Notes
Confirm that your exact Ford model is compatible before purchase. This harness is designed for aftermarket radios rated at 35 watts or less. Connecting its color-coded wires to the radio may require connecting or soldering.
A dash kit or antenna adapter may also be needed. Depending on the vehicle, a separate interface adapter may be required to retain steering-wheel audio controls or functions such as navigation and video.
Frequently Asked Questions
Which vehicles does the 70-5512 fit?
It is listed for Ford applications from 1989 to 2000. Check compatibility for your exact vehicle model before purchasing.
What radio power rating is this harness designed for?
It is designed for aftermarket radios rated at 35 watts or less.
What connectors are included?
The harness includes one 8-pin power plug and one 8-pin speaker plug.
Does installation require cutting the factory radio wires?
The vehicle-side adapter plugs into the original radio connectors, so those factory connector wires do not need to be cut. The color-coded wires connect or solder to the aftermarket radio.
Could I need additional installation parts?
A dash kit or antenna adapter may be needed. Some vehicles also require a special interface adapter to retain steering-wheel audio controls or other functions.
