Amp Bypass Harness - Ford | Lincoln | Mazda | Mercury | Nissan 1989-1997 — 70-5513
Key features
- For select Ford / Lincoln / Mazda / Mercury / Nissan 1989-1997
- To be used as a jumper bypassing the factory amplifier
- Plugs into pre-amp harness and into speaker harness at amp
- No wire cutting needed for factory radio connectors
- Color-coded wires on the other side are connected to the aftermarket radio
- Provides electrical power to the radio
Amp Bypass Harness - Ford | Lincoln | Mazda | Mercury | Nissan 1989-1997 — 70-5513 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

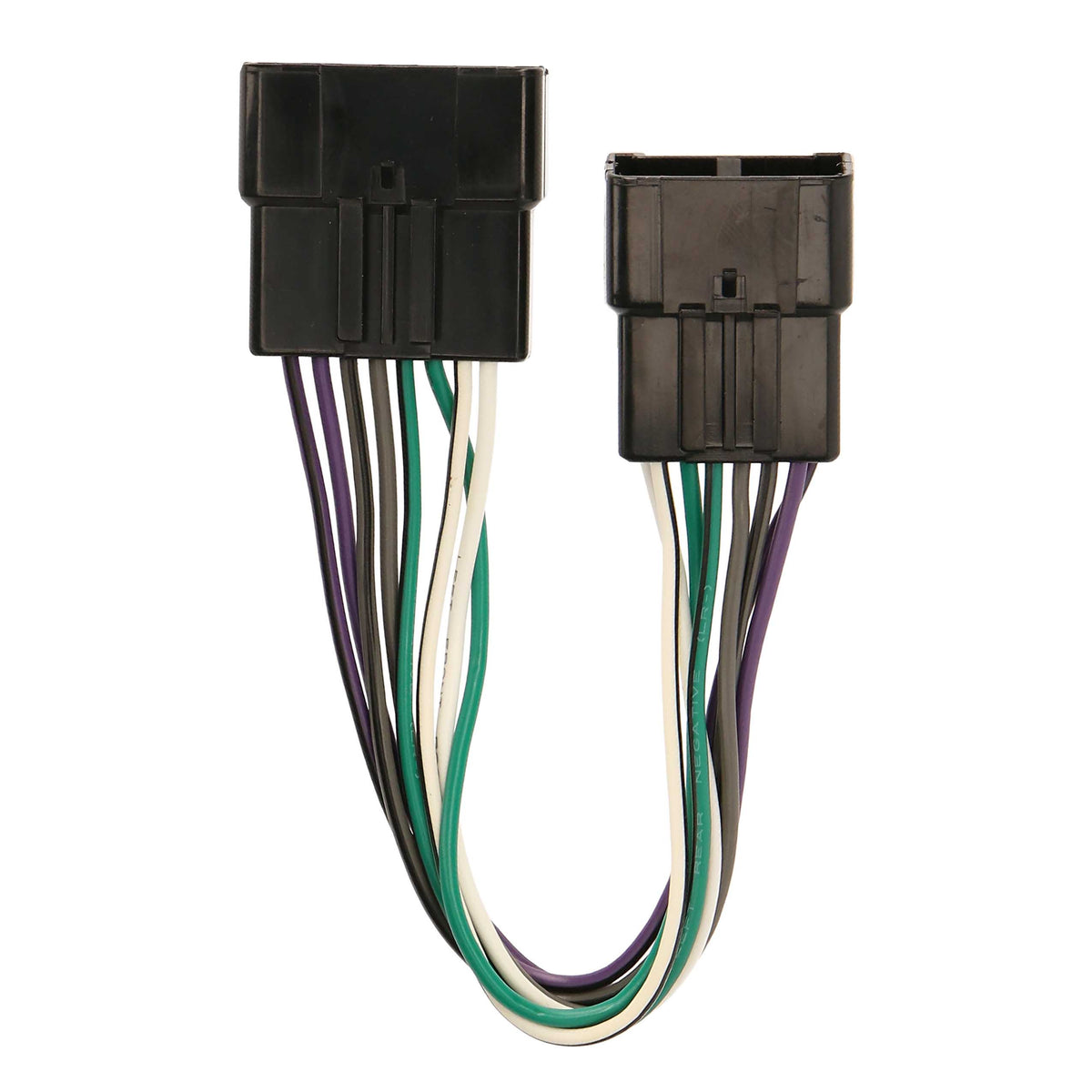

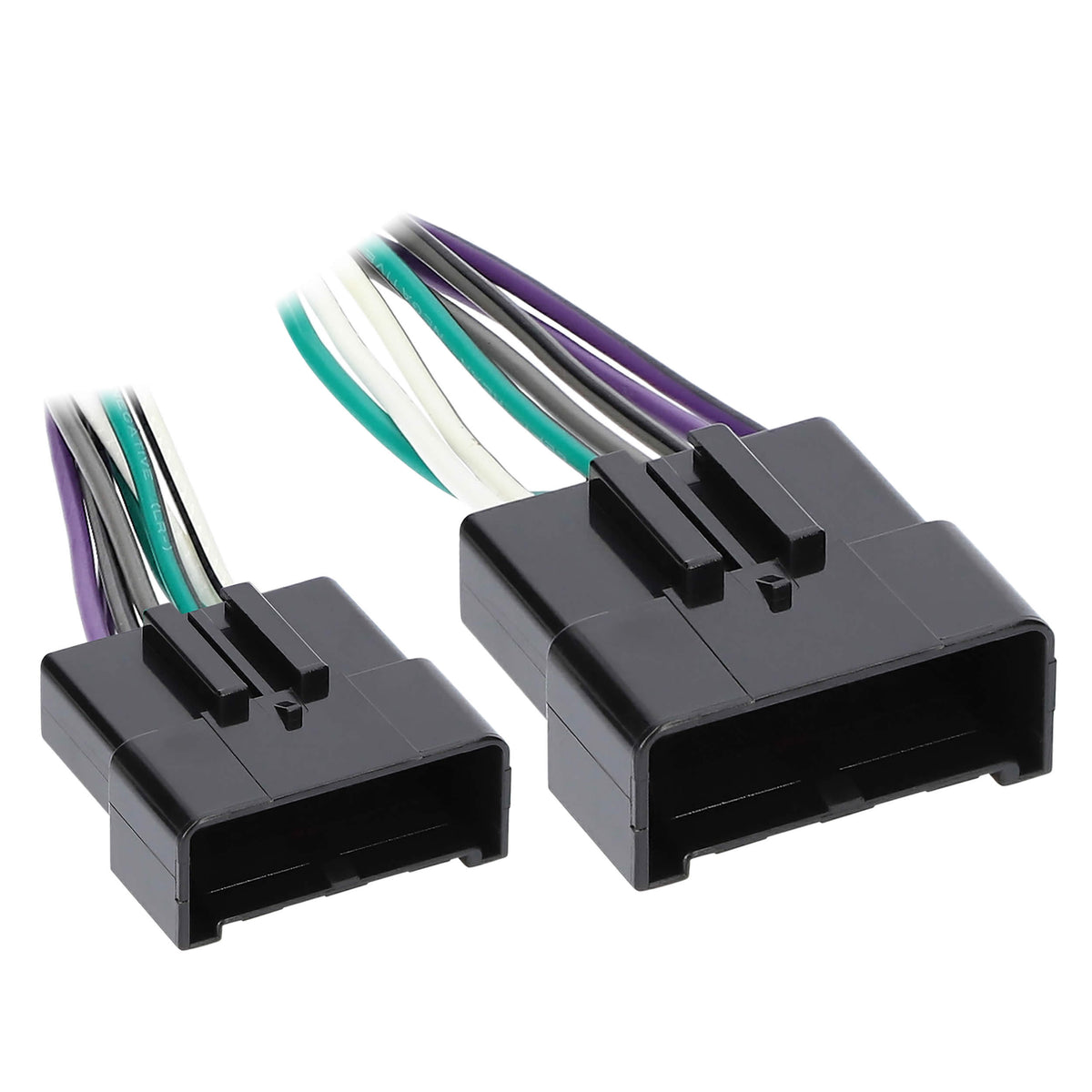

Use the 70-5513 amplifier bypass harness to connect an aftermarket radio in a compatible Ford, Lincoln, Mazda, Mercury, or Nissan vehicle from 1989–1997. It connects at the factory amplifier and provides electrical power to the radio, while its color-coded wires connect to the aftermarket receiver.
The vehicle-specific adapter plugs into the original radio connectors, so you can make the connection without cutting those factory wires. Check your vehicle’s requirements before starting, since additional installation parts may be needed.
Key Features & Benefits
- Amplifier bypass design: Use it as a jumper between the pre-amp harness and speaker harness at the factory amplifier.
- Factory connector fit: Connect to the original radio connectors without cutting each factory wire.

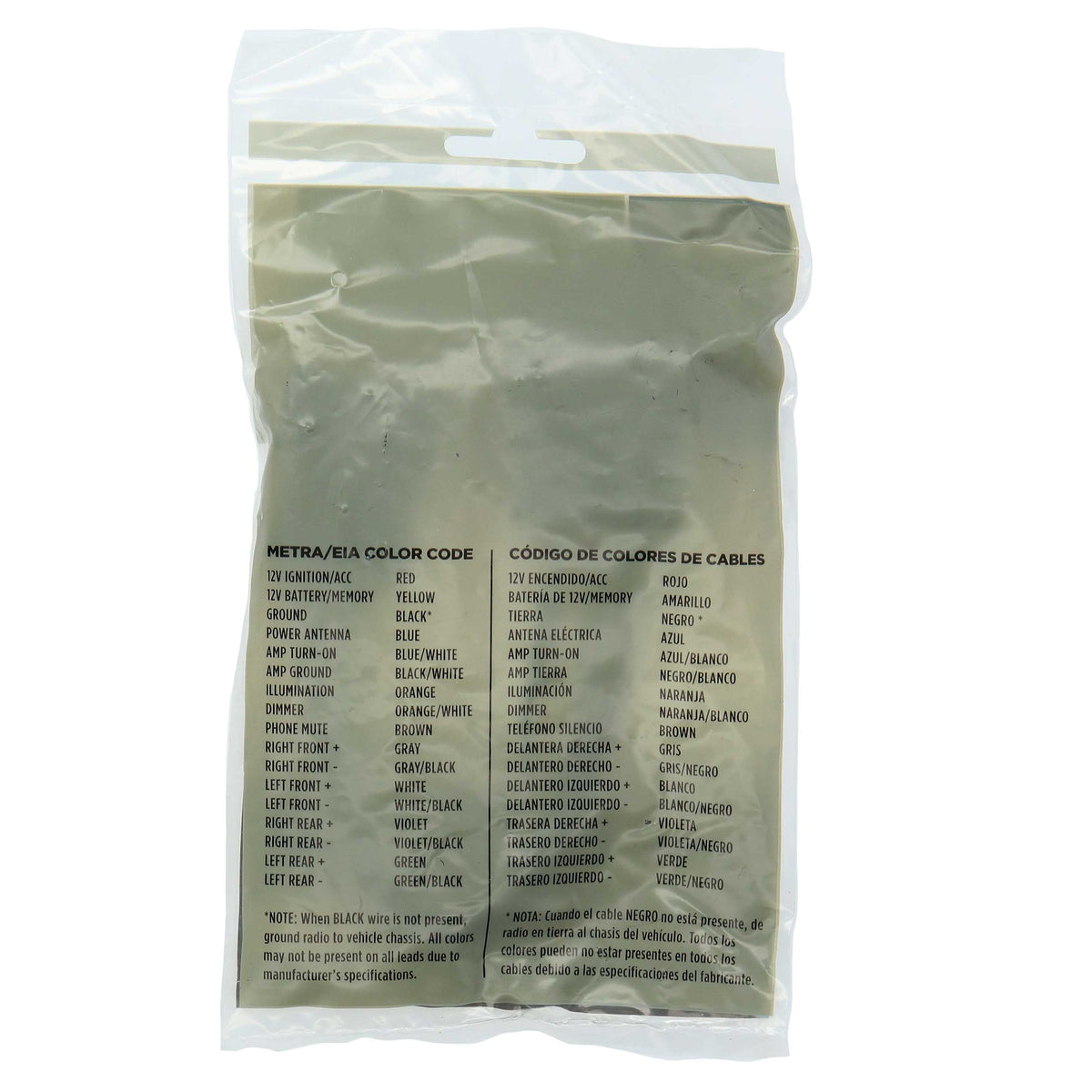

- Color-coded leads: Identify the wires to connect or solder to your aftermarket radio.
- Radio power: The harness provides electrical power to the radio.
Technical Specifications
| Product | Amp Bypass Harness |
|---|---|
| Model | 70-5513 |
| Vehicle makes | Ford, Lincoln, Mazda, Mercury, Nissan |
| Fitment years | 1989–1997 |
| Connection points | Pre-amp harness and speaker harness at amplifier; original radio connectors |
| Wire leads | Color-coded wires for connection to the aftermarket radio |
Why Choose This Product?
This harness is designed for installations that bypass a factory amplifier while connecting an aftermarket radio. Its vehicle-specific adapter connects to the original radio plugs, and the color-coded leads give you the wires to connect or solder to the new receiver.
Because the harness works at the amplifier’s pre-amp and speaker harness connections, confirm that your vehicle’s factory setup matches these connection points before choosing it.
Installation & Compatibility Notes
The listed application covers Ford, Lincoln, Mazda, Mercury, and Nissan vehicles from 1989–1997. Confirm your vehicle’s year, make, model, and factory audio configuration before installation.
Connect the vehicle-specific adapter to the original radio connectors, then connect or solder the color-coded wires to the aftermarket radio. Depending on your vehicle and installation, a dash kit, antenna adapter, or special interface adapter may also be needed. An interface adapter may be required to retain steering-wheel audio controls or functions such as navigation or video.
Frequently Asked Questions
What does the 70-5513 harness do?
It serves as a jumper to bypass the factory amplifier and provides electrical power to the aftermarket radio.
Where does the harness connect?
It connects to the pre-amp harness and speaker harness at the amplifier. Its vehicle-specific adapter connects to the original radio connectors.
Do I need to cut the factory radio wires?
The adapter connects to the original radio connectors without cutting each factory wire. The color-coded leads are connected or soldered to the aftermarket radio.
Will I need other installation parts?
Depending on your vehicle, you may need a dash kit, antenna adapter, or special interface adapter. An interface may be needed to retain certain vehicle functions.
